Black mid-tower case with fine mesh front panel and tempered glass side window

Phanteks

Phanteks XT Pro PH-XT523P1_BK01 mid-tower PC case black

SKU CH-PP8Z-4W058 MPN PH-XT523P1_BK01

Mid-tower chassis with fine-mesh front panel, tempered glass side and support for E-ATX boards, 415 mm GPU and 360 mm top radiator

  • TypeMid-Tower
  • ColorBlack
  • Case MaterialSteel Chassis, Tempered Glass Window, ABS plastic
  • Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
  • Side PanelYes, Side Tempered Glass
  • Internal 3.5" Drive Bays2x (1x if 2x SSD installed)

Options Pro (Black)

  • Supports E-ATX boards up to 280 mm wide
  • Ultra-fine mesh front panel and top dust filter for high airflow
  • Fits graphics cards up to 415 mm long without compromise
  • Top mounts a 360 mm radiator with no clearance restrictions
  • Front USB-C 3.0 and USB 3.0 ports for fast peripheral access

Mid-tower chassis with tempered glass

The Phanteks XT Pro PH-XT523P1_BK01 is a mid-tower case built from steel, ABS plastic and a tempered glass side panel. It accepts ATX, micro-ATX, mini-ITX and E-ATX boards up to 280 mm wide. A single 120 mm fan is pre-installed at the rear.

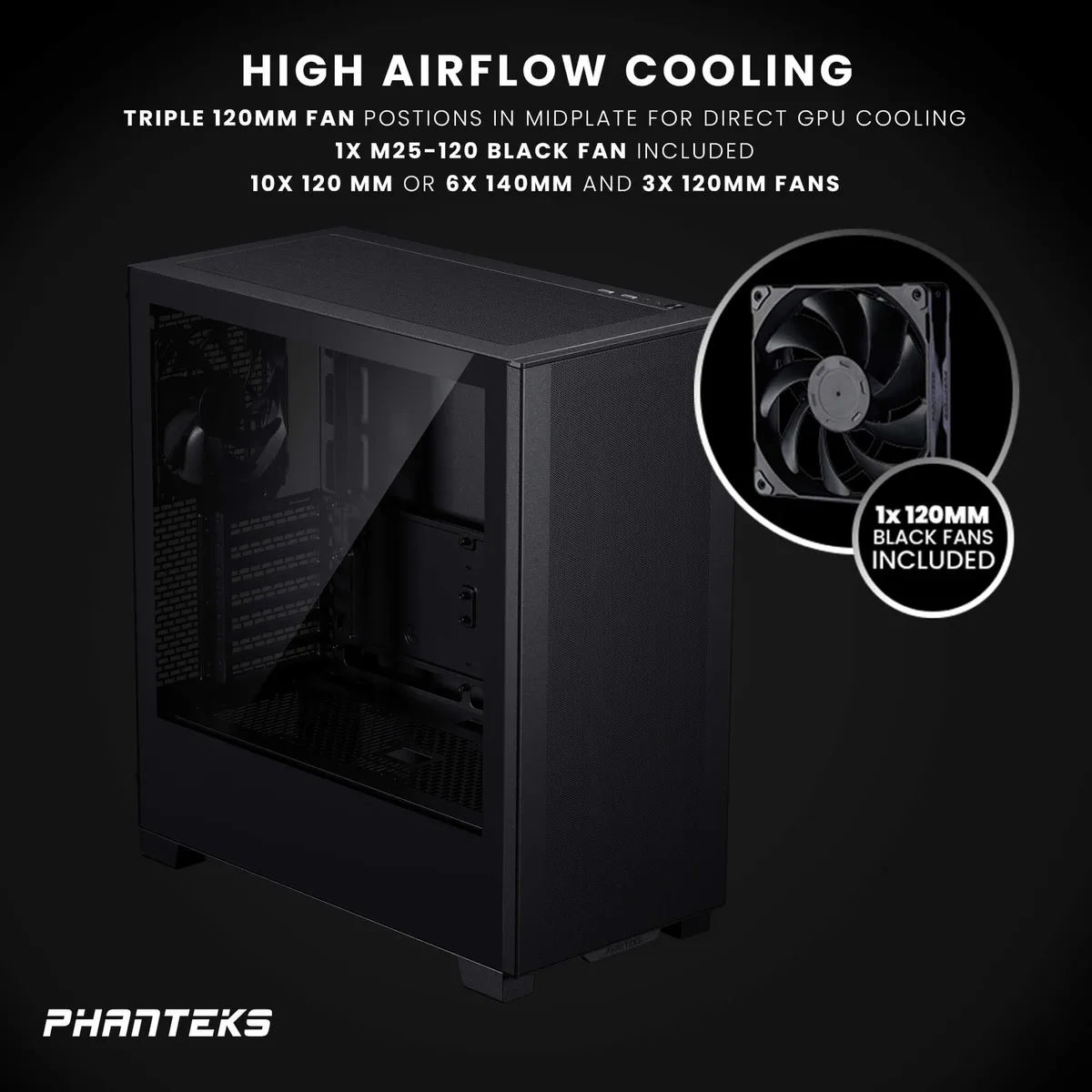

Ultra-fine mesh and flexible cooling

The front and top feature ultra-fine performance mesh and a dust filter to balance airflow and dust control. Builders can mount up to 10 x 120 mm or 6 x 140 mm fans plus 3 x 120 mm on the mid-plate. Radiator support reaches 360 mm at the top, 240 mm at the front and 120 mm at the rear.

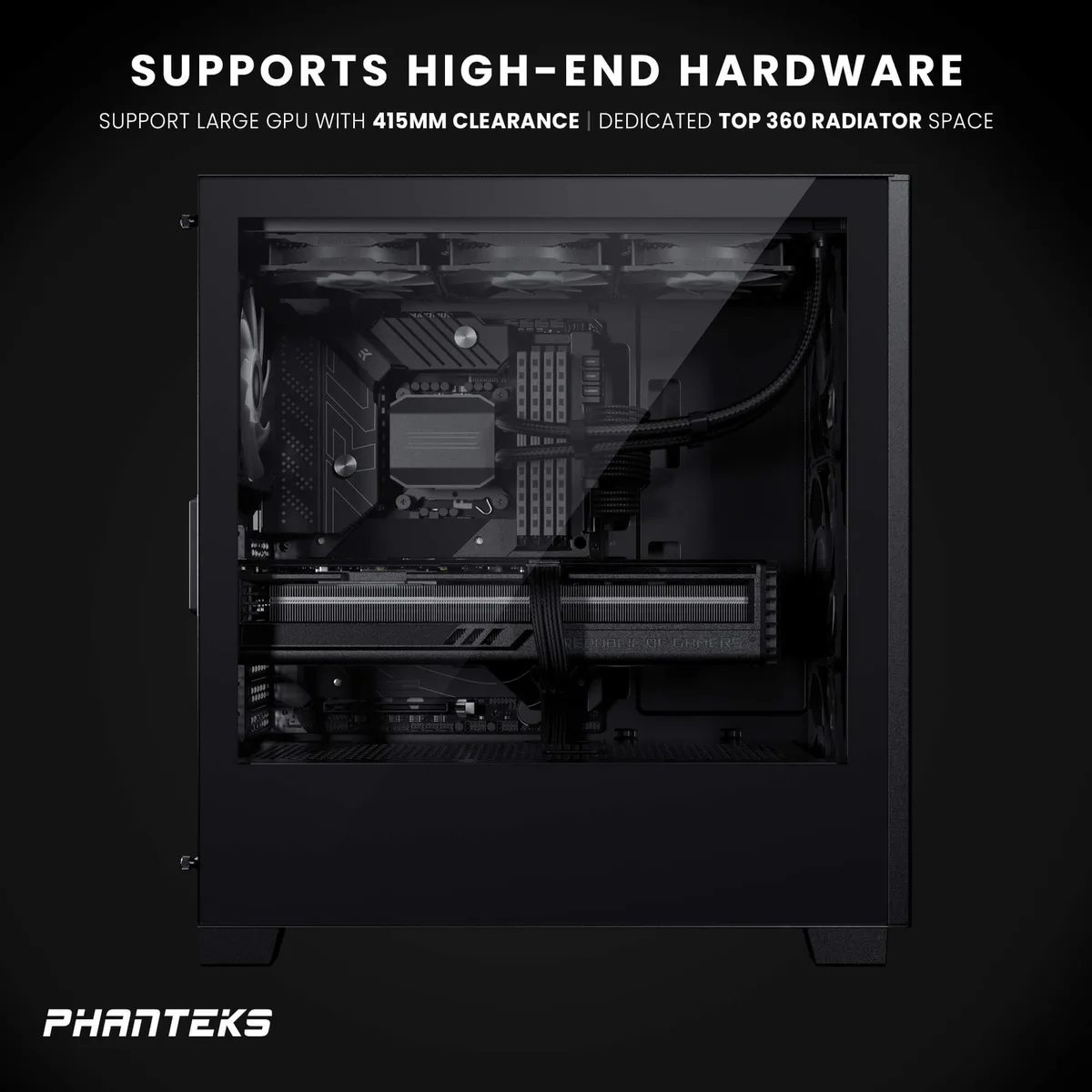

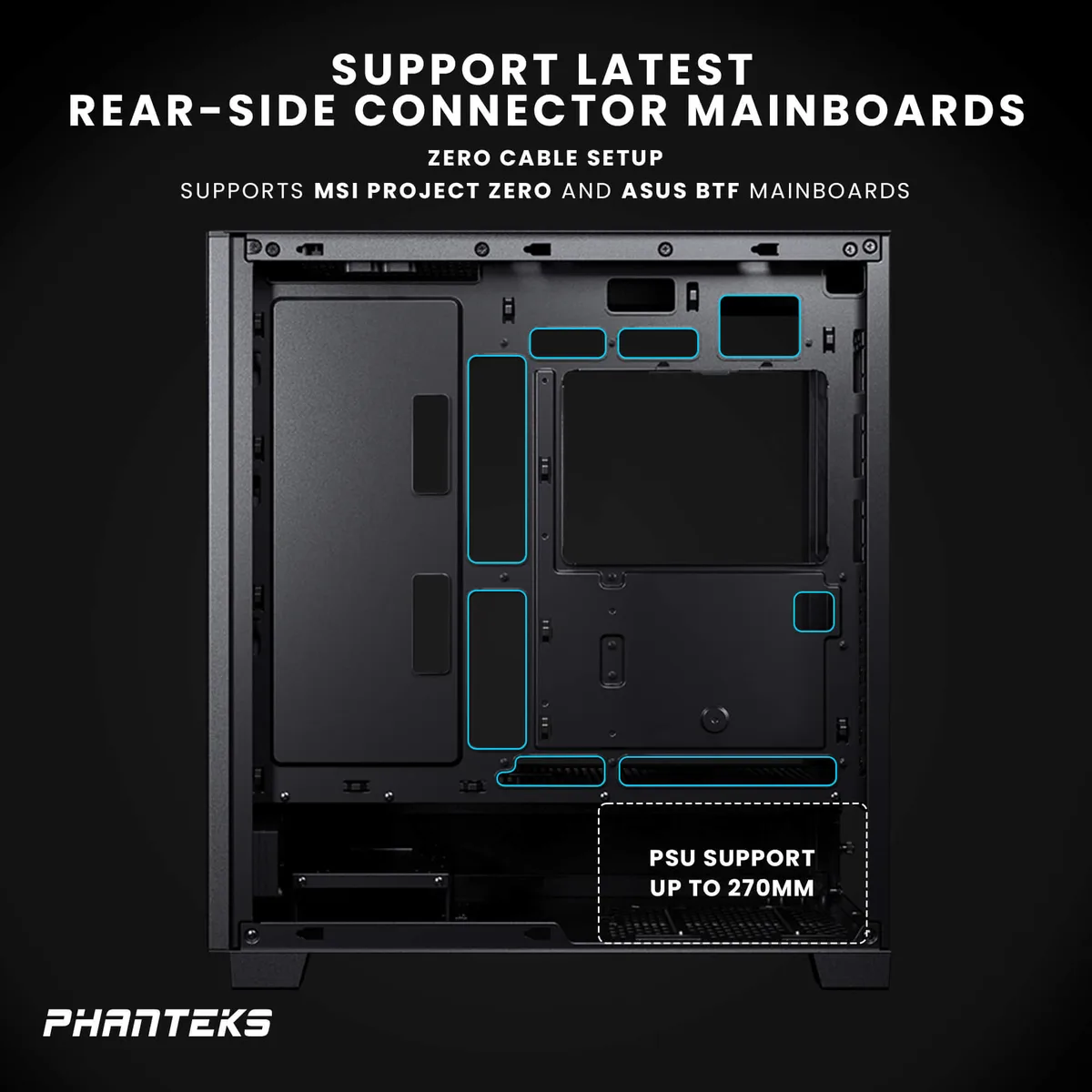

High-end GPU clearance and rear-connector ready

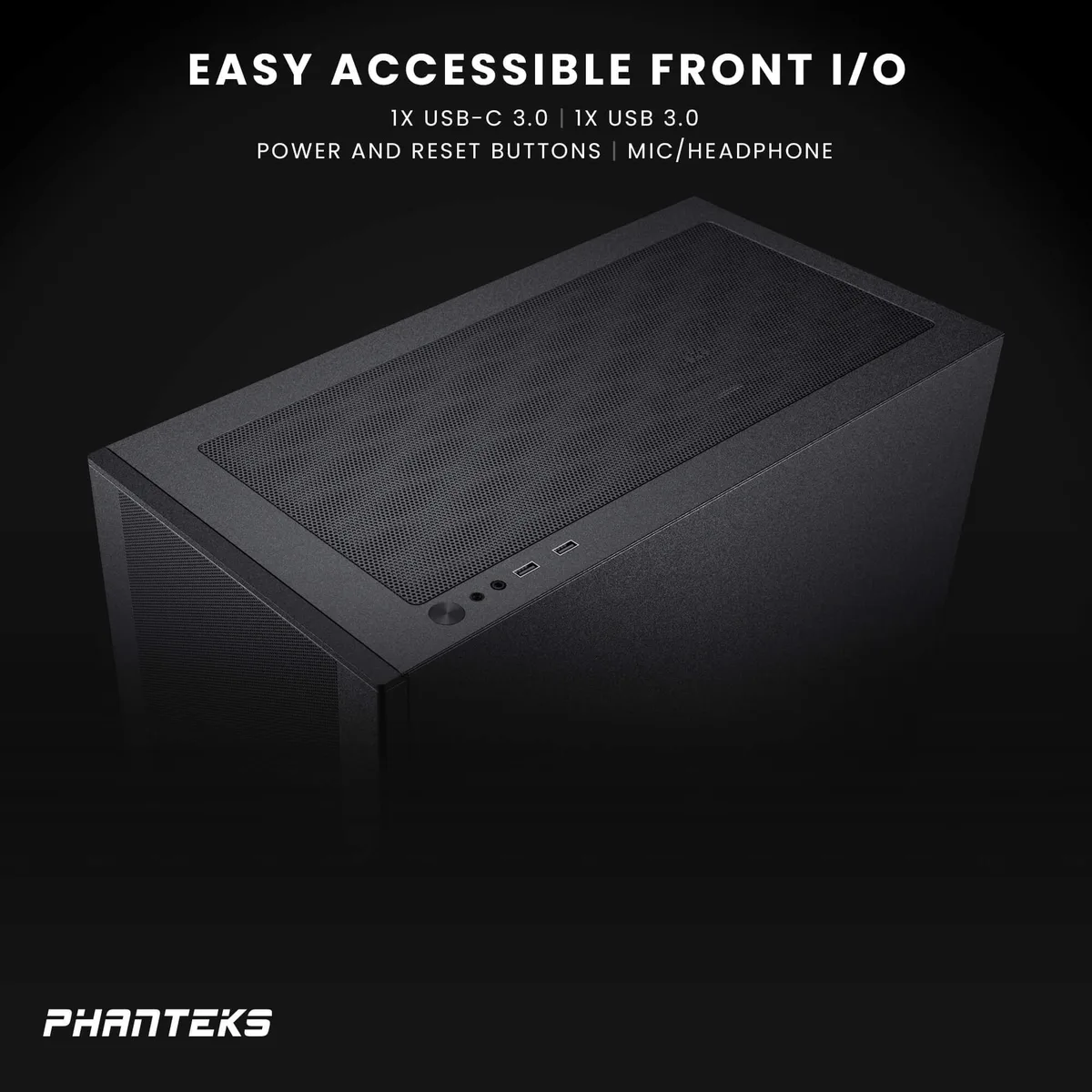

The interior fits graphics cards up to 415 mm long and CPU coolers up to 184 mm tall. Vertical GPU mounting is possible with an optional bracket. Front I/O includes USB 3.0, USB-C 3.0, audio and two buttons. Builders needing more than two 3.5-inch drives or extensive 2.5-inch storage should check the shared bay limits.

Highlights

  • Supports E-ATX boards up to 280 mm wide
  • Ultra-fine mesh front panel and top dust filter for high airflow
  • Fits graphics cards up to 415 mm long without compromise
  • Top mounts a 360 mm radiator with no clearance restrictions
  • Front USB-C 3.0 and USB 3.0 ports for fast peripheral access

Specifications

BrandPhanteks
SeriesXT
ModelPH-XT523P1_BK01
TypeMid-Tower
ColorBlack
Case MaterialSteel Chassis, Tempered Glass Window, ABS plastic
Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
Side PanelYes, Side Tempered Glass
Internal 3.5" Drive Bays2x (1x if 2x SSD installed)
Internal 2.5" Drive Bays2x (0x if 2x HDD installed)
Expansion Slots7
Also support Vertical GPU, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01
Front Ports1 x USB 3.0, 1 x USB-C 3.0, 1 x Audio, 2 x Buttons,
Fan OptionsFront: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm
Midplate: 3 x 120mm
Pre-installed FansRear - 1 x 120mm
Radiator OptionsFront: Up to 240 (120mm radiator)
Top: Up to 360 (120mm radiator)
Rear: Up to 120 (120mm radiator)
Max GPU Length415 mm
Max CPU Cooler Height184 mm
Max PSU Length270 mm
Dimensions450 x 230 x 500 mm / 17.7 × 9.05 × 19.68 in
Weight16.64lbs
Package ContentXT Pro Chassis
1 x Storage Bracket
1 x M25-120_BK Fan
Accessory Box:
30 x Zip ties
30 x MB/SSD Screw
4 x Thumb Screw
8 x HDD Screw
1 x Standoff Tool
1 x MB stand-off
4 x PSU Screw
12 x 30mm Fan Screw
Shipping weight9.75 kg
Package size559 × 533 × 305 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will an E-ATX board up to 280 mm wide fit without blocking the front fan mounts?

Yes, the case supports E-ATX motherboards up to 280 mm wide and still allows three 120 mm or three 140 mm fans in the front.

Can I install a 360 mm radiator in the top while keeping a full-length graphics card?

The top supports a 360 mm radiator without restrictions, and the GPU clearance of 415 mm leaves room for the largest cards.

How many 3.5-inch drives can I fit if I also want two 2.5-inch SSDs?

You can install one 3.5-inch drive when two 2.5-inch SSDs are mounted; otherwise two 3.5-inch drives fit.
