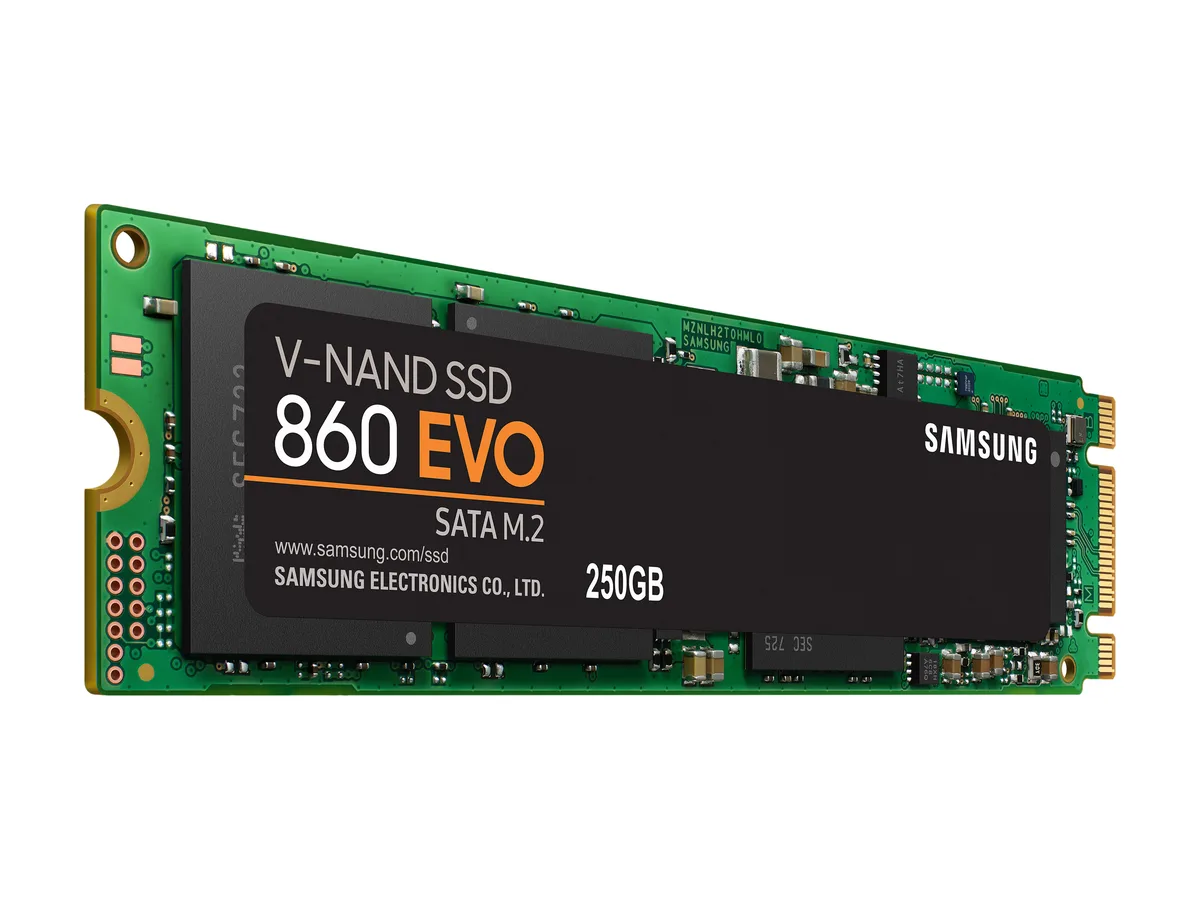

Green rectangular M.2 2280 SSD with gold edge connector and black label

SAMSUNG

SAMSUNG 860 EVO M.2 2280 250GB SATA internal SSD MZ-N6E250BW

SKU CH-B7NH-T6HN6 MPN MZ-N6E250BW

A 250GB M.2 2280 SATA internal SSD delivering up to 550 MBps sequential read and 520 MBps write with AES 256-bit encryption

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity250GB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfaceSATA III

Options 250GB

  • Sequential reads up to 550 MBps speed file loading
  • Sequential writes up to 520 MBps accelerate content creation
  • Random reads up to 97000 IOPS boost multitasking responsiveness
  • AES 256-bit hardware encryption protects sensitive data
  • 150 TBW rating ensures long-term endurance

Samsung 860 EVO M.2 250GB SATA SSD

The Samsung 860 EVO M.2 2280 250GB drive uses a SATA III interface and V-NAND 3-bit MLC memory. It is built for consumer laptops and desktops that need a compact 2280 form factor. The MJX controller manages sequential reads up to 550 MBps and writes up to 520 MBps.

Thermals noise and power draw

The drive operates between 0°C and 70°C with a maximum shock rating of 1500G. Idle power draw is 50 mW and active consumption reaches 2.2 W. With no moving parts the unit runs silently in normal workloads.

Bundled accessories and software impact

The package contains the M.2 SATA SSD and a user manual; cables screws and brackets are not included. AES 256-bit hardware encryption meets TCG Opal 2.0 and IEEE 1667 standards. TRIM garbage collection and S.M.A.R.T monitoring maintain performance when the operating system supports them.

Highlights

  • Sequential reads up to 550 MBps speed file loading
  • Sequential writes up to 520 MBps accelerate content creation
  • Random reads up to 97000 IOPS boost multitasking responsiveness
  • AES 256-bit hardware encryption protects sensitive data
  • 150 TBW rating ensures long-term endurance

Specifications

BrandSAMSUNG
Series860 EVO Series
ModelMZ-N6E250BW
Part NumberMZ-N6E250BW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity250GB
Memory ComponentsV-NAND 3-bit MLC
InterfaceSATA III
ControllerMJX
Cache0MB
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadRandom (QD1): Up to 10,000 IOPS; Random (QD32): Up to 97,000 IOPS
4KB Random WriteRandom (QD1): Up to 42,000 IOPS; Random (QD32): Up to 88,000 IOPS
MTBF1,500,000 hours
Features1.TBW: 150TB; 2.Data Security: AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive(IEEE1667); 3.Supporting Features: TRIM (Required OS support), Garbage Collection, S.M.A.R.T
Power Consumption (Idle)50 mW
Power Consumption (Active)2.2 W
Operating Temperature0°C ~ +70°C
Storage Temperature-45°C ~ +85°C
Operating Humidity5% to 95% RH
Max Shock Resistance1500G
Max Vibration Resistance20G
Height2.30mm
Width22.00mm
Depth80.00mm
Weight80.00g
Shipping weight0.07 kg
Package size145 × 99 × 23 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the M.2 2280 SATA III SSD in my laptop?

Insert the drive into an M.2 slot that supports SATA signalling, then secure it with the mounting screw; the common mistake is forgetting the screw, leaving the drive unseated.

What maintenance or replacement will the 860 EVO 250GB need later?

The drive has a 150 TBW endurance rating and 1,500,000-hour MTBF; when written data approaches 150 TB, plan a replacement.

What limit appears first during sustained writes on this 250GB model?

The 520 MB/s sequential write ceiling is reached before thermal throttling, so sustained large-file copies plateau at that speed.
