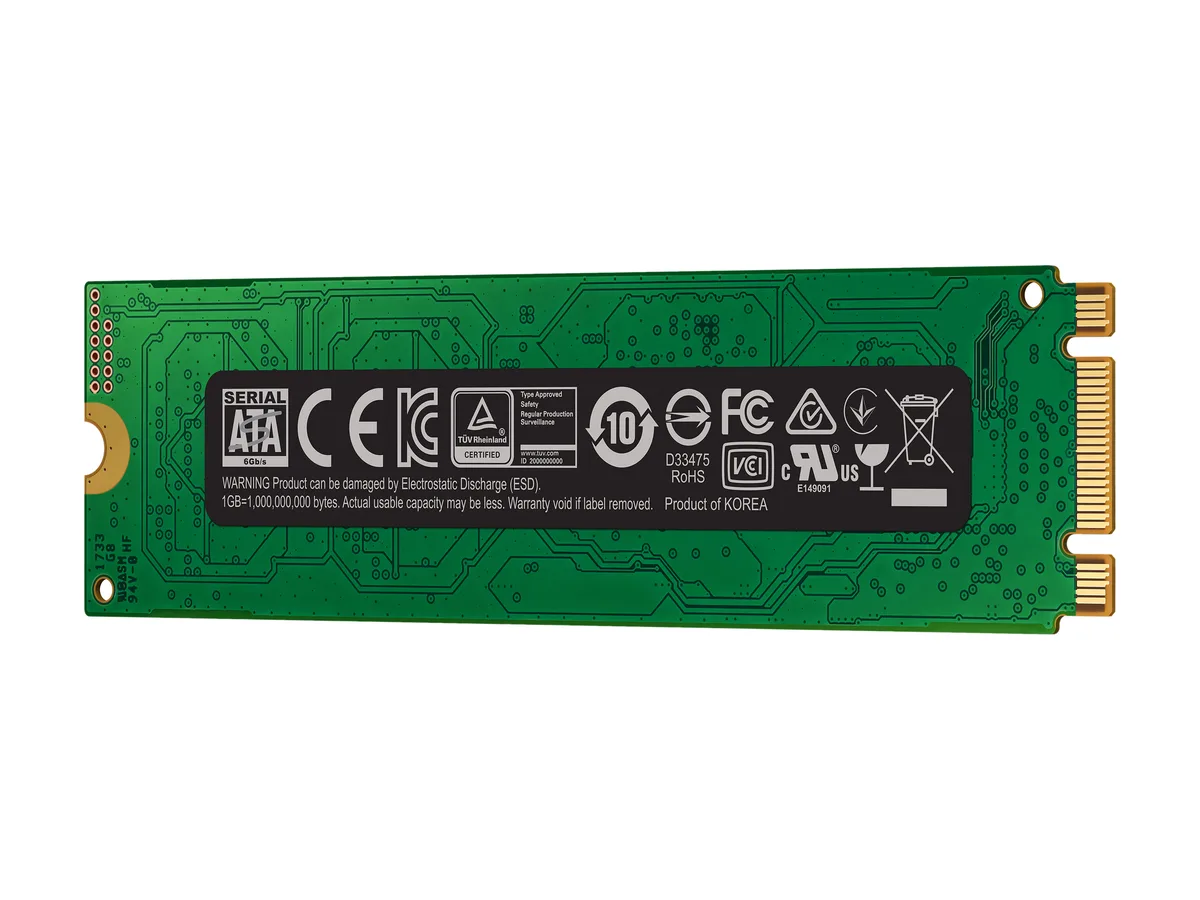

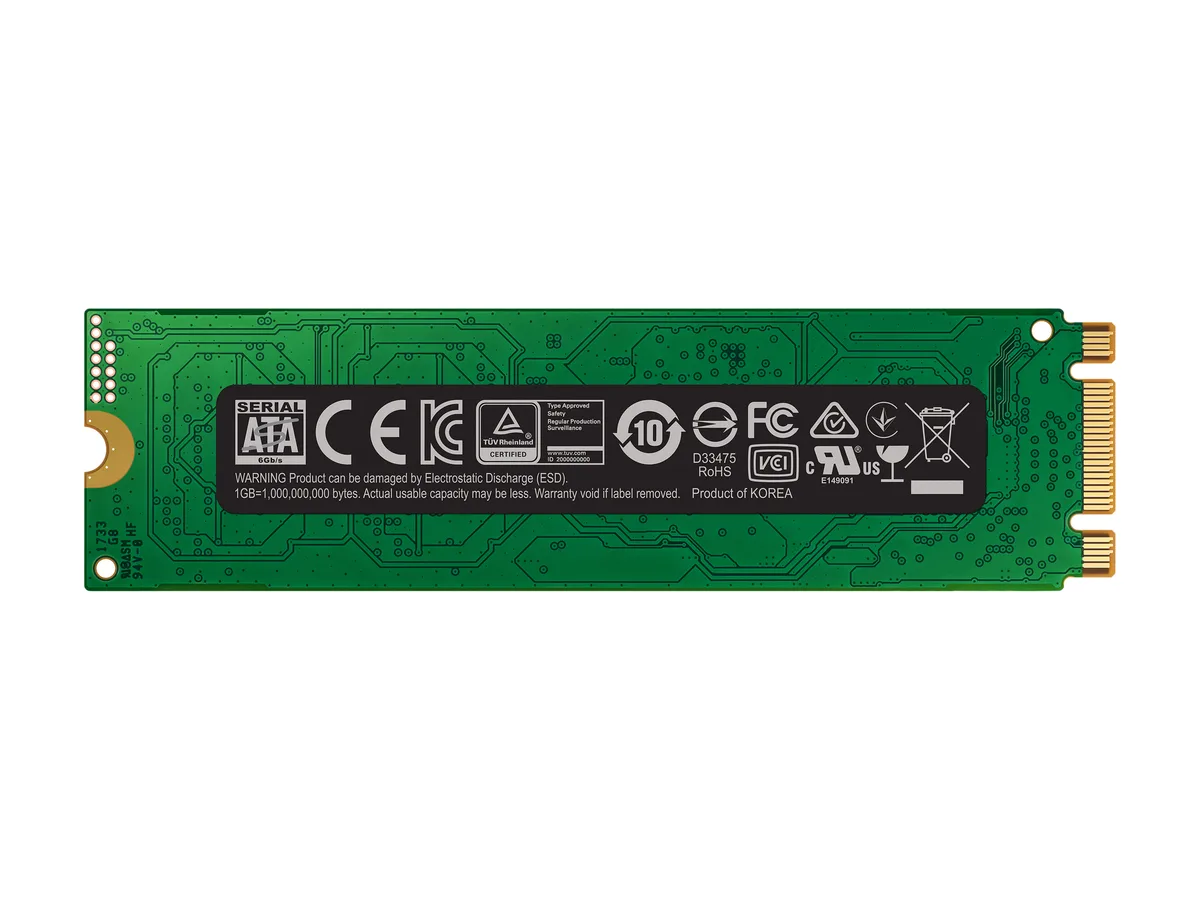

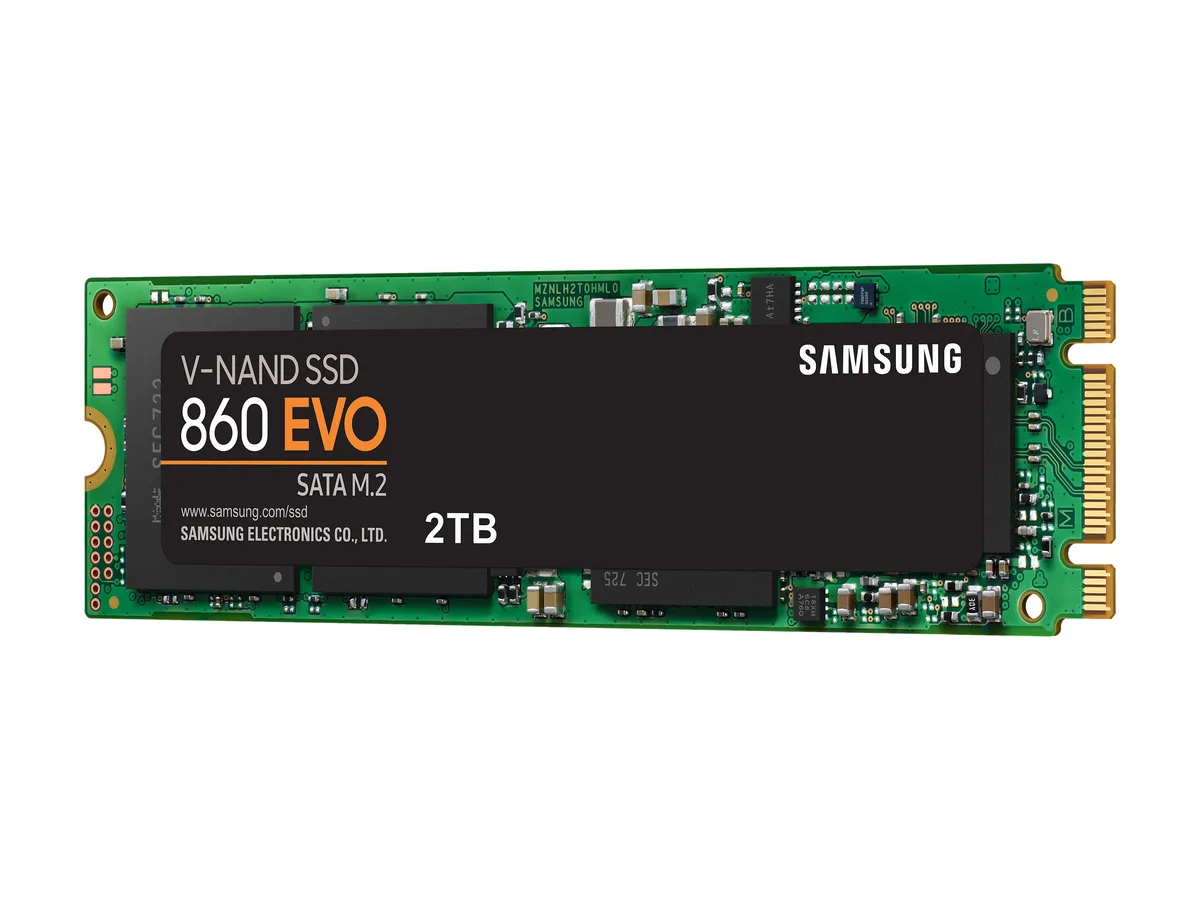

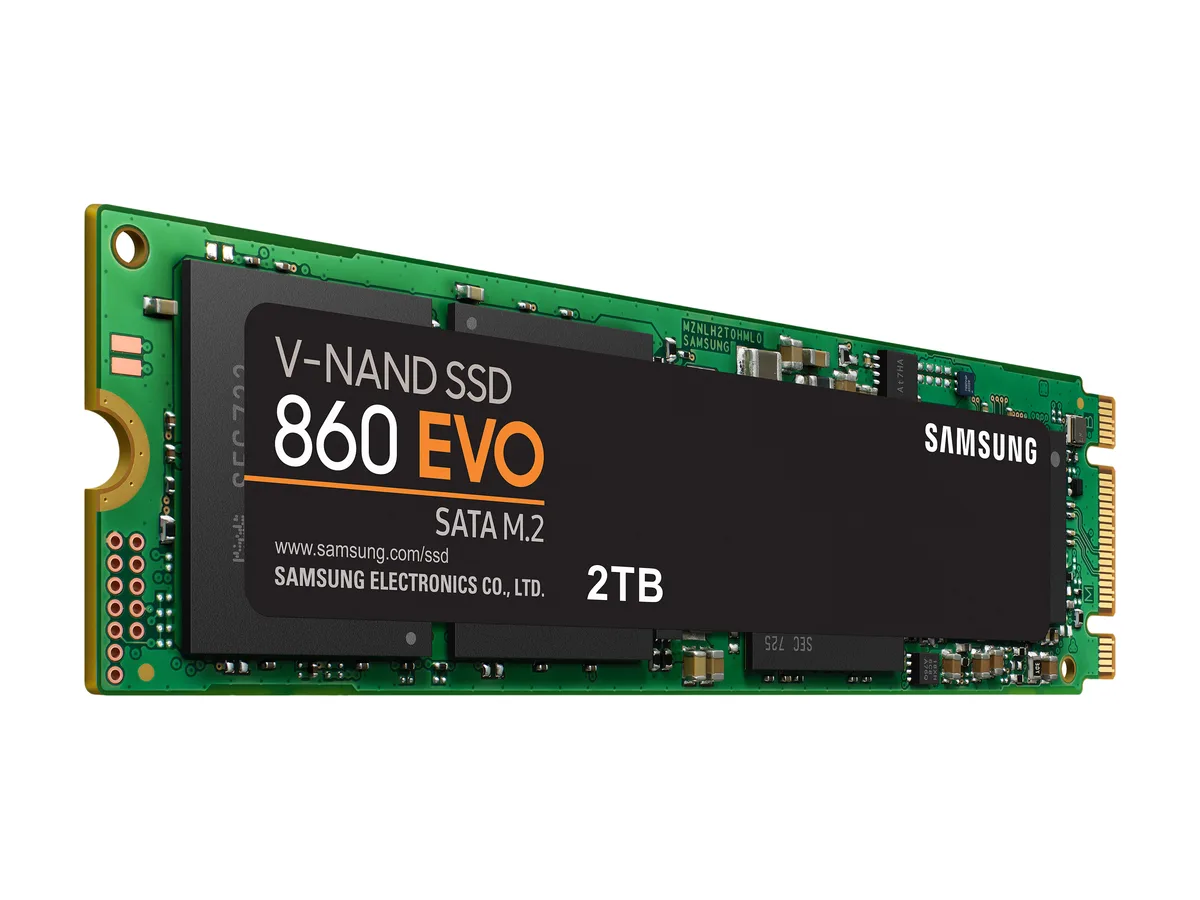

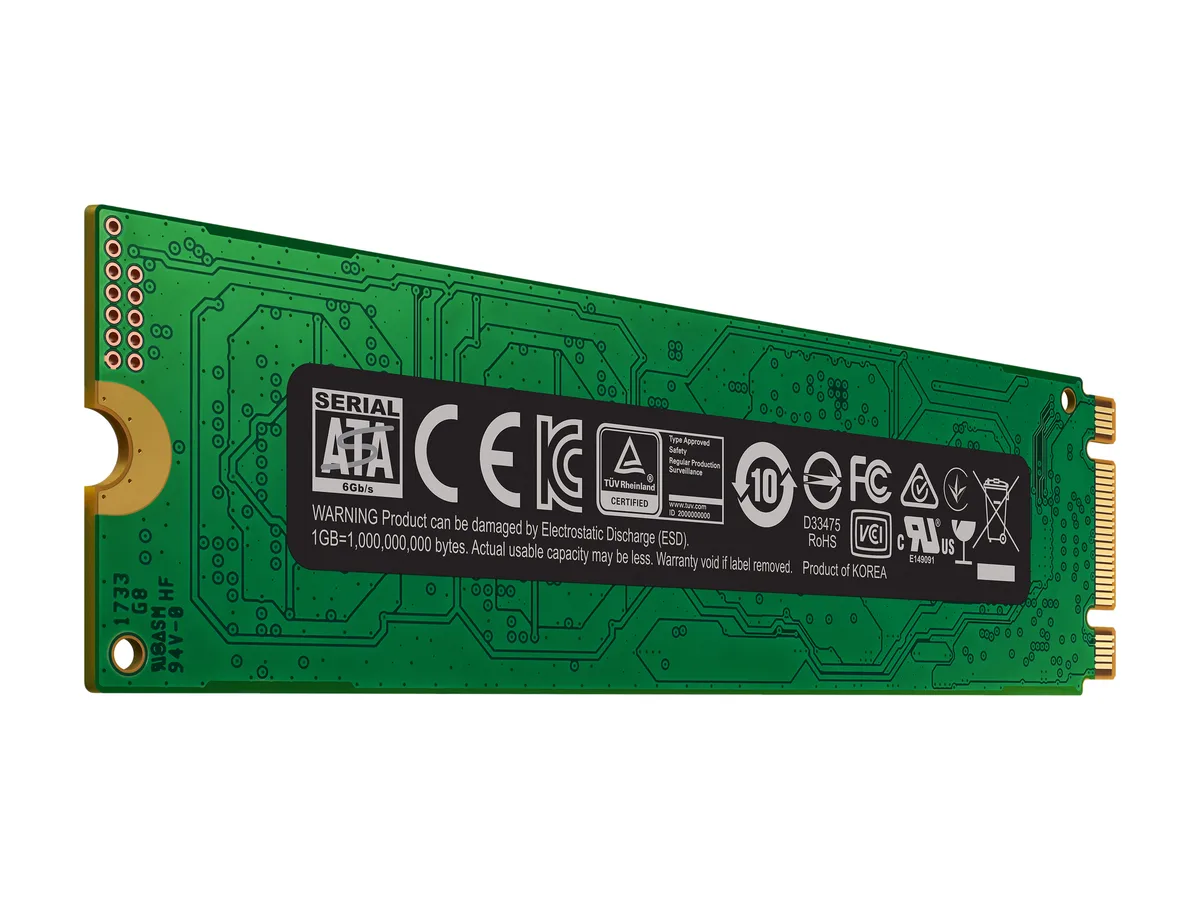

Thin green circuit board with gold edge connector and black label

SAMSUNG

SAMSUNG 860 EVO M.2 2280 2TB SATA internal SSD MZ-N6E2T0BW

SKU CH-NZ36-P15JB MPN MZ-N6E2T0BW

M.2 2280 SATA drive stores 2TB with V-NAND 3-bit MLC, 550 MBps read, 520 MBps write, AES 256-bit encryption and 1,200 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfaceSATA III

Options 2TB

  • Fast sequential reads up to 550 MB/s for responsive system boot
  • Strong sequential writes up to 520 MB/s to handle large file transfers
  • High random read IOPS up to 97000 for snappy multitasking
  • Hardware AES 256-bit encryption with TCG Opal support protects sensitive data
  • V-NAND 3-bit MLC with 2GB DDR4 cache delivers 1200 TBW endurance

2TB SATA SSD for everyday computing

The Samsung 860 EVO M.2 2280 provides 2TB of storage using V-NAND 3-bit MLC memory and a SATA III interface. It suits consumer workloads such as operating system drives, application libraries and large media files. An MJX controller and 2GB Low Power DDR4 cache manage data flow. The drive fits standard M.2 2280 slots in laptops and desktops.

Thermals noise and power in normal use

Active power draw averages 3.0W with a 4.5W burst maximum, keeping heat output low inside compact chassis. The operating range spans 0°C to 70°C, so the drive stays within spec under typical loads. With no moving parts, acoustic noise is absent. The 1,500,000-hour MTBF and 1,200 TBW endurance rating indicate long-term reliability for daily write cycles.

Bundled software and accessories change

The package includes the SSD and a user manual; mounting screws, cables or brackets are not supplied. Samsung Magician software enables firmware updates, drive health monitoring via S.M.A.R.T. data and secure erase functions. Hardware AES 256-bit encryption compliant with TCG Opal 2.0 and IEEE 1667 protects data without host CPU overhead. Trim support and automatic garbage collection maintain consistent write performance over time.

Highlights

  • Fast sequential reads up to 550 MB/s for responsive system boot
  • Strong sequential writes up to 520 MB/s to handle large file transfers
  • High random read IOPS up to 97000 for snappy multitasking
  • Hardware AES 256-bit encryption with TCG Opal support protects sensitive data
  • V-NAND 3-bit MLC with 2GB DDR4 cache delivers 1200 TBW endurance

Specifications

BrandSAMSUNG
Series860 EVO Series
ModelMZ-N6E2T0BW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory ComponentsV-NAND 3-bit MLC
InterfaceSATA III
ControllerMJX
CacheSamsung 2GB Low Power DDR4 SDRAM
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 520 MBps
4KB Random Read4KB, QD32: Up to 97,000 IOPS
4KB, QD1: Up to 10,000 IOPS
4KB Random Write4KB, QD32: Up to 88,000 IOPS
4KB, QD1: Up to 42,000 IOPS
MTBF1,500,000 hours
Features1,200 TBW
Trim Support: Yes
AES Encryption: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
Security: AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
S.M.A.R.T. Support: Yes
GC (Garbage Collection): Auto Garbage Collection Algorithm
WWN Support: World Wide Name supported
Device Sleep Mode Support: Yes
Management SW: Magician Software for SSD management
Power Consumption (Active)Average: 3.0W
Maximum: 4.5W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.30mm
Width22.00mm
Depth80.00mm
Shipping weight0.08 kg
Package size188 × 97 × 23 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the M.2 2280 SATA SSD in my laptop and what step is often missed?

Insert the drive into the M.2 slot, secure it with the retention screw, then enable the SATA controller in BIOS so the 860 EVO appears as a boot device.

What maintenance or replacement will the 2TB V-NAND 3-bit MLC drive need over its life?

The drive has a 1,200 TBW endurance rating and a 1,500,000-hour MTBF; no user maintenance is required, but the NAND will eventually wear out after the rated writes.

What limit appears first when the 860 EVO runs sustained write workloads?

The 2GB Low Power DDR4 cache absorbs bursts, but once it fills the sequential write speed settles at the SATA III ceiling of 520 MBps.
