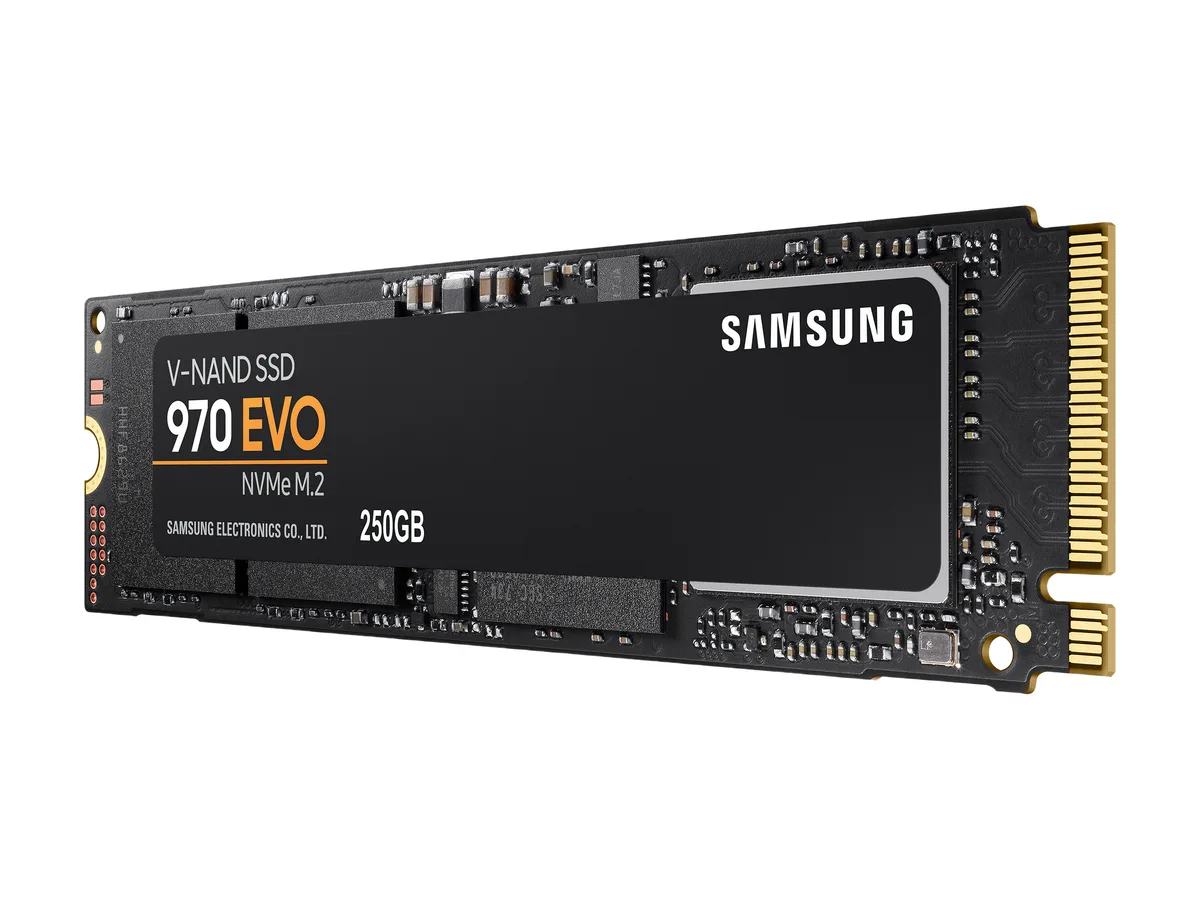

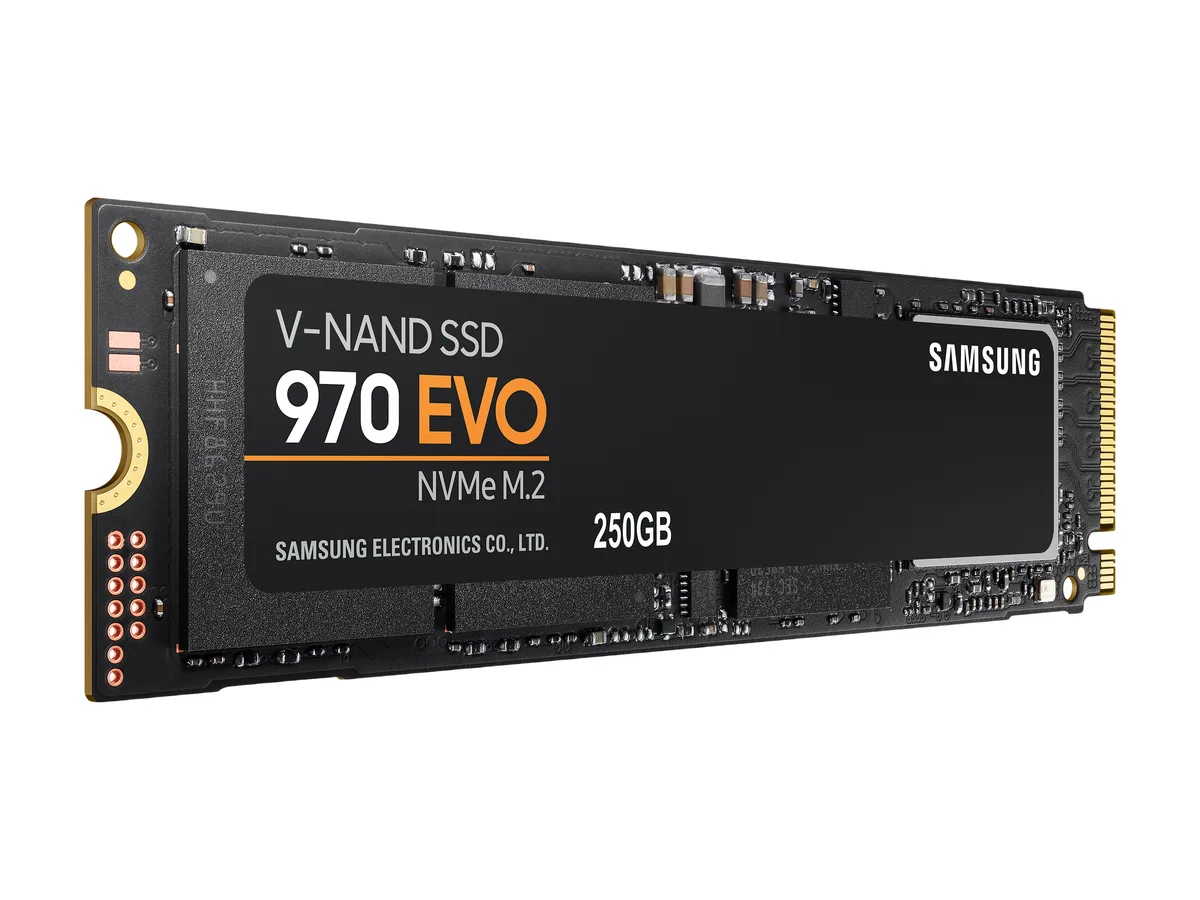

Small green circuit board M.2 2280 SSD with black controller and silver label

SAMSUNG

SAMSUNG 970 EVO M.2 2280 250GB internal SSD MZ-V7E250BW

SKU CH-7JRV-K6X13 MPN MZ-V7E250BW

M.2 2280 NVMe SSD with 250GB capacity, 3400 MBps read and 1500 MBps write speeds, 512MB LPDDR4 cache and 150 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity250GB
  • Memory Components64L V-NAND MLC
  • InterfacePCIe Gen3. X4, NVMe 1.3

Options 250GB

  • Fast boot and load times with up to 3400 MBps sequential read
  • Smooth multitasking backed by 512MB LPDDR4 DRAM cache
  • Data security via AES 256-bit hardware encryption
  • Endurance rated at 150 TBW for long service life
  • Low idle draw of max 30 mW saves laptop battery

Samsung 970 EVO 250GB NVMe Drive

The Samsung 970 EVO MZ-V7E250BW is an internal solid-state drive built on the M.2 2280 form factor. It uses a PCIe Gen3 x4 interface with NVMe 1.3 protocol and 64-layer V-NAND MLC memory. A Samsung Phoenix controller manages the flash alongside 512MB of LPDDR4 DRAM cache.

Suitable for OS drives and light workloads

This capacity suits a boot drive holding the operating system and core applications where low latency matters. It is less suited for large media libraries, heavy video editing scratch space or game collections that exceed 250GB. Users needing more headroom should consider higher-capacity models.

250GB capacity with 150 TBW endurance

Sequential reads reach up to 3400 MBps and writes up to 1500 MBps. Random read IOPS hit 200,000 at QD32 and 15,000 at QD1; random write reaches 350,000 at QD32 and 50,000 at QD1. The 150 TBW rating and 1,500,000-hour MTBF indicate the write budget where the drive runs out of guaranteed endurance.

Highlights

  • Fast boot and load times with up to 3400 MBps sequential read
  • Smooth multitasking backed by 512MB LPDDR4 DRAM cache
  • Data security via AES 256-bit hardware encryption
  • Endurance rated at 150 TBW for long service life
  • Low idle draw of max 30 mW saves laptop battery

Specifications

BrandSAMSUNG
Series970 EVO
ModelMZ-V7E250BW
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity250GB
Memory Components64L V-NAND MLC
InterfacePCIe Gen3. X4, NVMe 1.3
ControllerSamsung Phoenix Controller
Cache512MB LPDDR4 DRAM
Max Sequential ReadUp to 3400 MBps
Max Sequential WriteUp to 1500 MBps
4KB Random ReadQD32: Up to 200,000 IOPS
QD1: Up to 15,000 IOPS
4KB Random WriteQD32: Up to 350,000 IOPS
QD1: Up to 50,000 IOPS
MTBF1,500,000 hours
Features150 TBW
Trim Support: Supported
AES Encryption: AES 256-bit Encryption (Class 0) TCG / Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support: Supported
GC (Garbage Collection): Auto Garbage Collection Algorithm
Device Sleep Mode Support: Yes
Temperature proof: Yes
Management SW: Magician Software for SSD management
Power Consumption (Idle)Max. 30 mW
Power Consumption (Active)Average: 5.4W
Maximum: 10W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.30mm
Width22.10mm
Depth80.26mm
Weight7.94g
Shipping weight0.08 kg
Package size140 × 95 × 19 mm
