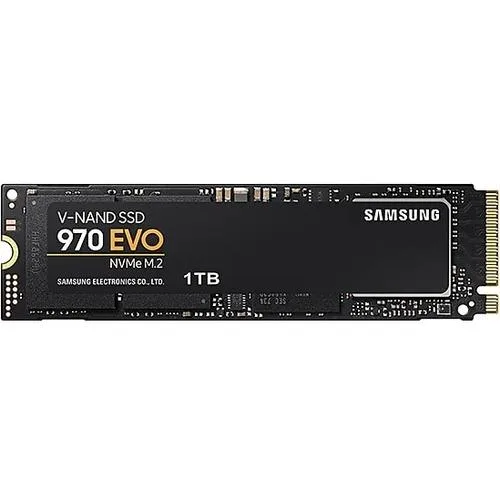

Green rectangular M.2 2280 circuit board with black controller and gold edge connector

SAMSUNG

SAMSUNG 970 EVO MZ-V7E1T0E 1TB internal SSD

SKU CH-VVEQ-9PMW2 MPN MZ-V7E1T0E

A 1TB M.2 2280 NVMe SSD with PCIe 3.0 x4 interface delivering 3400 MB/s reads and 2500 MB/s writes

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfacePCIe Gen 3.0 x4, NVMe 1.3

Options 1TB

  • Sequential reads up to 3400 MBps speed up large file transfers
  • Sequential writes up to 2500 MBps accelerate content creation workflows
  • Random read IOPS up to 500000 deliver responsive multitasking
  • 1GB DDR4 cache sustains performance during heavy workloads
  • Phoenix controller with TurboWrite boosts write speeds for demanding applications

Samsung 970 EVO 1TB NVMe SSD

The Samsung 970 EVO MZ-V7E1T0E is a 1TB internal solid-state drive built for consumer PCs. It uses the M.2 2280 form factor and connects through a PCIe Gen 3.0 x4 interface with NVMe 1.3 protocol. The drive combines V-NAND 3-bit MLC memory with a Samsung Phoenix controller and 1GB of Low Power DDR4 SDRAM cache.

Sustained write behaviour with TurboWrite

Samsung TurboWrite technology accelerates write speeds beyond standard NVMe performance by using an intelligent buffer. The drive delivers sequential reads up to 3400 MBps and sequential writes up to 2500 MBps. Random read reaches 500,000 IOPS at QD32 and 15,000 IOPS at QD1, while random write hits 450,000 IOPS at QD32 and 50,000 IOPS at QD1. Dynamic Thermal Guard monitors temperature to protect data integrity during heavy workloads.

Compatibility checks before ordering

Verify that your motherboard has an M.2 slot keyed for PCIe NVMe and supports the 2280 length. Confirm the system can provide up to 10W of power during burst operation and that airflow keeps the drive within the 0°C to 70°C operating range. Samsung Magician software is available for drive management, monitoring and maintenance.

Highlights

  • Sequential reads up to 3400 MBps speed up large file transfers
  • Sequential writes up to 2500 MBps accelerate content creation workflows
  • Random read IOPS up to 500000 deliver responsive multitasking
  • 1GB DDR4 cache sustains performance during heavy workloads
  • Phoenix controller with TurboWrite boosts write speeds for demanding applications

Specifications

BrandSAMSUNG
Series970 EVO
ModelMZ-V7E1T0E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsV-NAND 3-bit MLC
InterfacePCIe Gen 3.0 x4, NVMe 1.3
ControllerSamsung Phoenix
Cache1GB Low Power DDR4 SDRAM
Max Sequential ReadUp to 3400 MBps
Max Sequential WriteUp to 2500 MBps
4KB Random ReadQD32: Up to 500,000 IOPS
QD1: Up to 15,000 IOPS
4KB Random WriteQD32: Up to 450,000 IOPS
QD1: Up to 50,000 IOPS
MTBF1,500,000 hours
FeaturesNon-Volatile Memory Express (NVMe)
970 EVO 1TB NVMe SSDs with a newly enhanced Phoenix controller outperform our previous 960 EVO 1TB model with exceptionally fast sequential read/write speeds up to 3,400/2,300 MB/s. They also support PCI Express (PCIe) Gen 3 x4 lanes to provide high bandwidth and low latency, making them perfect for business professionals who need cutting edge-performance for high-end computing.
TurboWrite Technology
Samsung's intelligent TurboWrite technology helps to maximize your computing ability, accelerating write speeds above and beyond the already exceptiona
Power Consumption (Idle)30 mW (max)
Power Consumption (Active)Average: 6W / Maximum: 10W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.38mm
Width22.15mm
Depth80.15mm
Weight8.00g
Shipping weight0.08 kg
Package size141 × 98 × 24 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How hot does the 970 EVO get when it runs all day at its 10 W burst power?

The controller is rated for 0 °C to 70 °C operating temperature and Dynamic Thermal Guard throttles the drive to stay within that range.

What slot and protocol must my motherboard provide for this M.2 2280 drive?

You need an M.2 2280 key-M slot wired for PCIe 3.0 x4 and NVMe 1.3 support.

Will this NVMe SSD work in a system that only has older AHCI M.2 slots?

No, the drive requires an NVMe 1.3 controller; AHCI-only M.2 slots cannot communicate with it.
