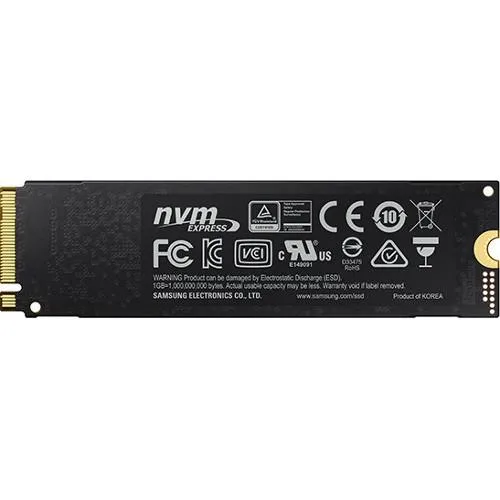

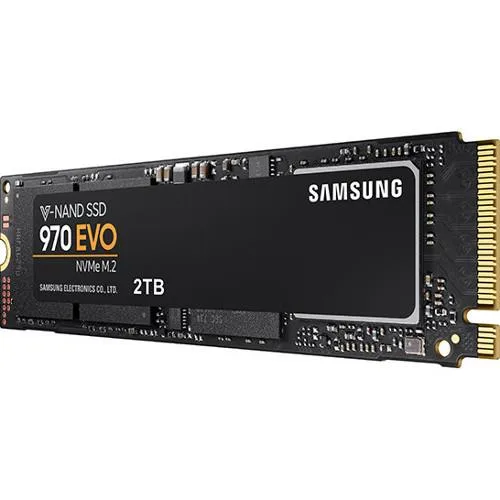

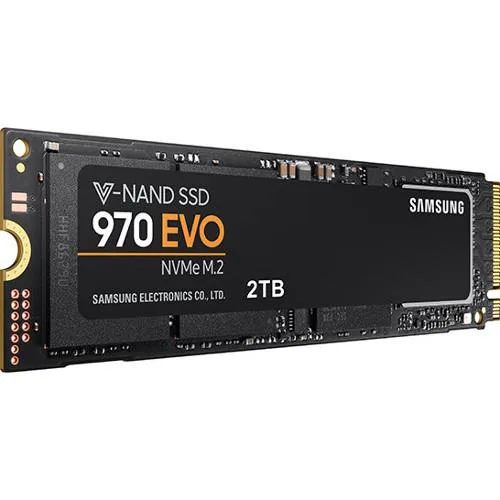

Green rectangular circuit board with black controller and silver label, M.2 2280 form factor

SAMSUNG

SAMSUNG 970 EVO MZ-V7E2T0E 2TB M.2 2280 NVMe internal SSD

SKU CH-DXPW-65HKS MPN MZ-V7E2T0E

M.2 2280 NVMe SSD with 2TB capacity, sequential read up to 3500 MBps and write up to 2500 MBps

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfacePCIe Gen 3.0 x4, NVMe 1.3

Options 2TB

  • Sequential reads reach 3500 MBps via PCIe Gen 3.0 x4 NVMe 1.3
  • Sequential writes hit 2500 MBps backed by TurboWrite technology
  • Random reads deliver 500000 IOPS at QD32 for responsive multitasking
  • Dynamic Thermal Guard prevents overheating from 0°C to 70°C
  • Phoenix controller with 2GB DDR4 cache sustains performance under load

Samsung 970 EVO 2TB NVMe SSD

The Samsung 970 EVO MZ-V7E2T0E is a 2TB internal solid state drive built for consumer PCs. It uses the M.2 2280 form factor and connects through a PCIe Gen 3.0 x4 interface with NVMe 1.3 protocol. Samsung V-NAND 3-bit MLC memory and a Phoenix controller deliver sequential reads up to 3500 MBps and writes up to 2500 MBps.

Fits PCIe 3.0 x4 M.2 slots.

This drive suits users upgrading a system with a PCIe Gen 3.0 x4 M.2 slot who want high endurance and strong random performance of 500,000 read IOPS and 480,000 write IOPS at QD32. Buyers building a new platform that wires the M.2 slot directly to a PCIe 4.0 or 5.0 CPU should look at a Gen 4 or Gen 5 drive to use the full bandwidth of that platform.

Sequential read up to 3500 MBps

The single specification that decides fit is the maximum sequential read speed of 3500 MBps, which marks the ceiling of the PCIe Gen 3.0 x4 interface. If your workload needs sustained throughput above that figure, this drive will bottleneck the task; if 3500 MBps meets your target, the 2TB capacity and 1,500,000-hour MTBF give ample space and reliability.

Highlights

  • Sequential reads reach 3500 MBps via PCIe Gen 3.0 x4 NVMe 1.3
  • Sequential writes hit 2500 MBps backed by TurboWrite technology
  • Random reads deliver 500000 IOPS at QD32 for responsive multitasking
  • Dynamic Thermal Guard prevents overheating from 0°C to 70°C
  • Phoenix controller with 2GB DDR4 cache sustains performance under load

Specifications

BrandSAMSUNG
Series970 EVO
ModelMZ-V7E2T0E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory ComponentsV-NAND 3-bit MLC
InterfacePCIe Gen 3.0 x4, NVMe 1.3
ControllerSamsung Phoenix
Cache2GB Low Power DDR4 SDRAM
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 2500 MBps
4KB Random ReadQD32: Up to 500,000 IOPS
QD1: Up to 15,000 IOPS
4KB Random WriteQD32: Up to 480,000 IOPS
QD1: Up to 50,000 IOPS
MTBF1,500,000 hours
FeaturesNon-Volatile Memory Express (NVMe)
970 EVO 2TB NVMe SSDs with a newly enhanced Phoenix controller outperform our previous 960 EVO 2TB model with exceptionally fast sequential read/write speeds up to 3,500/2,500 MB/s. They also support PCI Express (PCIe) Gen 3 x4 lanes to provide high bandwidth and low latency, making them perfect for business professionals who need cutting edge-performance for high-end computing.
TurboWrite Technology
Samsung's intelligent TurboWrite technology helps to maximize your computing ability, accelerating write speeds above and beyond the already exceptiona
Power Consumption (Idle)30 mW (max)
Power Consumption (Active)Average: 6W / Maximum: 10W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height2.38mm
Width22.15mm
Depth80.15mm
Weight8.00g
Shipping weight0.08 kg
Package size141 × 98 × 24 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this 2TB M.2 2280 drive fit my laptop or desktop motherboard?

The drive uses the M.2 2280 form factor and requires an M.2 slot keyed for PCIe NVMe; check your device manual for slot length and keying compatibility.

What PCIe generation and lane count does the SSD need to reach its rated speeds?

It is designed for PCIe Gen 3.0 x4 and NVMe 1.3; the slot must provide four lanes to achieve the quoted sequential read and write figures.

How much power should my system budget for this SSD under heavy load?

Active power averages 6W with a maximum burst of 10W, while idle power is a maximum of 30 mW, so a standard M.2 power rail is sufficient.
