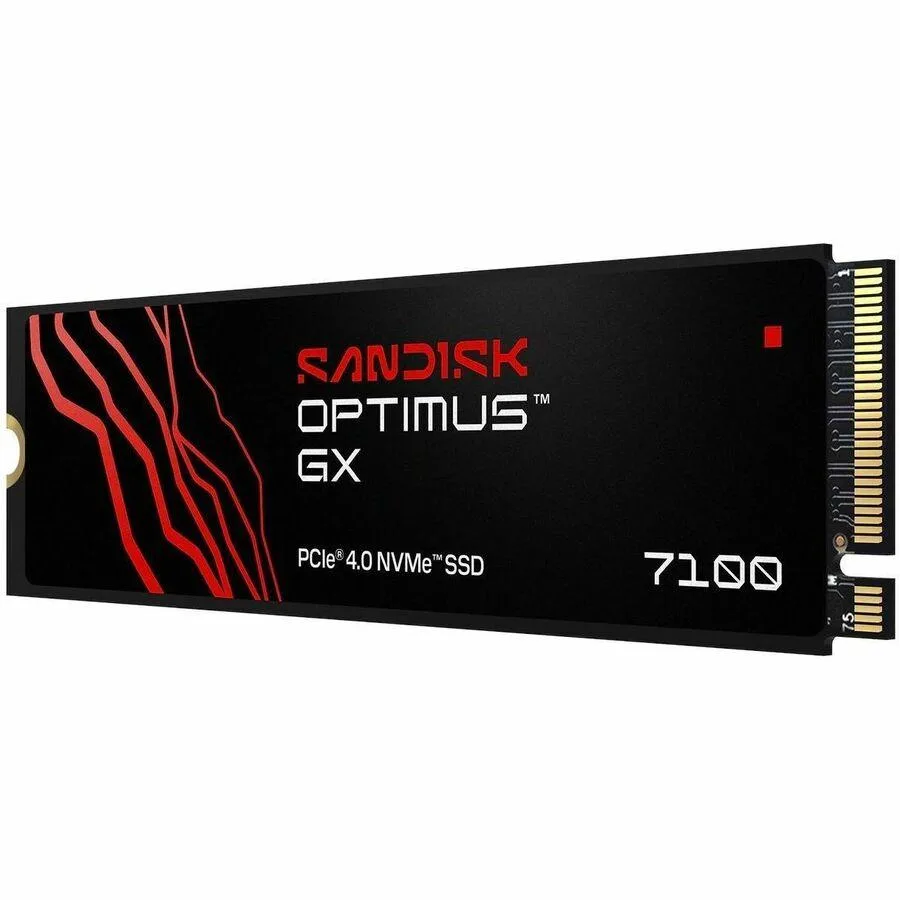

Green rectangular circuit board with gold edge connector and black memory chips

SanDisk

SanDisk Optimus GX 7100 1TB M.2 2280-S3-M internal SSD SDSP71100TAN-000E0

SKU CH-9BAG-11NBN MPN SDSP71100TAN-000E0

PCIe 4.0 x4 NVMe SSD delivering 7250 MB/s reads and 6900 MB/s writes with 1.4M IOPS random write for fast gaming loads

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactorM.2 2280-S3-M
  • Capacity1TB
  • Memory Components3D NAND TLC
  • InterfacePCI-Express 4.0 x4
  • ProtocolNVMe 2.0

Capacity 1TB

  • Faster game loads with sequential read up to 7250 MBps
  • Quicker level streaming from sequential write up to 6900 MBps
  • Snappier system response via random read up to 1000000 IOPS
  • Smoother multitasking thanks to random write up to 1400000 IOPS
  • Long-term reliability backed by 600 TBW endurance rating

1TB PCIe 4.0 NVMe Drive

The SanDisk Optimus GX 7100 is a 1TB internal SSD built on 3D NAND TLC memory. It uses the M.2 2280-S3-M form factor and connects through a PCI-Express 4.0 x4 interface running the NVMe 2.0 protocol. The drive targets gamers and creators who need fast sequential and random access for large libraries and active workloads.

Slot Compatibility And System Impact

This module fits any motherboard or laptop with an M.2 2280-S3-M keyed slot wired for PCIe 4.0 x4. It requires no separate heatsink, freeing vertical clearance in thin chassis. The single-sided S3-M layout keeps the opposite side of the PCB clear for tight board spacing, while the NVMe 2.0 command set reduces CPU overhead during heavy I/O.

Thermals Noise And Power Draw

The controller idles at 5 mW and averages 3.4W during reads and 3.7W during writes. With no moving parts the drive produces no audible noise. It is rated for operation from 0°C to +85°C and storage from -40°C to +85°C. The 600TB TBW and 1,750,000-hour MTBF indicate sustained endurance under typical gaming and creative workloads.

Highlights

  • Faster game loads with sequential read up to 7250 MBps
  • Quicker level streaming from sequential write up to 6900 MBps
  • Snappier system response via random read up to 1000000 IOPS
  • Smoother multitasking thanks to random write up to 1400000 IOPS
  • Long-term reliability backed by 600 TBW endurance rating

Specifications

BrandSanDisk
SeriesOptimus GX 7100
ModelSDSP71100TAN-000E0
Device TypeInternal Solid State Drive (SSD)
Form FactorM.2 2280-S3-M
Capacity1TB
Memory Components3D NAND TLC
InterfacePCI-Express 4.0 x4
ProtocolNVMe 2.0
Max Sequential ReadUp to 7250 MBps
Max Sequential WriteUp to 6900 MBps
4KB Random ReadUp to 1,000,000 IOPS
4KB Random WriteUp to 1,400,000 IOPS
Terabytes Written (TBW)600TB
MTBF1,750,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)5 mW
Power Consumption (Active)Average Active Power Read: 3.4W
Average Active Power Write: 3.7W
Operating Temperature0°C ~ +85°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1,500G @ 0.5 ms half-sine
Max Vibration ResistanceOperating Vibration: 5 gRMS, 10-2000 Hz, 3 axes
Non-operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes
Height2.38mm
Width22mm
Depth80mm
Weight5.8g
Shipping weight0.05 kg
Package size127 × 102 × 22 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

At what temperature does the drive throttle under sustained heavy writes?

The controller can operate up to 85°C before thermal protection reduces performance to stay within safe limits.

What are the typical power draw and noise levels when the SSD runs all day in a laptop?

Active read averages 3.4W and active write averages 3.7W; idle drops to 5mW. With no moving parts the drive is completely silent.

Which M.2 key and slot length must the motherboard provide for this 2280-S3-M module?

The drive requires an M-key PCIe 4.0 x4 slot that accepts 2280-length cards.
