Green circuit board M.2 2280 SSD with black label and gold edge connector

SanDisk

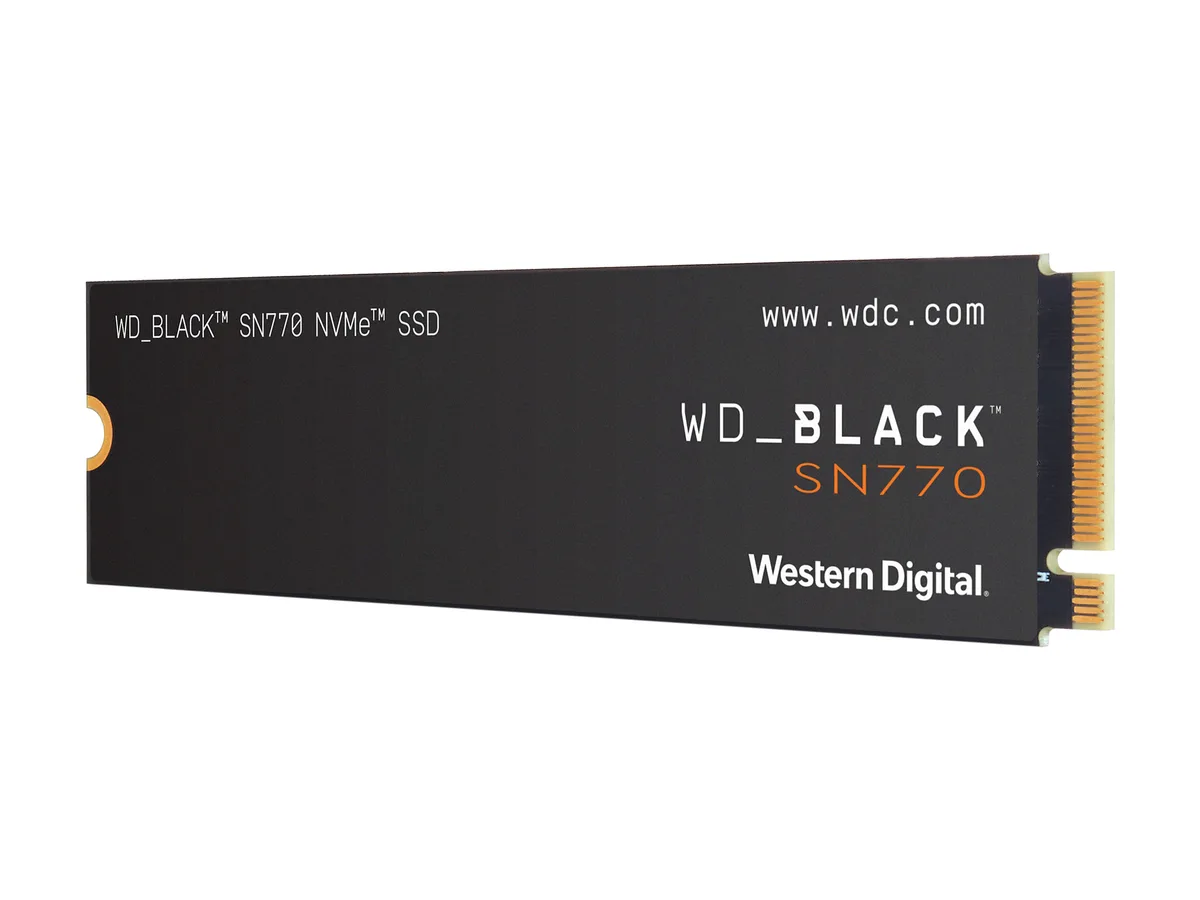

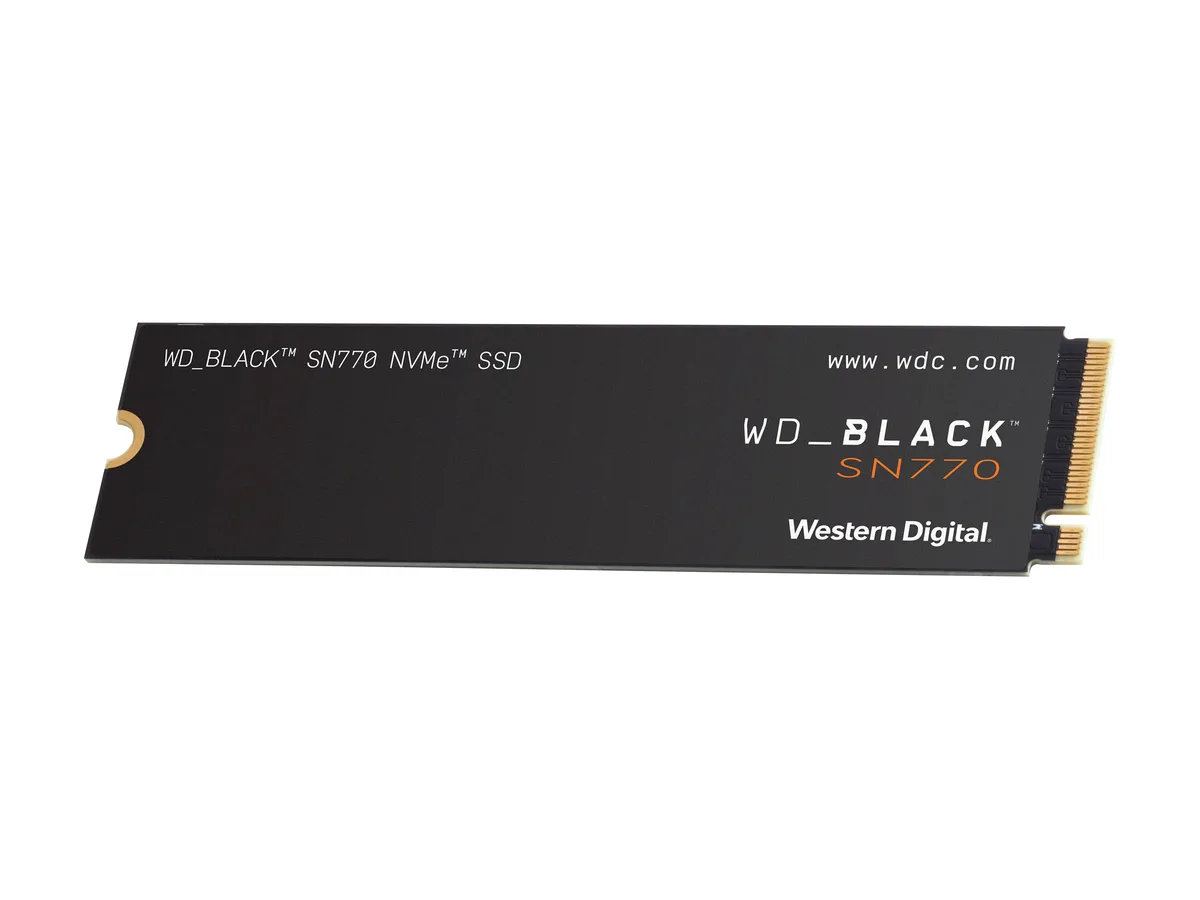

SanDisk WDS100T3X0E 1TB M.2 2280 PCIe Gen4 NVMe internal SSD

SKU CH-PSQP-JJFQQ MPN WDS100T3X0E

A 1TB M.2 2280 NVMe SSD using PCIe Gen4 with up to 5150 MB/s read and 4900 MB/s write speeds for fast game loads and responsive performance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsTLC
  • InterfacePCIe Gen4 16GT/s, up to 4 Lanes

Style Fast

Options 1TB

  • Fast game loading with sequential reads up to 5150 MB/s
  • Smooth in-game responsiveness from PCIe Gen4 interface
  • Large 1TB capacity stores many titles and updates
  • DRAM-less design keeps active power draw low at 65 mW
  • High endurance rated at 600 TBW and 1.75 million hours MTTF

WD_BLACK SN770 1TB NVMe SSD

The WD_BLACK SN770 is a 1TB M.2 2280 internal SSD built for consumers who want faster game loads and responsive streaming. It uses a PCIe Gen4 x4 interface with NVMe protocol and TLC memory to deliver up to 5150 MB/s sequential read and 4900 MB/s sequential write speeds. Random performance reaches 740000 IOPS read and 800000 IOPS write for snappy multitasking.

DRAM-less design with HMB caching

The drive operates without a dedicated DRAM cache, relying on Host Memory Buffer support from the platform to maintain low latency. Its M.2 2280 form factor fits standard motherboard slots and runs within a 0°C to 85°C operating range while drawing only 65 mW active power. The PCIe Gen4 link is backward compatible with Gen3 systems for broad platform support.

Check motherboard M.2 slot and OS support

Verify your board has an M.2 2280 slot wired for PCIe NVMe and confirm whether it runs at Gen4 or Gen3 speeds. Windows is required for the WD_BLACK Dashboard monitoring and gaming-mode optimisation tools. The drive is rated for 600 TBW endurance and a 1.75 million hour MTTF for long-term reliability.

Highlights

  • Fast game loading with sequential reads up to 5150 MB/s
  • Smooth in-game responsiveness from PCIe Gen4 interface
  • Large 1TB capacity stores many titles and updates
  • DRAM-less design keeps active power draw low at 65 mW
  • High endurance rated at 600 TBW and 1.75 million hours MTTF

Specifications

BrandWestern Digital
SeriesBLACK SN770 NVMe
ModelWDS100T3X0E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsTLC
InterfacePCIe Gen4 16GT/s, up to 4 Lanes
ProtocolNVMe
CacheNo DRAM (HMB)
Max Sequential ReadUp to 5150 MBps
Max Sequential WriteUp to 4900 MBps
4KB Random ReadUp to 740,000 IOPS
4KB Random WriteUp to 800,000 IOPS
Terabytes Written (TBW)600 TBW
MTTF1.75 Million hours
FeaturesFirst into the Action
Get into the match fast as you zoom past load times with blazing speeds of up to 5,150MB/s (1TB and 2TB models).
Smoother, Faster Gaming

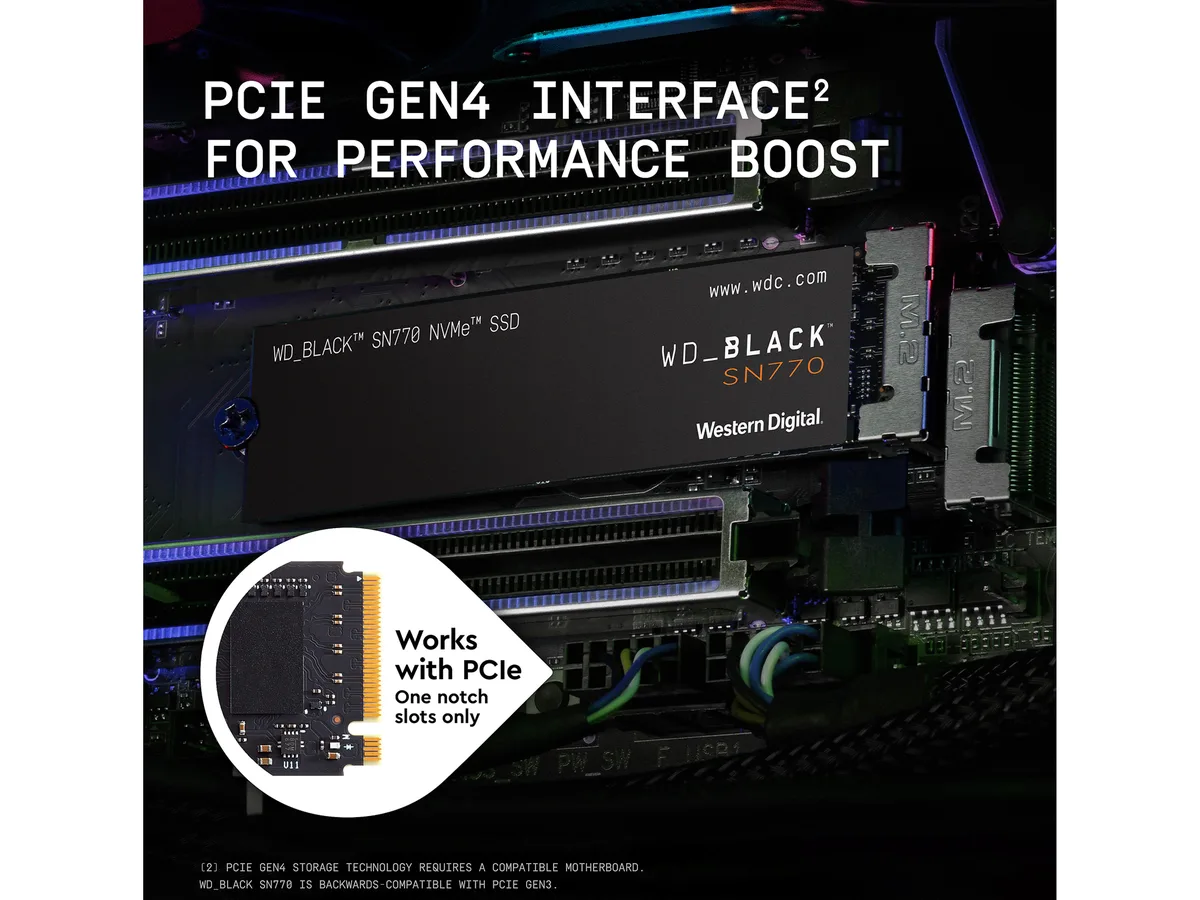

Improve in-game responsiveness and streaming with the PCIe Gen4 interface for a performance boost you can see and feel. The interface is compatible with leading CPU and motherboard platforms and backwards-compatible with PCIe Gen3.
Store More
Available in capacities up to 2TB, the WD_BLACK SN770 NVMe SSD gives you tons of storage for your latest games with space left over for future updates and downloadable content.
Turbocharge
Power Consumption (Active)65mW
Operating Temperature32ºF to 185ºF (0ºC to 85ºC)
Storage Temperature-40ºF to 185ºF (-40ºC to 85ºC)
Max Shock Resistance1500G
Height2.38mm
Width22 +/- 0.15mm
Depth80 +/- 0.15mm
Weight5.5g +/- 0.5g
Shipping weight0.05 kg
Package size142 × 102 × 22 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe Gen4 lane count does the WDS100T3X0E use and what sequential read speed does that support?

The drive runs on up to four PCIe Gen4 lanes and delivers up to 5150 MBps sequential read.

What M.2 form factor and length must the motherboard slot accept for this 2280 drive?

The SSD uses the M.2 2280 form factor, so the slot must accommodate an 80 mm long module.

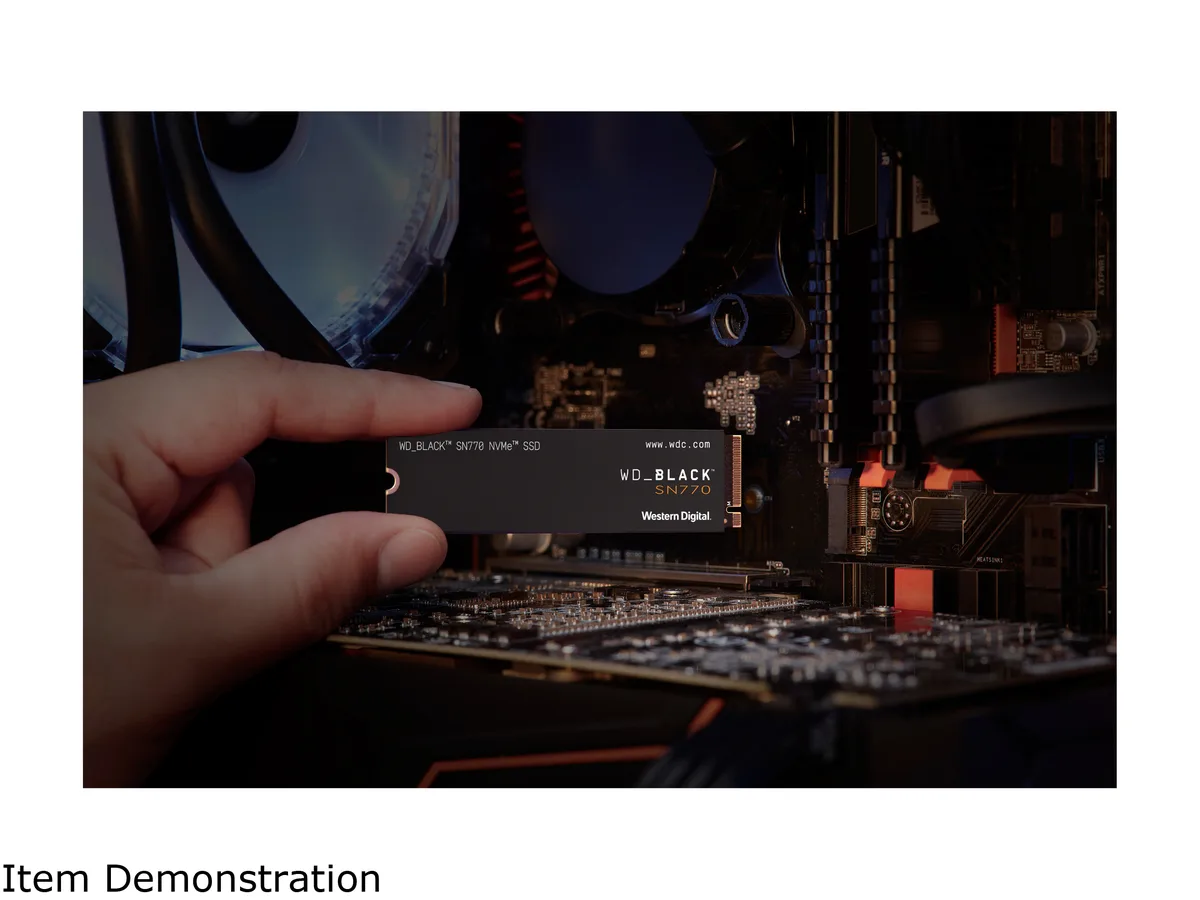

How is the drive installed and which step do builders often miss?

Insert the module at an angle into the M.2 slot, press it flat, and secure it with the motherboard screw; the step often missed is fastening that screw.
