Rectangular green circuit board with black controller and silver label, M.2 2280 form factor

SanDisk

SanDisk WDS500G3X0E 500GB internal SSD

SKU CH-283Y-CHZ8T MPN WDS500G3X0E

A 500 GB internal solid state drive with an M.2 2280 form factor, PCIe Gen4 16 GT/s interface and NVMe protocol delivering up to 5000 MB/s sequential read and 4000 MB/s sequential write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity500GB
  • InterfacePCIe Gen4 16GT/s, up to 4 Lanes
  • ProtocolNVMe

Style Fast

Options 500GB

  • Up to 5000 MB/s read speed cuts game load times
  • PCIe Gen4 16GT/s interface enables smoother in-game responsiveness
  • 300 TBW endurance rating supports heavy daily write workloads
  • 75 million hours MTTF indicates long-term drive reliability
  • 65 mW active power draw keeps system thermals lower

WD_BLACK SN770 500GB NVMe SSD

The WD_BLACK SN770 is a consumer-grade internal SSD built for gaming and heavy workloads. It uses the M.2 2280 form factor and connects through a PCIe Gen4 x4 NVMe interface. The drive targets users who want faster load times and smoother in-game responsiveness without moving to higher-capacity models.

500GB capacity with 300 TBW endurance

At 500GB the drive holds a solid library of current titles plus patches and downloadable content. Sequential reads reach 5000 MBps and writes reach 4000 MBps, while random performance hits 460000 read IOPS and 800000 write IOPS. The 300 TBW rating and 1.75 million hour MTTF provide headroom for years of daily gaming writes before wear becomes a concern.

M.2 2280 PCIe Gen4 x4 NVMe integration

The single-sided M.2 2280 module fits standard motherboard slots and runs on the NVMe protocol with up to four lanes of PCIe Gen4 bandwidth. Active power draw is 65mW and the controller includes thermal management to sustain performance under load. The drive operates from 0 to 85 degrees Celsius and survives 1500G shock, making it suitable for both desktop and compatible laptop builds.

Highlights

  • Up to 5000 MB/s read speed cuts game load times
  • PCIe Gen4 16GT/s interface enables smoother in-game responsiveness
  • 300 TBW endurance rating supports heavy daily write workloads
  • 75 million hours MTTF indicates long-term drive reliability
  • 65 mW active power draw keeps system thermals lower

Specifications

BrandWestern Digital
SeriesBLACK SN770 NVMe
ModelWDS500G3X0E
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity500GB
InterfacePCIe Gen4 16GT/s, up to 4 Lanes
ProtocolNVMe
Max Sequential ReadUp to 5000 MBps
Max Sequential WriteUp to 4000 MBps
4KB Random ReadUp to 460,000 IOPS
4KB Random WriteUp to 800,000 IOPS
Terabytes Written (TBW)300 TBW
MTTF1.75 Million hours
FeaturesFirst into the Action
Get into the match fast as you zoom past load times with blazing speeds of up to 5,150MB/s (1TB and 2TB models).
Smoother, Faster Gaming
Improve in-game responsiveness and streaming with the PCIe Gen4 interface for a performance boost you can see and feel. The interface is compatible with leading CPU and motherboard platforms and backwards-compatible with PCIe Gen3.
Store More

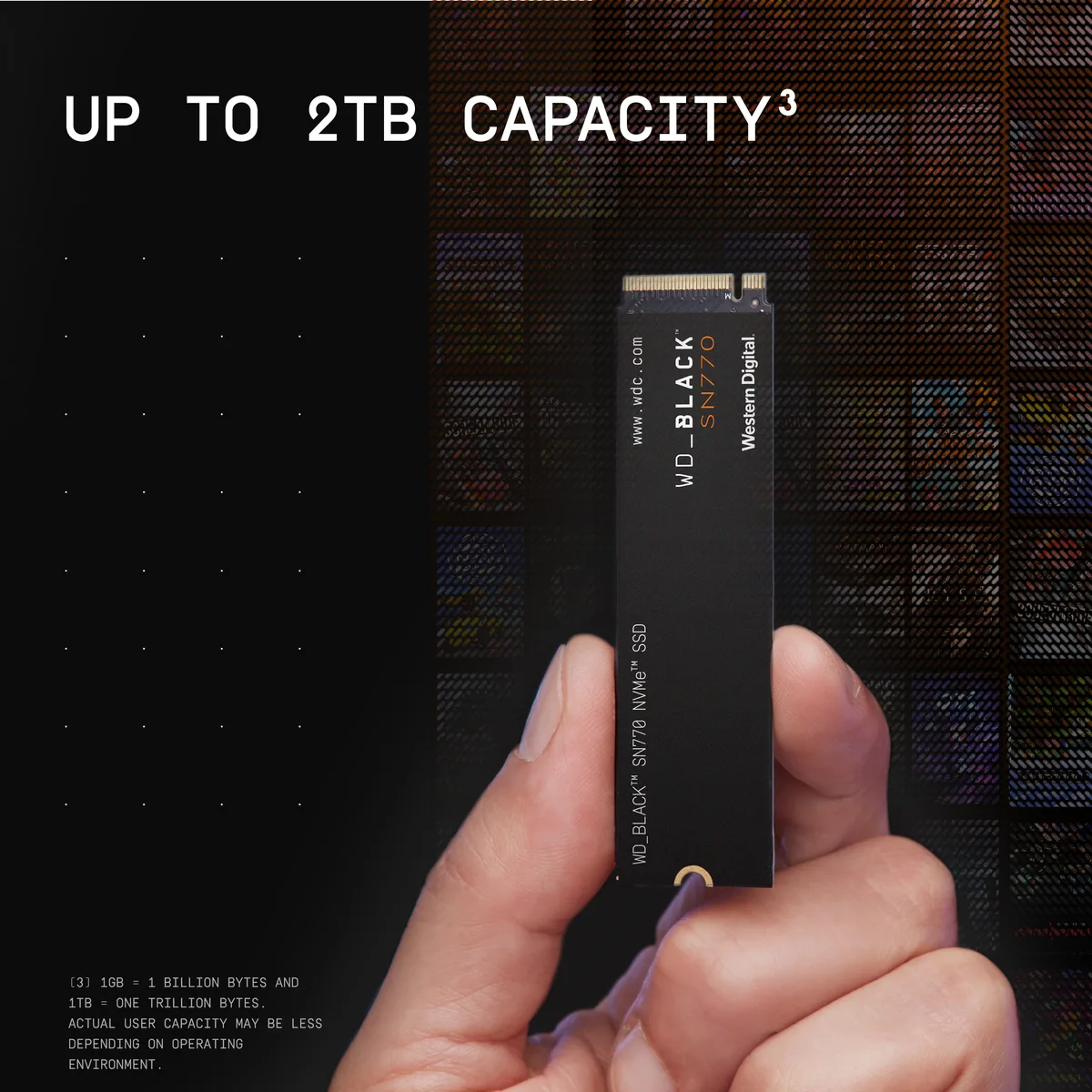

Available in capacities up to 2TB, the WD_BLACK SN770 NVMe SSD gives you tons of storage for your latest games with space left over for future updates and downloadable content.
Turbocharge
Power Consumption (Active)65mW
Operating Temperature32ºF to 185ºF (0ºC to 85ºC)
Storage Temperature-40ºF to 185ºF (-40ºC to 85ºC)
Max Shock Resistance1500G
Height2.38mm
Width22 +/- 0.15mm
Depth80 +/- 0.15mm
Weight5.5g +/- 0.5g
Shipping weight0.05 kg
Package size127 × 102 × 22 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the WD_BLACK SN770 work in my older motherboard that only has a PCIe Gen3 M.2 slot?

The SN770 is backwards-compatible with PCIe Gen3 motherboards; it will operate at Gen3 speeds instead of the rated PCIe Gen4 16GT/s 5000 MBps sequential read.

How can I verify the drive is delivering its rated 5000 MBps sequential read and 4000 MBps sequential write after installation?

Run a benchmark such as CrystalDiskMark on the NVMe drive; results approaching 5000 MBps read and 4000 MBps write confirm the PCIe Gen4 link is active and the SN770 is performing to spec.

Does the WDS500G3X0E retail box include a heatsink or mounting screw, or must I buy them separately?

The drive ships as a bare M.2 2280 module; any motherboard M.2 heatsink and the M.2 mounting screw are supplied by the board manufacturer, not in the SSD package.
