Rectangular 2.5 inch internal SSD with black label and silver metal casing

SanDisk

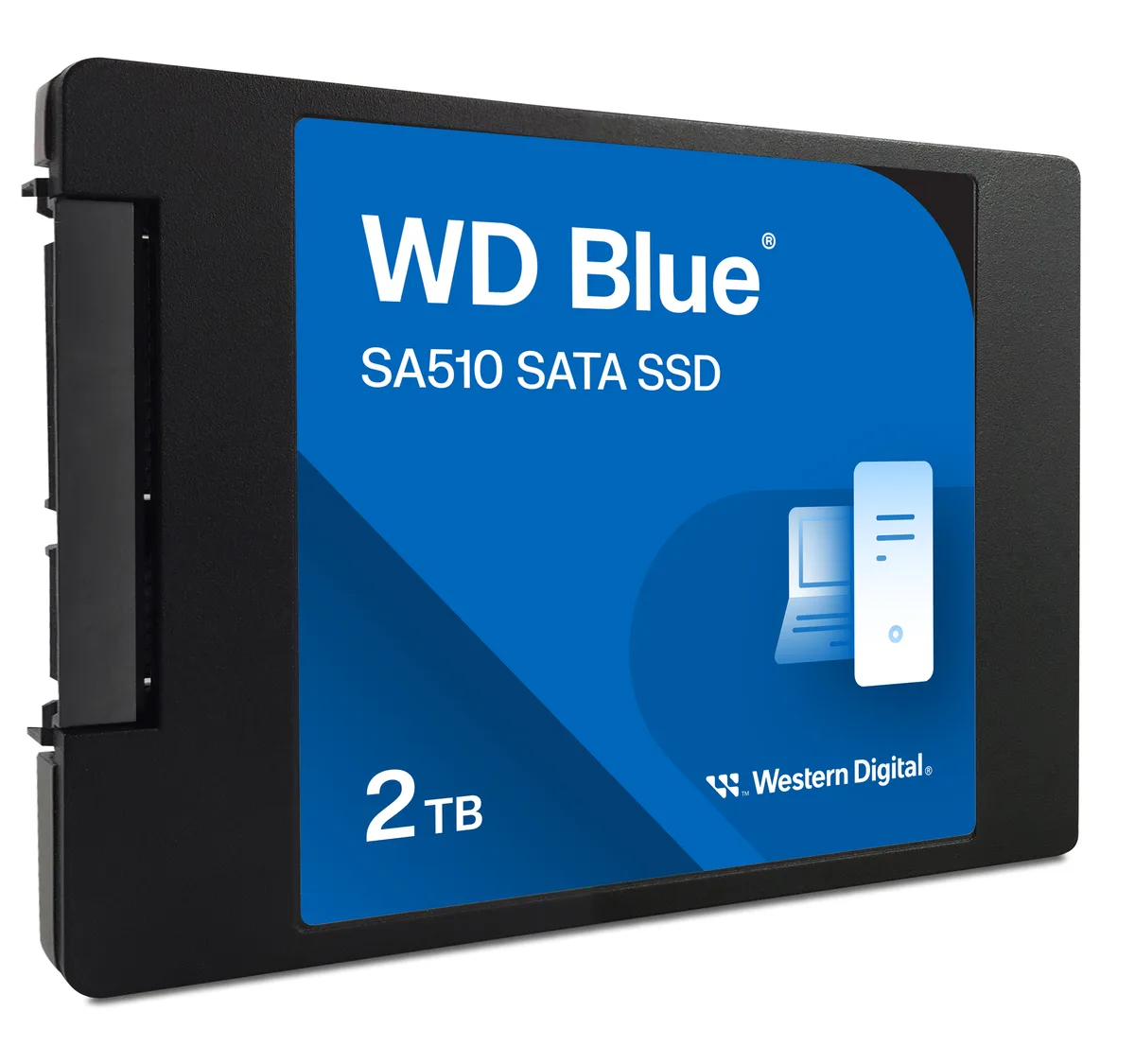

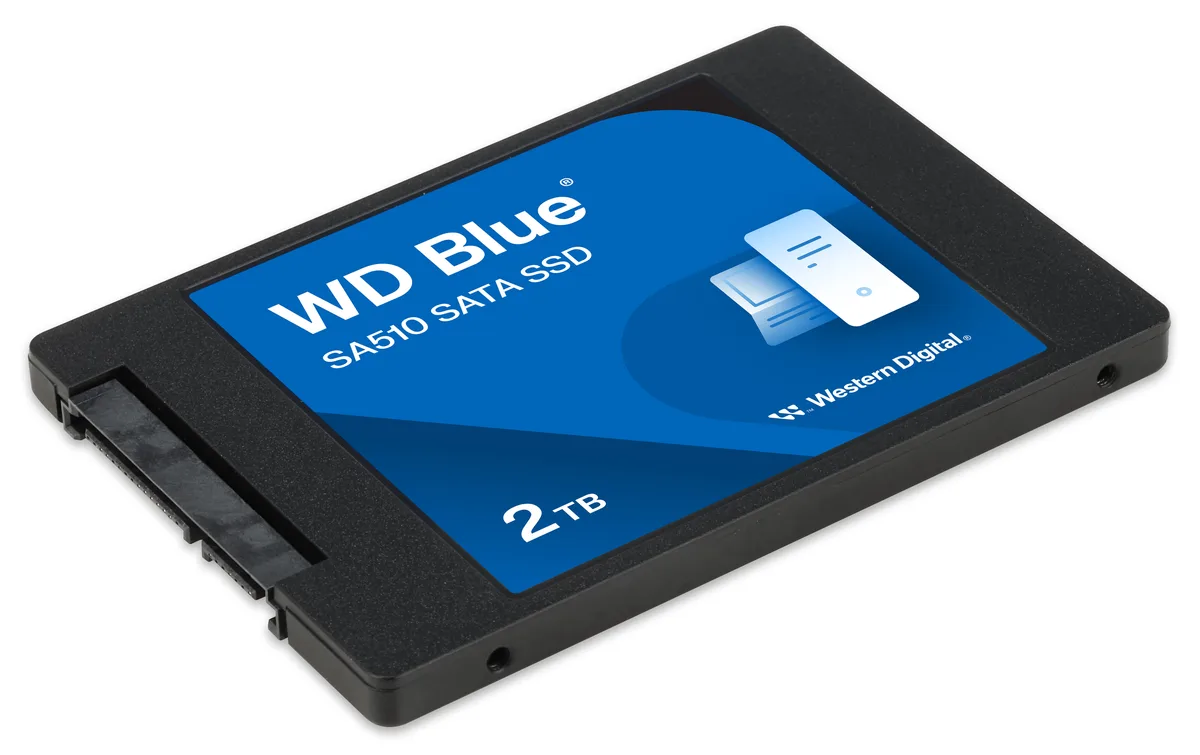

SanDisk WDS200T3B0A-00C7K0 2TB 2.5" internal SSD

SKU CH-975V-3ZH4R MPN WDS200T3B0A-00C7K0

2TB SATA III 2.5-inch SSD with 3D NAND TLC, up to 560 MB/s read, 520 MB/s write, 90,000 read IOPS, 82,000 write IOPS, 200 TBW and 1.75M hours MTTF

  • Used ForConsumer
  • Form Factor2.5"
  • Capacity2TB
  • Memory Components3D NAND TLC
  • InterfaceSATA III
  • ProtocolSATA

Options 2TB

  • Sequential read up to 560 MBps speeds large file transfers
  • Sequential write up to 520 MBps accelerates content creation
  • Random read up to 90000 IOPS sharpens system responsiveness
  • 200 TBW endurance rating supports heavy daily workloads
  • 75M hours MTTF signals long-term reliability

Capacity and audience

This 2TB 2.5" SATA III internal SSD uses 3D NAND TLC memory and targets consumer laptops and desktops that need a straightforward storage upgrade. It delivers sequential reads up to 560 MBps and writes up to 520 MBps with random performance of 90,000 read IOPS and 82,000 write IOPS.

Thermals noise and power

The drive operates between 0°C and 70°C and draws 60 mW average active power, peaking at 1,800 mW during reads and 2,000 mW during writes. Idle slumber power is 36 mW and DEVSLP drops to 12 mW, helping extend battery life in portable systems.

Software and accessories

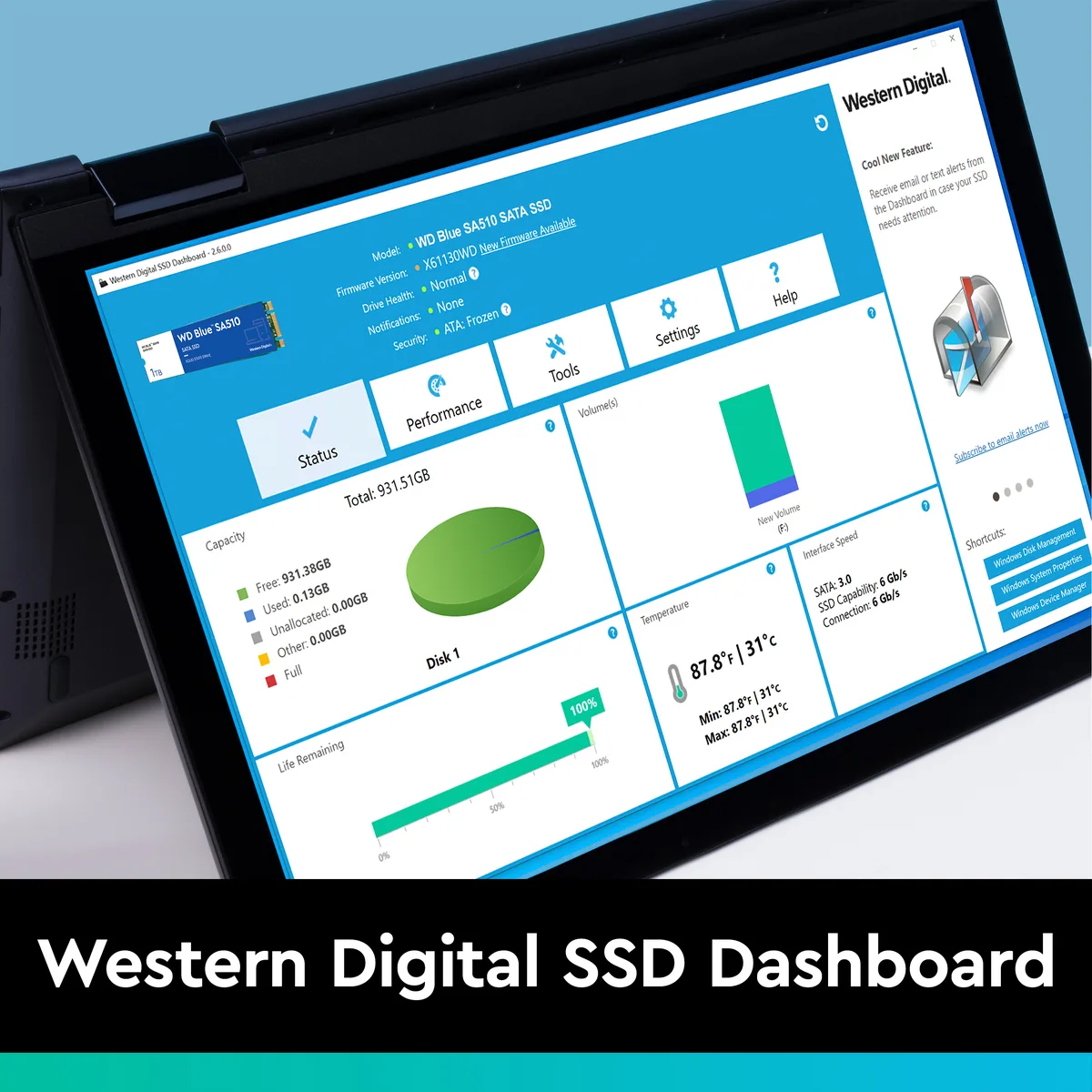

Acronis True Image for Western Digital is included for full-drive cloning and backup with cyber protection features. The downloadable Western Digital SSD Dashboard adds health, temperature, and capacity monitoring to simplify ongoing maintenance.

Highlights

  • Sequential read up to 560 MBps speeds large file transfers
  • Sequential write up to 520 MBps accelerates content creation
  • Random read up to 90000 IOPS sharpens system responsiveness
  • 200 TBW endurance rating supports heavy daily workloads
  • 75M hours MTTF signals long-term reliability

Specifications

BrandWestern Digital
SeriesSA510 SATA
ModelWDS200T3B0A
Used ForConsumer
Form Factor2.5"
Capacity2TB
Memory Components3D NAND TLC
InterfaceSATA III
ProtocolSATA
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadUp to 90,000 IOPS
4KB Random WriteUp to 82,000 IOPS
Terabytes Written (TBW)200TB
MTTFUp to 1.75M hours
FeaturesUp to 1.75M hours
Power Consumption (Idle)Slumber (mW): 36
DEVSLP (mW): 12
Power Consumption (Active)Average Active Power (mW): 60
Max Read Operating (mW): 1,800
Max Write Operating6 (mW): 2,000
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +85°C
Max Shock Resistance1,500G @ 0.5 msec half sine
Max Vibration ResistanceOperating Vibration: 5.0 gRMS, 10-2000 Hz
Non-operating Vibration: 4.9 gRMS, 7-800 Hz
Height7.00mm
Width69.85mm
Depth100.20mm
Weight34.60g
Shipping weight0.06 kg
Package size173 × 102 × 19 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 2.5" 7mm drive in a laptop bay, and what step is often missed?

Mount the drive using the four screw holes on the 69.85mm x 100.20mm frame, connect the SATA data and power cables, then enable AHCI mode in BIOS so the SATA III 6 Gb/s link negotiates at full speed.

What maintenance will the 3D NAND TLC drive need and when should I plan a replacement?

No mechanical service is required; monitor health with the downloadable Western Digital SSD Dashboard and replace the drive once the 200TB TBW rating or the 1.75M hour MTTF threshold is approached.

What limit appears first during sustained heavy writes on this SATA III SSD?

The sequential write ceiling of 520 MBps and the 82,000 IOPS random write limit are reached before thermal throttling, since the drive operates within 0°C to 70°C and draws a maximum of 2,000 mW during write bursts.
