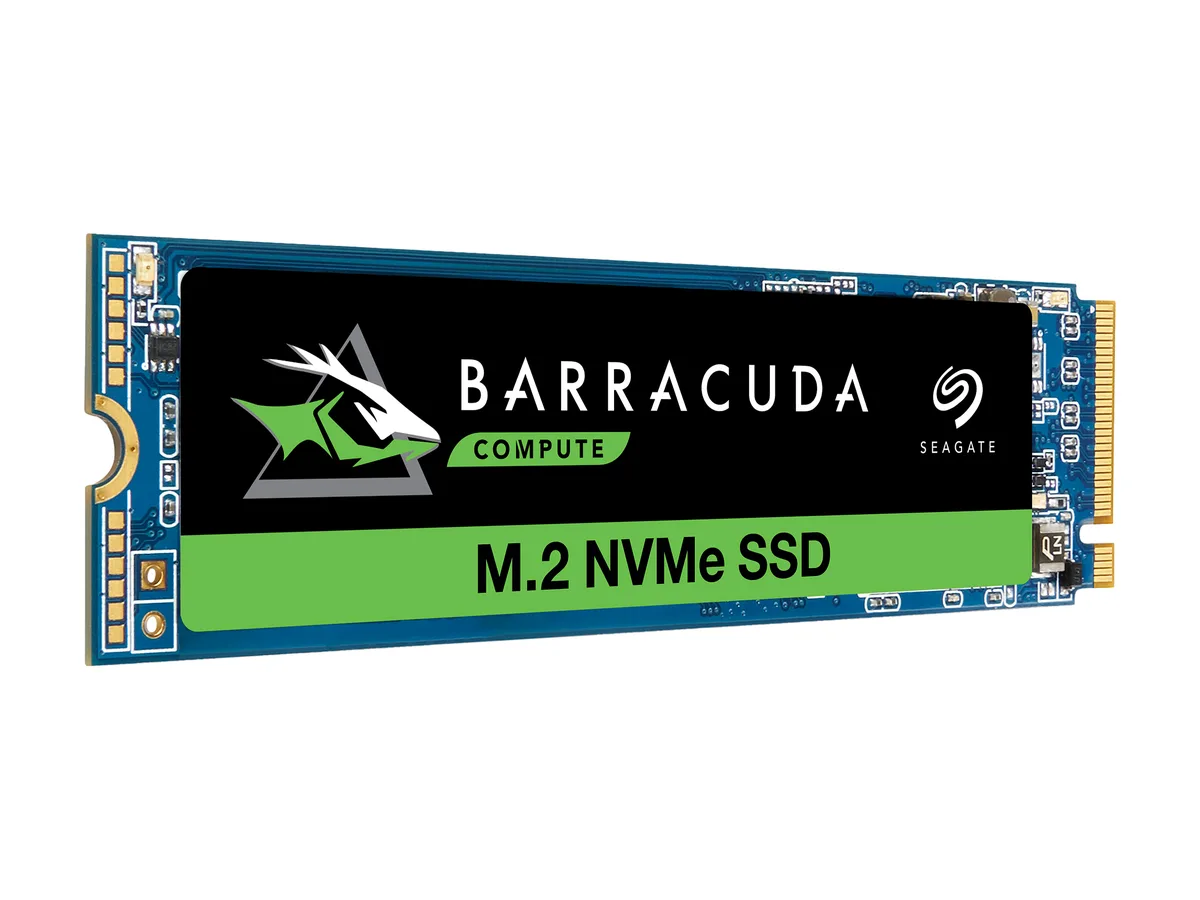

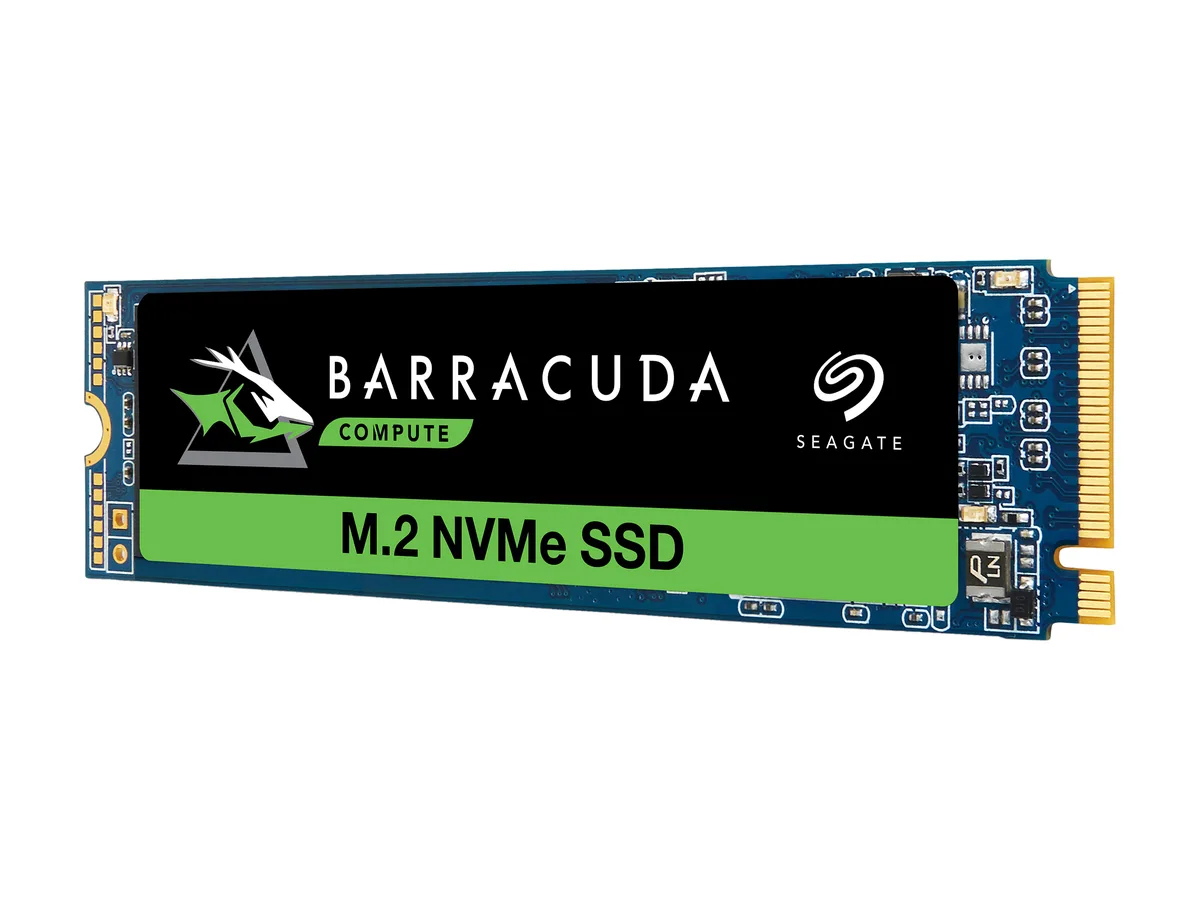

Green rectangular M.2 2280 circuit board with black controller and gold edge connector

Seagate

Seagate BarraCuda 510 ZP1000CM3A001 1TB M.2 2280 PCIe G3 x4 NVMe 1.3 3D TLC internal SSD

SKU CH-PDSC-N0F90 MPN ZP1000CM3A001

M.2 2280 NVMe SSD delivering 1TB capacity with sequential reads up to 3400 MBps and writes up to 3000 MBps

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D TLC
  • InterfacePCIe G3 x4, NVMe 1.3

Options 1TB

  • Up to 3400 MB/s read speed via PCIe G3 x4 NVMe 1.3
  • Up to 3000 MB/s write speed via PCIe G3 x4 NVMe 1.3
  • 600000 IOPS random read and write for responsive multitasking
  • 8M hours MTBF for long-term reliability
  • 1TB 3D TLC capacity in single-sided M.2 2280 form factor

BarraCuda 510 1TB M.2 NVMe drive

The Seagate BarraCuda 510 ZP1000CM3A001 is a 1TB internal SSD built in the M.2 2280 form factor for consumer laptops, mini PCs and desktops. It uses 3D TLC NAND and a PCIe Gen3 x4 interface with NVMe 1.3 to deliver sequential reads up to 3400 MBps and writes up to 3000 MBps. Random performance reaches 600000 IOPS for both read and write workloads.

PCIe Gen3 x4 NVMe 1.3 interface

The single specification that determines compatibility is the PCIe Gen3 x4 NVMe 1.3 interface. The drive requires an M.2 slot wired for PCIe x4 and NVMe support; it will not function in slots limited to other protocols. Sequential throughput and random IOPS are defined by this interface generation.

Suits mainstream builds needing 1TB NVMe speed

This drive suits builders who want 1TB of NVMe performance in a single-sided M.2 2280 package with low idle power of 20 mW and 5.3W active draw. Users whose platforms only support slower interfaces or who need higher endurance than the 1.8M hour MTBF indicates should consider other options.

Highlights

  • Up to 3400 MB/s read speed via PCIe G3 x4 NVMe 1.3
  • Up to 3000 MB/s write speed via PCIe G3 x4 NVMe 1.3
  • 600000 IOPS random read and write for responsive multitasking
  • 8M hours MTBF for long-term reliability
  • 1TB 3D TLC capacity in single-sided M.2 2280 form factor

Specifications

BrandSeagate
SeriesBarraCuda 510
ModelZP1000CM3A001
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D TLC
InterfacePCIe G3 x4, NVMe 1.3
Max Sequential ReadUp to 3400 MBps
Max Sequential WriteUp to 3000 MBps
4KB Random ReadUp to 600,000 IOPS
4KB Random WriteUp to 600,000 IOPS
MTBF1,800,000 hours
FeaturesAmazing speed with next-level 3D TLC NAND and a PCIe Gen3 x4, NVMe 1.3 unlock sequential read/write speeds of up to 3400/3000 MB/s
The trusted dependability of the BarraCuda brand with MTBF of 1.8M hours
Amazing versatility with capacities of 250GB and 1TB lets you pick the right drive for the job and budget
Slim form factor with single-sided M.2 2280 for ultra-thin/ultra-small laptops, mini PCs, and desktop PCs
Low power consumption with up to 5.3W active power and multiple low power modes make for longer battery life and cooler running speeds
Power Consumption (Idle)20 mW
Power Consumption (Active)5.3W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height2.23mm
Width22.15mm
Depth80.15mm
Weight8.70g
Shipping weight0.06 kg
Package size160 × 140 × 30 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 3400 MB/s sequential read figure translate to everyday use?

The 3400 MB/s sequential read speed cuts large-file load times and OS boot duration, though real-world throughput depends on your motherboard's PCIe Gen3 x4 lane allocation and thermal headroom.

What does the PCIe Gen3 x4 NVMe 1.3 interface limit in practice?

The Gen3 x4 link caps sequential transfers at roughly 3400/3000 MB/s and random IOPS at 600000, so a Gen4 slot will not raise those ceilings.

Will the single-sided M.2 2280 PCB fit my ultra-thin laptop?

Yes, the single-sided 2280 form factor is designed for ultra-thin laptops, mini PCs and desktops with a standard M-key slot.
