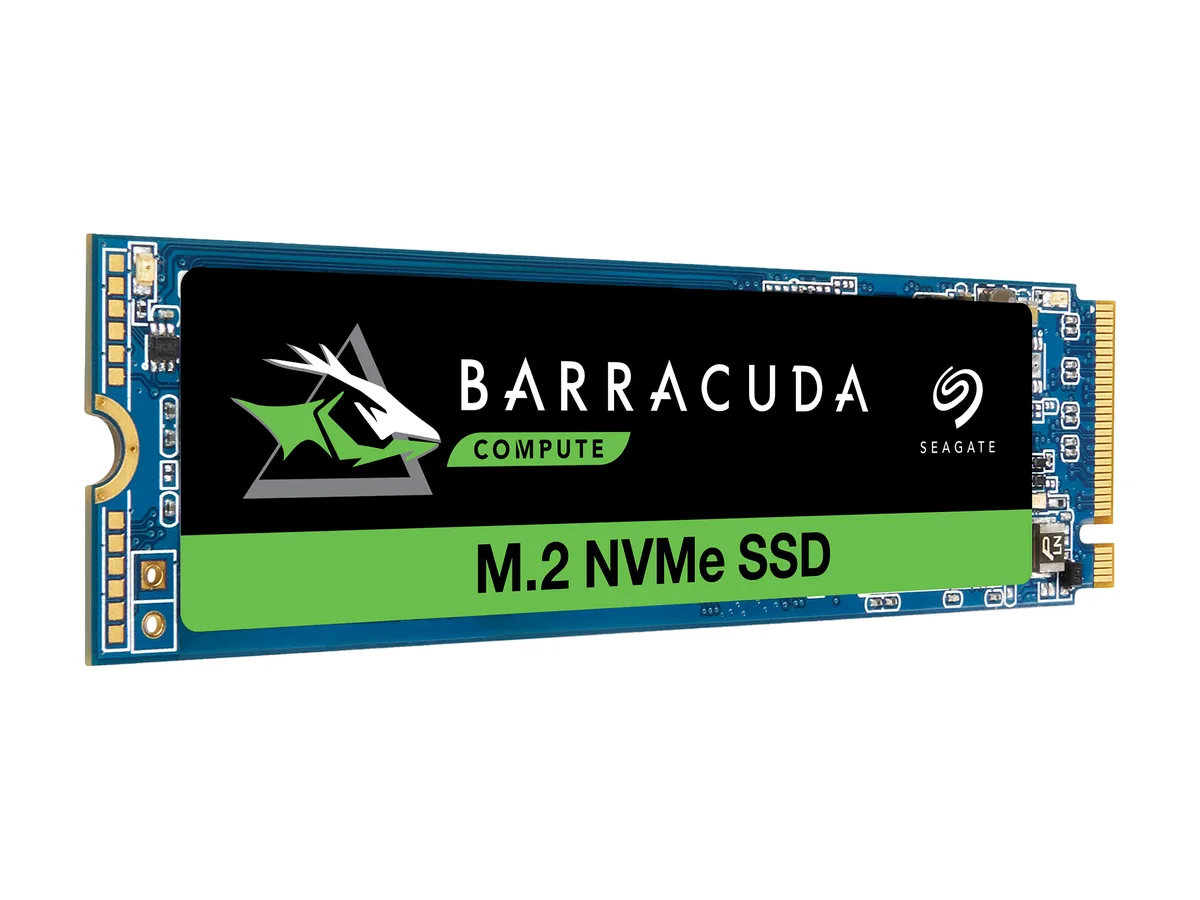

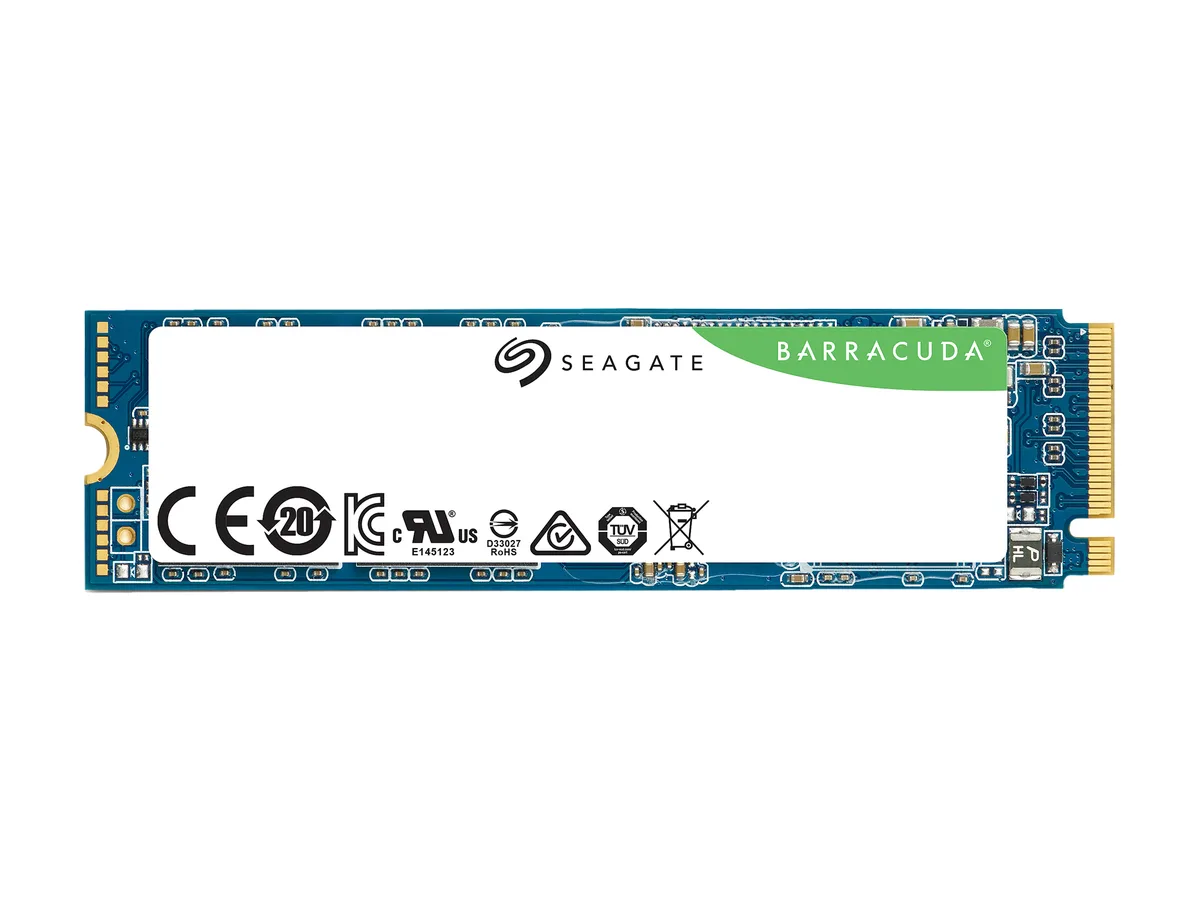

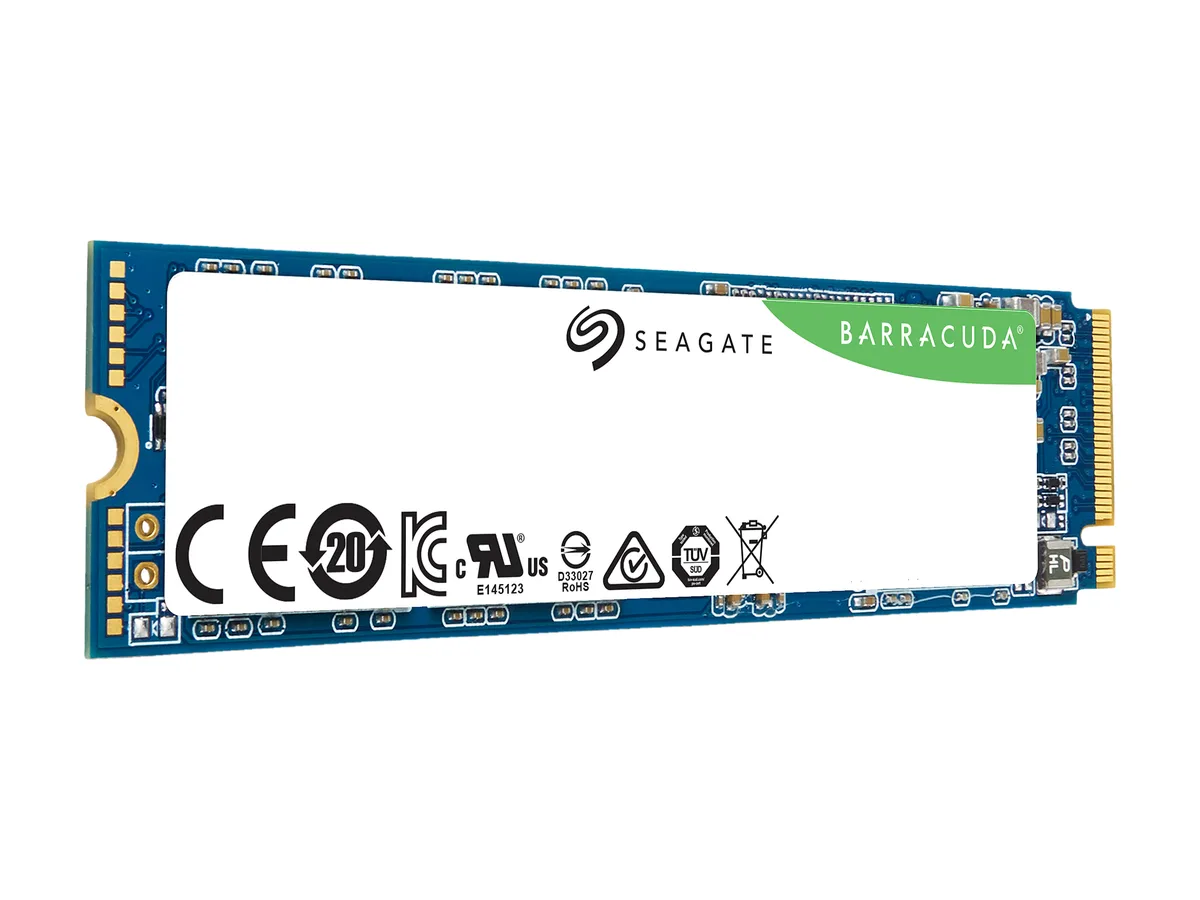

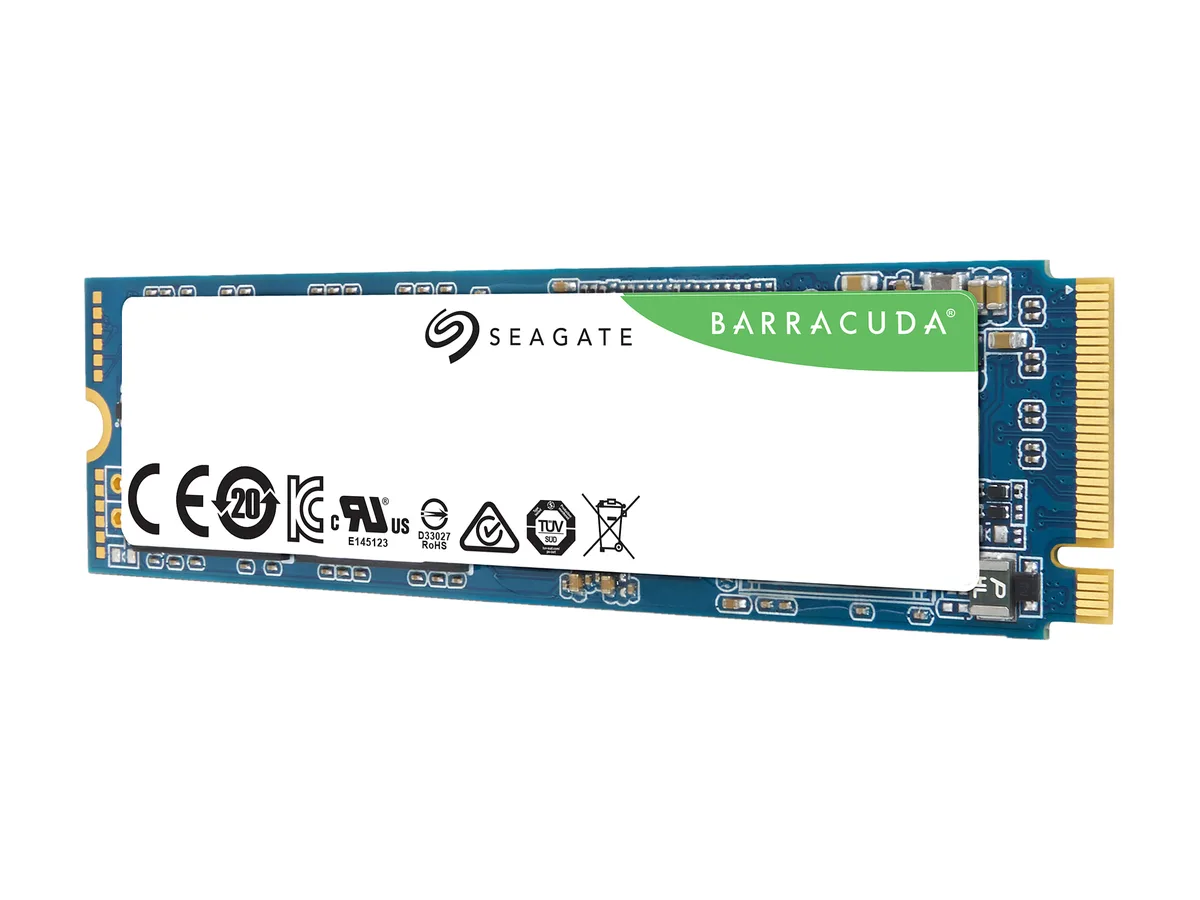

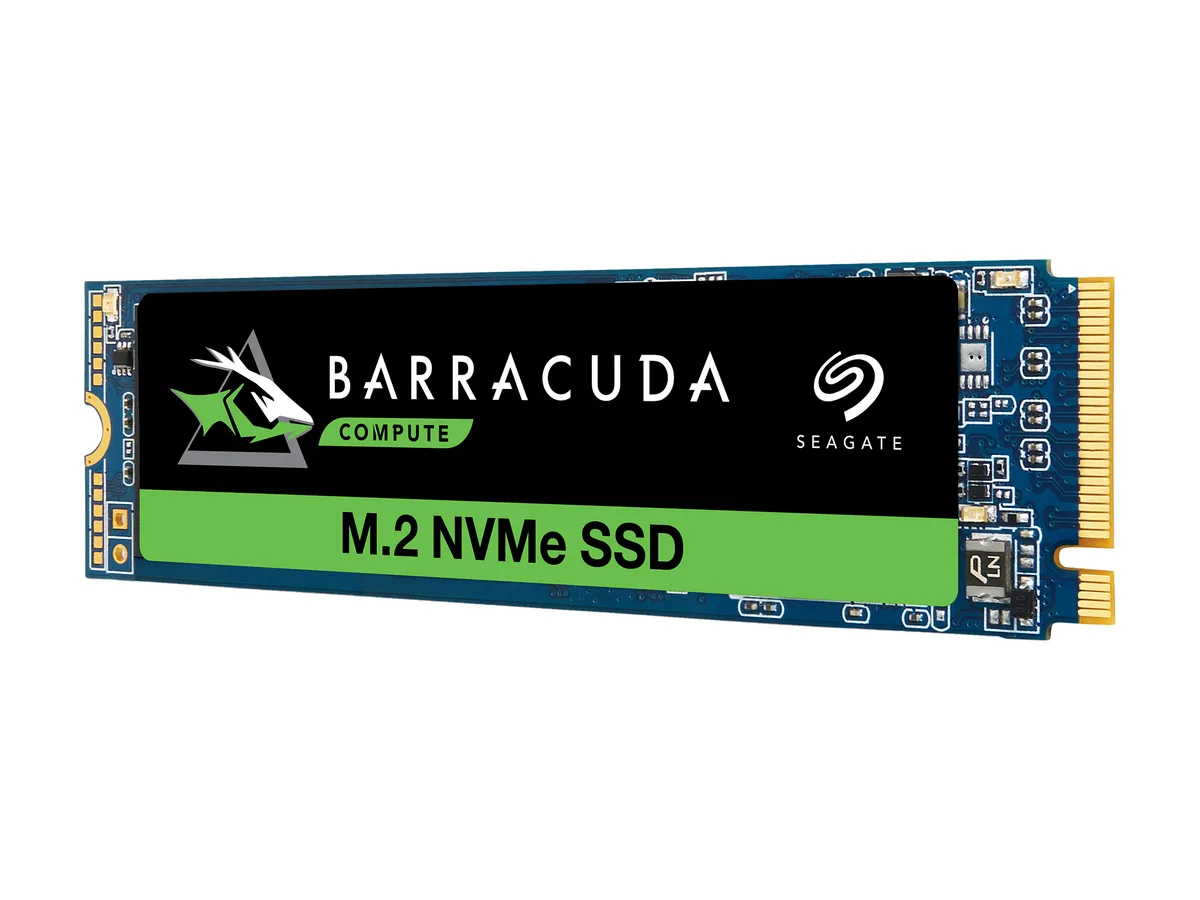

Small green circuit board with gold edge connector and black chips

Seagate

Seagate BarraCuda 510 ZP250CM3A001 250GB M.2 2280 internal SSD

SKU CH-VER5-SBG7Y MPN ZP250CM3A001

An M.2 2280 internal SSD with 250GB of 3D TLC storage, PCIe Gen3 x4 NVMe 1.3 interface, and sequential speeds up to 3100/1200 MB/s

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity250GB
  • Memory Components3D TLC
  • InterfacePCIe G3 x4, NVMe 1.3

Options 250GB

  • Fast boot and load times with sequential read up to 3100 MB/s
  • Responsive multitasking from random read up to 210000 IOPS
  • Long-term reliability backed by 1800000-hour MTBF
  • Extended laptop battery life with 16 mW idle power
  • Fits ultra-thin laptops and mini PCs via single-sided M.2 2280

What it is

The Seagate BarraCuda 510 ZP250CM3A001 is a 250GB internal SSD built on 3D TLC NAND with a PCIe G3 x4, NVMe 1.3 interface in the M.2 2280 form factor. It delivers sequential reads up to 3100 MBps and writes up to 1200 MBps for everyday consumer workloads.

Upgrade path

Moving from a slower PCIe Gen3 drive or a lower-capacity NVMe module brings immediate gains in random read and write IOPS of 210,000 and 280,000. The 250GB capacity suits OS and application installs where space is limited.

Who it suits

The single-sided M.2 2280 design fits ultra-thin laptops, mini PCs and desktops with tight clearance. Active power of 3.0W and idle draw of 16 mW help battery life. Users needing more than 250GB should consider the 1TB variant in the same series.

Highlights

  • Fast boot and load times with sequential read up to 3100 MB/s
  • Responsive multitasking from random read up to 210000 IOPS
  • Long-term reliability backed by 1800000-hour MTBF
  • Extended laptop battery life with 16 mW idle power
  • Fits ultra-thin laptops and mini PCs via single-sided M.2 2280

Specifications

BrandSeagate
SeriesBarraCuda 510
ModelZP250CM3A001
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity250GB
Memory Components3D TLC
InterfacePCIe G3 x4, NVMe 1.3
Max Sequential ReadUp to 3100 MBps
Max Sequential WriteUp to 1200 MBps
4KB Random ReadUp to 210,000 IOPS
4KB Random WriteUp to 280,000 IOPS
MTBF1,800,000 hours
FeaturesAmazing speed with next-level 3D TLC NAND and a PCIe Gen3 x4, NVMe 1.3 unlock sequential read/write speeds of up to 3100/1200 MB/s
The trusted dependability of the BarraCuda brand with MTBF of 1.8M hours
Amazing versatility with capacities of 250GB and 1TB lets you pick the right drive for the job and budget
Slim form factor with single-sided M.2 2280 for ultra-thin/ultra-small laptops, mini PCs, and desktop PCs
Low power consumption with up to 3.0W active power and multiple low power modes make for longer battery life and cooler running speeds
Power Consumption (Idle)16 mW
Power Consumption (Active)3.0W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height2.23mm
Width22.15mm
Depth80.15mm
Weight8.70g
Shipping weight0.06 kg
Package size135 × 112 × 28 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the single-sided M.2 2280 form factor fit my ultra-thin laptop slot?

Yes, the single-sided M.2 2280 design fits ultra-thin laptops, mini PCs and desktops that accept a 2280-length module.

Do I need to enable NVMe 1.3 in BIOS before installing the BarraCuda 510?

Install the drive into the M.2 slot, secure it with the motherboard screw, then ensure the BIOS boot mode is set to UEFI so the NVMe 1.3 drive is detected.

How long is the drive rated to last under typical consumer workloads?

The drive carries a 1,800,000-hour MTBF rating, indicating high endurance for everyday consumer use.
