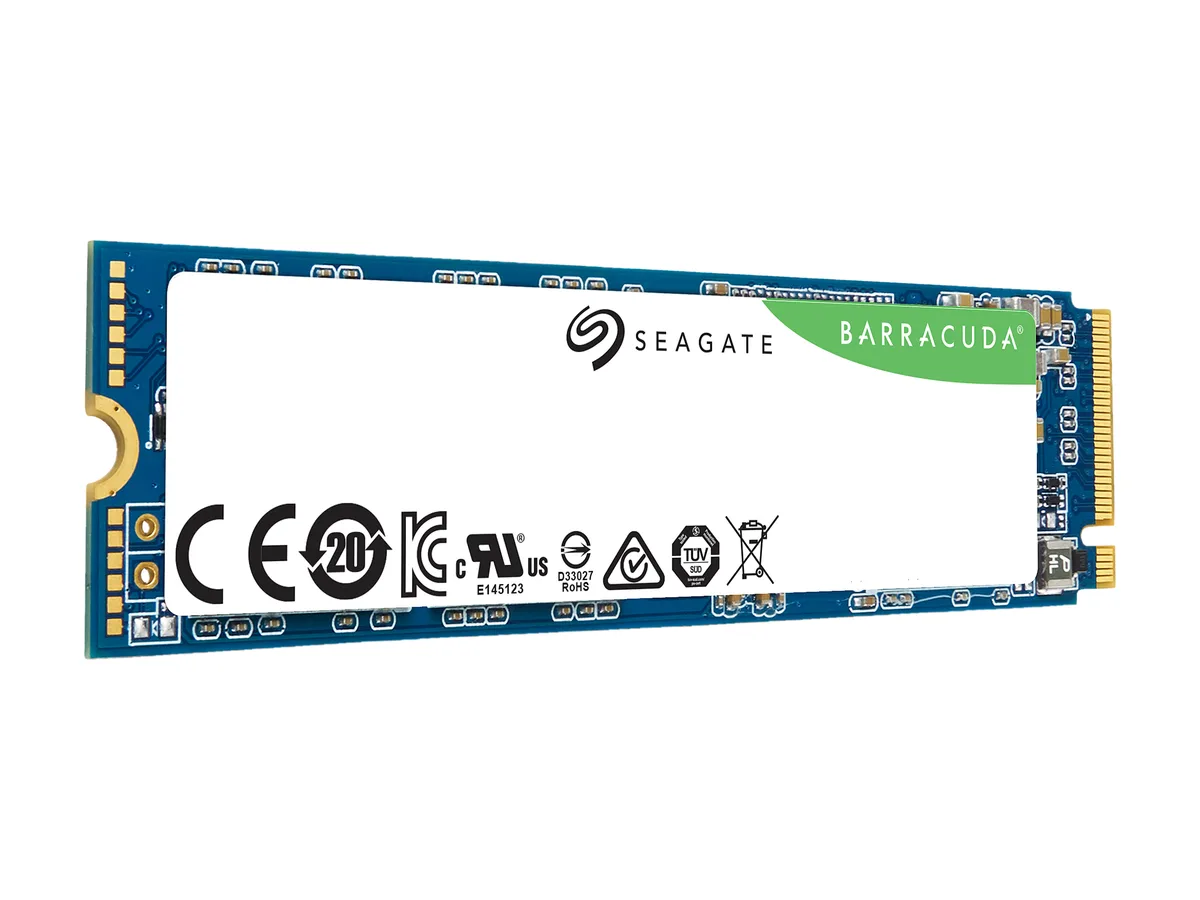

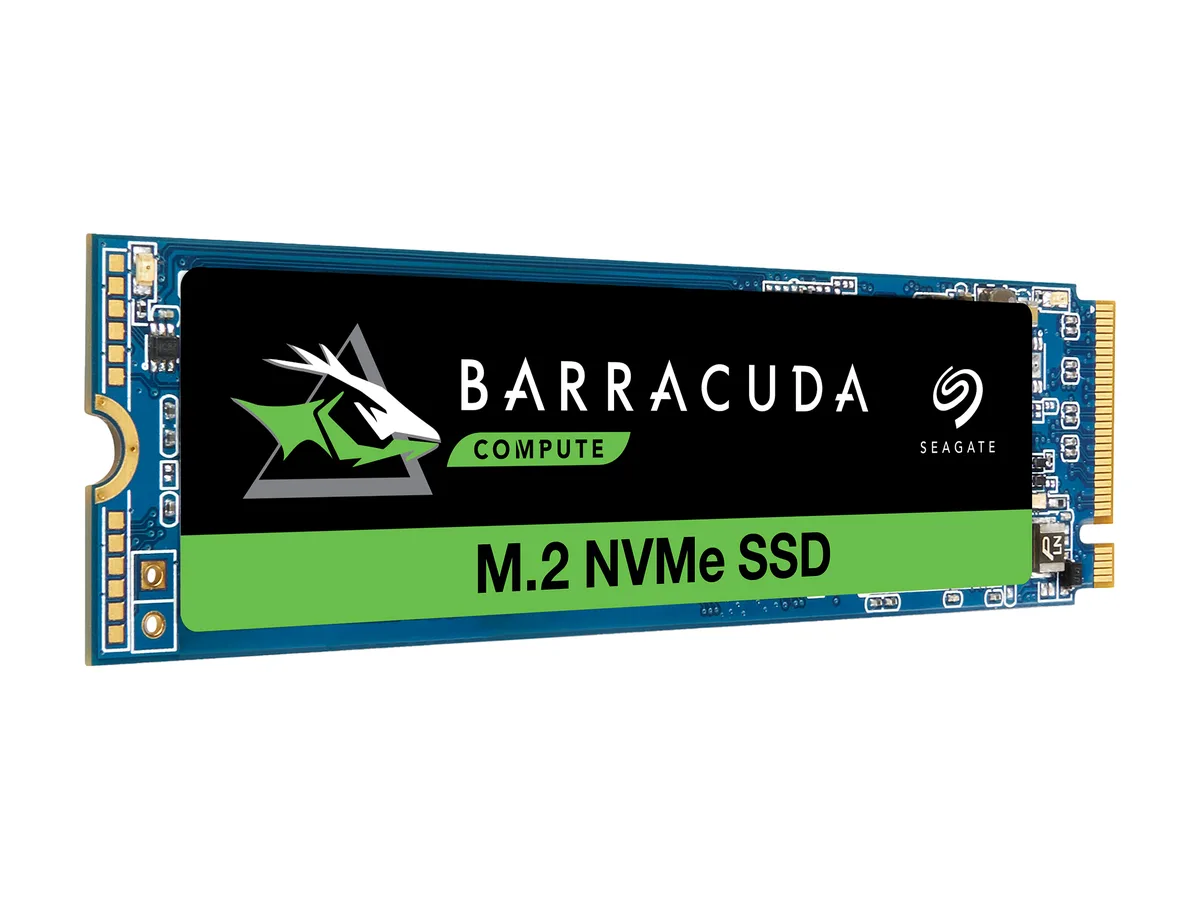

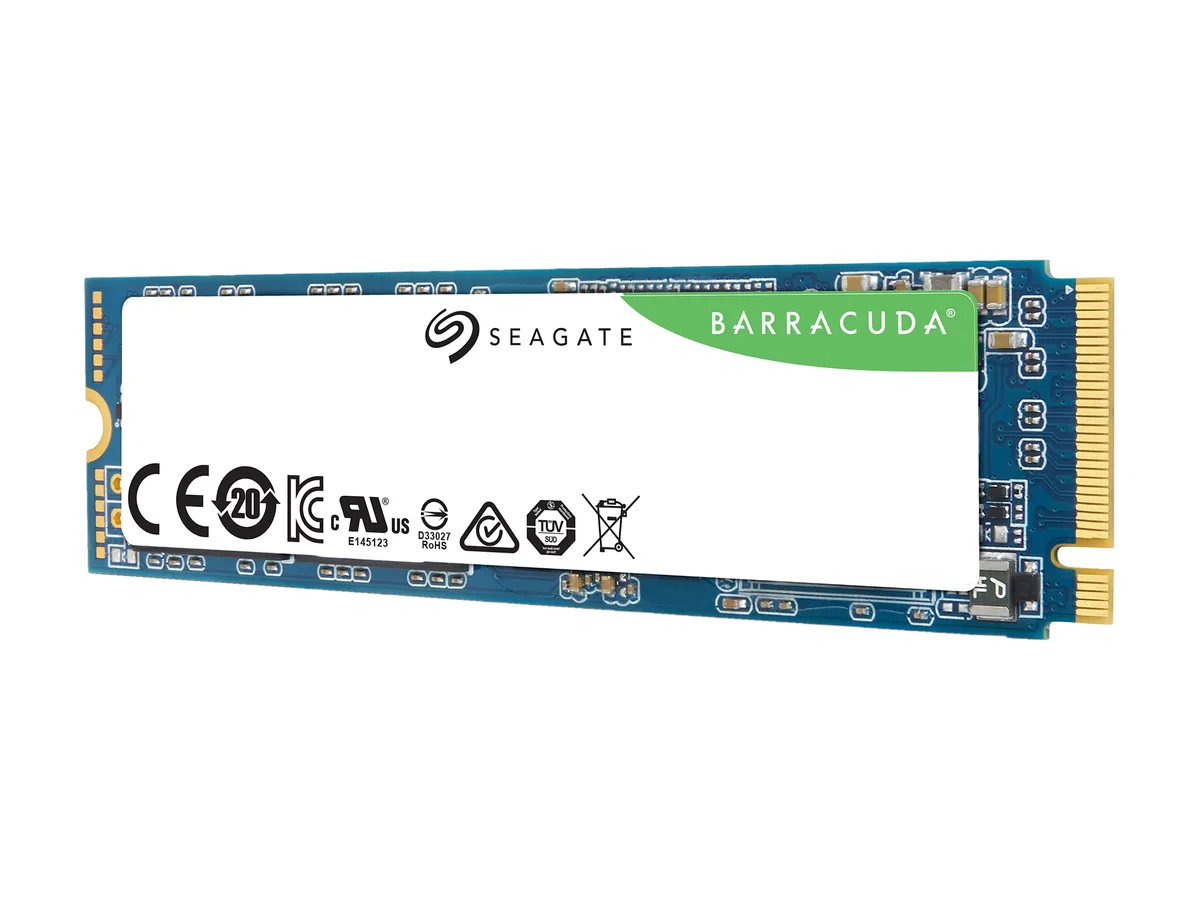

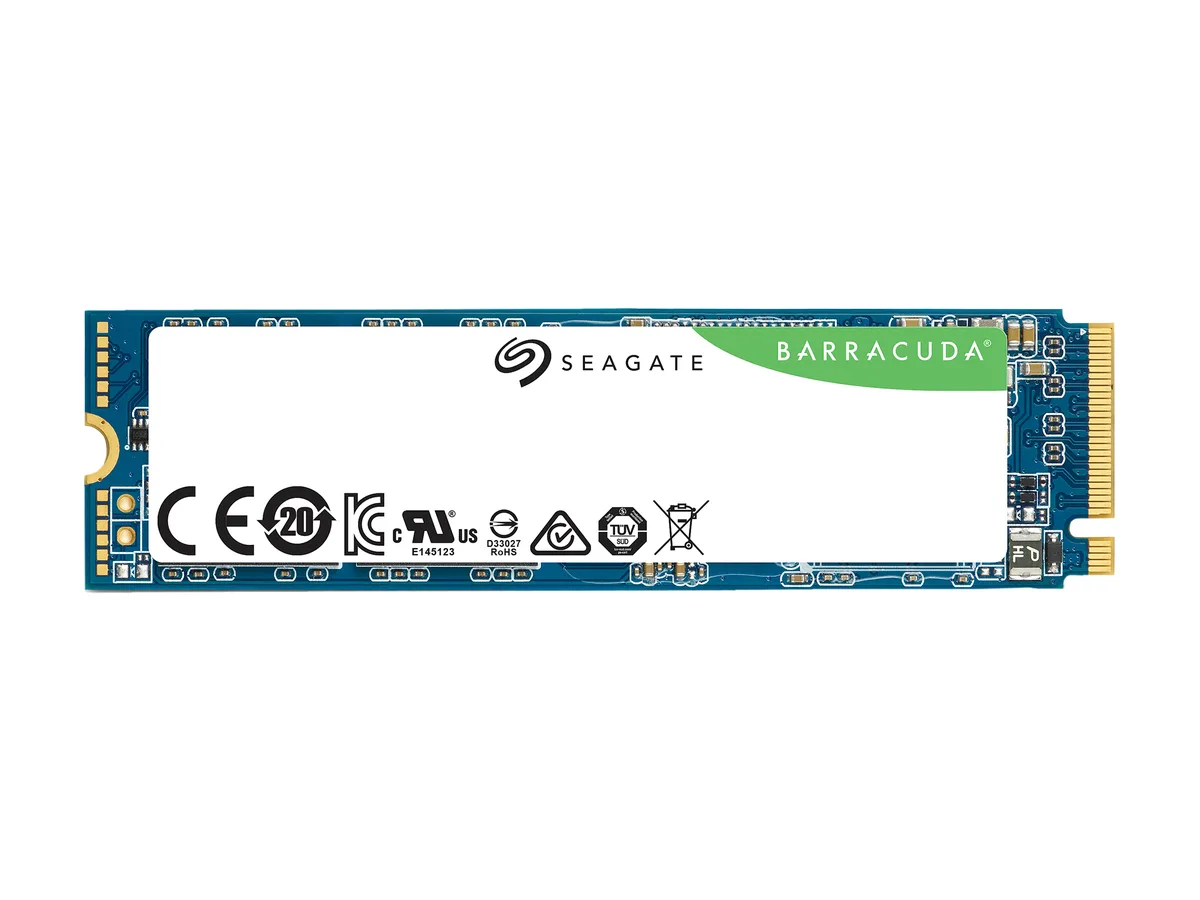

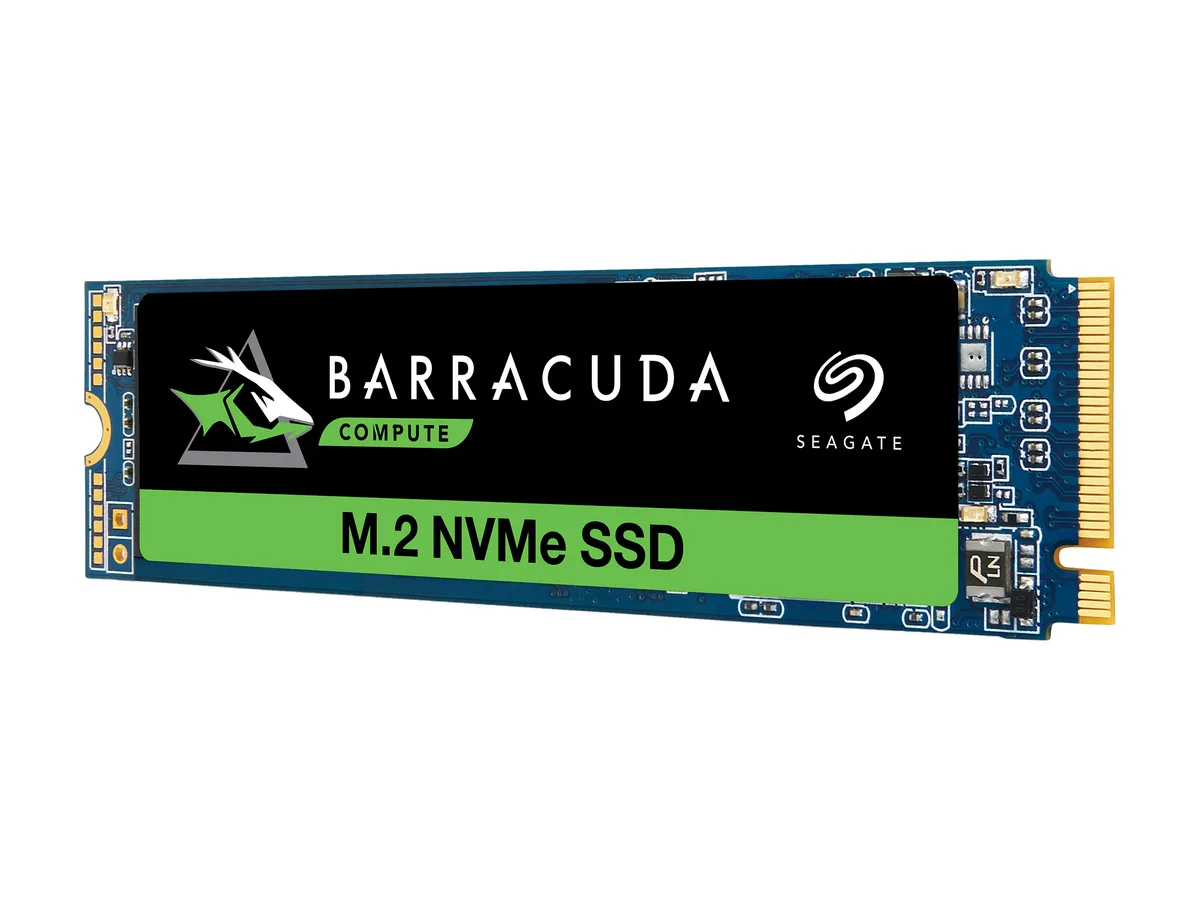

Green rectangular M.2 2280 SSD with gold edge connector and black controller chip visible

Seagate

Seagate BarraCuda 510 ZP500CM3A001 500GB M.2 2280 PCIe NVMe internal SSD

SKU CH-1YH7-46TYK MPN ZP500CM3A001

An M.2 2280 internal SSD delivering up to 3400 MB/s sequential read and 2400 MB/s write via PCIe Gen3 x4 NVMe 1.3 with 3D TLC NAND

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity500GB
  • Memory Components3D TLC
  • InterfacePCIe G3 x4, NVMe 1.3

Options 500GB

  • PCIe Gen3 x4 NVMe 1.3 delivers up to 3400 MB/s sequential reads
  • 500 GB 3D TLC capacity stores games, apps and large files
  • 8 million hours MTBF plus 320 TBW rated endurance
  • Single-sided M.2 2280 fits ultra-thin laptops and compact desktops
  • Idle power draw of 16 mW extends battery life on mobile systems

BarraCuda 510 500GB PCIe NVMe SSD

The BarraCuda 510 is a 500GB M.2 2280 internal SSD using 3D TLC NAND and a PCIe Gen3 x4 NVMe 1.3 interface. It delivers sequential reads up to 3400 MBps and writes up to 2400 MBps. Random read performance reaches 410000 IOPS with random writes at 540000 IOPS.

Ideal for laptop and desktop upgrades needing NVMe

This drive suits users upgrading ultra-thin laptops, mini PCs or desktops that accept a single-sided M.2 2280 module. It is not suited for systems limited to SATA interfaces or those requiring higher endurance than 320 terabytes written.

Handles OS, apps and games.

The 500GB capacity comfortably holds an operating system, applications and a game library with room for daily file transfers. Sustained heavy write workloads will exhaust the 320 TBW endurance rating sooner than larger-capacity models.

Highlights

  • PCIe Gen3 x4 NVMe 1.3 delivers up to 3400 MB/s sequential reads
  • 500 GB 3D TLC capacity stores games, apps and large files
  • 8 million hours MTBF plus 320 TBW rated endurance
  • Single-sided M.2 2280 fits ultra-thin laptops and compact desktops
  • Idle power draw of 16 mW extends battery life on mobile systems

Specifications

BrandSeagate
SeriesBarraCuda 510
ModelZP500CM3A001
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity500GB
Memory Components3D TLC
InterfacePCIe G3 x4, NVMe 1.3
Max Sequential ReadUp to 3400 MBps
Max Sequential WriteUp to 2400 MBps
4KB Random ReadUp to 410,000 IOPS
4KB Random WriteUp to 540,000 IOPS
MTBF1,800,000 hours
FeaturesAmazing speed with next-level 3D TLC NAND and a PCIe Gen3 x4, NVMe 1.3 unlock sequential read/write speeds of up to 3400/2400 MB/s
The trusted dependability of the BarraCuda brand with MTBF of 1.8M hours
Amazing versatility with capacities of 250GB and 1TB lets you pick the right drive for the job and budget
Slim form factor with single-sided M.2 2280 for ultra-thin/ultra-small laptops, mini PCs, and desktop PCs
Low power consumption with up to 4.6W active power and multiple low power modes make for longer battery life and cooler running speeds
Power Consumption (Idle)16 mW
Power Consumption (Active)4.6W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height2.23mm
Width22.15mm
Depth80.15mm
Weight8.70g
Shipping weight0.05 kg
Package size155 × 109 × 28 mm

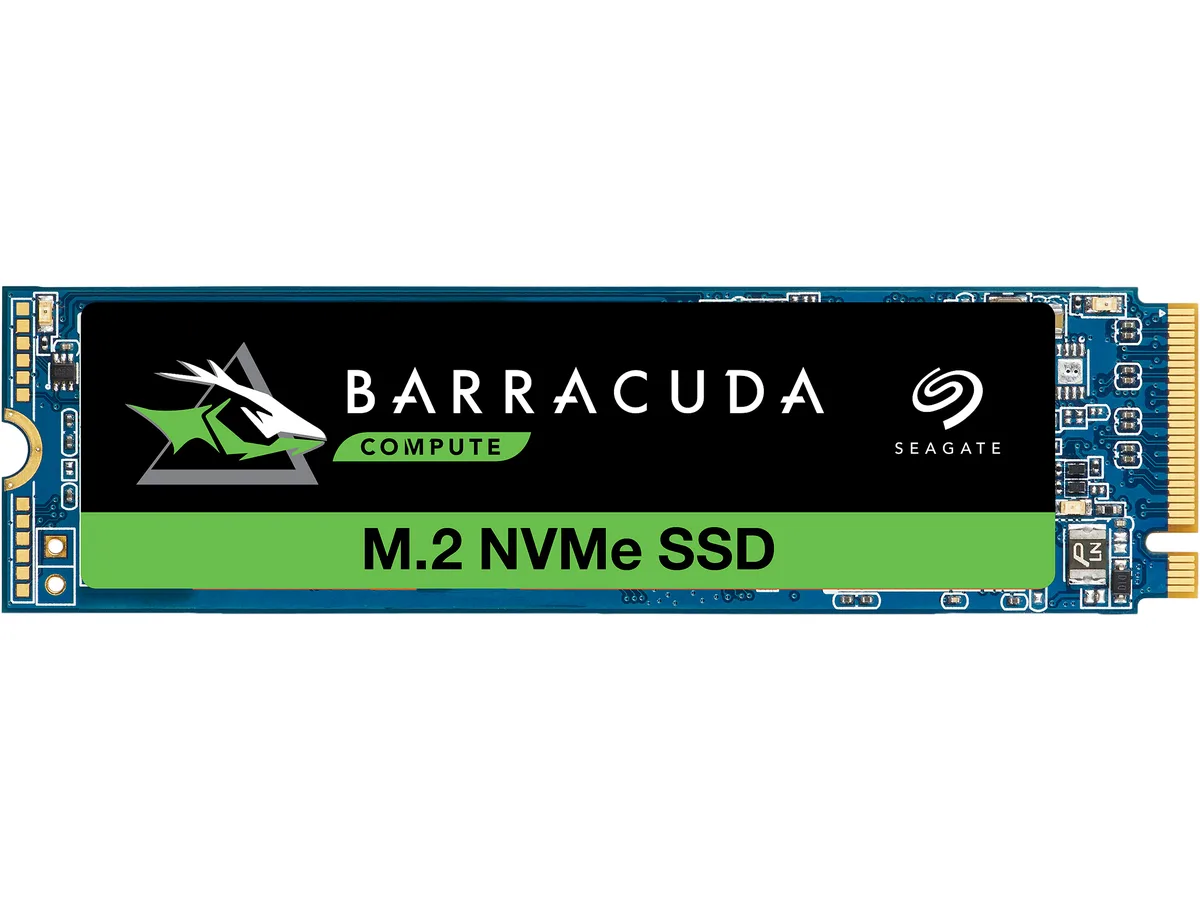

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my motherboard need an M.2 2280 slot that supports PCIe G3 x4 and NVMe 1.3 for this ZP500CM3A001 to work?

Yes, the drive requires an M.2 2280 key-M slot wired for PCIe Gen3 x4 with NVMe 1.3 support; SATA-only M.2 slots will not work.

Can I keep my existing 2.5-inch SATA SSD installed while adding this BarraCuda 510 500GB drive?

Yes, the M.2 NVMe drive and a 2.5-inch SATA SSD use separate interfaces and can run together if the board has both connectors and enough PCIe lanes.

How can I verify the drive is delivering up to 3400 MB/s reads and 2400 MB/s writes after installation?

Run a sequential benchmark such as CrystalDiskMark or AS SSD and compare the results to the rated 3400 MB/s read and 2400 MB/s write figures; SeaTools SSD can also confirm health and SMART attributes.
