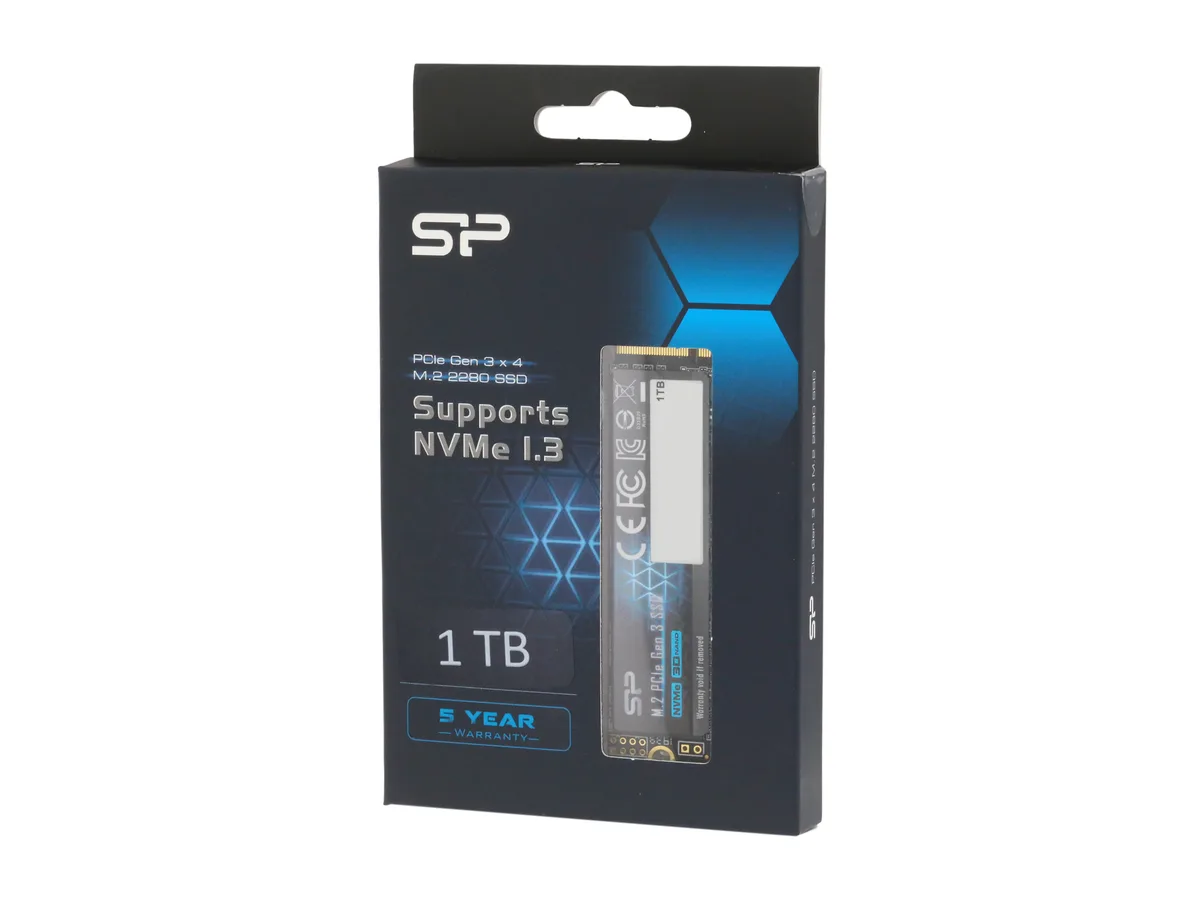

Green printed circuit board M.2 2280 SSD with black controller and silver label

Silicon Power

Silicon Power SU001TBP34A60M28SN 1TB NVMe internal SSD

SKU CH-ZKTK-EFDE3 MPN SU001TBP34A60M28SN

1TB M.2 2280 NVMe SSD with PCIe 3.0 x4 read speeds up to 2,200 MB/s and write speeds up to 1,600 MB/s

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsTLC
  • InterfacePCI-Express 3.0 x4

Options 1TB

  • Faster boot-ups and app loads with PCIe 3.0 x4 speeds up to 2200 MB/s read
  • Quicker file transfers and saves with write speeds up to 1600 MB/s
  • Reliable data integrity through LDPC ECC and End-To-End protection
  • Efficient performance via NVMe 1.3, HMB and SLC Cache support
  • Easy fit in laptops and desktops with M.2 2280 form factor

1TB NVMe PCIe Gen3 x4 SSD

This 1TB NVMe drive uses a PCIe 3.0 x4 interface and the NVMe 1.3 protocol to deliver sequential reads up to 2,200 MB/s and writes up to 1,600 MB/s. The M.2 2280 form factor fits laptops and desktops with a compatible slot. It is built with TLC NAND and an advanced controller for everyday computing upgrades.

SLC Cache and HMB under sustained load

SLC Cache technology and Host Memory Buffer support help maintain high throughput during extended write sessions rather than only in short bursts. LDPC error correction and End-To-End data protection work continuously to preserve data integrity. The RAID engine adds further stability when the drive handles heavy, prolonged workloads.

Operating temperature range and power efficiency

The drive operates between 0°C and 70°C without active cooling, relying on the system's airflow. With no moving parts it runs silently in normal use. The PCIe Gen3 x4 interface and efficient controller keep power draw low, making it suitable for thin laptops and small-form-factor desktops.

Highlights

  • Faster boot-ups and app loads with PCIe 3.0 x4 speeds up to 2200 MB/s read
  • Quicker file transfers and saves with write speeds up to 1600 MB/s
  • Reliable data integrity through LDPC ECC and End-To-End protection
  • Efficient performance via NVMe 1.3, HMB and SLC Cache support
  • Easy fit in laptops and desktops with M.2 2280 form factor

Specifications

BrandSilicon Power
SeriesP34A60
ModelSU001TBP34A60M28SN
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory ComponentsTLC
InterfacePCI-Express 3.0 x4
ProtocolNVMe 1.3
Max Sequential ReadUp to 2200 MBps
Max Sequential WriteUp to 1600 MBps
MTBF2,000,000 hours
FeaturesPCIe Gen 3 x4 interface with read speeds up to 2,200 MB/s and write speeds up to 1,600 MB/s
Massive storage capacity options up to 2TB
LDPC (Low-Density Parity Check) error correction code (ECC) technology, End-To-End (E2E) data protection, and RAID engine for enhanced data integrity and stability
Supports NVMe 1.3, Host Memory Buffer (HMB), and SLC Cache to deliver high and efficient performance
Small form factor M.2 2280 (80mm) allows for easy installation in laptops, small form factor PC systems, and some ultrabooks
Operating Temperature0°C ~ +70°C
Max Shock Resistance1500G / 0.5 ms
Height3.50mm
Width22.00mm
Depth80.00mm
Weight8.00g
Shipping weight0.03 kg
Package size145 × 84 × 15 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this M.2 2280 drive fit my laptop that has an M.2 slot?

The drive uses the M.2 2280 form factor, measuring 22.00mm wide, 80.00mm deep and 3.50mm high. Check that your laptop slot accepts 2280-length modules and has clearance for a single-sided 3.5mm board.

My motherboard only has PCIe 3.0 x4 — will I still get the advertised speeds?

Yes. The drive connects over PCIe 3.0 x4 and is rated for up to 2200 MB/s sequential read and 1600 MB/s sequential write on that interface.

Does the drive include any data-protection features for unexpected power loss?

It supports LDPC error correction, End-To-End data protection and a RAID engine to help maintain data integrity during sudden power interruption.
