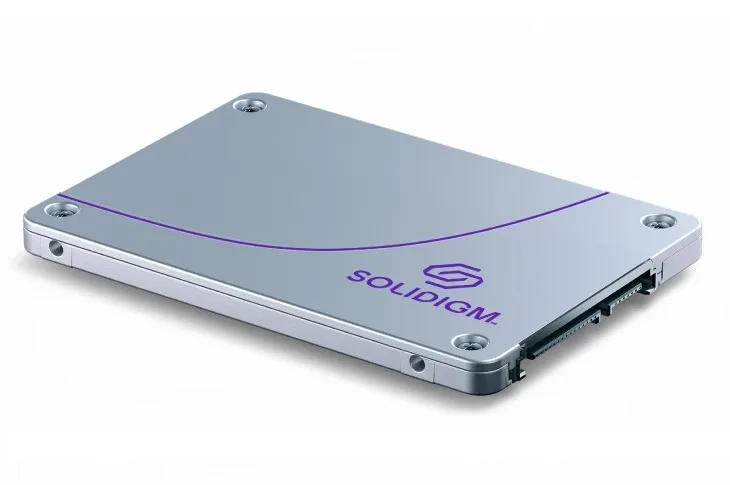

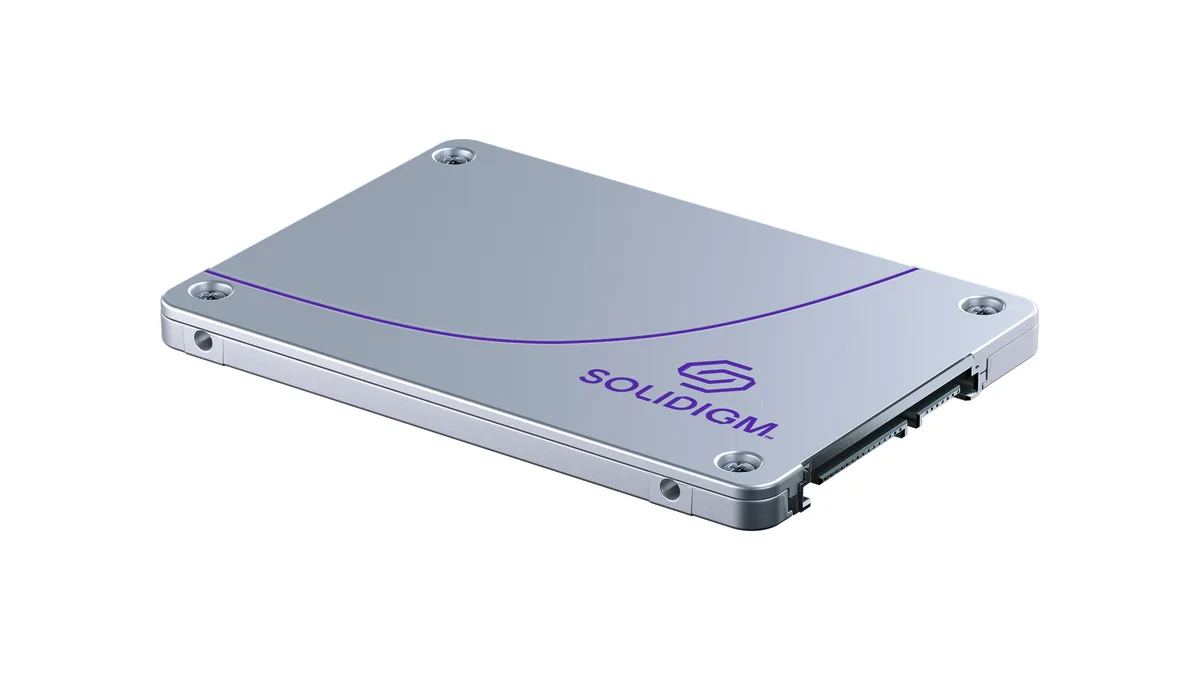

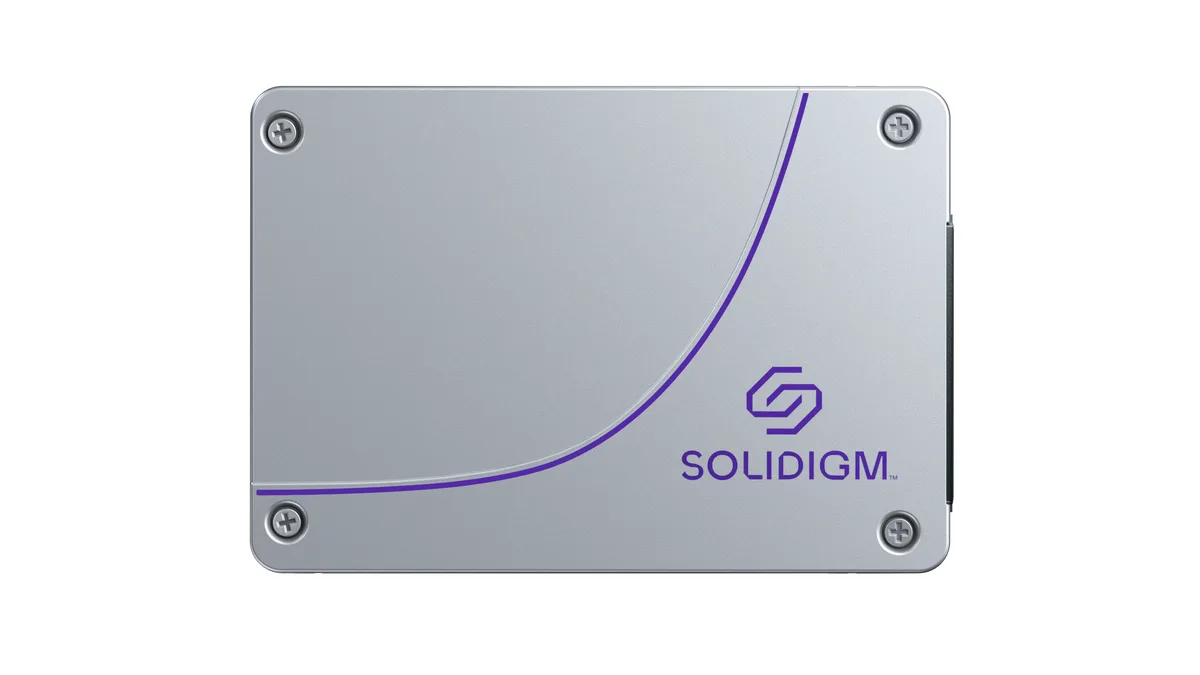

Rectangular silver 2.5 inch SATA SSD with label showing capacity and model

Solidigm

Solidigm D3-S4520 1.92TB 2.5" SATA enterprise SSD SSDSC2KB019TZ1Z

SKU CH-WJBW-Z8RST MPN SSDSC2KB019TZ1Z

2.5-inch SATA enterprise SSD with 1.92TB of 144L TLC 3D NAND rated for up to 2.5 DWPD endurance and 2,000,000 hours MTBF

  • Form Factor2.5"
  • Capacity1.92TB
  • Memory Components144L TLC 3D NAND
  • InterfaceSATA III
  • Max Sequential ReadUp to 550 MBps
  • Max Sequential WriteUp to 510 MBps

Option

  • 1920GB 2.5"
  • 240GB 2.5"
  • 240GB M.2
  • 3840GB 2.5"
  • 480GB 2.5"
  • 480GB M.2
  • 7680GB 2.5"
  • 960GB 2.5"

Struck-through versions exist but are not stocked here.

  • High endurance with up to 2.5 DWPD and 8.8 PBW total writes
  • Low latency at 54 µs write and 104 µs read for responsive access
  • 144-layer TLC 3D NAND delivers 1.92 TB in a 2.5-inch form factor
  • SATA III interface reaches 550 MB/s read and 510 MB/s write speeds
  • 2 million-hour MTBF and 1,000 G shock rating built for server reliability

Enterprise SATA SSD with 1.92TB capacity

The Solidigm D3-S4520 is a 2.5 inch enterprise SSD built for read-intensive server workloads. It uses 144L TLC 3D NAND and connects through a SATA III interface. The drive suits data centres that need reliable capacity for boot, logging or content repositories.

Fits standard 2.5 inch bays and SATA backplanes

The drive drops into any 2.5 inch hot-swap bay or internal cage wired for SATA III. Its 1.1W idle and 3.1W active draw keep power budgets low, freeing headroom for additional drives or other components. No special cabling or controller features are required beyond the standard SATA link.

Steady performance under sustained write load

Rated at 2.5 DWPD and 8.8 PBW, the drive maintains consistent throughput during long write sequences. Sequential speeds reach 550 MBps read and 510 MBps write, while random performance holds at 91,000 read IOPS and 38,000 write IOPS. Latency stays at 104µs read and 54µs write, and MTBF of 2,000,000 hours supports continuous operation.

Highlights

  • High endurance with up to 2.5 DWPD and 8.8 PBW total writes
  • Low latency at 54 µs write and 104 µs read for responsive access
  • 144-layer TLC 3D NAND delivers 1.92 TB in a 2.5-inch form factor
  • SATA III interface reaches 550 MB/s read and 510 MB/s write speeds
  • 2 million-hour MTBF and 1,000 G shock rating built for server reliability

Specifications

BrandSolidigm
ModelD3-S4520
Form Factor2.5"
Capacity1.92TB
Memory Components144L TLC 3D NAND
InterfaceSATA III
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 510 MBps
4KB Random ReadUp to 91,000 IOPS
4KB Random WriteUp to 38,000 IOPS
Read Latency104µs
Write Latency54µs
EnduranceUp to 2.5 DWPD / Up to 8.8 PBW
MTBF2,000,000 hours
Power Consumption (Idle)1.1W
Power Consumption (Active)3.1W
Operating Temperature0°C to 70°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight60.9 gms
Shipping weight0.09 kg
Package size142 × 104 × 13 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long will the 2.5 DWPD endurance rating last under continuous mixed workloads?

The drive is rated for up to 2.5 drive writes per day or 8.8 PBW total bytes written, meaning a full 1.92TB write each day for five years before reaching the endurance limit.

What are the steady-state power draw and operating temperature when the SSD runs 24/7?

Active power consumption is 3.1W and the operating temperature range is 0°C to 70°C, so sustained use stays within those thermal and power bounds.

Which host interface and connector must the server already provide for this 2.5" SATA III drive?

The system needs a standard 2.5-inch SATA 6Gb/s port with the combined data and power connector to install and operate the SSD.
