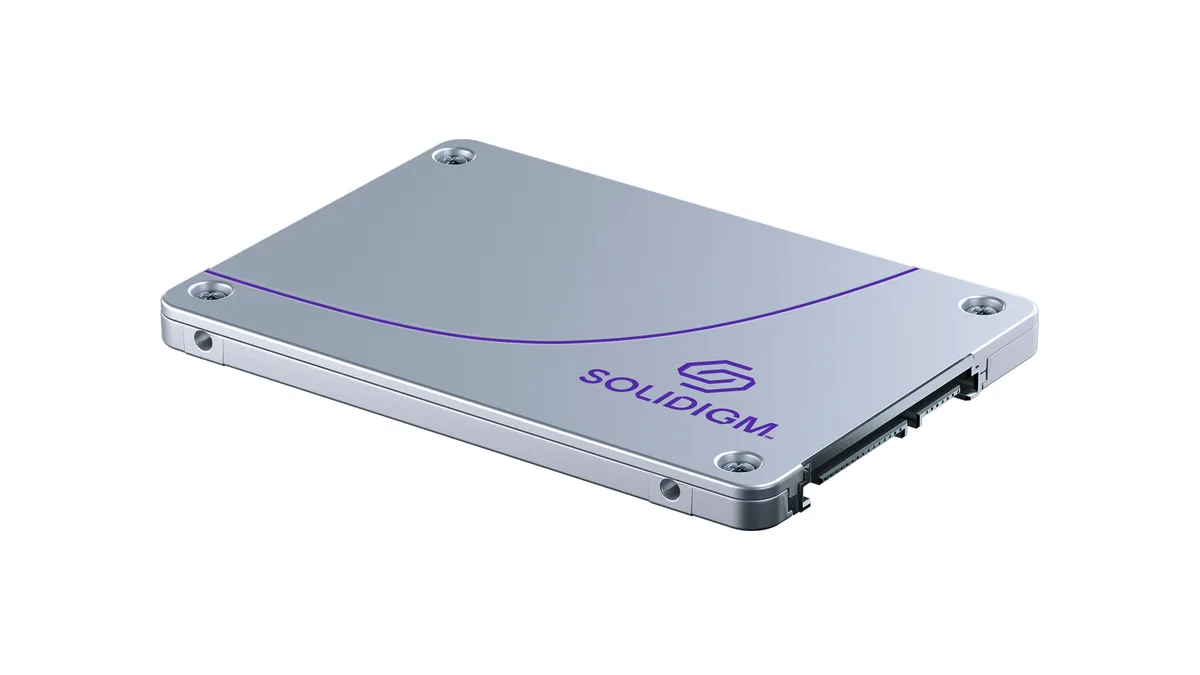

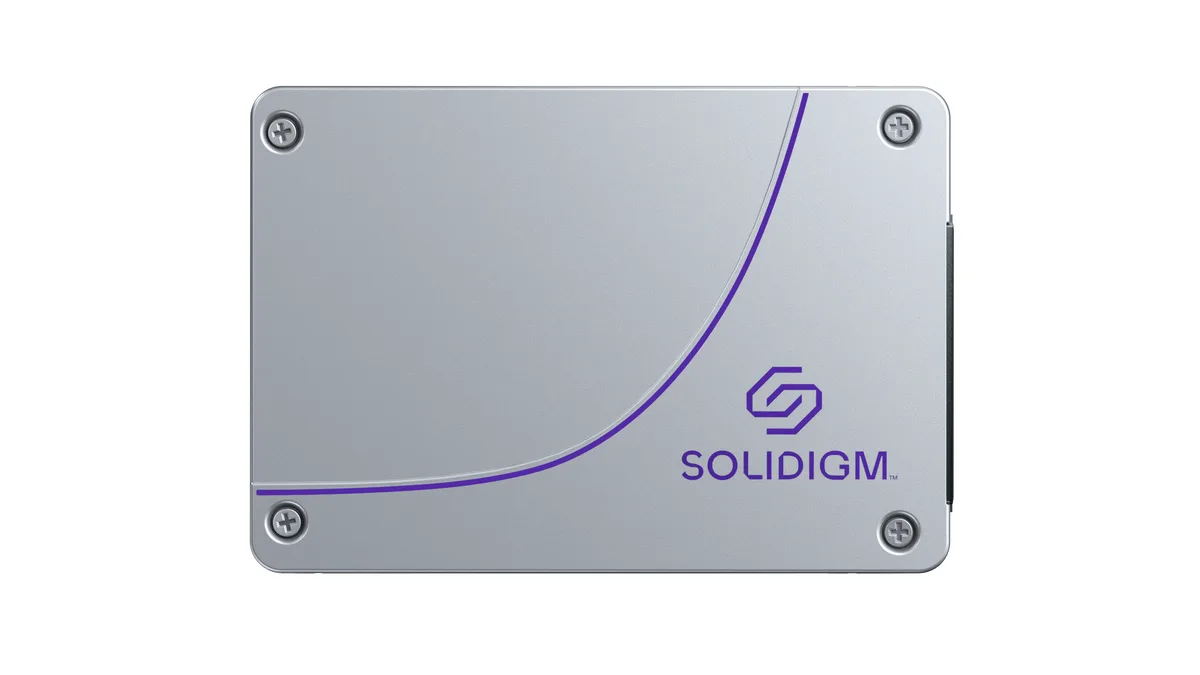

Solidigm D3-S4520 240GB 2.5 inch SATA enterprise SSD in silver metal casing

Solidigm

Solidigm D3-S4520 240GB 2.5" SATA enterprise SSD SSDSC2KB240GZ1Z

SKU CH-BV4V-JNF3Q MPN SSDSC2KB240GZ1Z

A 240 GB enterprise SSD with SATA III interface, 144-layer TLC 3D NAND, up to 470 MBps sequential read and 233 MBps write, 44,000 random read IOPS, 15,500 random write IOPS.

  • Form Factor2.5"
  • Capacity240GB
  • Memory Components144L TLC 3D NAND
  • InterfaceSATA III
  • Max Sequential ReadUp to 470 MBps
  • Max Sequential WriteUp to 233 MBps

Option

  • 1920GB 2.5"
  • 240GB 2.5"
  • 240GB M.2
  • 3840GB 2.5"
  • 480GB 2.5"
  • 480GB M.2
  • 7680GB 2.5"
  • 960GB 2.5"

Struck-through versions exist but are not stocked here.

  • Fast sequential reads up to 470 MBps accelerate data access
  • Low write latency of 61µs improves transaction response
  • Enterprise endurance rated at 2.5 DWPD protects heavy workloads
  • High MTBF of 2000000 hours supports continuous operation
  • Efficient power use with 2.3W active consumption reduces heat

Enterprise SATA SSD for data centres

The Solidigm D3-S4520 is a 240GB 2.5" SATA III drive built with 144L TLC 3D NAND. It targets server and storage arrays that need consistent read performance and a 2.5 DWPD endurance rating. The drive delivers up to 470 MBps sequential read and 44,000 random read IOPS with a 2,000,000 hour MTBF.

Upgrade from lower-endurance SATA drives

This model replaces consumer or entry-level SATA SSDs when workloads demand 1.0 PBW write endurance and steady 233 MBps sequential write speeds. The jump is worth it for mixed read-write applications that exceed 15,500 random write IOPS or require 102µs read latency and 61µs write latency under sustained load.

Fits 2.5" hot-swap bays and standard SATA backplanes

The drive operates from 0°C to 70°C while drawing 1W idle and 2.3W active, simplifying thermal planning in dense chassis. It withstands 1,000 G shock and 2.17 GRMS operating vibration, freeing administrators from extra ruggedisation hardware in standard rack environments.

Highlights

  • Fast sequential reads up to 470 MBps accelerate data access
  • Low write latency of 61µs improves transaction response
  • Enterprise endurance rated at 2.5 DWPD protects heavy workloads
  • High MTBF of 2000000 hours supports continuous operation
  • Efficient power use with 2.3W active consumption reduces heat

Specifications

BrandSolidigm
ModelD3-S4520
Part NumberSSDSC2KB240GZ1Z
Form Factor2.5"
Capacity240GB
Memory Components144L TLC 3D NAND
InterfaceSATA III
Max Sequential ReadUp to 470 MBps
Max Sequential WriteUp to 233 MBps
4KB Random ReadUp to 44,000 IOPS
4KB Random WriteUp to 15,500 IOPS
Read Latency102µs
Write Latency61µs
EnduranceUp to 2.5 DWPD / Up to 1.0 PBW
MTBF2,000,000 hours
Power Consumption (Idle)1W
Power Consumption (Active)2.3W
Operating Temperature0°C to 70°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight59.2 gms
Shipping weight0.09 kg
Package size140 × 108 × 13 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 2.5" form factor fit a standard 7 mm drive bay?

The drive uses a 2.5 inch SATA form factor; most server trays accept the standard 7 mm height but verify your chassis specifications before ordering.

What is the correct way to connect the SATA power and data cables?

Attach both the SATA data cable and the 15 pin SATA power connector; a common mistake is leaving the power cable loose which prevents the drive from spinning up.

When should I plan to replace the drive based on its endurance rating?

The drive is rated for up to 2.5 DWPD or 1.0 PBW; monitor SMART wear indicators and replace once the media wearout counter approaches the rated limit.
