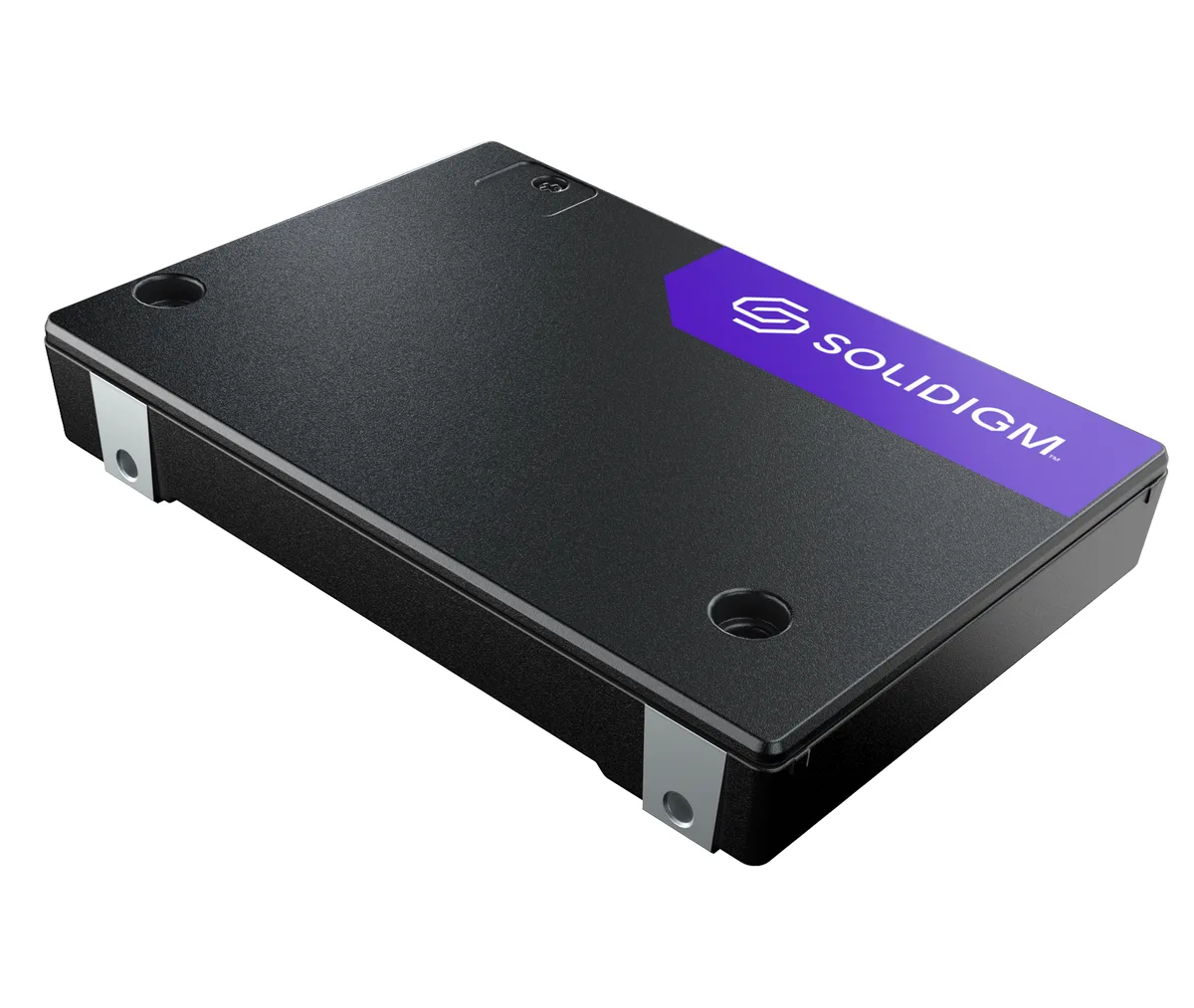

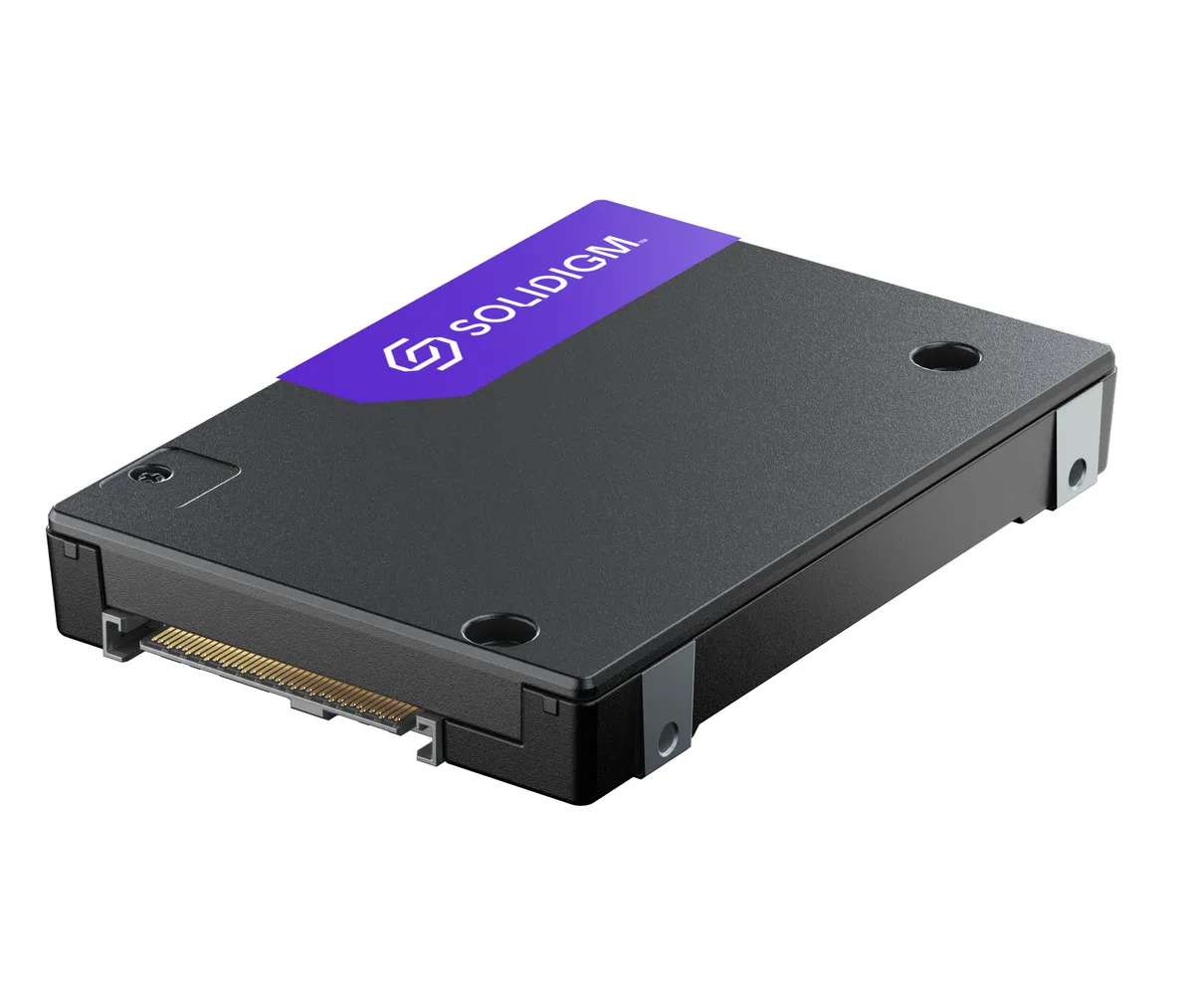

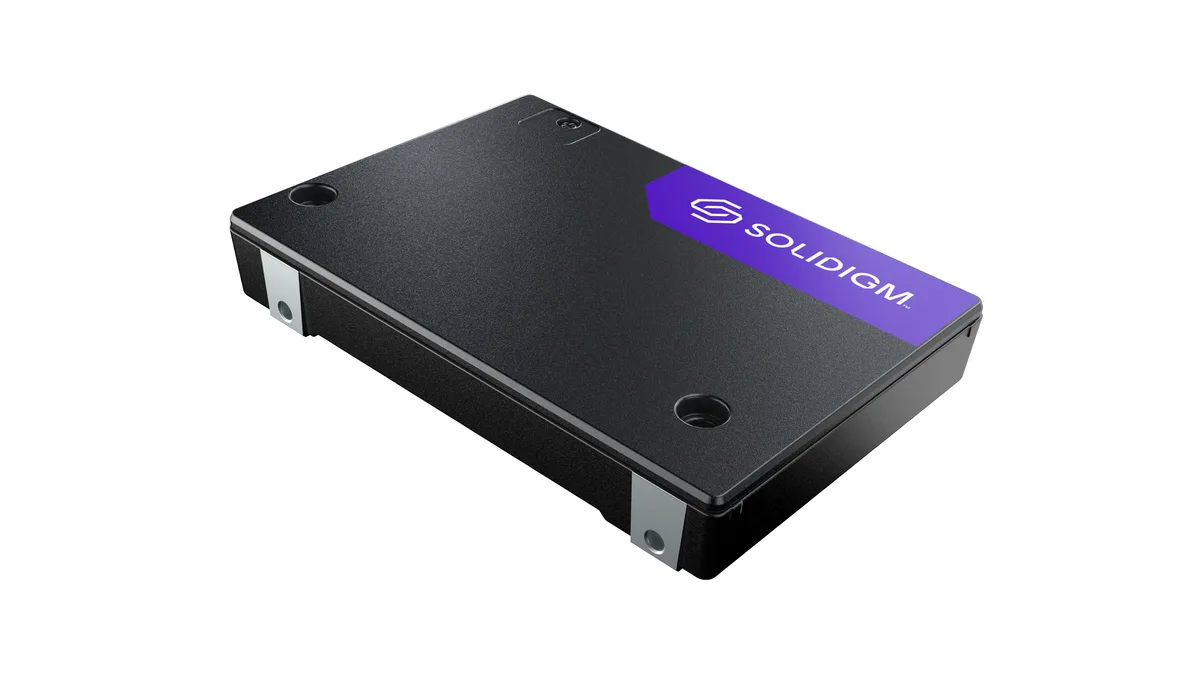

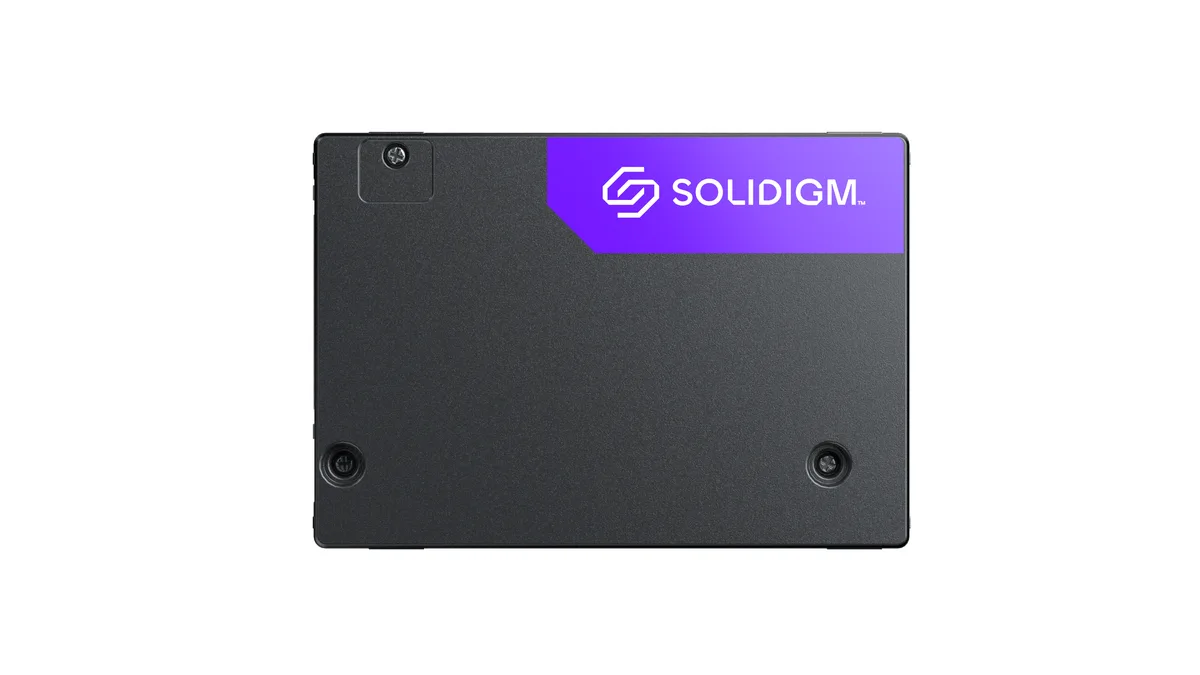

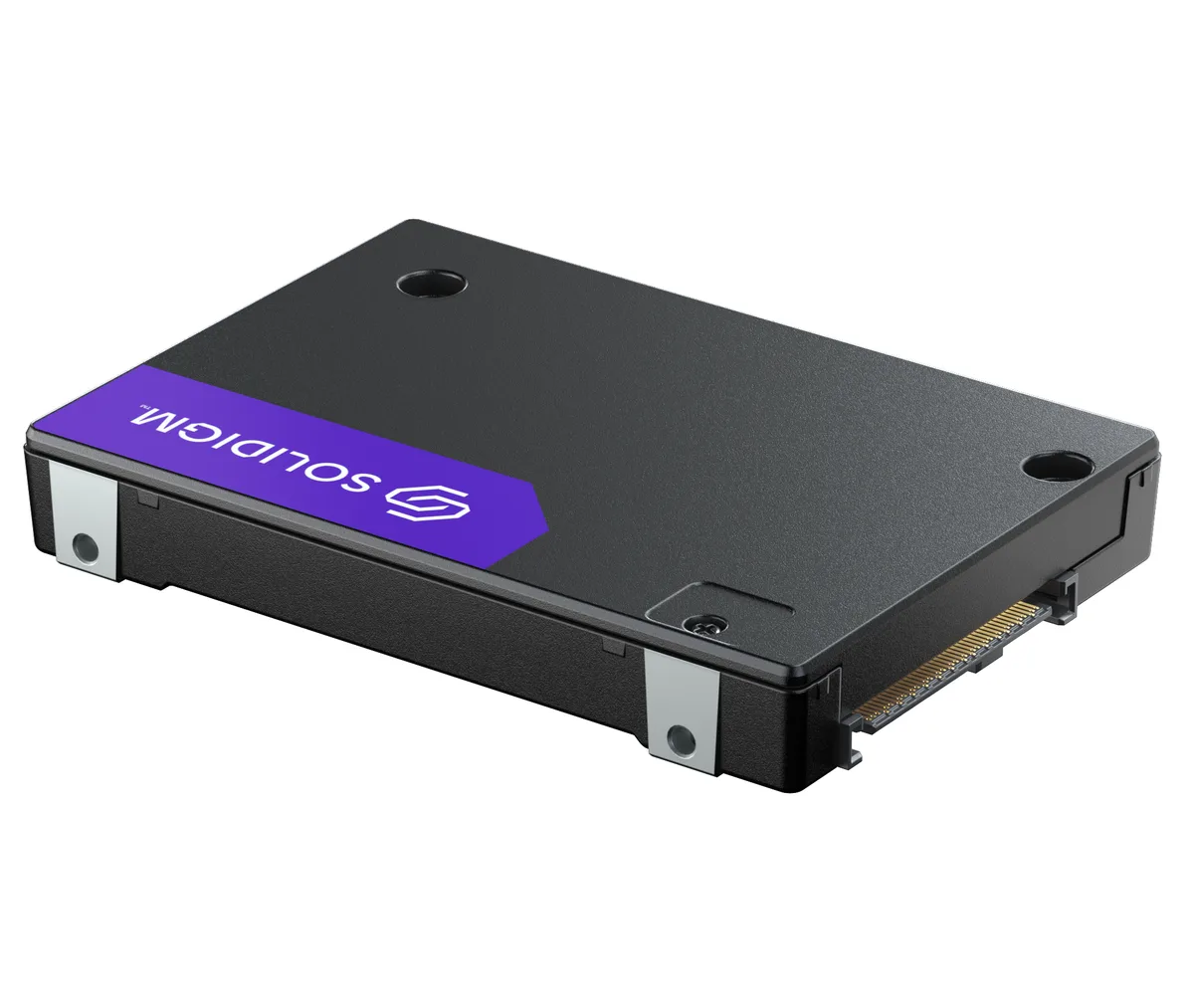

Rectangular U.2 15mm enterprise SSD with silver metal casing and gold edge connector

Solidigm

Solidigm D7-PS1010 SB5PH27X076TOF1 7.68TB U.2 15mm PCIe 5.0 enterprise SSD

SKU CH-MZT3-FPJXY MPN SB5PH27X076TOF1

U.2 15mm enterprise SSD with 7.68TB of 176L TLC 3D NAND, PCIe 5.0 interface, 14500 MBps sequential read, 10000 MBps sequential write, 3000000 IOPS random read, 400000 IOPS random write.

  • Form FactorU.2 15mm
  • Capacity7.68TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 10000 MBps

Option 7.68TB U.2 FIPS

Struck-through versions exist but are not stocked here.

  • Up to 14500 MBps sequential read for fast data access
  • Up to 10000 MBps sequential write for rapid data transfer
  • 3000000 IOPS random read handles heavy read workloads
  • 400000 IOPS random write supports intensive write operations
  • 14 PBW endurance rating sustains long-term write demands

Enterprise SSD for data centres

The Solidigm D7-PS1010 is a 7.68TB U.2 15mm drive built for servers and storage arrays that need high-capacity flash in a standard hot-plug bay. It targets IT teams running read-heavy workloads such as content delivery, analytics or virtualisation where consistent throughput matters more than peak write endurance.

PCIe 5.0 x4 interface

The single specification that decides fit is the PCI-Express 5.0 x4 electrical interface combined with the U.2 15mm physical connector; the system backplane must provide both to reach the rated 14500 MBps sequential read and 10000 MBps sequential write. Without a Gen 5 capable slot the drive will fall back to lower speeds and the performance advantage is lost.

Thermals noise and power

Idle power sits at 5W while active power reaches 23W, so the drive needs adequate airflow within the 0°C to 77°C operating window to sustain performance without throttling. Solid-state construction means no acoustic noise, and the 1000 G shock rating plus 2.17 GRMS operating vibration tolerance suit dense rack environments where mechanical vibration is present.

Highlights

  • Up to 14500 MBps sequential read for fast data access
  • Up to 10000 MBps sequential write for rapid data transfer
  • 3000000 IOPS random read handles heavy read workloads
  • 400000 IOPS random write supports intensive write operations
  • 14 PBW endurance rating sustains long-term write demands

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PH27X076TOF1
Form FactorU.2 15mm
Capacity7.68TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 10000 MBps
4KB Random Read3000000 IOPS (4K Blocks)
4KB Random Write400000 IOPS (4K Blocks)
Endurance1 DWPD / 14 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight140g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm
