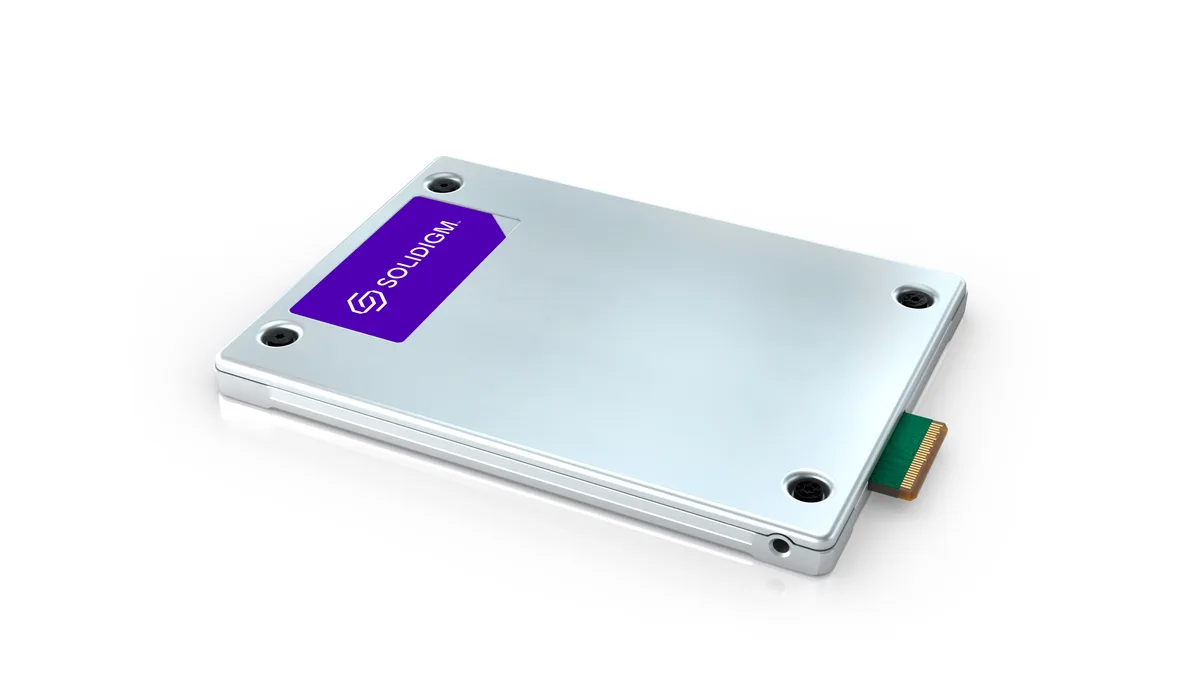

Rectangular E3.S 7.5mm SSD with label showing 7.68TB capacity

Solidigm

Solidigm SBFPFABU076TOP1 D5-P5430 7.68TB E3.S 7.5mm enterprise SSD

SKU CH-5515-ZQKXF MPN SBFPFABU076TOP1

E3.S 7.5mm enterprise SSD with 7.68TB QLC 3D NAND, PCIe 4.0 x4, 6800 MBps read, 1730 MBps write, 717000 IOPS random read, 100000 IOPS random write, .57 DWPD endurance, Opal security, 2000000 hour MTBF

  • Form FactorE3.S 7.5mm
  • Capacity7.68TB
  • Memory Components192L QLC 3D NAND
  • InterfacePCI-Express 4.0 x4
  • Max Sequential ReadUp to 6800 MBps
  • Max Sequential WriteUp to 1730 MBps

Option 7.68TB E3.S Opal

Show 14 more configurations

Struck-through versions exist but are not stocked here.

  • 68TB capacity supports large datasets
  • Up to 6800 MBps sequential read accelerates workloads
  • 717,000 IOPS random read handles heavy queues
  • 57 DWPD endurance suits read-intensive deployments
  • 2,000,000-hour MTBF indicates long service life

Capacity and form factor

The Solidigm D5-P5430 delivers 7.68TB in the E3.S 7.5mm form factor, built for read-intensive server workloads. It uses 192-layer QLC 3D NAND behind a PCI-Express 4.0 x4 interface. Buyers needing higher write endurance or a different connector will need another model.

Thermals and power

Idle draw is 5W and active draw reaches 18W within a 0°C to +70°C operating range. The drive withstands 1,000 G shock at 0.5 msec and 2.17 GRMS vibration while running. No acoustic or thermal-throttle data is provided.

Build integration

The 90g module fits standard E3.S bays and supports Opal security. It offers up to 0.57 DWPD and 8.0 PBW endurance with a 2,000,000-hour MTBF. Systems without E3.S slots or with stricter write-endurance requirements cannot use this drive.

Highlights

  • 68TB capacity supports large datasets
  • Up to 6800 MBps sequential read accelerates workloads
  • 717,000 IOPS random read handles heavy queues
  • 57 DWPD endurance suits read-intensive deployments
  • 2,000,000-hour MTBF indicates long service life

Specifications

BrandSolidigm
ModelD5-P5430
Part NumberSBFPFABU076TOP1
Form FactorE3.S 7.5mm
Capacity7.68TB
Memory Components192L QLC 3D NAND
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 6800 MBps
Max Sequential WriteUp to 1730 MBps
4KB Random Read717000 IOPS (4K, QD256)
4KB Random Write100000 IOPS (4K, QD256)
EnduranceUp to 0.57 DWPD, 8.0 PBW
MTBF2,000,000 hours
SecurityOpal
Power Consumption (Idle)5W
Power Consumption (Active)18W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating 2.17 GRMS (5 - 700 Hz) Max
Non-Operating 3.13 GRMS (5 - 800 Hz) Max
Weight90g +/-10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the E3.S 7.5mm drive and what step is often missed?

Slide the drive into the E3.S cage until the connector seats fully, then secure the retention screw or latch; the step most often missed is tightening that screw, which keeps the PCIe 4.0 x4 link stable under vibration.

What maintenance or replacement will the 192L QLC 3D NAND need later?

The drive has no user-serviceable parts; replacement is required once the 8.0 PBW endurance budget or the 0.57 DWPD rating is reached, which the SMART attributes will report.

What limit appears first under sustained write loads?

The sequential write ceiling of 1730 MBps is reached before the 100000 random write IOPS limit, and the controller will throttle to stay within the 18 W active power envelope.
