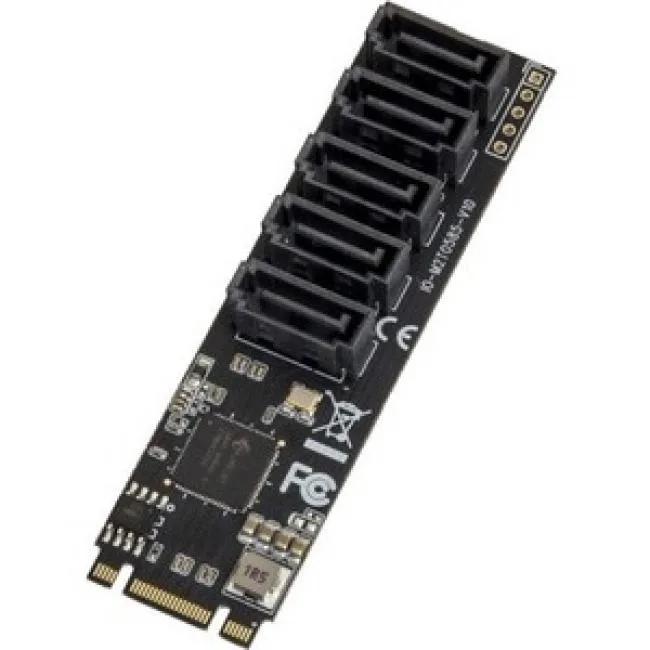

Syba SI-ADA40141 5-port SATA III 6.0Gb/s PCIe 3.0 x2 M.2 adapter
Adds five SATA 6.0Gb/s ports through an M.2 B+M key slot using PCIe 3.0 x2 bandwidth up to 1700 MB/s
- TypeSATA III (6.0Gb/s)
- Internal Connectors5 x SATA 6.0Gb/s
- InterfacePCI-Express 3.0 x2
- FeaturesConnect five SATA drives to a M.2 B+M Key Connection, provid
- Package Contents1 x 5 Port SATA Controller to M.2 Slot 5 x SATA Cables 1 x M
- Add five SATA drives through one M.2 slot
- Up to 1700 MB/s bandwidth via PCIe 3.0 x2
- Works immediately with no driver installation needed
- Supports port multiplier for non-RAID drive arrays
- Designed for storage only, not for boot drives
Five SATA ports via M.2 B+M key
This adapter connects five SATA 6.0 Gb/s drives through a single PCIe 3.0 x2 M.2 slot. It is aimed at builders who need extra internal storage connections without occupying a full-length expansion slot. The card operates as a non-RAID controller and cannot be used to boot an operating system.
Passive cooling with no added noise
The board has no fan or active cooling components, so it adds zero acoustic output to the system. Power draw is limited to the PCIe 3.0 x2 interface and the attached SATA devices. Plug-and-play operation means no driver installation is required for basic functionality.
Sustained throughput up to 1700 MB/s
Under continuous load the two-lane PCIe 3.0 link caps aggregate bandwidth at 1700 MB/s across all five ports. Port multiplier support is available for non-RAID configurations, but the adapter is designed for storage use only and will not serve as a boot device.
Highlights
- Add five SATA drives through one M.2 slot
- Up to 1700 MB/s bandwidth via PCIe 3.0 x2
- Works immediately with no driver installation needed
- Supports port multiplier for non-RAID drive arrays
- Designed for storage only, not for boot drives
Specifications
| Brand | SYBA |
|---|---|
| Model | SI-ADA40141 |
| Type | SATA III (6.0Gb/s) |
| Internal Connectors | 5 x SATA 6.0Gb/s |
| Interface | PCI-Express 3.0 x2 |
| Features | Connect five SATA drives to a M.2 B+M Key Connection, providing up to 1700 MB/s speed. Plug and play supported, no additional software installation or setting required. Can support Port Multiplier that is not in a RAID configuration. Compatible with SATA hard drives and solid state drives and computer systems with SATA controllers. 2-Lane M.2 PCI-Express 3.0 interface (B and M Key). Complies with PCI Express Base Specification Revision 3.1a. This card is only design for storage use only, can not boot any OS / System drives. |
| Package Contents | 1 x 5 Port SATA Controller to M.2 Slot 5 x SATA Cables 1 x Manaul |
| Shipping weight | 0.15 kg |
| Package size | 178 × 152 × 51 mm |
Questions about this item
How do I install the SI-ADA40141 into an M.2 B+M Key slot and which step is often missed?
Insert the card into a compatible M.2 B+M Key slot at PCIe 3.0 x2, secure it with the motherboard standoff screw, then connect up to five SATA drives using the supplied cables; the step often missed is enabling the M.2 slot in BIOS for PCIe storage rather than leaving it in default or disabled mode.
What maintenance or replacement will the adapter need over time?
The adapter itself has no moving parts and requires no scheduled maintenance; only the attached SATA drives or cables may need replacement if they fail or degrade.
What throughput limit appears first when all five ports run sustained transfers?
The PCIe 3.0 x2 host link caps aggregate bandwidth at 1700 MB/s, so combined drive traffic cannot exceed that ceiling regardless of individual SATA 6.0Gb/s port speed.
