Black 12-bay rackmount NAS front with drive trays and status LEDs

Synology Inc.

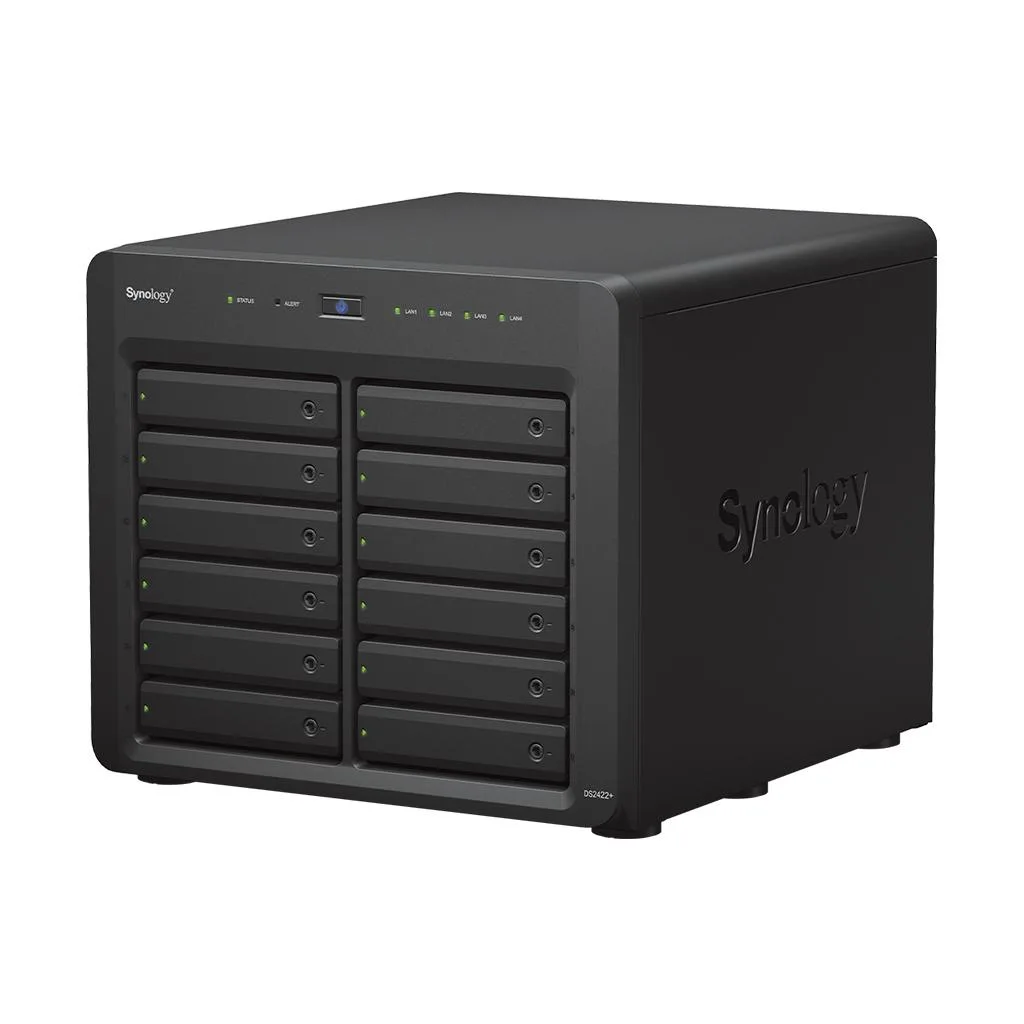

Synology DiskStation DS2422+ 12-Bay Rackmount NAS, Ryzen 2.2GHz, 32GB, 120TB

SKU CH-B78X-5SCN5

A 12-bay rackmount NAS with a Ryzen 2.2GHz processor, 32GB DDR4 ECC memory, and 120TB of SATA storage runs Synology DSM for file sharing, virtualization, backup, and surveillance

  • Form Factor12-Bay
  • ProcessorAMD Ryzen
  • Installed Memory32GB
  • Included HDD Capacity120TB (12 x 10TB)

Included HDD Capacity 120TB (12 x 10TB)

  • Ryzen V1500B 4-core 2.2GHz CPU drives intensive multi-user workloads
  • 32GB DDR4 ECC memory protects data integrity during heavy tasks
  • 120TB across 12 SATA 3.5" drives delivers high-capacity storage
  • 4 x 1GbE ports with link aggregation boost network throughput
  • Btrfs file system enables advanced LUN iSCSI services

12-Bay rackmount NAS for multi-user workloads

The Synology DiskStation DS2422+ is a 12-bay rackmount server built around a Ryzen V1500B 4-core 2.2GHz processor and 32GB DDR4 ECC SODIMM memory. It ships with twelve 10TB SATA 3.5-inch drives providing 120TB of raw capacity. The unit runs Synology DSM software and targets small to medium businesses running iSCSI backup, large file storage, email or domain controller roles.

Four 1GbE ports plus expansion for storage growth

Four RJ-45 1GbE LAN ports support link aggregation and failover, letting the appliance plug straight into existing network infrastructure. Two USB 3.2 ports and one dedicated expansion port allow attachment of external drives or Synology expansion units when internal bays are filled. A single power supply feeds the chassis, so rack power planning must account for one inlet per unit.

DSM software suite and field-installable drives

The DSM operating system bundles storage management, file syncing, surveillance station and backup applications, plus virtual machine and container support for consolidated workloads. Drives and memory upgrades arrive separately in the sealed box and require installation before deployment, giving administrators control over drive seating and firmware updates prior to production use.

Highlights

  • Ryzen V1500B 4-core 2.2GHz CPU drives intensive multi-user workloads
  • 32GB DDR4 ECC memory protects data integrity during heavy tasks
  • 120TB across 12 SATA 3.5" drives delivers high-capacity storage
  • 4 x 1GbE ports with link aggregation boost network throughput
  • Btrfs file system enables advanced LUN iSCSI services

Specifications

Form Factor12-Bay
ProcessorAMD Ryzen
Installed Memory32GB
Included HDD Capacity120TB (12 x 10TB)

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many 10TB SATA drives can the DS2422+ hold before I must add an expansion unit?

The chassis has twelve 3.5-inch bays, so all twelve 10TB drives fit internally with no extra hardware.

What is the typical power draw of the Ryzen V1500B CPU and twelve spinning disks under constant load?

The system ships with a single power supply; sustained draw will depend on the exact drives and workload, so plan for adequate rack cooling and UPS capacity.

Which parts must I install myself before the NAS will boot?

The 32GB DDR4 ECC SODIMM modules and the twelve 10TB SATA drives are supplied separately and must be fitted before first power-on.
