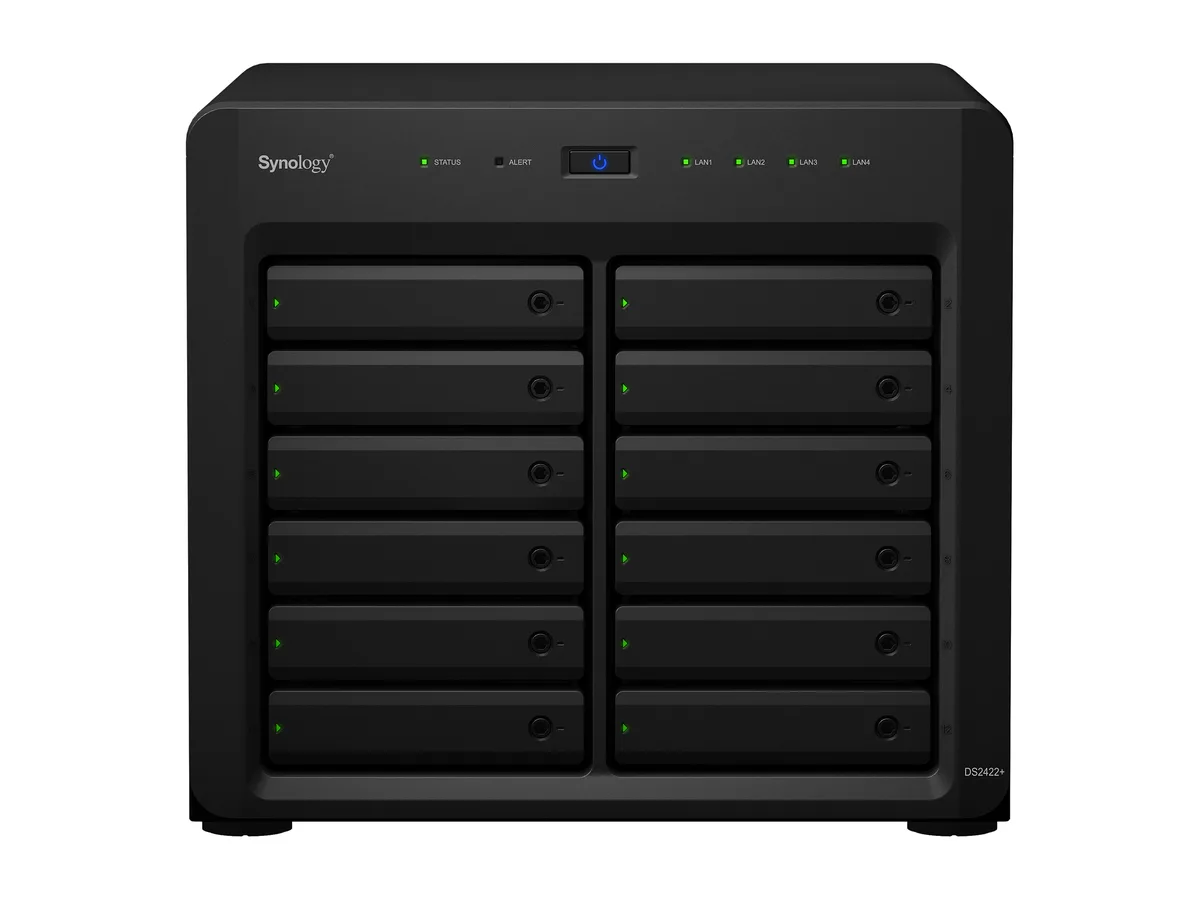

Rectangular black desktop NAS chassis with twelve drive bays visible on the front

Synology Inc.

Synology Inc. DS2422+ 12-Bay Desktop NAS 4GB DDR4

SKU CH-XN9P-SGFX2 MPN DS2422+

Twelve-bay desktop NAS with an AMD Ryzen V1500B processor, four 1GbE ports and 4GB DDR4 memory, expandable to 32GB

  • TypeDesktop NAS
  • Ports1 x Expansion Port / 2 x USB 3.2 Gen 1 / 4 x 1GbE
  • Port RJ-454 x 10/100/1000M
  • Port USB2 x USB 3.2 Gen 1
  • Port Others1 x Expansion port (Mini-SAS HD)
  • PCIe1 x Gen3 x8 slot (x4 link)

Form Factor 12-Bay

Struck-through versions exist but are not stocked here.

Option DS2422+

Struck-through versions exist but are not stocked here.

  • 12 drive bays scale storage to 216 TB
  • AMD Ryzen V1500B 4-core 2.2 GHz powers high read/write performance
  • Four 1 GbE ports enable link aggregation and failover
  • 4 GB DDR4 installed, expandable to 32 GB via two SODIMM slots
  • PCIe Gen3 x8 slot adds 10 GbE or SSD cache cards

12-Bay Desktop NAS for Growing Storage

The Synology DS2422+ is a diskless desktop NAS with twelve SATA drive bays and an AMD Ryzen V1500B four-core processor running at 2.2 GHz. It ships with 4GB of DDR4 memory expandable to 32GB across two SODIMM slots. Four 1GbE ports, two USB 3.2 Gen 1 ports and a Mini-SAS HD expansion port provide connectivity for network and external storage.

Suits Teams Needing High-Capacity RAID

This unit suits small businesses or advanced users who need up to 216TB of raw capacity with flexible RAID options including SHR, RAID 5, 6 and 10. Builders who require native 10GbE connectivity or more than two DDR4 slots should consider other solutions. The single PCIe Gen3 x8 slot (x4 link) limits add-in card choices to one device.

Twelve SATA Bays Define Maximum Scale

The twelve 3.5-inch SATA bays set the hard limit on how many drives you can install internally. That bay count, combined with the 216TB maximum capacity figure, determines whether the DS2422+ can meet your storage growth plans.

Highlights

  • 12 drive bays scale storage to 216 TB
  • AMD Ryzen V1500B 4-core 2.2 GHz powers high read/write performance
  • Four 1 GbE ports enable link aggregation and failover
  • 4 GB DDR4 installed, expandable to 32 GB via two SODIMM slots
  • PCIe Gen3 x8 slot adds 10 GbE or SSD cache cards

Specifications

BrandSynology
SeriesDiskStation
ModelDS2422+
TypeDesktop NAS
Ports1 x Expansion Port / 2 x USB 3.2 Gen 1 / 4 x 1GbE
Port RJ-454 x 10/100/1000M
Port USB2 x USB 3.2 Gen 1
Port Others1 x Expansion port (Mini-SAS HD)
PCIe1 x Gen3 x8 slot (x4 link)
HDD Interface12 x SATA (12 x Bay)
Form Factor12-Bay
ProcessorAMD Ryzen V1500B 4-core 2.2 GHz
Installed Memory4GB DDR4
Max Memory Capacity32GB
Memory Slot2 x DDR4 SODIMM
Included HDD CapacityDiskless System
Max Capacity216TB
RAIDSynology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10.
Drive Compatibility3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Supported ProtocolsSMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP).
Power100-240 VAC 50/60Hz
Power Consumption73.11 W (Access)
32.12 W (HDD Hibernation)
Temperature0°C - 40 °C
Humidity5-95% R.H (Relative)
UsageHigh read/write performance with RAID

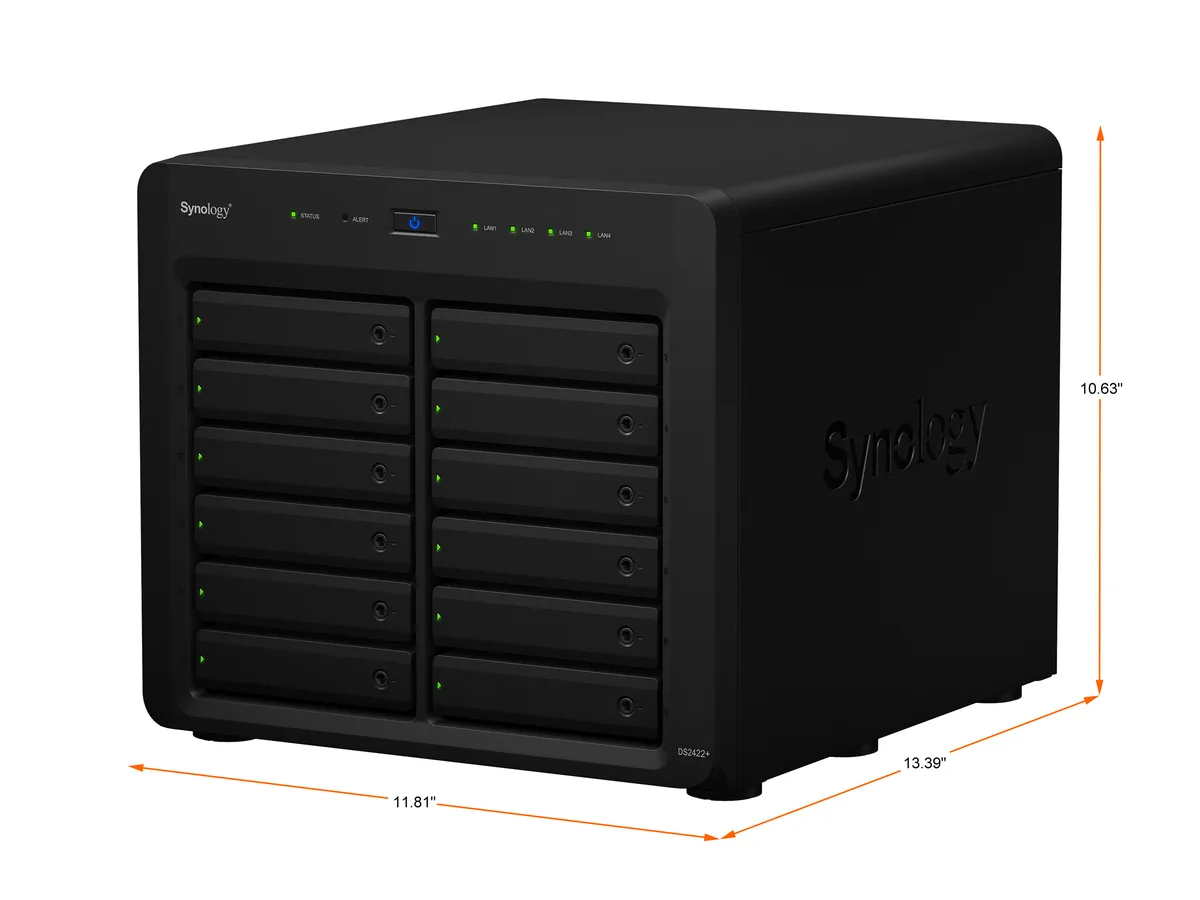

Dimensions10.63" x 11.81" x 13.39"
Weight20.94 lbs.
Package Contents1 x DS2422+ main unit
1 x Quick Installation Guide
1 x Accessory pack
1 x AC power cord
2 x RJ-45 LAN cables
Shipping weight12.50 kg
Package size472 × 441 × 424 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the DS2422+ draw when its drives are active versus in hibernation?

The unit consumes 73.11 W during access and 32.12 W when the hard drives are hibernating.

Which drives must I supply myself because the NAS ships without any installed?

The DS2422+ is a diskless system, so you need to provide up to twelve 3.5" SATA HDDs, 2.5" SATA HDDs or 2.5" SATA SSDs.

Can I keep using my existing 1 GbE switch and Cat 5e cables with the four RJ-45 ports on this NAS?

Yes, the four 10/100/1000M ports work with standard Gigabit switches and Cat 5e or better cabling.
