Synology Inc.
Synology Inc. DS3622xs+ 12-Bay NAS 16GB DDR4 Xeon D-1531 2.2 GHz
12-bay desktop NAS with Xeon D-1531 six-core CPU, 16 GB DDR4 ECC memory, dual 10GbE ports and capacity for 216 TB raw storage
- TypeDesktop NAS
- Ports2 x 10GbE / 2 x USB 3.2 Gen 1 / 3 x 1GbE
- Port RJ-452 x 10GbE + 3 x 1GbE
- Port USB2 x USB 3.2 Gen 1
- Port Others2 x Expansion ports (Mini-SAS HD)
- PCIe1 x PCI Express 3.0 x8
- 12-bay capacity scales to 36 drives with DX1222 units
- Xeon D-1531 6-core CPU delivers 2.2 GHz base and 2.7 GHz turbo
- 16GB DDR4 ECC memory expands to 48GB across four SODIMM slots
- Dual 10GbE and triple 1GbE ports enable high-throughput networking
- PCIe 3.0 x8 slot plus two Mini-SAS HD ports add flexible expansion

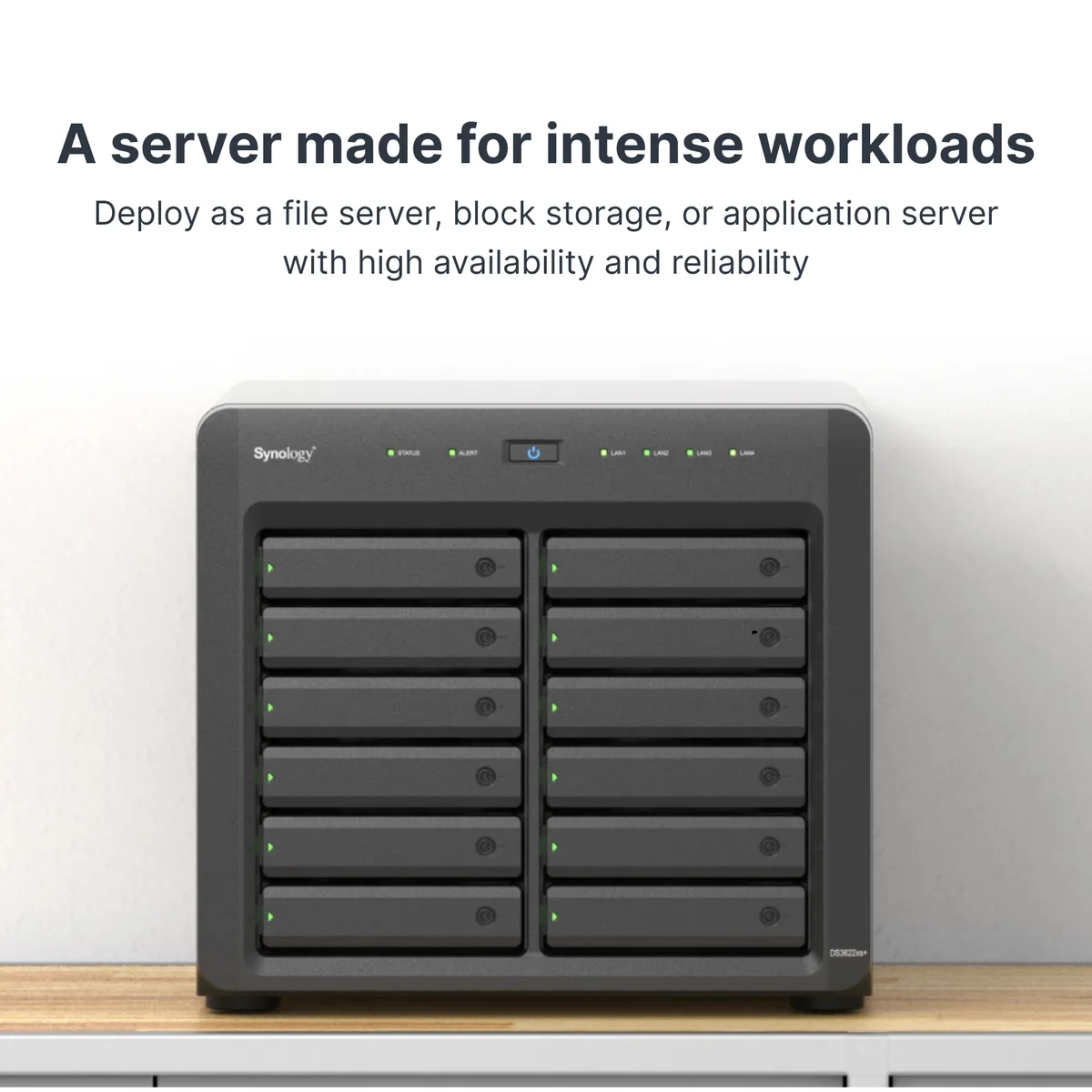

12-bay Xeon NAS for multi-user workloads
The Synology DS3622xs+ is a 12-bay desktop NAS powered by a six-core Intel Xeon D-1531 processor running at 2.2 GHz with turbo up to 2.7 GHz. It ships with 16 GB DDR4 ECC memory expandable to 48 GB across four SODIMM slots. The diskless chassis supports up to 216 TB raw capacity using 3.5" or 2.5" SATA drives.
Network limits of 10GbE and 1GbE ports
Two 10GbE RJ-45 ports and three 1GbE ports provide the only built-in network interfaces. Throughput tops out at the line rate of each port, so sustained sequential reads reach 4,719 MB/s while 4K random reads hit 260,691 IOPS. Two USB 3.2 Gen 1 ports and two Mini-SAS HD expansion ports add direct-attached and shelf connectivity without extra network bandwidth.

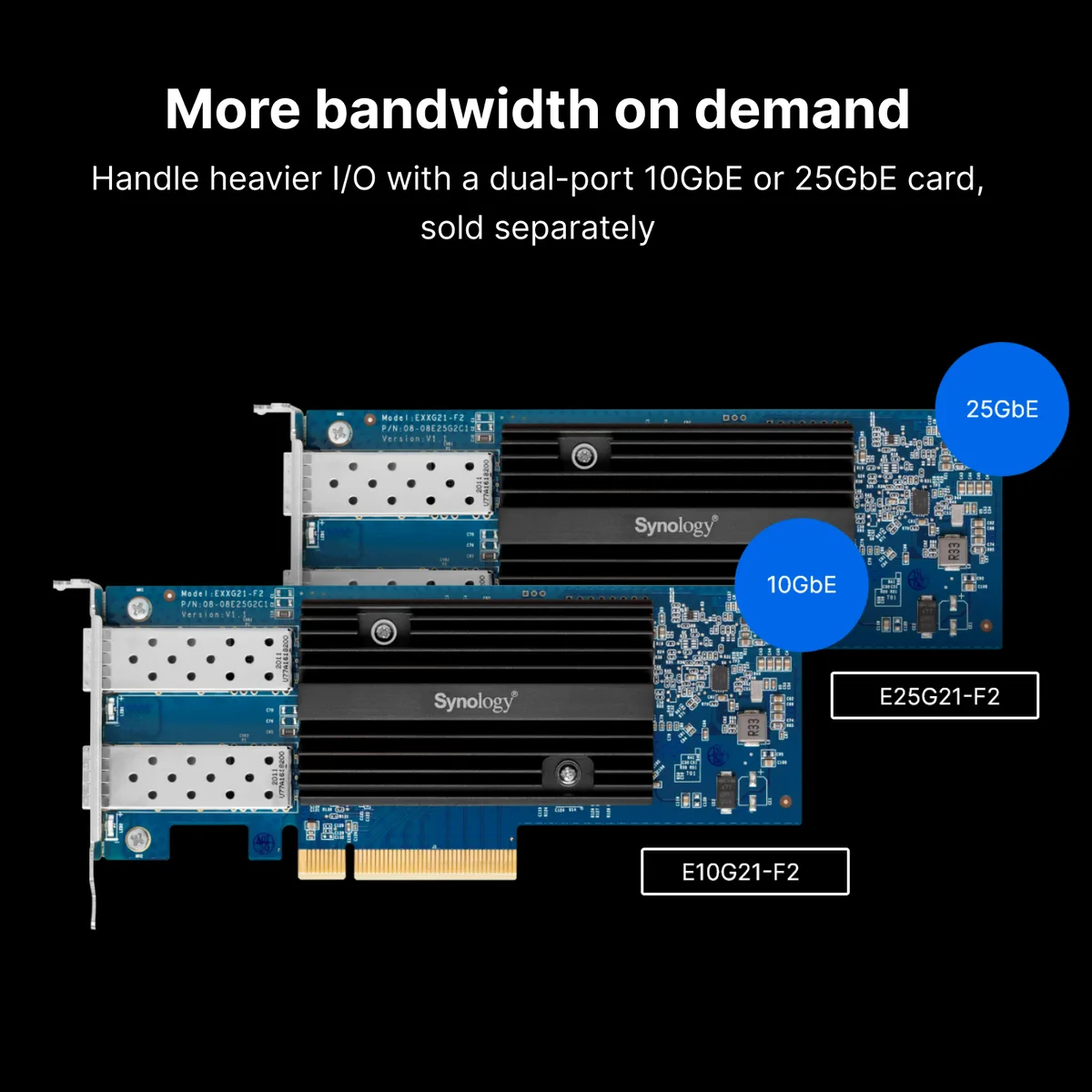

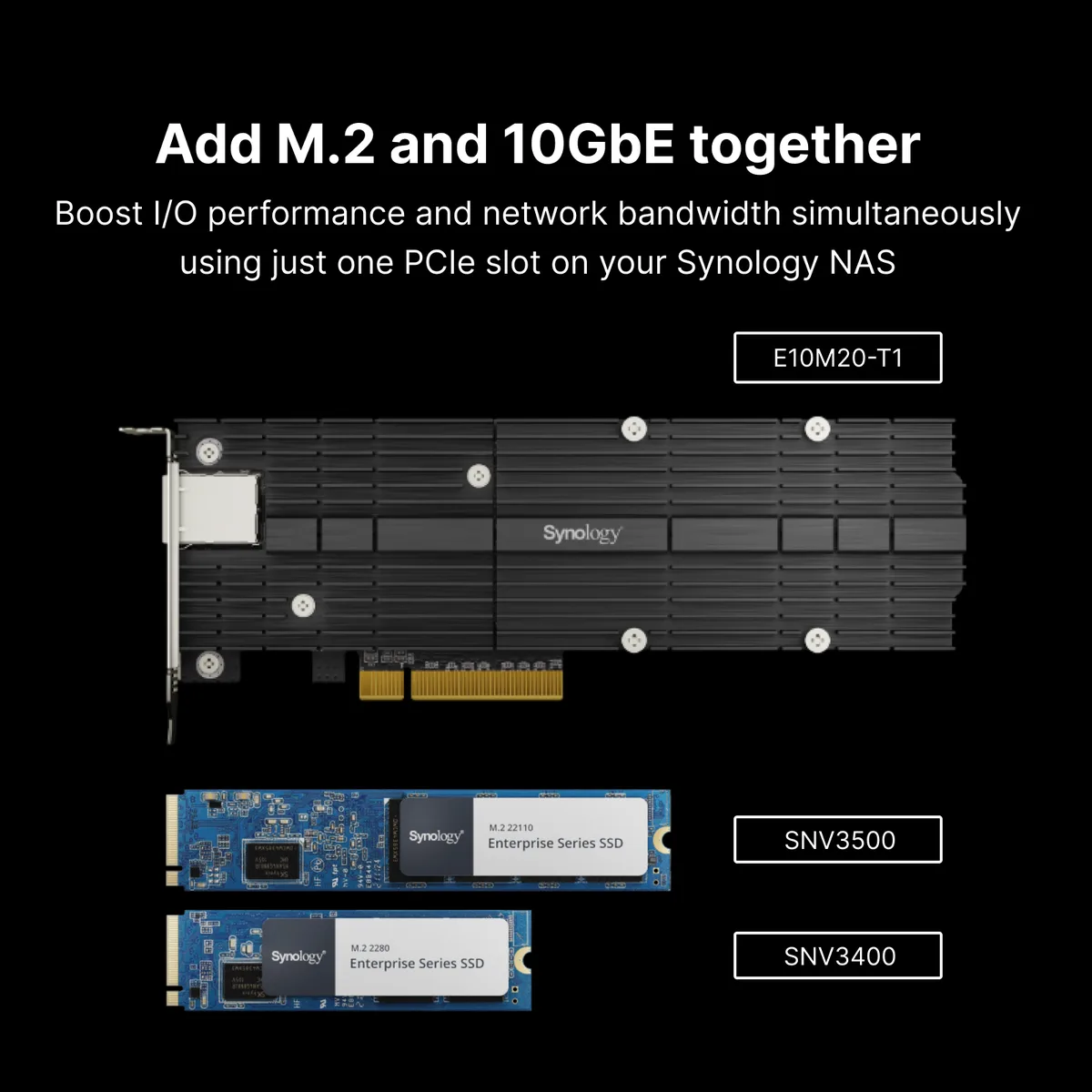

Single PCIe 3.0 x8 slot governs upgrade path
One PCI Express 3.0 x8 slot is the only internal expansion available for adding NICs, HBAs or accelerator cards. Buyers who need more than two 10GbE ports or additional storage controllers must fit everything into this single slot. The system cannot accept a second add-in card, limiting I/O growth to what one x8 device provides.
Highlights
- 12-bay capacity scales to 36 drives with DX1222 units
- Xeon D-1531 6-core CPU delivers 2.2 GHz base and 2.7 GHz turbo
- 16GB DDR4 ECC memory expands to 48GB across four SODIMM slots
- Dual 10GbE and triple 1GbE ports enable high-throughput networking
- PCIe 3.0 x8 slot plus two Mini-SAS HD ports add flexible expansion
Specifications
| Brand | Synology |
|---|---|
| Series | DiskStation |
| Model | DS3622xs+ |
| Type | Desktop NAS |
| Ports | 2 x 10GbE / 2 x USB 3.2 Gen 1 / 3 x 1GbE |
| Port RJ-45 | 2 x 10GbE + 3 x 1GbE |
| Port USB | 2 x USB 3.2 Gen 1 |
| Port Others | 2 x Expansion ports (Mini-SAS HD) |
| PCIe | 1 x PCI Express 3.0 x8 |
| HDD Interface | 12 x SATA (12 x Bay) |
| Form Factor | 12-Bay |
| Processor | Intel Xeon D-1531 6-core (12-thread) 2.2 GHz, turbo boost up to 2.7 GHz |
| Installed Memory | 16GB DDR4 |
| Max Memory Capacity | 48GB |
| Memory Slot | 4 x DDR4 SODIMM |
| Included HDD Capacity | Diskless System |
| Max Capacity | 216TB |
| RAID | Synology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 |
| Drive Compatibility | 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD |
| Supported Protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Fibre Channel, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP) |
| Power | 100-240 VAC 50/60Hz |
| Power Consumption | 94.42 W (Access) 54.33 W (HDD Hibernation) |
| Temperature | 0°C - 40 °C |
| Humidity | 5-95% R.H (Relative) |
| Usage | Ultra high prerformance for large number of users |
| Dimensions | 10.63" x 11.81" x 13.39" |
| Weight | 21.61 lbs. |
| Package Contents | 1 x DS3622xs+ main unit 1 x Quick Installation Guide 1 x Accessory pack 1 x AC power cord 2 x RJ-45 LAN cables |
| Shipping weight | 12.93 kg |
| Package size | 476 × 467 × 438 mm |
Other versions of this model
3 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Synology Inc.
Synology Inc. DS2422+ 12-Bay Desktop NAS 4GB DDR4
- Desktop NAS
- 1 x Expansion Port…
$1,530.99$1,532.99−0%
0.01931629BTC
In stock
Synology Inc.
Synology Inc. DS1823XS+ 8-Bay Desktop NAS
- Desktop NAS
- 1 x 8 width slot, G…
$1,737.99
0.02192798BTC
In stockQuestions about this item
Which memory configuration should I choose for this DS3622xs+?
It ships with 16GB DDR4 ECC installed across four SODIMM slots and can be expanded to 48GB total capacity.
What does the 4,719 MB/s sequential read figure mean once the unit is in a real machine?
That throughput is achieved with the Xeon D-1531 processor and 10GbE ports under optimal workloads such as VM storage or video editing.
What interface does the PCIe 3.0 x8 slot cap in practice?
The slot supports expansion cards at PCIe 3.0 x8 speeds for additional 10GbE, SAS or other add-in controllers.
