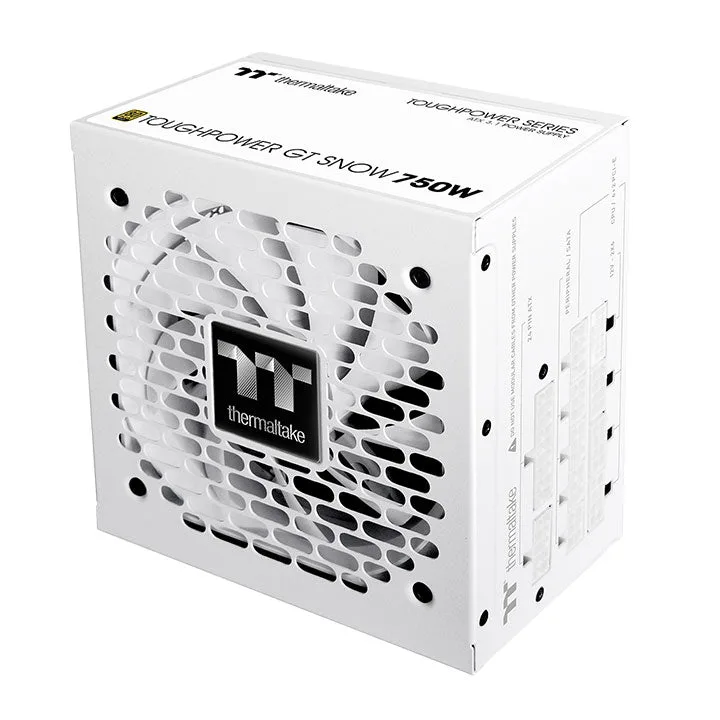

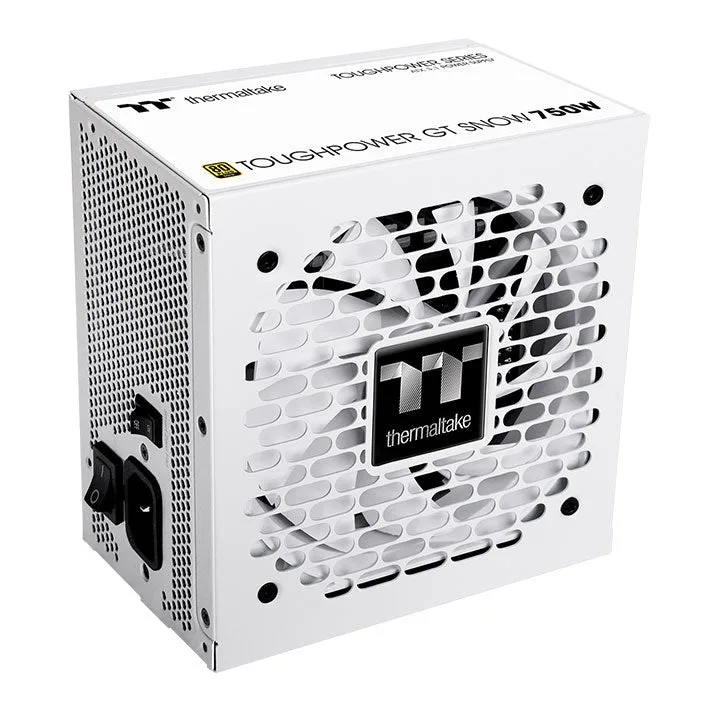

White ATX power supply unit with modular cables and 12 cm fan

Thermaltake

Thermaltake PS-TPT-0750FNFAGU-W 750 W power supply

SKU CH-C019-BRJWF MPN PS-TPT-0750FNFAGU-W

A 750 W ATX 3.1 power supply with 80 PLUS Gold efficiency, full modular cables and a native 12VHPWR connector for modern graphics cards

  • ColorWhite
  • TypeATX 3.1 Compatible
  • Maximum Power750 W
  • Fans12cm Hydraulic bearing fan
  • PFCActive
  • Max PSU Length140 mm

Options ATX 3.1 80+ Gold (750W) White

  • ATX 3.1 ready for modern GPU builds
  • Full modular cabling cuts internal clutter
  • 80 Plus Gold efficiency lowers running costs
  • 12VHPWR connector delivers up to 300 W
  • Hydraulic bearing fan runs silent until needed

White ATX 3.1 power supply

This white ATX 3.1 compatible unit delivers 750 W of continuous power for desktop builds. It meets 80 PLUS Gold efficiency at 115 V input and includes a native 12VHPWR connector rated for 300 W. Full modular cabling keeps the interior tidy.

Hydraulic bearing fan under load

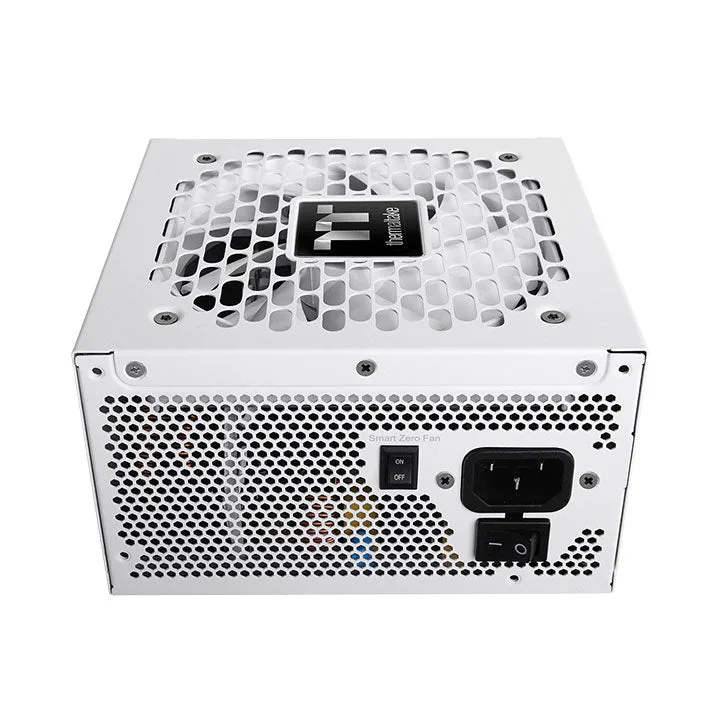

A 12 cm hydraulic bearing fan runs in Smart Zero Fan mode, staying off during light work and spinning up only when internal temperature rises. Active PFC and a hold-up time above 17 ms at 80 % load help maintain stable output during sustained demand.

Cable reach and case depth

The main 24 pin cable is 550 mm long, each 8 pin PCIe cable is 600 mm with a 150 mm extension, and the 12VHPWR lead is 600 mm. The supply body is 140 mm deep, so verify that your chassis provides enough clearance for the cables and airflow.

Highlights

  • ATX 3.1 ready for modern GPU builds
  • Full modular cabling cuts internal clutter
  • 80 Plus Gold efficiency lowers running costs
  • 12VHPWR connector delivers up to 300 W
  • Hydraulic bearing fan runs silent until needed

Specifications

BrandThermaltake
ModelPS-TPT-0750FNFAGU-W
ColorWhite
TypeATX 3.1 Compatible
Maximum Power750 W
Fans12cm Hydraulic bearing fan
PFCActive
Max PSU Length140 mm
ModularFull Modular
Power Good Signal100-250 msec
Hold-up Time> 17msec at 80% load
Energy-EfficientMeet 80 PLUS Gold at 115Vac input.
ProtectionOVP/UVP/OCP/OPP/OTP/SCP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10A Max.
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , +5VSB@3A
MTBF>100,000 Hours
ApprovalsCE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK

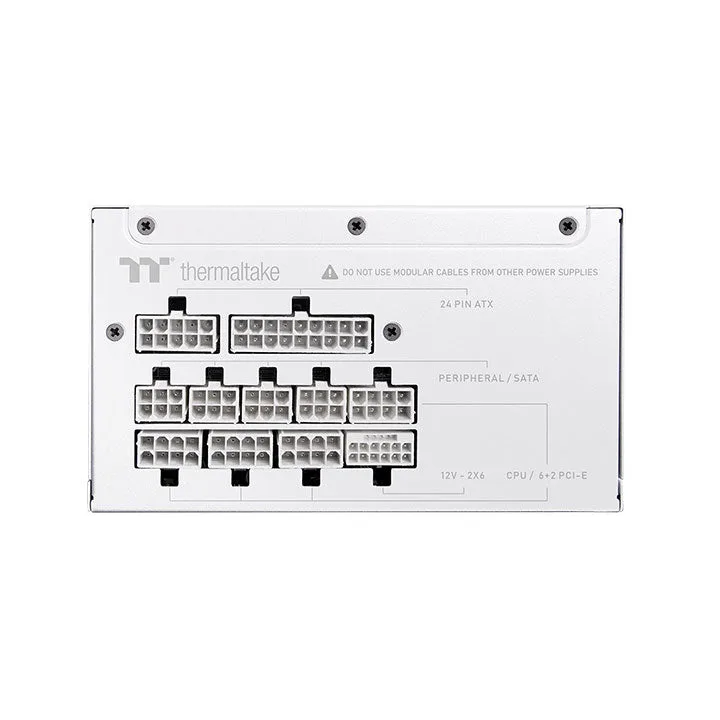

Connectors1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe
Cable Spec1 x Main Power (24Pin) x1 550mm
2 x ATX 12V(4+4Pin) x1 700mm
2 x PCIe(6+2Pin) x2 600mm+150mm
1 x PCIe(12+4Pin) 600W x1 600mm
2 x SATA (5Pin) x3 450mm+150mm+150mm
1 x Peripheral (4Pin) x4 400mm+150mm+150mm+150mm
Dimensions150 x 86 x140mm
Shipping weight1.11 kg
Package size279 × 216 × 123 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 12 cm hydraulic bearing fan stay off at low load so the PSU runs silently?

The Smart Zero Fan mode stops the 12 cm hydraulic bearing fan until internal temperature rises, giving silent operation at light loads.

My case only has room for a 140 mm deep unit and I need ATX 3.1 native PCIe 5.1 power — will this fit and deliver?

At 140 mm deep it fits the space, and the single 12VHPWR 12+4 pin connector supplies up to 300 W to a PCIe 5.1 graphics card.

I plan to keep my older SATA SSDs and 4-pin peripherals — are the right cables included?

Yes, the bundle includes three SATA connectors per cable on two cables and four 4-pin peripheral connectors on one cable for legacy drives and accessories.
