Black rectangular ATX power supply with RGB fan visible through mesh grille

Thermaltake

Thermaltake Toughpower GT 850W power supply PS-TPT-0850FNFAGU-3

SKU CH-YN1E-3MG27 MPN PS-TPT-0850FNFAGU-3

Fully modular 850 W ATX 3.1 unit with 80 PLUS Gold efficiency and native PCIe 5.1 12V-2x6 connector for modern GPUs

  • ColorBlack
  • TypeATX 12V
  • Maximum Power850 W
  • Fans12cm Hydraulic bearing fan
  • Fan LEDRGB
  • PFCActive

Options ATX 3.1 80+ Gold (850W) Black

  • 850 W output powers demanding builds
  • 80 PLUS Gold rated for up to 90 % efficiency
  • ATX 3.1 standard with native PCIe 5.1 connector
  • Smart Zero Fan stops at low load for silent running
  • Fully modular flat cables simplify routing and airflow

Power and standard compliance

The Thermaltake Toughpower GT delivers 850 W through an ATX 3.1 design that includes native PCIe 5.1 support. A single 12V rail supplies stable current for high-end gaming and workstation builds. 80 PLUS Gold certification confirms efficiency above 85% at typical loads.

Cable layout and case fit

The unit is fully modular with low-profile flat black cables and provides 16 SATA power connectors for storage arrays. Maximum PSU length is 140 mm, so verify that your chassis accommodates this depth before ordering. The main board connector uses a 20+4 pin arrangement.

Thermal behaviour under load

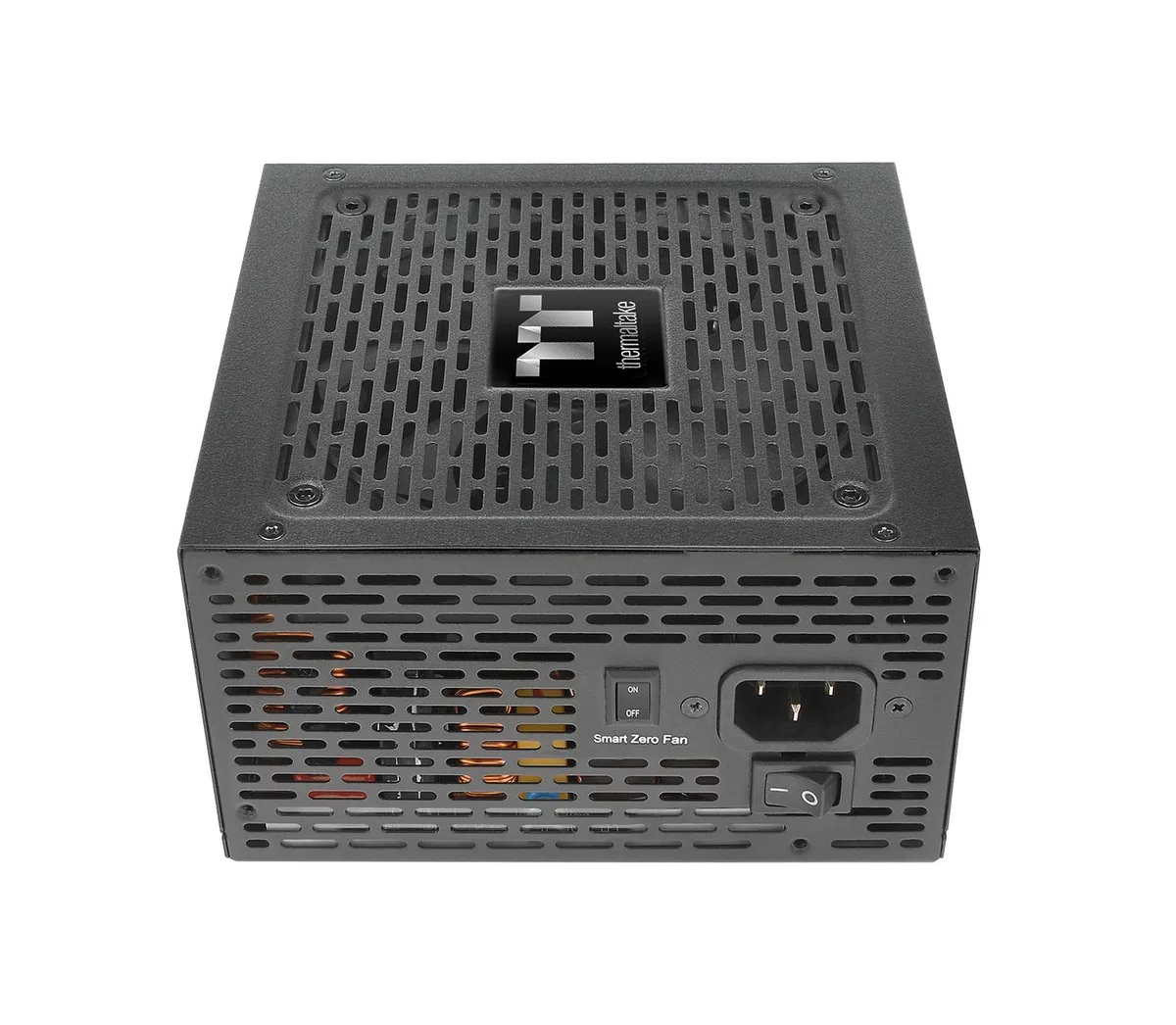

Smart Zero Fan technology keeps the 12 cm hydraulic bearing fan stationary during light workloads, then ramps speed as power draw rises. Hold-up time exceeds 17 ms at 80% load, while protection circuits cover OVP, UVP, OCP, OPP, OTP and SCP for sustained operation.

Highlights

  • 850 W output powers demanding builds
  • 80 PLUS Gold rated for up to 90 % efficiency
  • ATX 3.1 standard with native PCIe 5.1 connector
  • Smart Zero Fan stops at low load for silent running
  • Fully modular flat cables simplify routing and airflow

Specifications

BrandThermaltake
SeriesGold (ATX 3.1)
ModelPS-TPT-0850FNFAGU-3
Part NumberPS-TPT-0850FNFAGU-3
ColorBlack
TypeATX 12V
Maximum Power850 W
Fans12cm Hydraulic bearing fan
Fan LEDRGB
PFCActive
Main Connector20+4 Pin
+12V Rails2
SATA Power Connector16
Max PSU Length140 mm
ModularNo
Power Good Signal100-250 msec
Hold-up Time> 17msec at 80% load
Efficiency> 85%
Energy-EfficientMeet 80 PLUS Gold at 115Vac input.
ProtectionOVP/UVP/OCP/OPP/OTP/SCP
Input Voltage120 volts
Input Frequency Range50/60 Hz
Input Current10A @ 115V, 5A @ 230V
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , +5VSB@3A
MTBF>100,000 Hours
Approvalsnot_applicable
Connectors1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe
Cable Spec1 x Main Power (24Pin) x1 550mm
2 x ATX 12V(4+4Pin) x1 700mm
2 x PCIe(6+2Pin) x2 600mm+150mm
1 x PCIe(12+4Pin) 450W x1 600mm
2 x SATA (5Pin) x3 450mm+150mm+150mm
1 x Peripheral (4Pin) x4 400mm+150mm+150mm+150mm
Power Rating600W
Peak Power850 watts
SLICertified
Size/Dimensions5.9 in x 3.4 in x 5.5 in
FeaturesToughpoewr GT 850, Full Modular, full, Air, 5 Year Manufacturer, 850W, Gold (ATX 3.1)
Dimensions20'
Weight2.431 kilograms
Package ContentToughpoewr GT 850, PS-TPT-0850FNFAGU-3, 1, false
Frequency Range50/60 Hz
+3.3V Max. Current8A
+12V1 Max. Current9A
+12V2 Max. Current10A
+12V3 Max. Current30A
+12V4 Max. Current28A
+12V5 Max. Current29A
+12V6 Max. Current28A
+5VSB Max. Current5A
12V Power Connector1 x 4 Pin ATX 12V
Peripheral Connector1
Fans Total Quantity1
Top Fans Size120mm
Top Fans LEDBlue
Top Fans Noise LevelAir
Rear Fans Size120mm
Rear Fans LEDBlue
Shipping weight2.40 kg
Package size279 × 216 × 127 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Toughpower GT 850W come with all cables attached or do I need to buy any separately?

The unit is fully modular so only the cables you need are connected; the package includes the low-profile flat black cable set and the native 12V-2x6 (12+4 pin) GPU connector, nothing extra is required.

Should I choose this 850W model or a higher wattage for a GPU that draws up to 450W?

An 850W Gold-rated supply with a single high-amperage +12V rail covers a 450W graphics card plus CPU and peripherals with headroom for transient spikes.

What does the 80 PLUS Gold rating actually deliver once the PSU is inside my PC?

It guarantees at least 85% efficiency at typical loads and up to 90% at 115V input, meaning less waste heat and lower electricity draw during gaming or workstation tasks.
