Compact Mini-ITX case in hydrangea blue steel with mesh side panel

Thermaltake

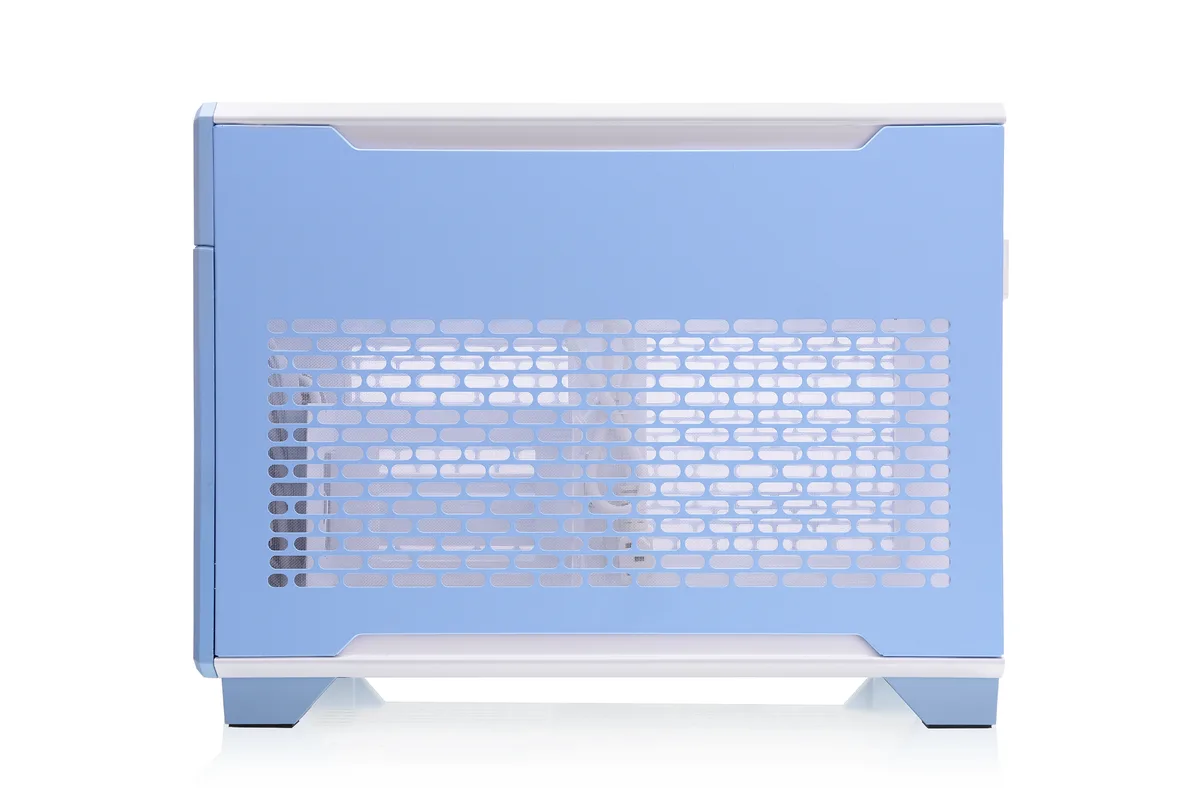

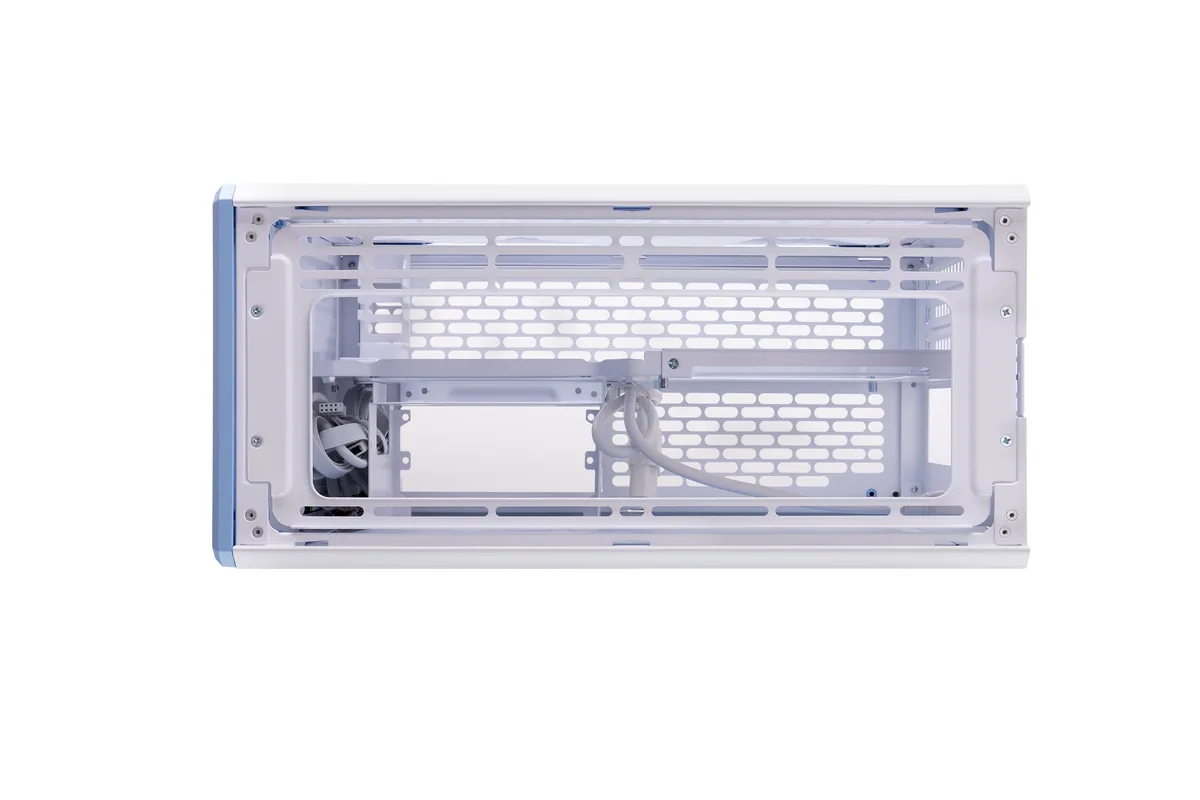

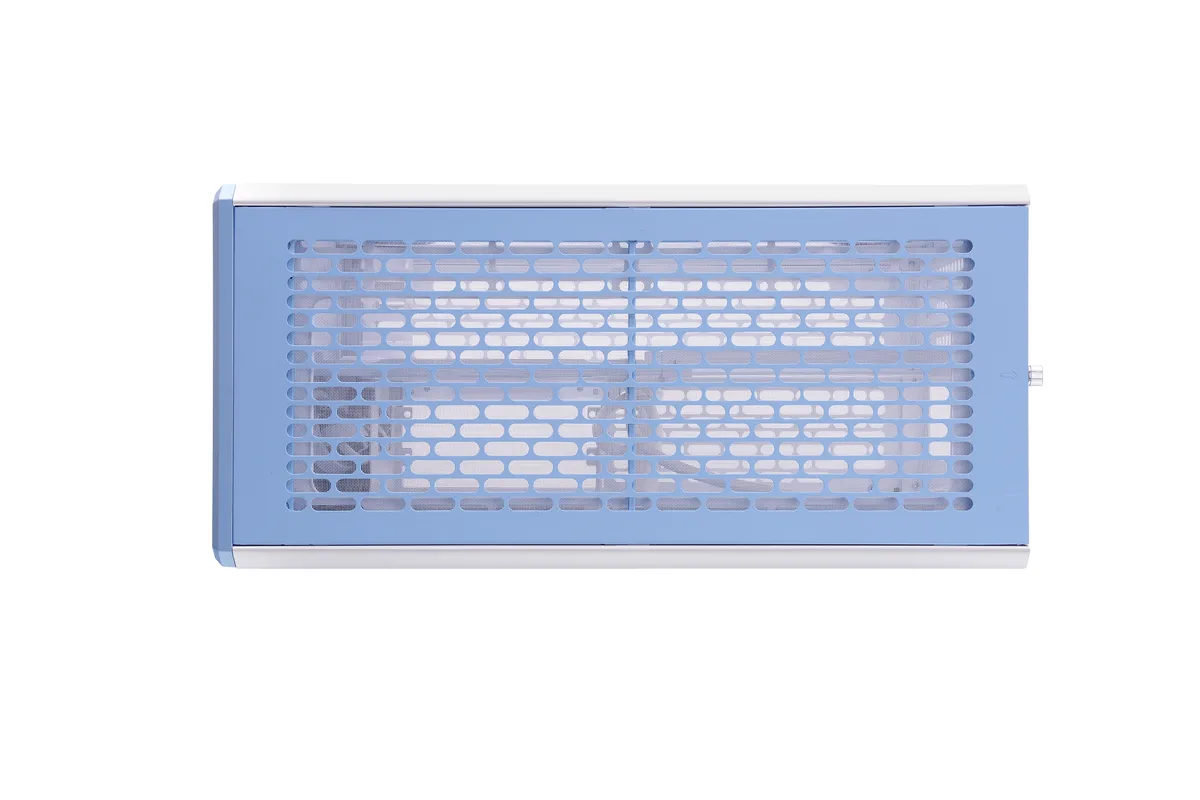

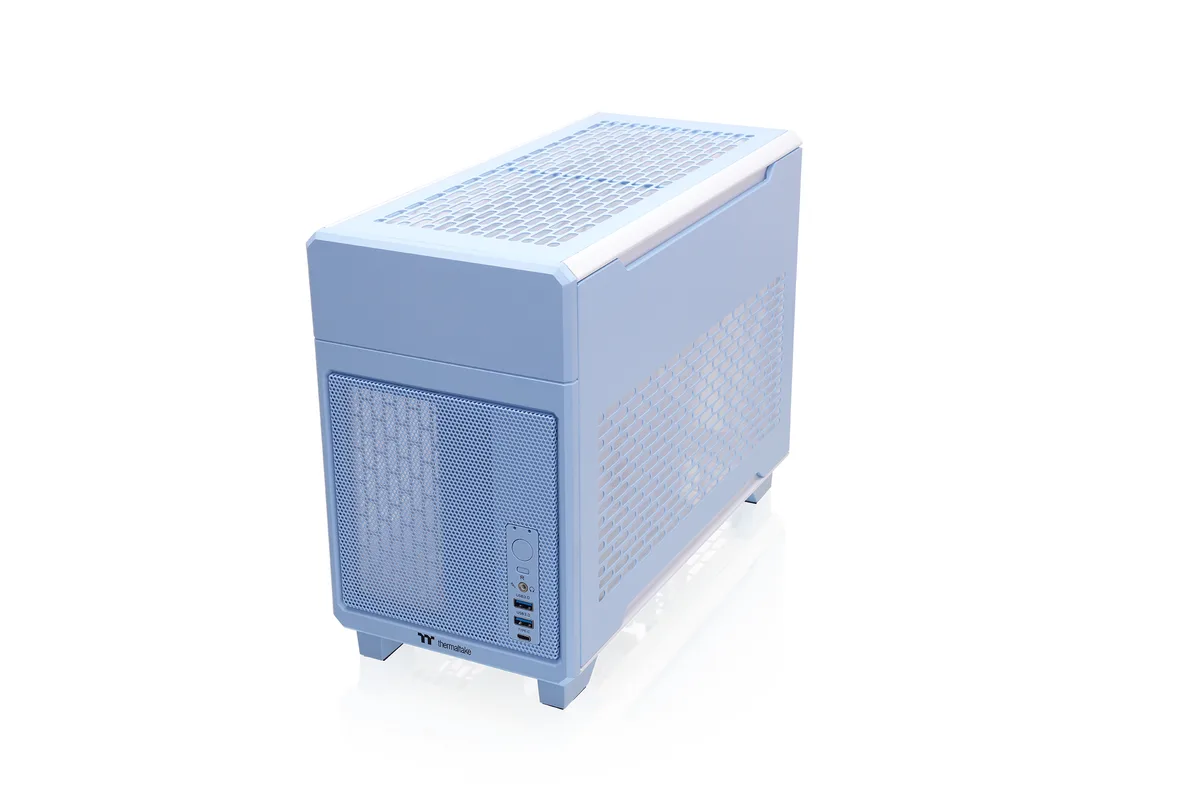

Thermaltake TR100 Mini-ITX Hydrangea Blue PC case CA-11A-00SFNN-00

SKU CH-GN7R-55E6R MPN CA-11A-00SFNN-00

A compact 18.9 litre Mini-ITX chassis in Hydrangea Blue steel with mesh side panel, dual-chamber layout, 360 mm GPU clearance, 280 mm top radiator support and an included PCIe 4.0 riser cable

  • TypeMini-ITX
  • ColorHydrangea Blue
  • Case MaterialSPCC / Steel
  • Motherboard CompatibilityMini ITX
  • Side PanelMesh Panel
  • Internal 2.5" Drive Bays2

Options Hydrangea Blue

  • Compact 18.9 L dual-chamber design fits Mini-ITX builds
  • Supports graphics cards up to 360 mm in length
  • Top radiator mount accepts up to 280 mm AIO coolers
  • CPU cooler clearance of 70 mm for low-profile towers
  • Includes PCIe 4.0 riser cable for modern GPU bandwidth

Compact ITX chassis in Hydrangea Blue

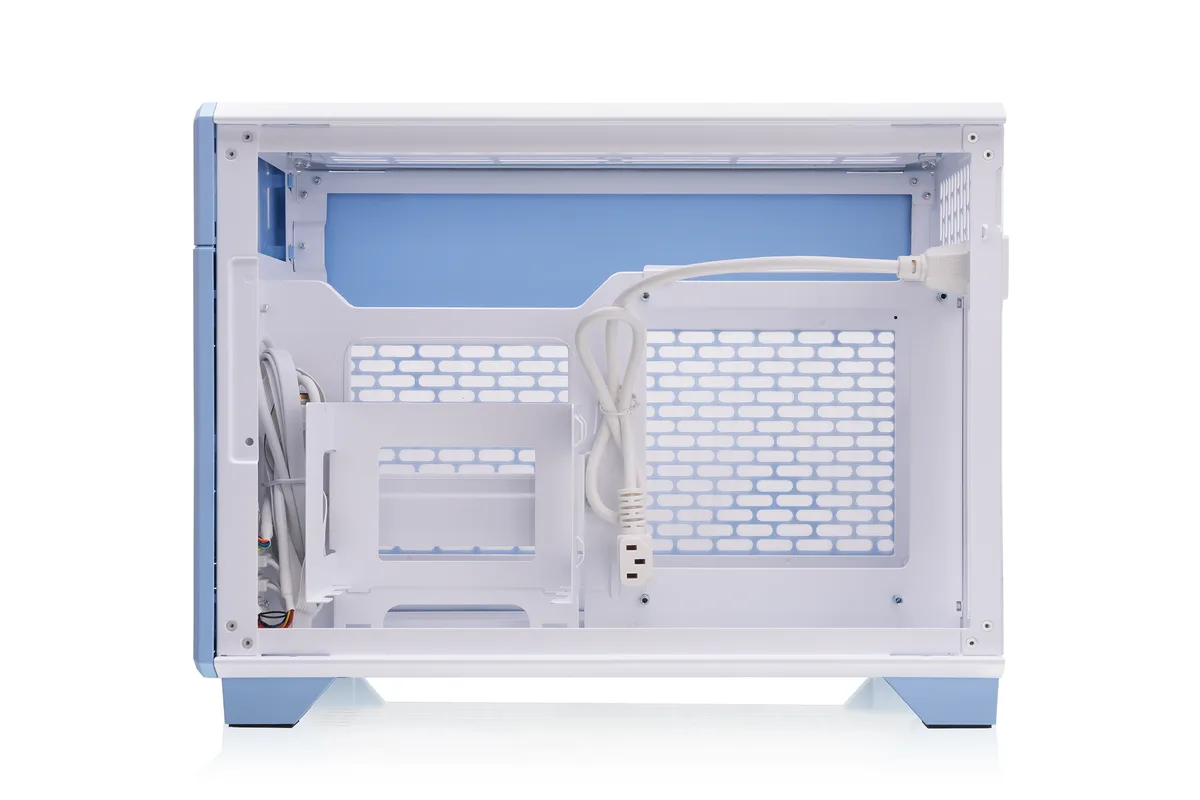

The TR100 is an 18.9-litre Mini-ITX enclosure finished in Hydrangea Blue with a steel SPCC frame and a mesh side panel. Its dual-chamber layout separates the GPU zone from the motherboard tray, keeping cable runs short and airflow direct. The case ships with a PCIe 4.0 riser cable and a removable PCIe bracket that includes an integrated GPU brace. No fans are pre-installed, so the builder chooses the exact cooling configuration.

Builders who value portability

The small footprint and carry-friendly dimensions suit LAN events or a living-room setup where space is tight. The 360 mm GPU limit and 280 mm top radiator support accommodate high-end components in a compact volume. Users needing more than two 2.5-inch drives, a full-size ATX power supply, or a CPU cooler taller than 70 mm should consider a larger enclosure. Liquid-cooling loops with multiple radiators will also find the interior restrictive.

CPU cooler clearance capped at 70 mm

The 70 mm height restriction is the single dimension that determines whether a chosen cooler will fit. Most tower coolers exceed this limit, so low-profile or all-in-one liquid coolers with a 280 mm radiator become the practical options. Verify the exact height of any air cooler before purchase; even a few millimetres over 70 mm will prevent the side panel from closing.

Highlights

  • Compact 18.9 L dual-chamber design fits Mini-ITX builds
  • Supports graphics cards up to 360 mm in length
  • Top radiator mount accepts up to 280 mm AIO coolers
  • CPU cooler clearance of 70 mm for low-profile towers
  • Includes PCIe 4.0 riser cable for modern GPU bandwidth

Specifications

BrandThermaltake
SeriesTR100
Part NumberCA-11A-00SFNN-00
TypeMini-ITX
ColorHydrangea Blue
Case MaterialSPCC / Steel
Motherboard CompatibilityMini ITX
Side PanelMesh Panel
Internal 2.5" Drive Bays2
Expansion Slots3
Fan OptionsTop - 1 x 120mm / Top - 1 x 140mm / Top - 2 x 120mm / Top - 2 x 140mm
Pre-installed FansNo Fan Installed
Radiator OptionsTop - Up to 280mm
Max GPU Length360 mm
Max CPU Cooler Height70 mm
Max PSU Length130 mm
Dimensions15.4" x 7.1" x 11.6"
Shipping weight4.90 kg
Package size445 × 356 × 229 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which version of the TR100 should I choose for a portable Mini-ITX build?

The Hydrangea Blue model is the single variant offered; it measures 15.4" x 7.1" x 11.6", weighs 18.9 litres and supports Mini-ITX boards with two 2.5" drive bays.

What does the 360 mm GPU clearance mean once the card is installed?

It allows graphics cards up to 360 mm long, so most full-size dual- and triple-fan GPUs fit while leaving room for the included PCIe 4.0 riser cable and integrated brace.

How does the PCIe 4.0 riser affect bandwidth in practice?

The supplied riser carries PCIe 4.0 signals from the motherboard slot to the vertical GPU bracket, letting modern cards operate at their native link speed without an extra cable purchase.
