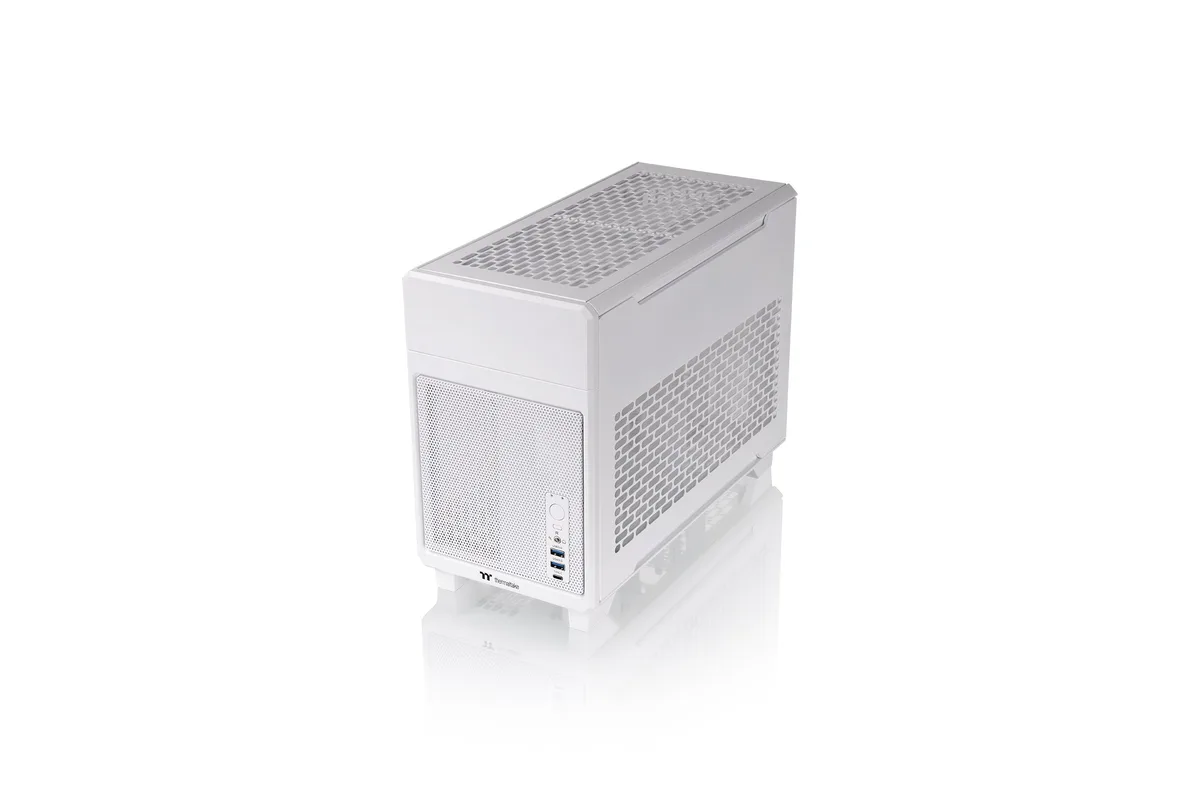

Compact white Mini-ITX case with mesh side panel, dual-chamber steel frame, 15.4 by 7.1 by 11.6 inches

Thermaltake

Thermaltake TR100 Mini-ITX PC Case CA-11A-00S6NN-00

SKU CH-5NW0-BNYTW MPN CA-11A-00S6NN-00

A compact white Mini-ITX case with mesh side panel, 360 mm GPU clearance and 280 mm radiator support

  • TypeMini-ITX
  • ColorWhite
  • Case MaterialSPCC / Steel
  • Motherboard CompatibilityMini ITX
  • Side PanelMesh Panel
  • Internal 2.5" Drive Bays2

Options White

  • Compact 18.9 litre footprint suits home desks and travel bags
  • Mesh side panel promotes airflow for Mini-ITX components
  • Supports graphics cards up to 360 mm long
  • Top radiator mount accepts up to 280 mm for liquid cooling
  • Includes PCIe 4.0 riser cable and removable GPU bracket with brace

Portable Mini-ITX Chassis

The Thermaltake TR100 is a white SPCC steel Mini-ITX case with an 18.9 litre internal volume and a mesh side panel. It measures 15.4" x 7.1" x 11.6" and is designed for compact home builds or transportable systems. The dual-chamber layout separates the motherboard area from the power supply and drive bays. No fans are pre-installed, leaving cooling choices entirely to the builder.

Builders Who Need Maximum GPU And Radiator Support

This chassis suits enthusiasts who want a full-length graphics card up to 360 mm and a top-mounted radiator up to 280 mm in a small footprint. It also accepts SFX or SFX-L power supplies up to 130 mm long. CPU cooler height is limited to 70 mm, so builders requiring taller tower coolers should look elsewhere. Only two 2.5" drive bays are provided, limiting internal storage expansion for users with larger drive counts.

Included PCIe 4.0 Riser And GPU Brace

A PCIe 4.0 riser cable ships inside the box, enabling vertical GPU mounting while maintaining modern bandwidth. The removable PCIe bracket simplifies card installation and the integrated brace secures heavy graphics cards during transport. These bundled items remove the need to purchase a separate riser or support bracket for vertical configurations.

Highlights

  • Compact 18.9 litre footprint suits home desks and travel bags
  • Mesh side panel promotes airflow for Mini-ITX components
  • Supports graphics cards up to 360 mm long
  • Top radiator mount accepts up to 280 mm for liquid cooling
  • Includes PCIe 4.0 riser cable and removable GPU bracket with brace

Specifications

BrandThermaltake
SeriesTR100
Part NumberCA-11A-00S6NN-00
TypeMini-ITX
ColorWhite
Case MaterialSPCC / Steel
Motherboard CompatibilityMini ITX
Side PanelMesh Panel
Internal 2.5" Drive Bays2
Expansion Slots3
Fan OptionsTop - 1 x 120mm / Top - 1 x 140mm / Top - 2 x 120mm / Top - 2 x 140mm
Pre-installed FansNo Fan Installed
Radiator OptionsTop - Up to 280mm
Max GPU Length360 mm
Max CPU Cooler Height70 mm
Max PSU Length130 mm
Dimensions15.4" x 7.1" x 11.6"
Shipping weight4.90 kg
Package size483 × 356 × 229 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What motherboard size does the TR100 Mini-ITX case support?

The TR100 supports Mini-ITX motherboards only, matching its 18.9-litre dual-chamber layout.

Will a 360 mm graphics card fit alongside the included PCIe 4.0 riser cable?

Yes, the case allows up to 360 mm GPU length and ships with a PCIe 4.0 riser for flexible mounting.

How can I verify the top-mounted radiator is seated correctly after assembly?

Confirm the radiator does not exceed the 280 mm limit and that the top panel closes flush with the mesh side panel.
