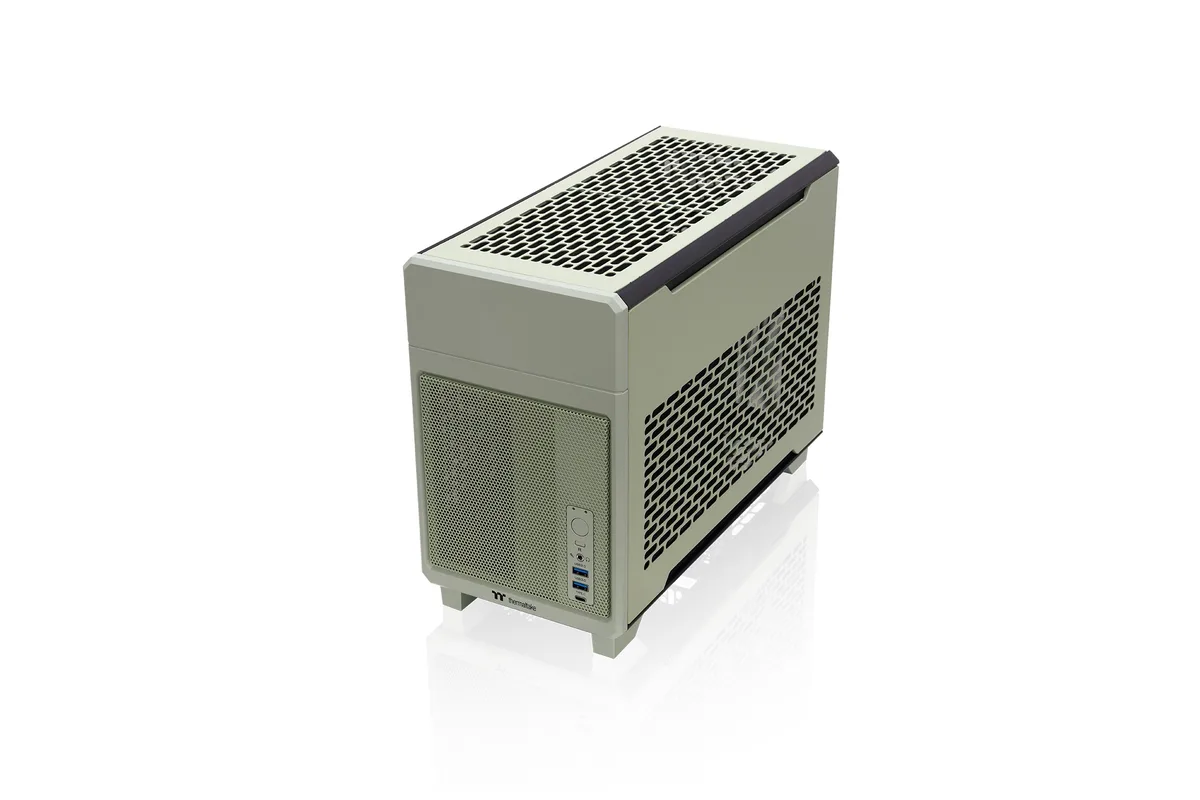

Compact Mini-ITX case in matcha green steel with mesh side panel

Thermaltake

Thermaltake TR100 Mini-ITX Matcha Green PC Case CA-11A-00SENN-00

SKU CH-V03B-C6RDE MPN CA-11A-00SENN-00

A compact Mini-ITX case in Matcha Green with dual-chamber layout, 360 mm GPU clearance, 280 mm radiator support, SFX-L PSU fit and a PCIe 4.0 riser included

  • Motherboard CompatibilityMini ITX
  • ColorMatcha Green
  • Case MaterialSPCC / Steel
  • TypeMini-ITX
  • Side PanelMesh Panel
  • 120mm Fans1

Options Matcha Green

  • Compact 18.9 litre footprint suits home desks and travel bags
  • Dual-chamber layout fits Mini-ITX builds with 360 mm GPU clearance
  • PCIe 4.0 riser cable included for modern graphics bandwidth
  • Removable PCIe bracket and integrated GPU brace simplify installation
  • Mesh side panel and top 280 mm radiator support enable strong airflow

TR100 Mini-ITX Matcha Green Case

The Thermaltake TR100 is an 18.9 litre Mini-ITX chassis finished in Matcha Green. Its dual-chamber steel frame targets builders who want a compact footprint for home or travel without sacrificing component headroom.

Sustained Load Behaviour

The open mesh side panel feeds airflow directly to the GPU and CPU zones. Top mounts accept up to two 140 mm fans or a 280 mm radiator, while the 68 mm CPU cooler limit and 360 mm GPU clearance keep thermals manageable during extended sessions.

PCIe 4.0 Riser Limit

An included PCIe 4.0 riser cable connects the motherboard to the vertical GPU bracket. The link caps bandwidth at the 4.0 specification, so 5.0 cards will operate at the lower speed through this assembly.

Highlights

  • Compact 18.9 litre footprint suits home desks and travel bags
  • Dual-chamber layout fits Mini-ITX builds with 360 mm GPU clearance
  • PCIe 4.0 riser cable included for modern graphics bandwidth
  • Removable PCIe bracket and integrated GPU brace simplify installation
  • Mesh side panel and top 280 mm radiator support enable strong airflow

Specifications

Motherboard CompatibilityMini ITX
ColorMatcha Green
Case MaterialSPCC / Steel
TypeMini-ITX
Side PanelMesh Panel
120mm Fans1
40mm Fans1
60mm Fans5
80mm Fans1
140mm Fans4
180mm Fans4
200mm Fans1
220mm Fans1
360mm Fans2
Fan OptionsTop - 1 x 120mm / Top - 1 x 140mm / Top - 2 x 120mm / Top - 2 x 140mm
Pre-installed FansNo Fan Installed
Radiator OptionsTop - Up to 280mm
BrandThermaltake
SeriesTR100
Part NumberCA-11A-00SENN-00
Internal 2.5" Drive Bays2
Expansion Slots3
Max GPU Length360 mm
Max CPU Cooler Height70 mm
Max PSU Length130 mm
Dimensions15.4" x 7.1" x 11.6"
FeaturesTool-less Design
Package ContentTR100
Shipping weight4.90 kg
Package size445 × 356 × 229 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud does the TR100 run when I populate all six fan mounts and a 280 mm radiator for all-day loads?

The case ships without any fans installed, so noise and heat depend entirely on the six fan locations you choose — two 120 mm or 140 mm top mounts plus the side mesh panel — and on the 280 mm radiator limit for liquid cooling.

Which power supply and graphics card must I already own to fit the TR100's 130 mm PSU limit and 360 mm GPU clearance?

You need an SFX or SFX-L unit no longer than 130 mm and a graphics card no longer than 360 mm; the included PCIe 4.0 riser cable and removable bracket with integrated brace handle the connection.

Will my existing 70 mm tower cooler and 2.5 inch drives work in the TR100 alongside the PCIe 4.0 riser?

Yes — CPU cooler clearance is 70 mm, two internal 2.5 inch bays are provided, and the riser cable routes behind the motherboard tray without interfering with either component.
