Timetec Pinnacle Gaming 1TB M.2 2280 SSD with thin graphene heat spreader

Timetec

Timetec Pinnacle Gaming 1TB PCIe 4.0 NVMe M.2 2280 internal SSD

SKU CH-58YK-MS4DG

1TB PCIe 4.0 NVMe M.2 2280 SSD with graphene heat spreader, up to 7400/6100 MB/s speeds and 2000TBW endurance for PS5 Pro and PC

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND TLC

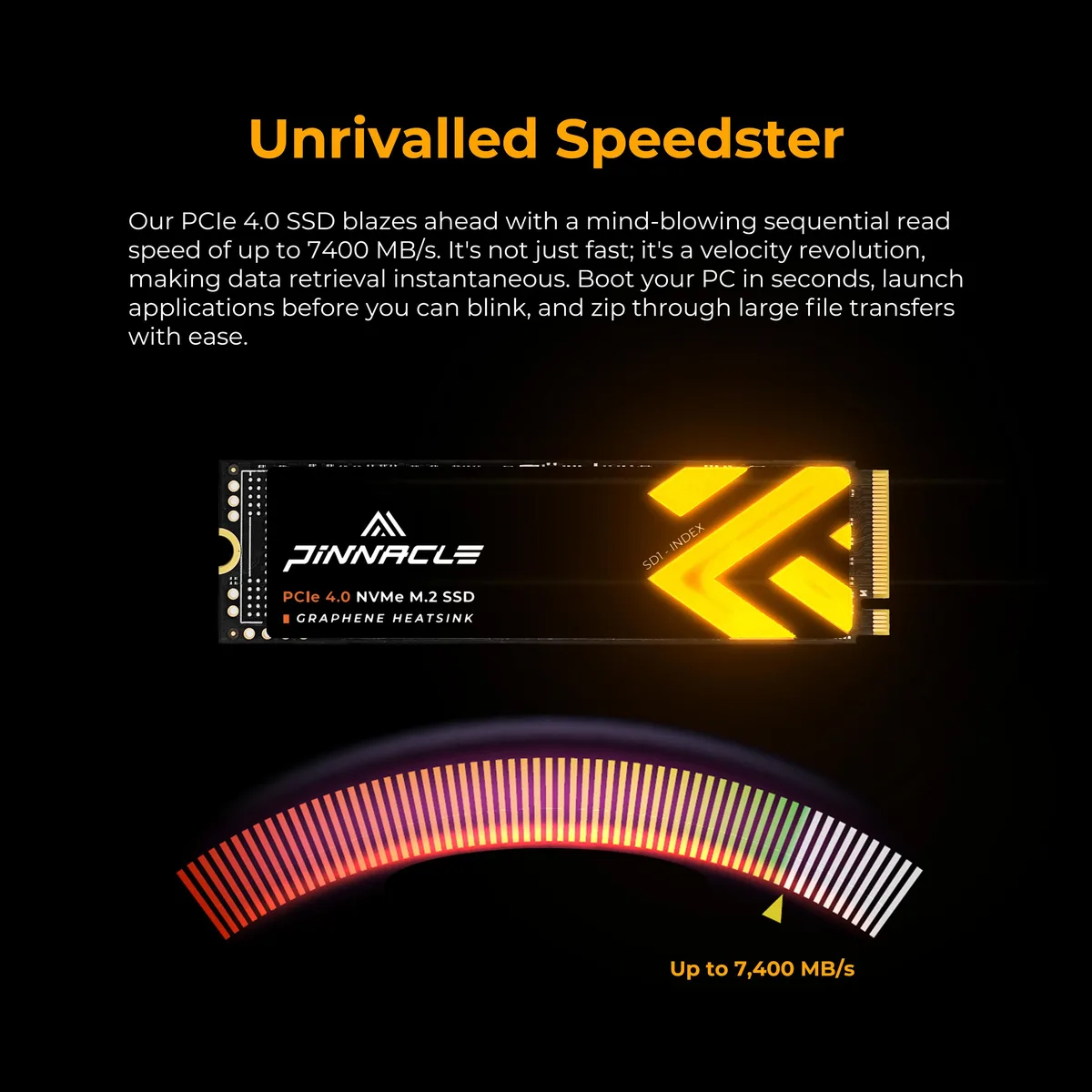

  • Max Sequential ReadUp to 7400 MBps
  • Sequential reads up to 7400 MB/s load games and files in seconds
  • Sequential writes up to 6100 MB/s keep large projects moving without delay
  • 3D NAND TLC with Phison PS5027-E27T controller delivers sustained speed and endurance
  • 1500000 hours MTBF plus 2000 TBW rating protect data over years of heavy use
  • Ultra-thin graphene heat spreader fits PS5 Pro and laptops without clearance issues

Timetec Pinnacle Gaming 1TB NVMe SSD

This 1TB internal SSD uses a PCIe 4.0 NVMe interface and an M.2 2280 form factor with 3D NAND TLC memory. It is built for gamers and content creators who need fast sequential read speeds up to 7400 MBps and write speeds up to 6100 MBps. The Phison PS5027-E27T controller manages performance across desktop, laptop and PS5 Pro platforms.

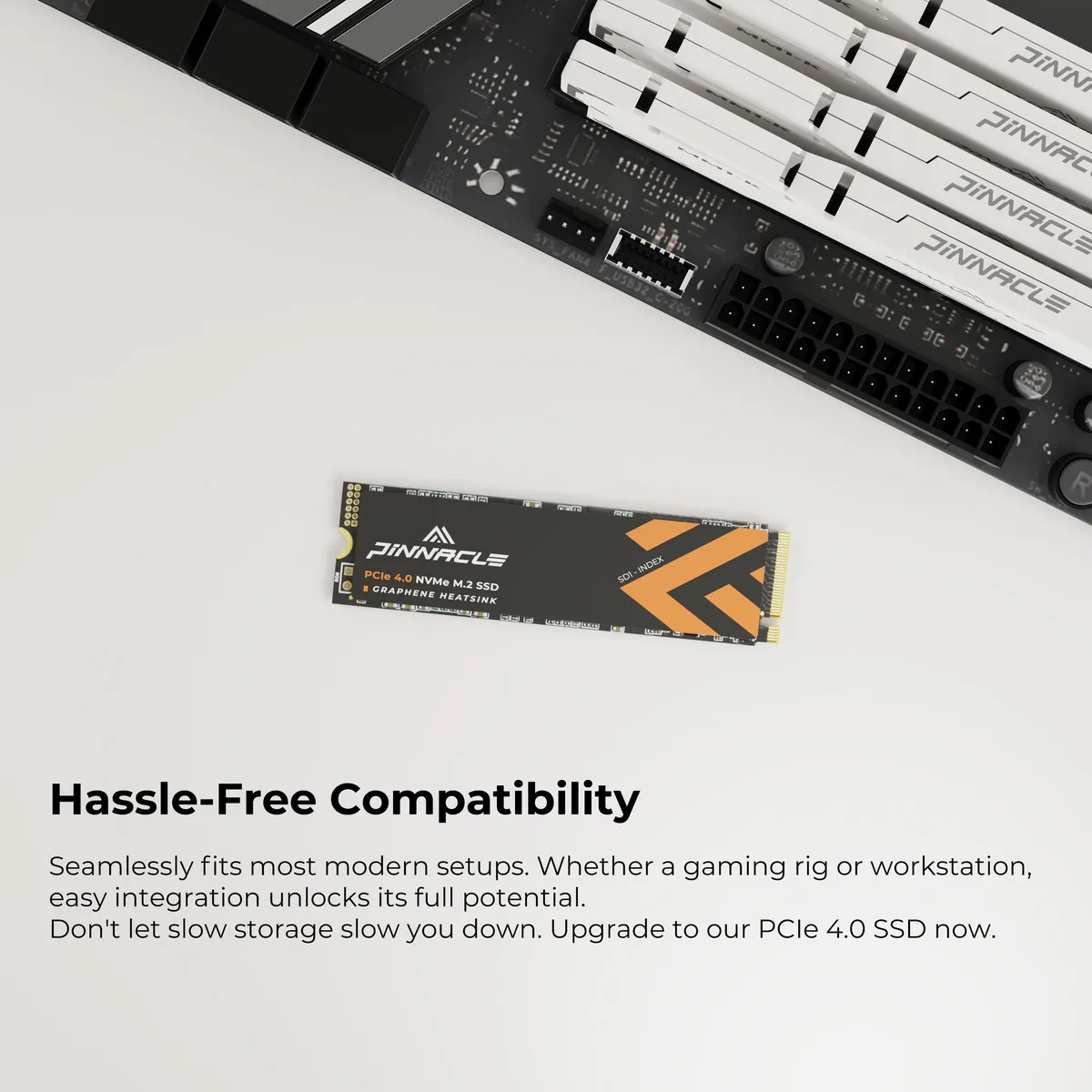

Check your M.2 slot and operating system

Verify that your motherboard or laptop has an M.2 2280 slot that supports NVMe PCIe Gen4x4 signalling. The drive is backwards compatible with PCIe Gen3, Gen2 and Gen1 but will run at the slower generation speed. Supported operating systems include Windows 7 through Windows 11 and Linux kernel 2.6.33 or later.

Graphene heat spreader and endurance ratings

An ultra-thin graphene heat spreader keeps the controller cool without adding height, so the drive fits tight laptop bays and PS5 Pro expansion slots. Endurance is rated at 2000 TBW with a 1500000 hour MTBF. The firmware supports S.M.A.R.T., TRIM, garbage collection, wear levelling, bad block management and end-to-end data protection under NVMe 1.4.

Highlights

  • Sequential reads up to 7400 MB/s load games and files in seconds
  • Sequential writes up to 6100 MB/s keep large projects moving without delay
  • 3D NAND TLC with Phison PS5027-E27T controller delivers sustained speed and endurance
  • 1500000 hours MTBF plus 2000 TBW rating protect data over years of heavy use
  • Ultra-thin graphene heat spreader fits PS5 Pro and laptops without clearance issues

Specifications

BrandTimetec
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND TLC
Max Sequential ReadUp to 7400 MBps
Max Sequential WriteUp to 6100 MBps

Questions about this item

Will this drive fit in a PlayStation 5 Pro without extra parts?

Yes, the M.2 2280 form factor and thin graphene heat spreader meet the PS5 Pro expansion slot requirements.

Does the SSD work with a motherboard that only has PCIe 3.0 slots?

Yes, the drive is backwards compatible with PCIe Gen 3, Gen 2 and Gen 1, so it will operate at the slot's maximum speed.

What software or drivers are needed to use the drive on Windows 11?

No extra drivers are required; Windows 11 supports NVMe 1.4 natively and the drive works immediately after installation.
