Black rectangular router with six fixed antennas standing upright

TP-Link

TP-Link Archer AX73 AX5400 Wi-Fi 6 wireless router

SKU CH-BWBW-FFDH7 MPN Archer AX73

Dual-band Wi-Fi 6 router delivers up to 5.4 Gbps with six high-performance antennas, a 1.5 GHz triple-core CPU, four Gigabit LAN ports and USB 3.0 for media sharing

  • WiFi GenerationWi-Fi 6
  • Wireless StandardIEEE 802.11a / IEEE 802.11ac / IEEE 802.11ax / IEEE 802.11b
  • SecuritySPI Firewall Access Control IP & MAC Binding Application Lay
  • WPAWPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
  • WAN Ports1 x 10/100/1000M
  • LAN Ports4 x 10/100/1000M

Class AX5400

Options Archer AX73

  • Up to 5.4 Gbps Wi-Fi 6 speed for 8K streaming and gaming
  • 6 high-performance antennas with beamforming extend stable coverage throughout the home
  • 5 GHz triple-core CPU handles heavy traffic and multiple devices smoothly
  • 1 USB 3.0 port enables fast media sharing and private cloud storage
  • WPA3 and HomeShield security protect the network and IoT devices

AX5400 Wi-Fi 6 Router

The TP-Link Archer AX73 is a dual-band wireless router built on Wi-Fi 6 hardware. It delivers combined wireless rates up to 5.4 Gbps across 2.4 GHz and 5 GHz bands for households that stream, game and download simultaneously. A 1.5 GHz triple-core processor drives traffic handling and security features.

Installation and Common Issues

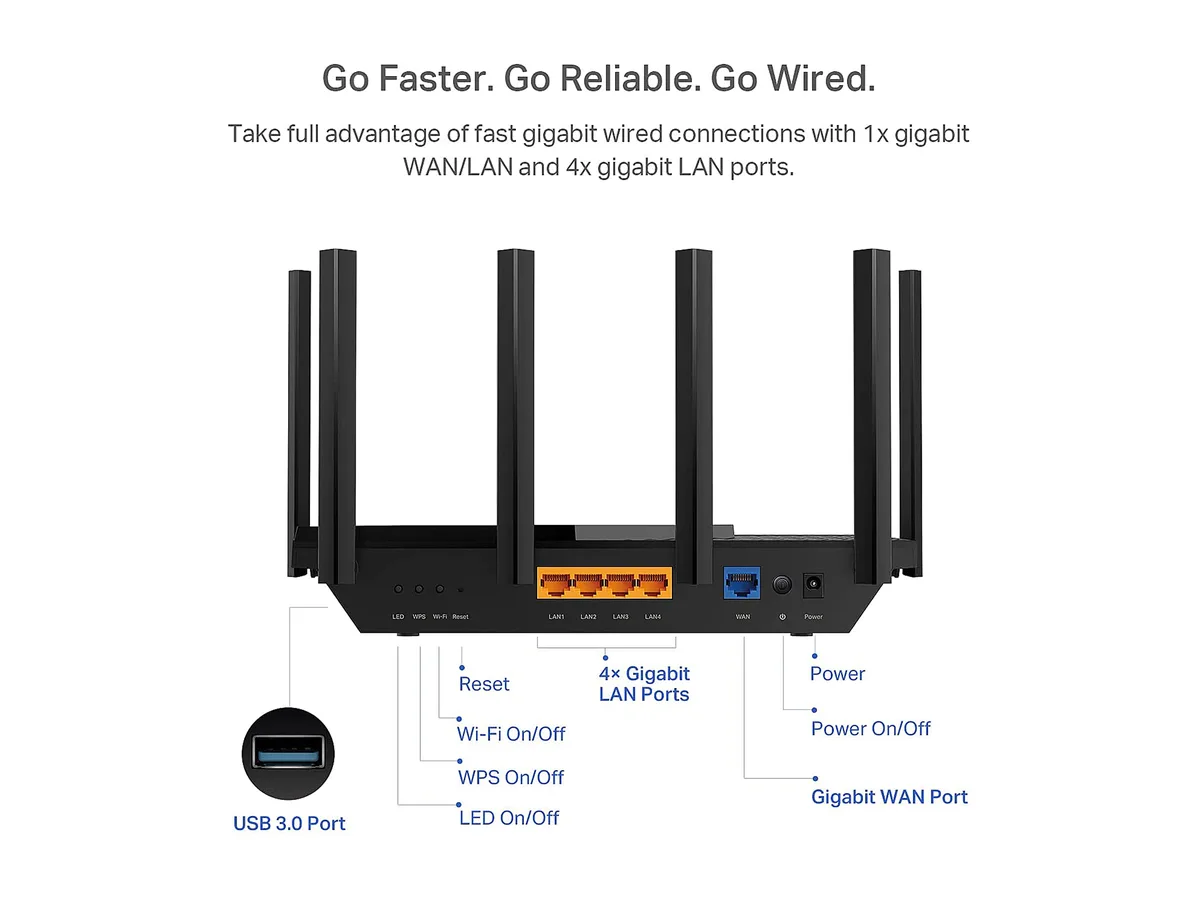

The router uses a standard 12 V 2.5 A power supply and provides one Gigabit WAN port plus four Gigabit LAN ports for wired links. Two LAN ports support link aggregation for a 2 Gbps wired pipe. Setup is managed through a web interface or mobile app; the unit includes dedicated buttons for Wi-Fi, power, LEDs, WPS and a hardware reset if configuration needs a fresh start.

Who This Suits and Who Should Look Elsewhere

This model suits homes that want Wi-Fi 6 speeds, MU-MIMO and OFDMA capacity for many devices, plus a USB 3.0 port for local media sharing or private cloud storage. Buyers who need multi-gig WAN above 1 Gbps, mesh node expansion with dedicated backhaul, or more than four LAN ports without an external switch should consider other options.

Highlights

  • Up to 5.4 Gbps Wi-Fi 6 speed for 8K streaming and gaming
  • 6 high-performance antennas with beamforming extend stable coverage throughout the home
  • 5 GHz triple-core CPU handles heavy traffic and multiple devices smoothly
  • 1 USB 3.0 port enables fast media sharing and private cloud storage
  • WPA3 and HomeShield security protect the network and IoT devices

Specifications

BrandTP-Link
ModelArcher AX73
WiFi GenerationWi-Fi 6
Wireless StandardIEEE 802.11a / IEEE 802.11ac / IEEE 802.11ax / IEEE 802.11b / IEEE 802.11g / IEEE 802.11n
SecuritySPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Home Network Scanner
WPAWPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
WAN Ports1 x 10/100/1000M
LAN Ports4 x 10/100/1000M
ButtonsWi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Wireless Data RatesAX5400 / Up to 5.4Gbps
Frequency Band2.4 GHz / 5 GHz
Antenna6 x Fixed High-Performance Antennas
Transmitted PowerCE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
Receiver Sensitivity2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm
Operation ModeAccess Point Mode / Wireless Router Mode
Interface1 x USB 3.0 Port
Link Aggregation2 x Gigabit LAN ports
VPN supportOpenVPN, PPTP
Power Supply12 V = 2.5 A
Processor1.5 GHz Triple-Core CPU
Dimensions1.90" x 10.70" x 5.80"
TemperatureOperating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
HumidityOperating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package ContentsWi-Fi Router Archer AX73
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Shipping weight1.81 kg
Package size330 × 203 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the AX5400 router is delivering Wi-Fi 6 speeds after setup?

Check the LED indicators for active 2.4 GHz and 5 GHz bands, log into the web interface to verify connected clients show 802.11ax links, and run a speed test from a Wi-Fi 6 device to see throughput approaching 5.4 Gbps aggregate.

What comes in the box with the Archer AX73 and what must I buy separately?

The package includes the router with six fixed high-performance antennas, a 12 V 2.5 A power adapter, and an Ethernet cable for the 1 x Gigabit WAN port; you only need to supply a modem and any additional Cat5e or Cat6 cables for the 4 x Gigabit LAN ports.

Which version of the AX5400 should I choose for 8K streaming and many devices?

The Archer AX73 is a single SKU with AX5400 dual-band Wi-Fi 6, a 1.5 GHz triple-core CPU, 4T4R and HE160 on 5 GHz for up to 4.8 Gbps, MU-MIMO and OFDMA, plus a USB 3.0 port for media sharing — no capacity or version options exist to select between.
