White 280mm AIO with curved 6.5 inch AMOLED block and two 140mm ARGB fans

TRYX

TRYX Panorama 280 ARGB White liquid cooler

SKU CH-C5EC-CWM8P

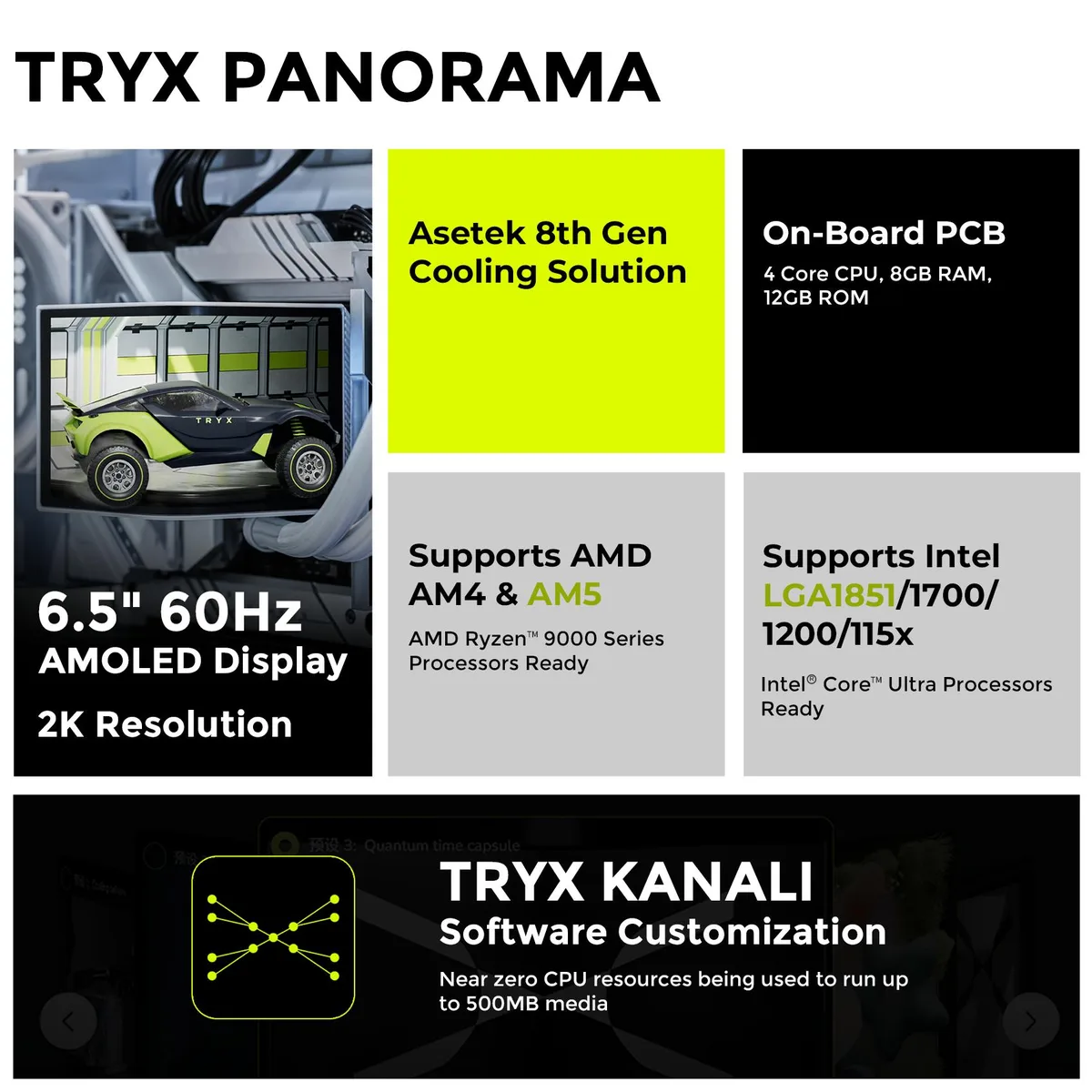

A 280 mm AIO with a 6.5 inch AMOLED display, Asetek 8th gen pump rated for 300 W TDP, two 140 mm ARGB fans and broad Intel and AMD socket support

  • TypeAIO
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA
  • Block Dim.115.5 x 92 x 92mm
  • Block MaterialPC + ABS
  • DisplayAMOLED
  • Pump Speed800-2600 ± 400RPM

Series PANORAMA ARGB

Struck-through versions exist but are not stocked here.

Fan Size 2 Fan Slots (140mm)

Color|Model|LED Color White|280mm|Addressable RGB

Struck-through versions exist but are not stocked here.

  • 5" AMOLED L-shaped screen with 2K@60Hz for vivid custom visuals
  • Asetek 8th Gen pump handles up to 300W TDP for high-end CPUs
  • Two 140mm FDB fans deliver 90.29CFM at 27.07dBA quiet operation
  • KANALI software enables custom media uploads and ARGB GEN2 lighting control
  • Broad socket support covers Intel LGA 1851/1700/1200/115X and AMD AM5/AM4

Display and pump integration

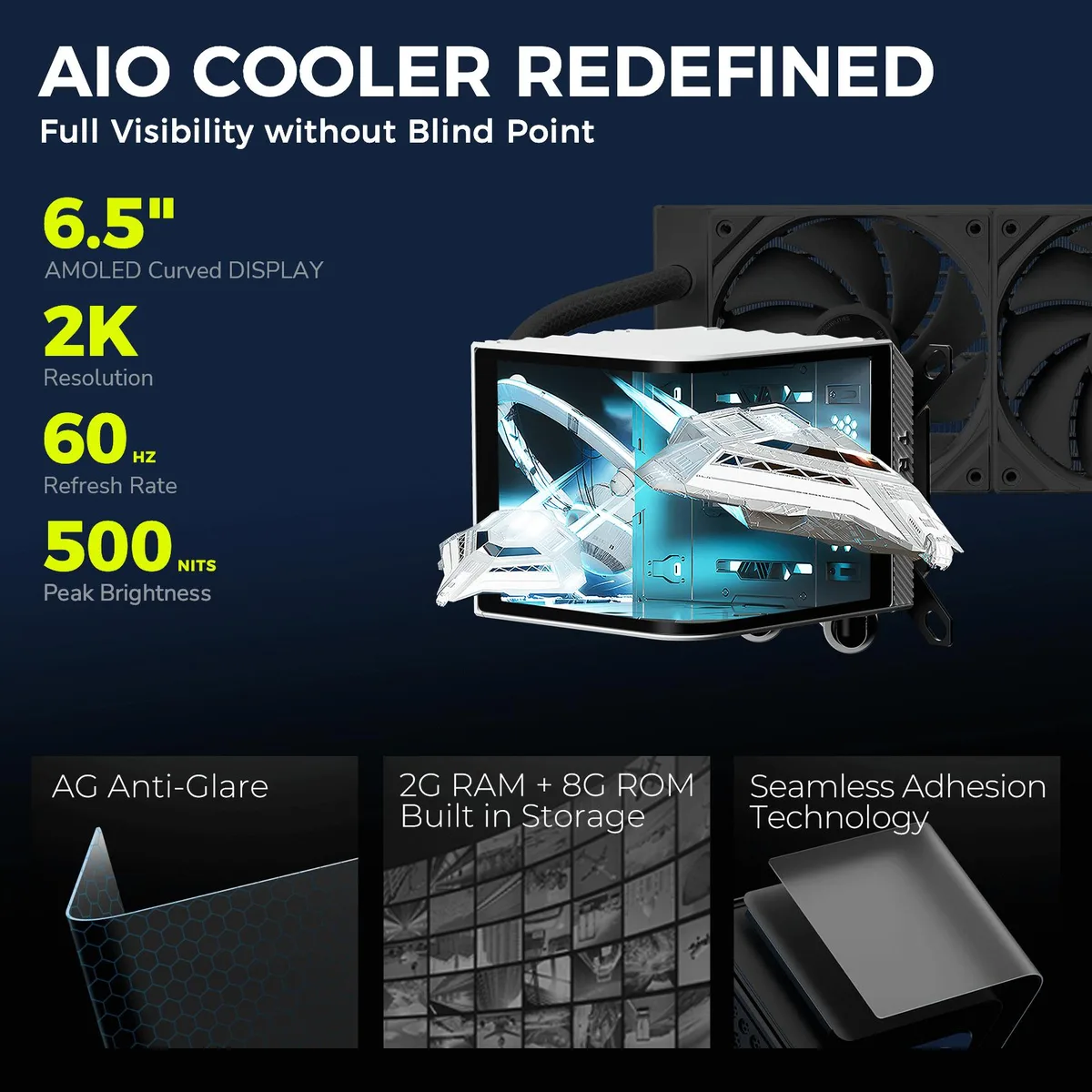

The TRYX Panorama 280 ARGB White is a 280 mm all-in-one liquid cooler built around a 6.5 inch AMOLED screen that wraps around the pump block. It targets enthusiasts who want real-time system data or personal media on a curved 2K panel running at 60 Hz while the Asetek 8th generation pump handles up to 300w TDP.

Socket coverage and software control

The cold plate fits Intel LGA 1150, 1151, 1155, 1200, 1700 and 1851 plus AMD AM4 and AM5 without extra brackets. Two 140 mm fans mount to the 30 mm thick aluminium radiator. KANALI software lets owners upload PNG, JPG, GIF, MP4 or AVI files up to 1080p and 500 MB for full or split-screen playback and coordinates the GEN2 ARGB lighting across pump and fans.

Thermals, acoustics and power

The pump runs between 800 and 2600 RPM with a ceramic bearing and produces 25.3 dBA at typical speed. Each fan spins from 500 to 1450 RPM, moves 90.29 CFM at 1.54 mmAq static pressure and registers 27.07 dBA. Fluid dynamic bearings keep long-term noise low while the 280 mm radiator surface dissipates the rated 300w thermal load under sustained workloads.

Highlights

  • 5" AMOLED L-shaped screen with 2K@60Hz for vivid custom visuals
  • Asetek 8th Gen pump handles up to 300W TDP for high-end CPUs
  • Two 140mm FDB fans deliver 90.29CFM at 27.07dBA quiet operation
  • KANALI software enables custom media uploads and ARGB GEN2 lighting control
  • Broad socket support covers Intel LGA 1851/1700/1200/115X and AMD AM5/AM4

Specifications

BrandTRYX
SeriesPANORAMA ARGB
ModelPANORAMA 280 ARGB WH
Part NumberL-P280A-AS2M-G0W
TypeAIO
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Block Dim.115.5 x 92 x 92mm
Block MaterialPC + ABS
DisplayAMOLED
Pump Speed800-2600 ± 400RPM
Pump Dim.115.5 x 92 x 92mm
Pump BearingCeramic
Pump Noise25.3 dBA
Radiator Size280 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (140 mm)
Fan Dim.140 x 25mm
Bearing TypeFDB (Fluid Dynamic Bearing)
Fan RPM500~1450RPM±10%
Fan Air Flow90.29CFM
Fan Noise27.07dBA
Fan Connector7-Pin
ColorWhite
LED ColorARGB
Pressure1.54mmAq
Tube Dim.400mm
Tube MaterialEPDM
Features300w TDP
Package ContentsAIO Cooler, ARGB Controller, AMD/ Intel Brackets, Thermal Paste, Manual, Accessories for Installation

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 300 W TDP rating handle my CPU under sustained all-core load?

The cooler is rated for 300 W TDP, so it can dissipate that heat continuously if the pump and fans run at their maximum speeds.

How loud are the pump and fans when the system runs all day at typical speeds?

The pump runs at 25.3 dBA and the two 140 mm fans at 27.07 dBA at their rated speeds, giving a combined noise level suitable for a quiet build.

Which motherboard sockets are supported out of the box without extra brackets?

Intel LGA 1851, 1700, 1200, 1150, 1151 and 1155 plus AMD AM5 and AM4 are all supported natively.
