White AIO liquid cooler with curved 6.5 inch AMOLED block display and three 120mm fans on 360mm radiator

TRYX

TRYX Panorama 360 White 360mm liquid cooler 6.5 AMOLED ROTA PRO

SKU CH-YR9C-BKXAF

360 mm AIO cooler with 6.5 inch 2K AMOLED curved display and 320 W TDP Asetek pump

  • TypeAIO
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA
  • Block Dim.115.5 x 92 x 92mm
  • Block MaterialPC + ABS
  • DisplayAMOLED
  • Pump Speed800-2600 ± 400RPM

Series PANORAMA

Struck-through versions exist but are not stocked here.

Fan Size 3 Fan Slots (120mm)

Color|Model|LED Color White|360mm 2024|Non-RGB

Struck-through versions exist but are not stocked here.

  • 5-inch AMOLED L-shaped screen with 2K 60Hz refresh for vivid visuals
  • Asetek 8th gen pump handles 320W TDP for high-end CPU cooling
  • ROTA PRO 120mm FDB fans reach 2250 RPM and 81.32 CFM airflow
  • Ceramic-bearing pump runs at 25.3 dBA for quiet operation
  • Supports Intel LGA 1851/1700/1200/115X and AMD AM5/AM4 sockets

Panorama 360 White liquid cooler

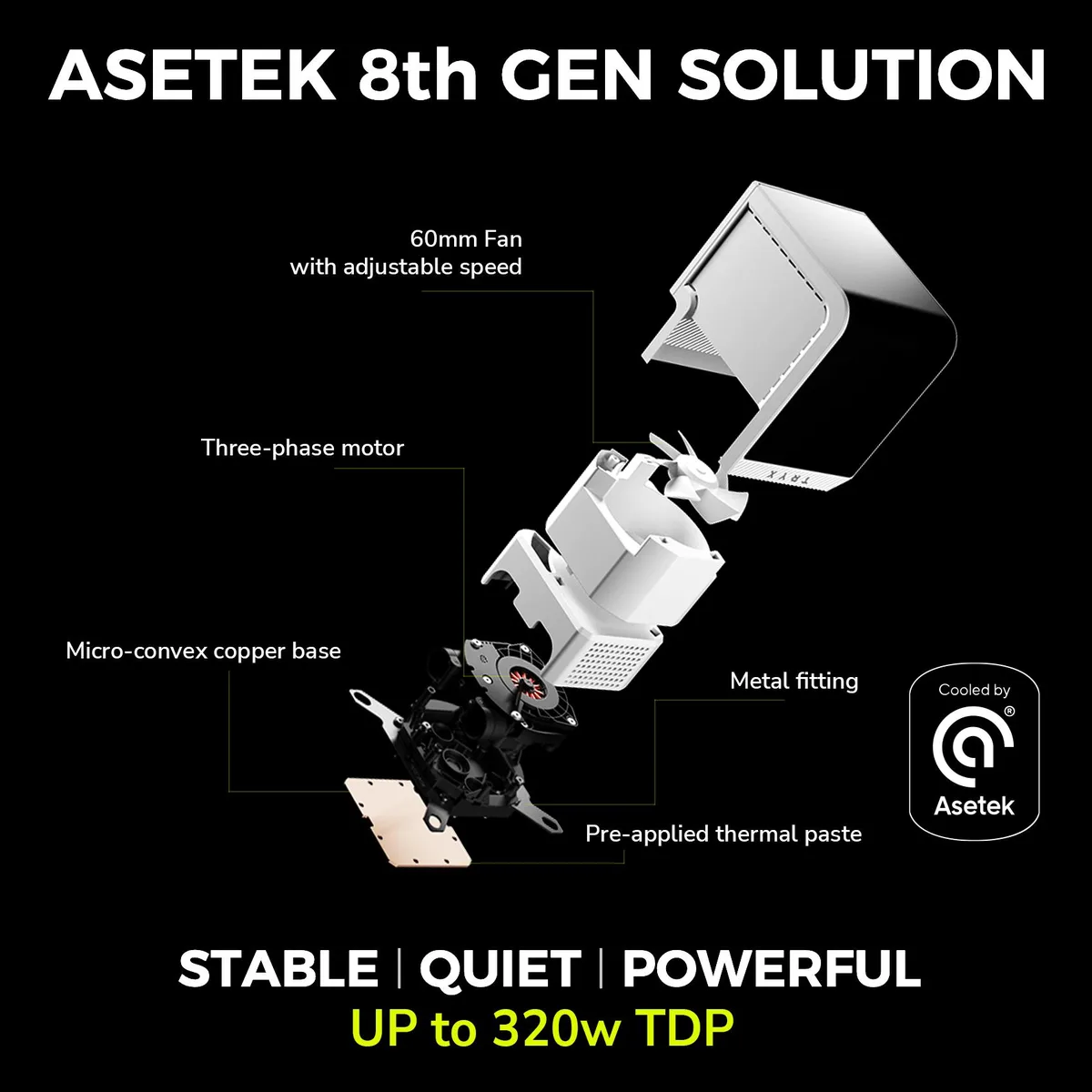

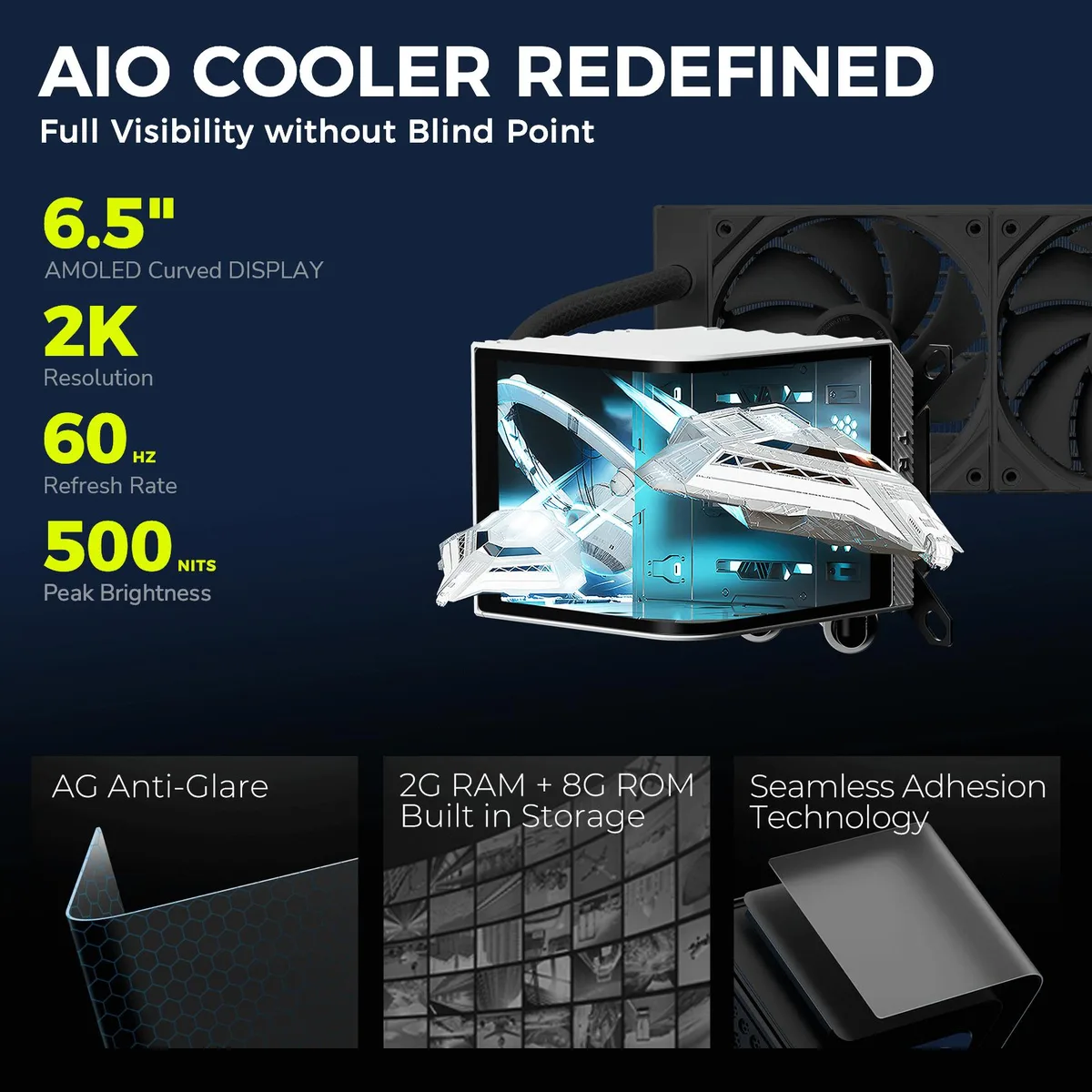

The TRYX Panorama 360 White is a 360 mm all-in-one liquid cooler built around a 6.5 inch AMOLED L-shaped screen that runs at 2K resolution and 60 Hz. It targets builders who want a high-visibility display for custom media alongside strong CPU cooling. The unit uses an 8th generation Asetek pump rated for 320 W TDP and three ROTA PRO 120 mm fans. Socket support covers Intel LGA 1851, 1700, 1200, 1150, 1151, 1155 and AMD AM5, AM4.

Before ordering check socket and case clearance

Verify that your motherboard uses one of the listed Intel or AMD sockets before purchase. The pump block measures 115.5 by 92 by 92 mm and the radiator is 360 mm long with a 30 mm thickness, so confirm your chassis can fit a 360 mm radiator and has room for the block height. The fans connect via 4-pin headers and the screen requires a USB connection for KANALI software control. Media files for the display are limited to 1080P resolution and 500 MB maximum size.

Thermals noise and power draw in normal use

The Asetek pump runs between 800 and 2600 RPM with a rated noise of 25.3 dBA. The three ROTA PRO fans spin from 500 to 2250 RPM, delivering 81.32 CFM airflow and 3.66 mmAq static pressure at 30.97 dBA. Together they are designed to dissipate up to 320 W TDP under load. The cooler draws power through standard fan and USB headers without an external power adapter.

Highlights

  • 5-inch AMOLED L-shaped screen with 2K 60Hz refresh for vivid visuals
  • Asetek 8th gen pump handles 320W TDP for high-end CPU cooling
  • ROTA PRO 120mm FDB fans reach 2250 RPM and 81.32 CFM airflow
  • Ceramic-bearing pump runs at 25.3 dBA for quiet operation
  • Supports Intel LGA 1851/1700/1200/115X and AMD AM5/AM4 sockets

Specifications

BrandTRYX
SeriesPANORAMA
ModelPANORAMA 360 WH
Part NumberL-P360N-DS3M-G0W
TypeAIO
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Block Dim.115.5 x 92 x 92mm
Block MaterialPC + ABS
DisplayAMOLED
Pump Speed800-2600 ± 400RPM
Pump Dim.115.5 x 92 x 92mm
Pump BearingCeramic
Pump Noise25.3 dBA
Radiator Size360 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 25mm
Bearing TypeFDB (Fluid Dynamic Bearing)
Fan RPM500~2250RPM±10%
Fan Air Flow81.32CFM
Fan Noise30.97dBA
Fan Connector4-Pin
ColorWhite
Pressure3.66mmAq
Tube Dim.400mm
Tube MaterialEPDM
Features320w TDP
Package ContentsAIO Cooler, AMD/ Intel Brackets, Thermal Paste, Manual, Accessories for Installation

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the box include the mounting hardware for Intel LGA 1700 and AMD AM5, or must a separate bracket kit be purchased?

The cooler supports Intel LGA 1700, LGA 1851 and AMD AM5 out of the box; the required mounting brackets for all listed sockets are included so no extra kit is needed.

How do I choose between the 360 mm and 280 mm Panorama models for a 320 W TDP CPU?

The 360 mm White model is rated for 320 W TDP with three 120 mm ROTA PRO fans at 500-2250 RPM and 81.32 CFM each, while the 280 mm versions top out at 300 W TDP.

What does the 320 W TDP rating mean when the cooler is installed in a typical mid-tower case?

It indicates the cooler can dissipate up to 320 watts of heat from the CPU using the Asetek 8th gen pump at 800-2600 RPM and the three 120 mm fans delivering 81.32 CFM each, assuming adequate case airflow.
