Black rectangular liquid-cooler block with curved AMOLED screen and three 120 mm fans on a 360 mm radiator

TRYX

TRYX Panorama 360 360mm liquid cooler 6.5" AMOLED curved screen ROTA PRO 120mm fan

SKU CH-RZMA-3RTA3

A 360 mm AIO with a 6.5 inch AMOLED curved screen, Asetek pump rated for 320 W TDP and ROTA PRO fans reaching 2250 RPM

  • TypeAIO
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA
  • Block Dim.115.5 x 92 x 92mm
  • Block MaterialPC + ABS
  • DisplayAMOLED
  • Pump Speed800-2600 ± 400RPM

Series PANORAMA

Struck-through versions exist but are not stocked here.

Fan Size 3 Fan Slots (120mm)

Color|Model|LED Color Black|360mm 2024|Non-RGB

Struck-through versions exist but are not stocked here.

  • 5 inch AMOLED L-shaped screen with 2K 60Hz refresh rate for immersive visuals
  • Asetek 8th generation pump handles up to 320W TDP for high-performance CPUs
  • ROTA PRO 120mm FDB fans reach 2250 RPM delivering 81.32 CFM airflow and 3.66 mmAq pressure
  • KANALI software enables custom media uploads in PNG JPG GIF MP4 AVI up to 1080P 500MB
  • Supports Intel LGA 1851 1700 1200 115X and AMD AM5 AM4 sockets

Panorama 360 360mm AIO with 6.5" AMOLED

The Panorama 360 is a 360mm all-in-one liquid cooler built around a 6.5 inch AMOLED curved display that runs at 2K resolution and 60Hz. It targets enthusiasts who want real-time system metrics, custom animations or video playback visible from the side of the case. The block fits Intel LGA 1851, 1700, 1200, 1150, 1151, 1155 and AMD AM5, AM4 sockets. Buyers who need a smaller radiator or a non-display block should look elsewhere.

Aluminium radiator, ceramic-bearing pump.

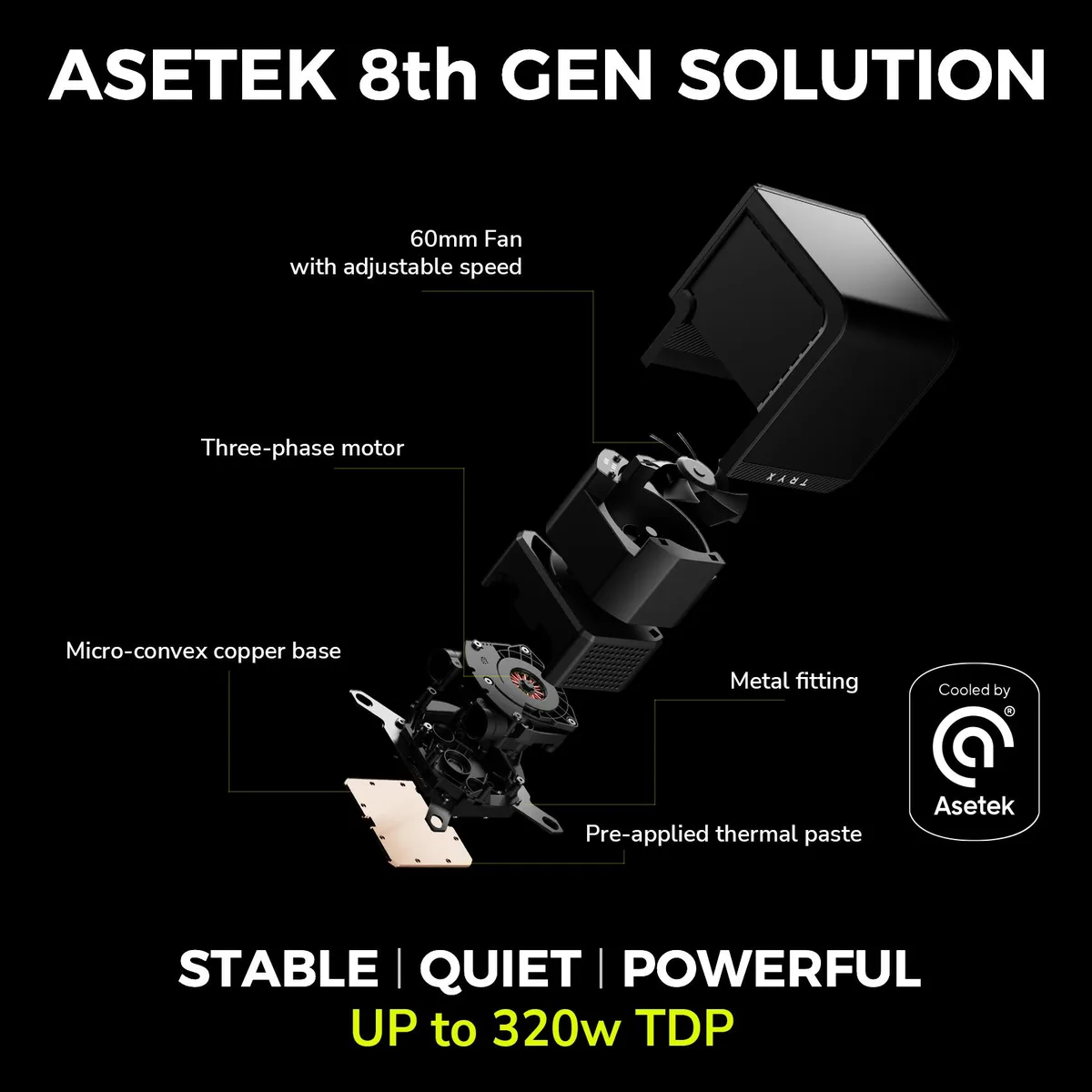

The 30mm thick aluminium radiator occupies three 120mm fan slots and is paired with a pump housing measuring 115.5 by 92 by 92mm made from PC and ABS. The 8th generation Asetek pump uses a ceramic bearing and runs between 800 and 2600 RPM with a rated noise of 25.3 dBA. Three ROTA PRO 120mm fans with fluid dynamic bearings mount on the radiator and connect via standard 4-pin headers for PWM control. No ARGB lighting is included on this variant.

320W TDP rating, fan speeds up to 2250 RPM

The cooler is rated to dissipate up to 320W TDP, making it suitable for high-end desktop processors under sustained load. The ROTA PRO fans spin from 500 to 2250 RPM, delivering 81.32 CFM airflow and 3.66 mmAq static pressure at a maximum noise of 30.97 dBA. Pump noise sits at 25.3 dBA. Combined acoustics stay low at idle and rise predictably under load without requiring a specific power-supply wattage.

Highlights

  • 5 inch AMOLED L-shaped screen with 2K 60Hz refresh rate for immersive visuals
  • Asetek 8th generation pump handles up to 320W TDP for high-performance CPUs
  • ROTA PRO 120mm FDB fans reach 2250 RPM delivering 81.32 CFM airflow and 3.66 mmAq pressure
  • KANALI software enables custom media uploads in PNG JPG GIF MP4 AVI up to 1080P 500MB
  • Supports Intel LGA 1851 1700 1200 115X and AMD AM5 AM4 sockets

Specifications

BrandTRYX
SeriesPANORAMA
ModelPANORAMA 360
Part NumberL-P360N-DS3M-G0K
TypeAIO
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Block Dim.115.5 x 92 x 92mm
Block MaterialPC + ABS
DisplayAMOLED
Pump Speed800-2600 ± 400RPM
Pump Dim.115.5 x 92 x 92mm
Pump BearingCeramic
Pump Capacity25.3 dBA
Pump Noise25.3 dBA
Radiator Size360 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 25mm
Bearing TypeFDB (Fluid Dynamic Bearing)
Fan RPM500~2250RPM±10%
Fan Air Flow81.32CFM
Fan Noise30.97dBA
Fan Connector4-Pin
ColorBlack
Pressure3.66mmAq
Tube Dim.400mm
Tube MaterialEPDM
Features320w TDP
Package ContentsAIO Cooler, AMD/ Intel Brackets, Thermal Paste, Manual, Accessories for Installation

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What interface does the 6.5" AMOLED screen use and what resolution and refresh rate does it support?

The built-in 6.5-inch AMOLED display runs at 2K resolution and 60Hz refresh rate, driven through the pump block's internal connection to the motherboard USB header for KANALI software control.

What clearance does the 360mm radiator with three 120 x 25mm ROTA PRO fans require in the case?

The radiator measures 360mm long and 30mm thick; with three 25mm fans installed the stack is 55mm deep, so the case must fit a 360mm radiator plus 55mm total depth for fans and radiator together.

How is the Asetek 8th gen pump mounted on Intel LGA 1700 and AMD AM5, and which step is often missed?

Use the supplied unified bracket for LGA 1700/1851 or the AM5/AM4 bracket, tighten the four spring-loaded screws in a cross pattern, then connect the pump's 3-pin header to the CPU_FAN header — forgetting this header connection is the common error that leaves the pump at minimum speed.
