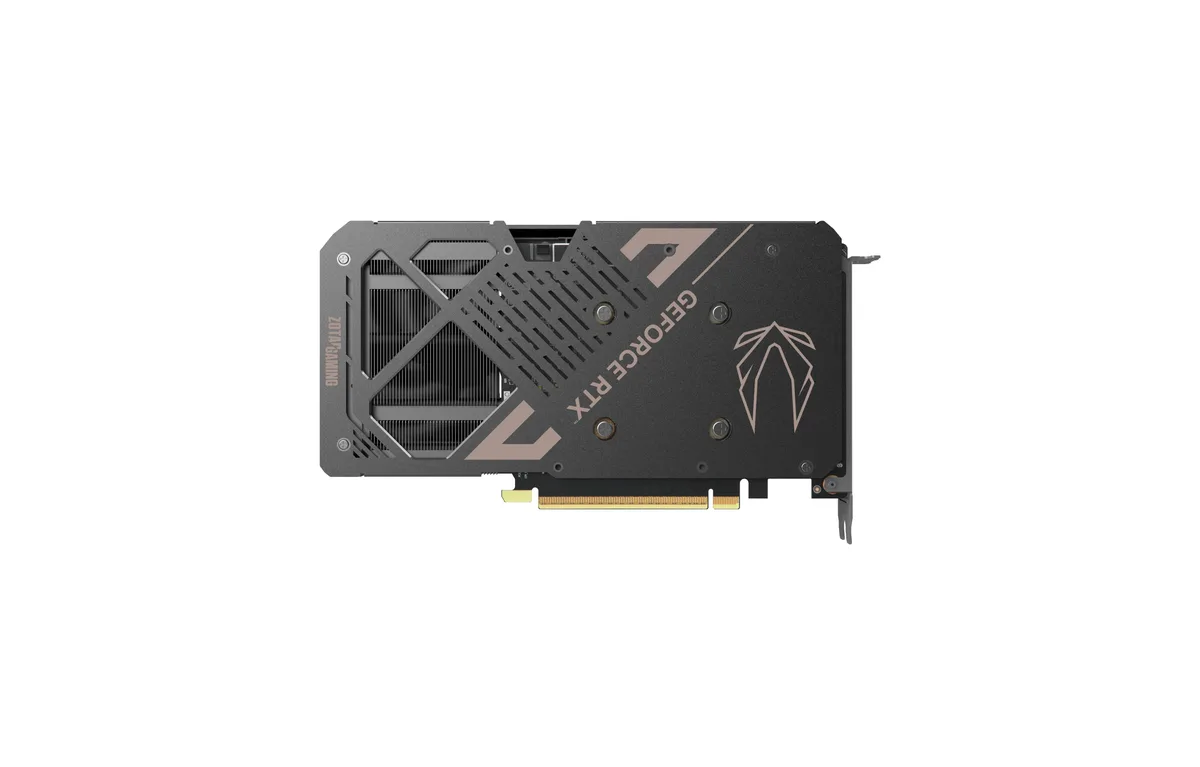

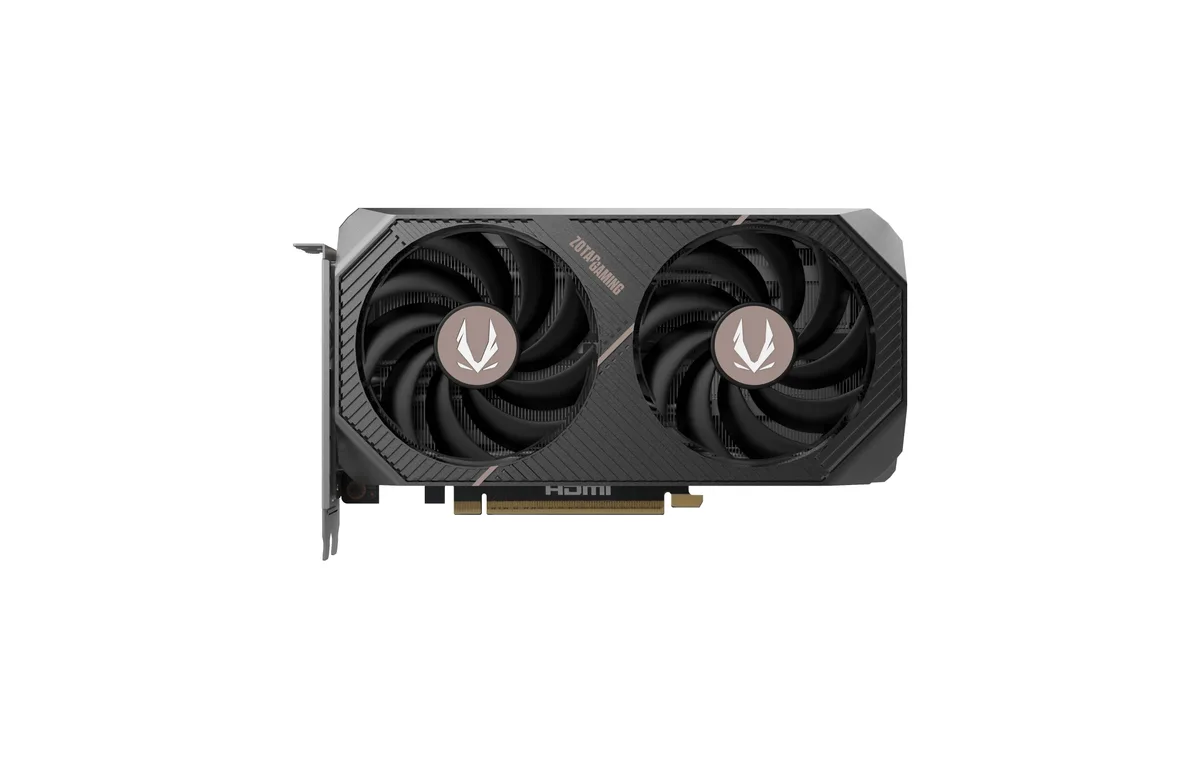

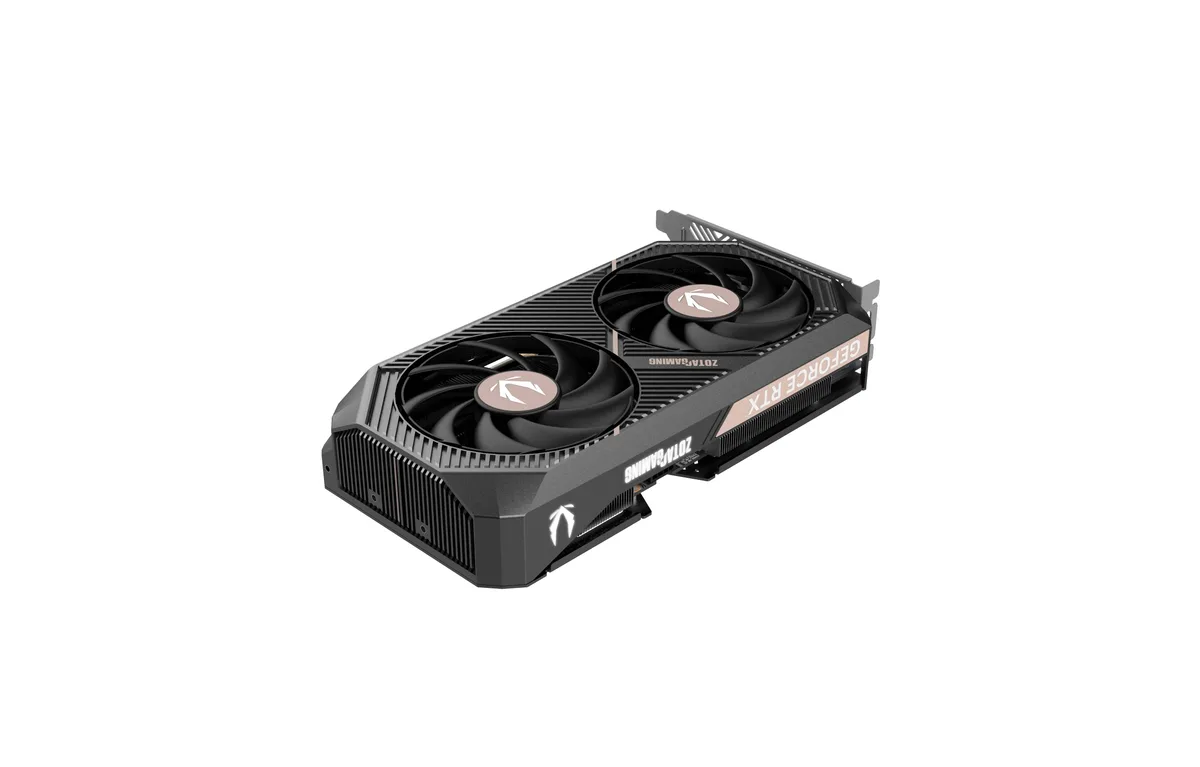

ZOTAC RTX 5060 Ti Twin Edge OC dual-fan graphics card with metal backplate

ZOTAC

ZOTAC GeForce RTX 5060 Ti Twin Edge OC 8GB graphics card ZT-B50610H-10M

SKU CH-6PTW-2F61H MPN ZT-B50610H-10M

A GeForce RTX 5060 Ti with 8 GB GDDR7 memory, 4608 CUDA cores and a 2602 MHz boost clock on a 128-bit bus

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • Boost Clock2602 MHz

Option RTX 5060 TI 8GB

  • RTX 5060
  • RTX 5060 TI 8GB
  • RTX 5060 TI 16GB

Struck-through versions exist but are not stocked here.

Edition TWIN EDGE OC

  • AMP
  • TWIN EDGE OC
  • Boost clock of 2602 MHz drives high frame rates in modern games
  • 4608 CUDA cores accelerate ray-tracing and AI workloads across supported titles
  • 8 GB GDDR7 memory at 28 Gbps on a 128-bit bus feeds the GPU with high bandwidth
  • PCI Express 5.0 x8 interface doubles link bandwidth over the previous standard
  • Dual 90 mm BladeLink fans with IceStorm 2.0 cooling and FREEZE stop keep thermals low under load

ZOTAC RTX 5060 Ti Twin Edge OC 8GB

The ZOTAC GeForce RTX 5060 Ti Twin Edge OC 8GB is a graphics card built on the NVIDIA Blackwell architecture. It features 4608 CUDA cores, a boost clock of 2602 MHz, and 8GB of GDDR7 memory on a 128-bit interface running at 28 Gbps. The card connects via a PCI Express 5.0 x8 slot and supports DirectX 12 Ultimate and OpenGL 4.6.

Dual 90mm BladeLink fans with IceStorm 2.0 cooling

This model suits gamers targeting 4K resolution with DLSS 4.0 upscaling and real-time ray tracing. The dual 90mm BladeLink fans and FREEZE fan-stop function keep thermals in check during heavy loads. Users needing more than 8GB of VRAM or a wider memory bus for professional compute workloads should consider alternatives.

PCIe 5.0 x8 slot and 4-display output check

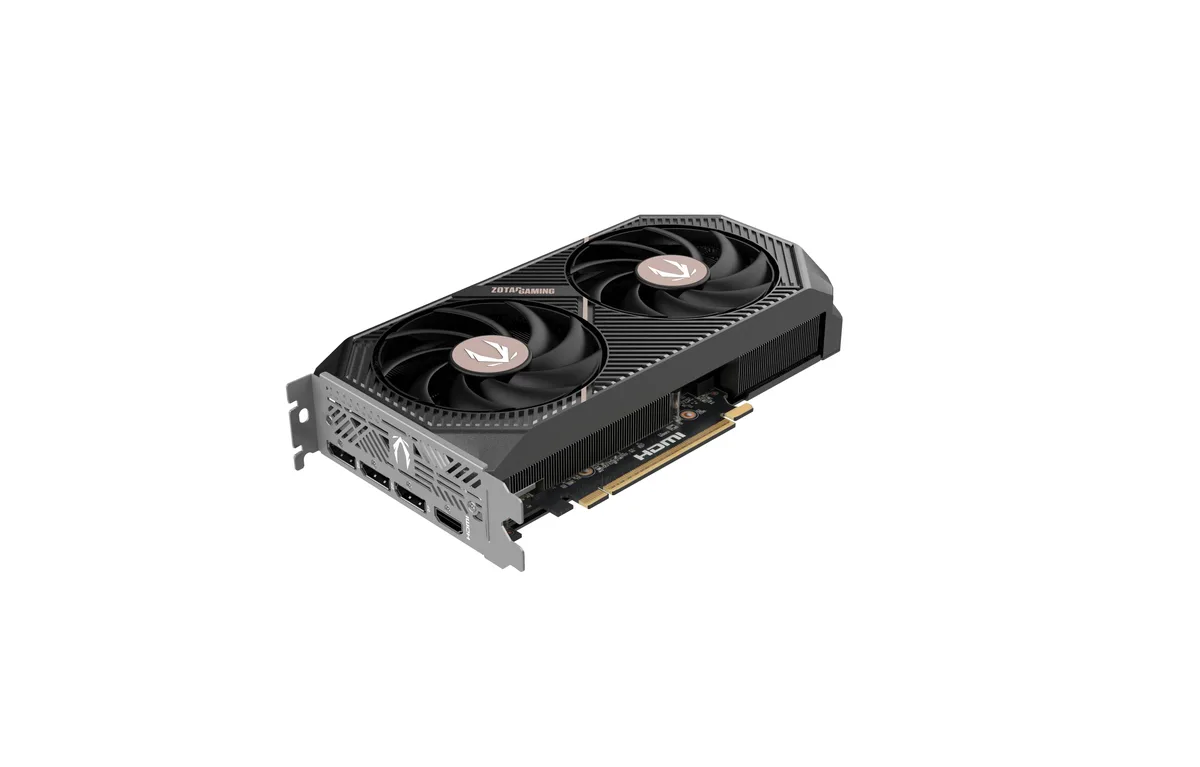

Verify that your motherboard provides a PCI Express 5.0 x8 or compatible slot for full bandwidth. The card requires adequate case clearance for a dual-slot design and a power supply with the correct connectors for the GPU. Display output includes one HDMI 2.1b port and three DisplayPort connectors for up to four monitors.

Highlights

  • Boost clock of 2602 MHz drives high frame rates in modern games
  • 4608 CUDA cores accelerate ray-tracing and AI workloads across supported titles
  • 8 GB GDDR7 memory at 28 Gbps on a 128-bit bus feeds the GPU with high bandwidth
  • PCI Express 5.0 x8 interface doubles link bandwidth over the previous standard
  • Dual 90 mm BladeLink fans with IceStorm 2.0 cooling and FREEZE stop keep thermals low under load

Specifications

BrandZOTAC
SeriesTwin Edge OC
ModelZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC
Part NumberZT-B50610H-10M
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
Boost Clock2602 MHz
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort
ColorGray
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerAir Cooler
Operating Systems SupportedWindows 11 / Windows 10 64-bit (v1809
November 2018 or later) ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power180W
System Requirements1 x 8-pin power input
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
FeaturesKEY FEATURES
• NVIDIA Blackwell Architecture
• 5th Generation Tensor cores
• 4th Generation RT cores
• NVIDIA DLSS 4
• Game Ready and NVIDIA Studio Drivers
• NVIDIA® GeForce Experience™
• NVIDIA Broadcast, NVIDIA G-SYNC®
• 8GB GDDR7 graphics memory
• IceStorm 2.0 advanced cooling
• FREEZE fan stop
• White LED Lighting
• Dual 90mm BladeLink Fans
• Metal backplate
• ZOTAC GAMING FireStorm Utility
• Side Retention Mount for secure transport
• SFF-Ready compact footprint
Form FactorATX
Max GPU Length221 mm
Low Profile Bracket IncludedNo
Card Dimensions (L x H)Product:
• Length: 220.5 mm (8.7 in)
• Height: 120.25 mm (4.7 in)
• Width: 2 slot (41.6 mm) (1.6 in)
Slot Width2 Slots
Package ContentsINSIDE THE BOX
• ZOTAC GAMING GeForce RTX
5060 Ti 8GB AMP
• User Manual
Shipping weight1.07 kg
Package size286 × 222 × 85 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What motherboard slot is required for the PCI Express 5.0 x8 interface?

The card fits a standard PCI Express slot; the x8 link uses the first eight lanes of a full-length connector.

Will the single HDMI 2.1b and three DisplayPort outputs drive my existing 1440p monitor?

Yes — both interfaces support 1440p resolution and high refresh rates on legacy panels.

How can I confirm the 2602 MHz boost clock and 28 Gbps GDDR7 memory are active after installation?

GPU-Z or the NVIDIA control panel will report the current boost clock and effective memory speed in real time.
