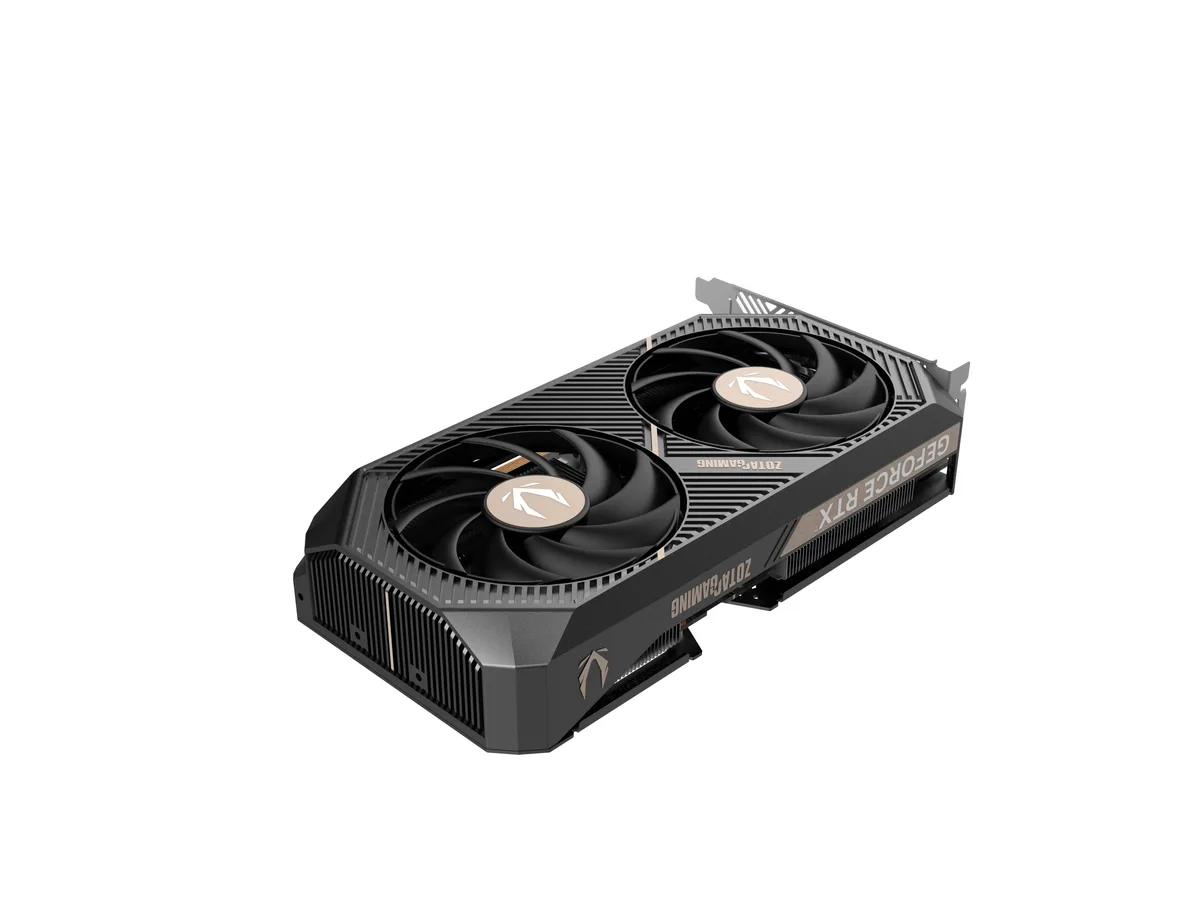

Gray dual-fan graphics card with silver accents

ZOTAC

ZOTAC RTX 5060 AMP ZT-B50600F-10M graphics card

SKU CH-196E-DA0NX MPN ZT-B50600F-10M

GeForce RTX 5060 graphics card with 8 GB GDDR7 memory, 3840 CUDA cores and a 2550 MHz boost clock

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • ArchitectureBlackwell
  • Boost Clock2550 MHz

Option RTX 5060

Struck-through versions exist but are not stocked here.

Edition AMP

  • Blackwell architecture with 5th-gen Tensor cores and 4th-gen RT cores
  • 3840 CUDA cores and 2550 MHz boost clock for high frame rates
  • 8 GB GDDR7 at 28 Gbps on a 128-bit bus for fast texture streaming
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four displays at 7680 x 4320
  • PCIe 5.0 x8 interface with 155 W TDP and a single 8-pin power connector

ZOTAC RTX 5060 AMP 8GB GDDR7

The ZOTAC RTX 5060 AMP is a GeForce RTX 50 Series graphics card built on the Blackwell architecture. It delivers 3840 CUDA cores and 8GB of GDDR7 memory across a 128-bit interface with a 28 Gbps effective clock. The boost clock reaches 2550 MHz and the board connects via PCI Express 5.0 x8. It is aimed at gamers and creators who need a modern GPU for 1080p and 1440p workloads.

Suited for 1080p and 1440p gaming with DLSS 4

This card suits players targeting high refresh rates at 1080p or balanced settings at 1440p, especially in titles that support DLSS 4 and ray tracing. The 155W TDP and single 8-pin power connector keep system requirements modest, with a 600W PSU recommended. Builders who need more than 8GB of VRAM for heavy texture workloads or 4K gaming should consider a higher-tier model.

8GB 128-bit GDDR7 memory decides fit

The 8GB 128-bit GDDR7 configuration is the specification that determines whether this GPU matches a build. It provides 28 Gbps bandwidth for current 1080p and 1440p titles, but limits headroom for 4K assets or large creative datasets. If the workflow demands a larger frame buffer, a card with more memory and a wider bus is required.

Highlights

  • Blackwell architecture with 5th-gen Tensor cores and 4th-gen RT cores
  • 3840 CUDA cores and 2550 MHz boost clock for high frame rates
  • 8 GB GDDR7 at 28 Gbps on a 128-bit bus for fast texture streaming
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four displays at 7680 x 4320
  • PCIe 5.0 x8 interface with 155 W TDP and a single 8-pin power connector

Specifications

BrandZOTAC
SeriesAMP
ModelRTX 5060 AMP
Part NumberZT-B50600F-10M
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
ArchitectureBlackwell
Boost Clock2550 MHz
CUDA Cores3840
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4

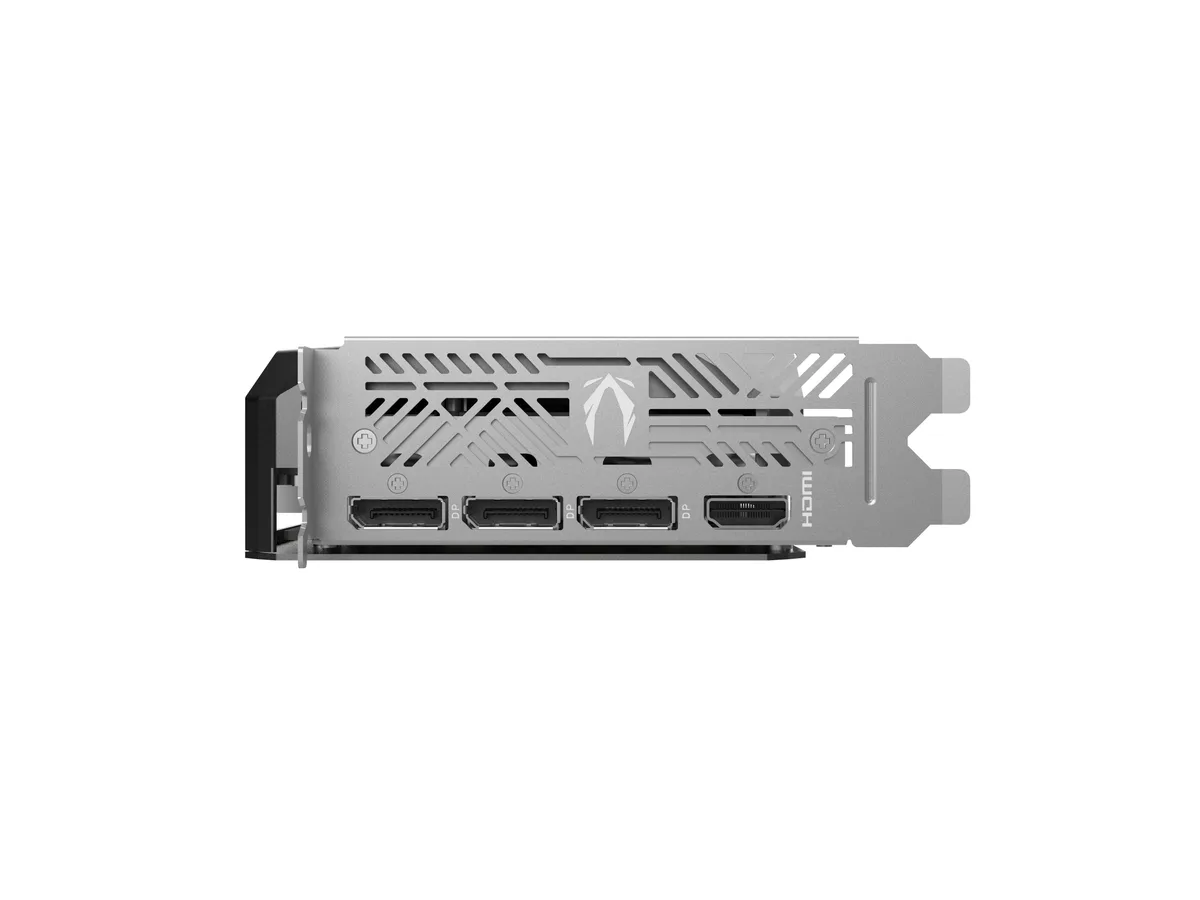

HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorGray
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Operating Systems SupportedWindows 11 / Windows 10 64-bit (v1809
November 2018 or later) ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power155W
Recommended PSU Wattage600W
Power Connector8-Pin
HDCP ReadyYes
FeaturesKEY FEATURES
• NVIDIA Blackwell Architecture
• 5th Generation Tensor cores
• 4th Generation RT cores
• NVIDIA DLSS 4
• Game Ready and NVIDIA Studio Drivers
• NVIDIA® GeForce Experience™
• NVIDIA Broadcast, NVIDIA G-SYNC®
• 8GB GDDR7 graphics memory
• Dual 90mm BladeLink Fans
• ZOTAC GAMING FireStorm Utility
• SFF-Ready compact footprint
Form FactorATX
Max GPU Length165 mm
Card Dimensions (L x H)Product:
• Length: 220.5 mm (8.7 in)
• Height: 120.25 mm (4.7 in)
• Width: 2 slot (41.6 mm) (1.6 in)
Slot Width2 Slots
Package ContentsNSIDE THE BOX
• ZOTAC GAMING GeForce RTX
5060 AMP
• User Manual
Shipping weight1.04 kg
Package size286 × 222 × 83 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance does the ZOTAC RTX 5060 AMP double-fan cooler require?

The card uses a dual-fan design that occupies two expansion slots; measure your chassis length and width against the card dimensions to confirm fit.

Which power connector must be attached during installation, and what mistake should I avoid?

Connect a single 8-pin PCIe power cable from a 600W or larger PSU; the common error is leaving the connector loose or using an adapter instead of a native cable.

When should I replace the thermal paste on the RTX 5060 AMP GPU?

Reapply paste only if temperatures rise noticeably after several years; the 155W TDP and dual-fan cooler typically keep the Blackwell GPU stable without routine maintenance.
