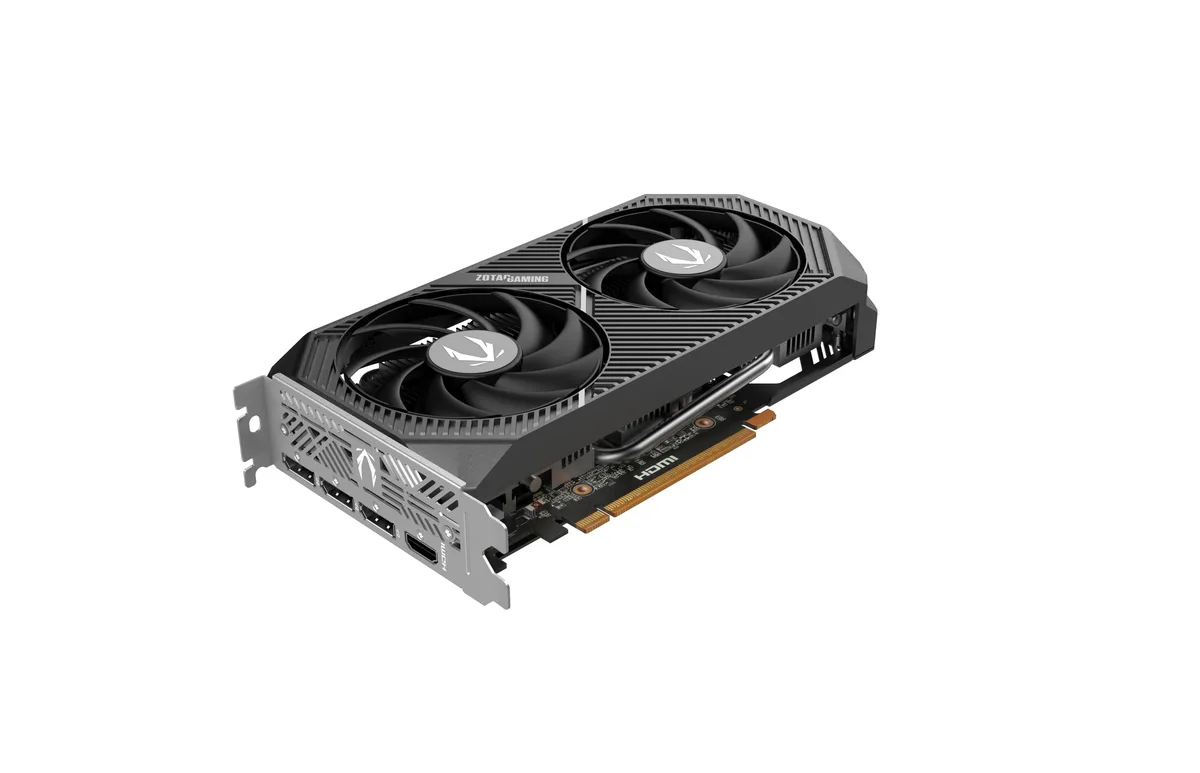

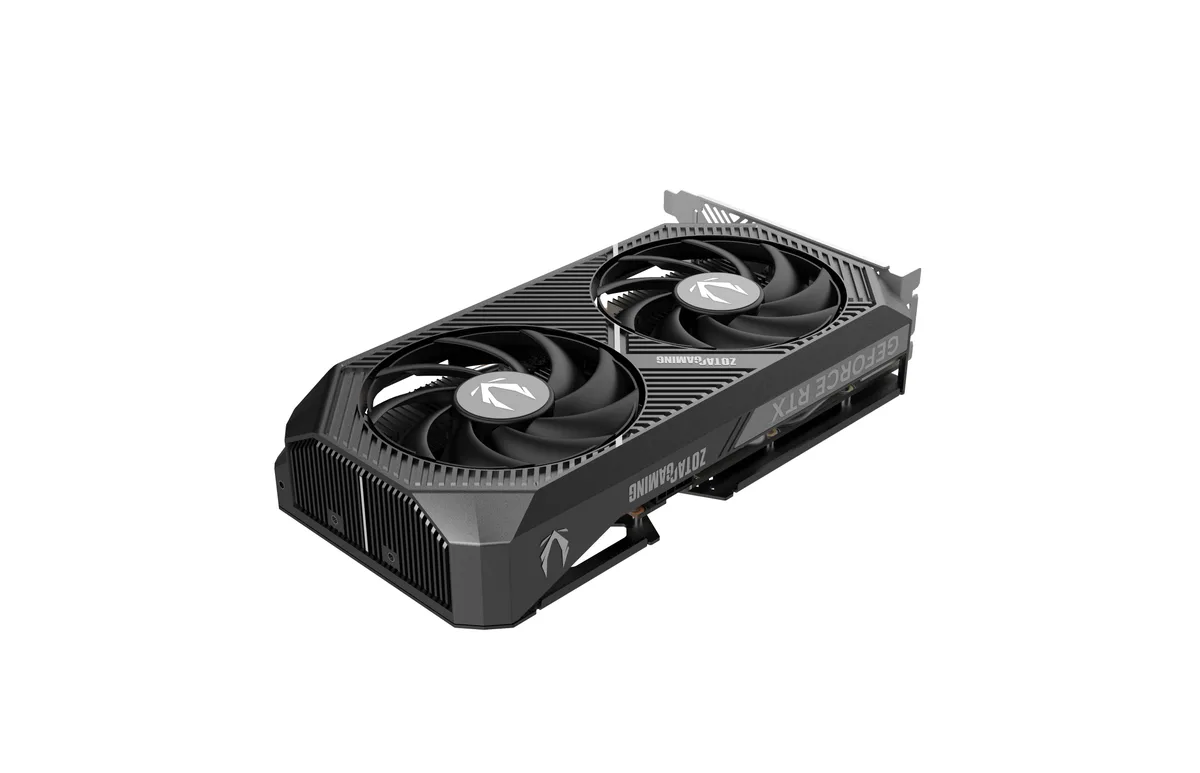

Compact gray dual-fan graphics card with metal backplate

ZOTAC

ZOTAC GeForce RTX 5060 Twin Edge OC 8GB GDDR7 graphics card ZT-B50600H-10M

SKU CH-0NFT-Z2MA5 MPN ZT-B50600H-10M

Compact dual-slot GPU with 8 GB GDDR7 memory, 3840 CUDA cores and a 2527 MHz boost clock for 1440p gaming

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • Core Clock2527 MHz
  • CUDA Cores3840

Option RTX 5060

Struck-through versions exist but are not stocked here.

Edition TWIN EDGE OC

  • AMP
  • TWIN EDGE OC
  • Blackwell architecture with DLSS 4 drives higher frame rates
  • 28 Gbps GDDR7 memory on a 128-bit bus feeds the GPU faster
  • Twin 90 mm BladeLink fans and composite heatpipes keep temperatures low
  • Compact 221 mm length fits small-form-factor builds
  • Four display outputs — three DP 2.1b and one HDMI 2.1b — support 8K and VR

Compact SFF-Ready Graphics Card

The ZOTAC GeForce RTX 5060 Twin Edge OC fits small-form-factor builds with a 221 mm length and dual-slot profile. It targets 1080p and 1440p gamers who want Blackwell architecture performance in a space-saving design. The 8 GB GDDR7 frame buffer and 128-bit bus deliver high bandwidth for modern titles.

PCIe 5.0 x8 Interface and 550 W PSU Requirement

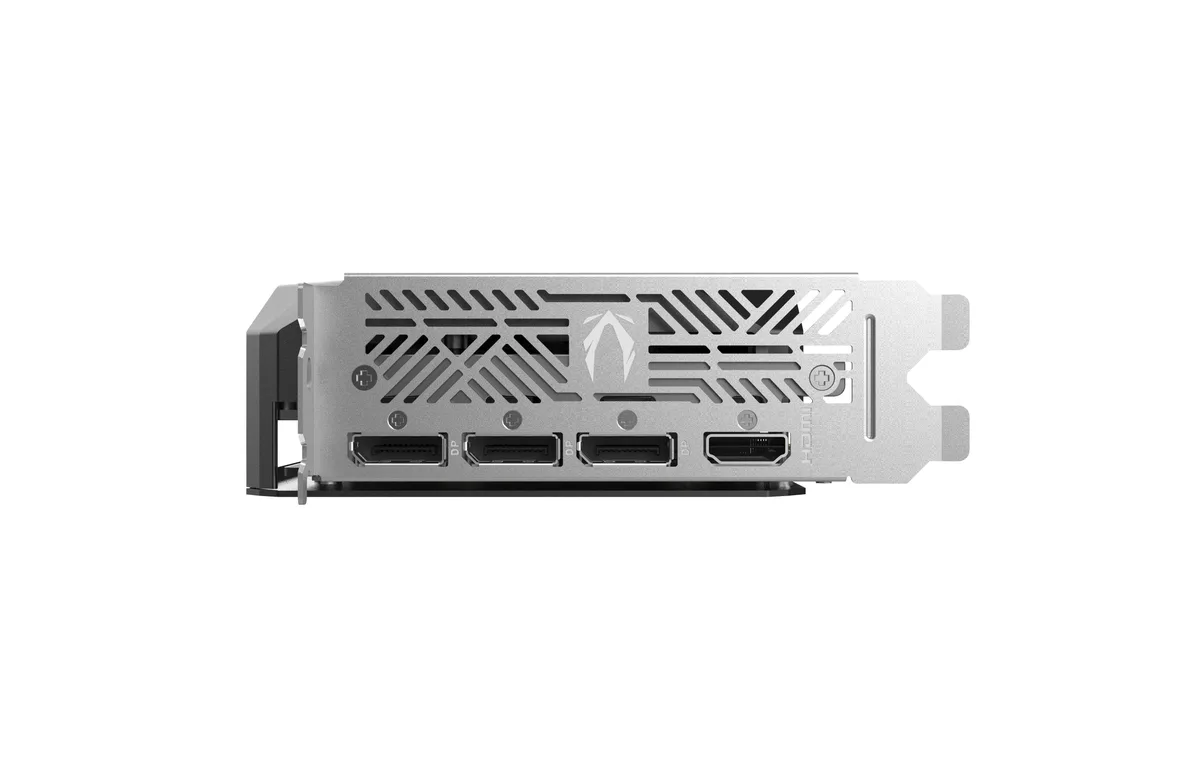

The card plugs into a PCI Express 5.0 x8 slot and draws auxiliary power through a single 8-pin connector. A 550 W power supply is recommended for stable operation. Three DisplayPort 2.1b outputs and one HDMI 2.1b port drive up to four displays at 8K resolution without adapters.

Dual 90 mm Fans with Pass-Through Airflow

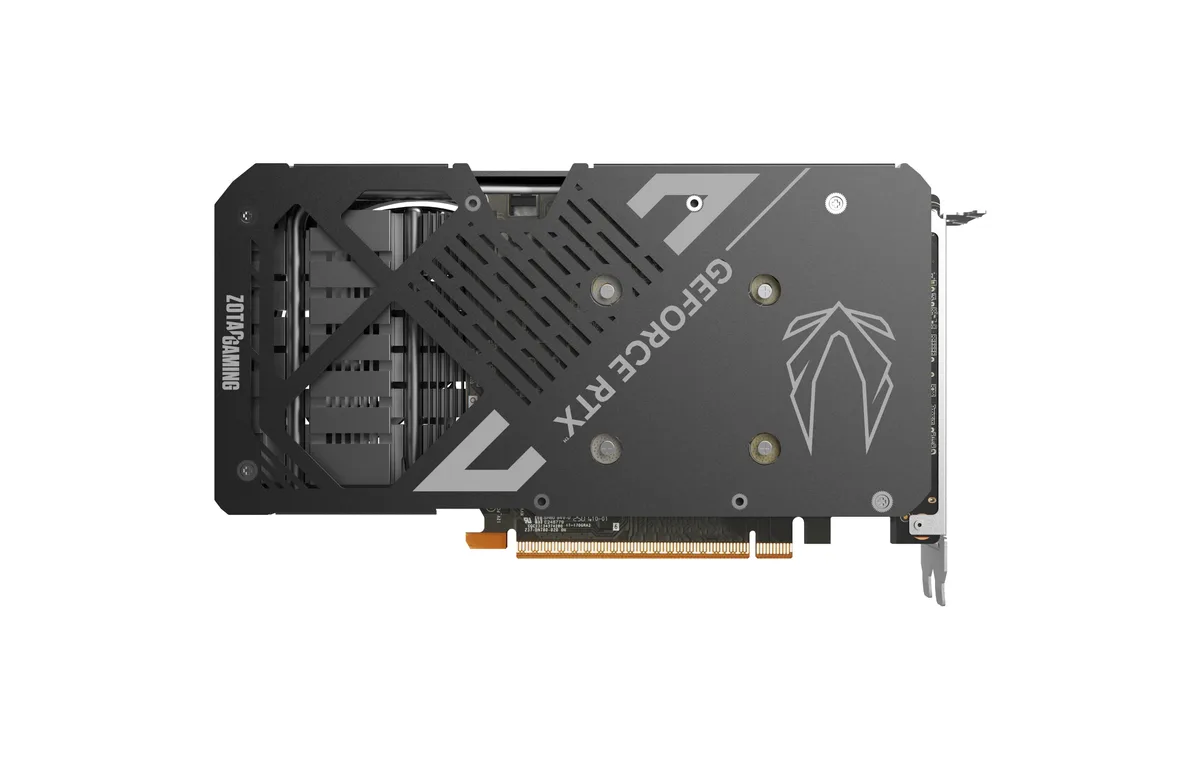

Two 90 mm BladeLink fans push air through a heatsink with composite heatpipes and a metal backplate. The pass-through design exhausts heat toward the case rear, helping system thermals under load. Fan speed ramps with GPU temperature, keeping acoustic levels low during light workloads.

Highlights

  • Blackwell architecture with DLSS 4 drives higher frame rates
  • 28 Gbps GDDR7 memory on a 128-bit bus feeds the GPU faster
  • Twin 90 mm BladeLink fans and composite heatpipes keep temperatures low
  • Compact 221 mm length fits small-form-factor builds
  • Four display outputs — three DP 2.1b and one HDMI 2.1b — support 8K and VR

Specifications

BrandZOTAC
ModelGAMING GeForce RTX 5060 Twin Edge OC
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
Core Clock2527 MHz
CUDA Cores3840
Effective Memory Clock28000 MHz (28 Gbps)
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorGray
Virtual Reality ReadyYes
CoolerAircooled with Heatsink + Composite Heatpipes + Fans
Recommended PSU Wattage550W
Power Connector8-Pin
FeaturesSmall Form Factor Ready
Max GPU Length221 mm
Card Dimensions (L x H)8.7" x 4.7"
Slot Width2 Slots
Package ContentsZOTAC GAMING GeForce RTX 5060 Twin Edge OC graphics card, User Manual, Quick Start Guide
Shipping weight1.13 kg
Package size284 × 216 × 84 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 128-bit memory interface affect sustained performance?

The 128-bit bus paired with 28 Gbps GDDR7 delivers high bandwidth for the 8GB frame buffer, keeping texture streaming smooth during long sessions.

What thermal behaviour should I expect from the Twin Edge cooler during all-day loads?

Two 90mm BladeLink fans push air through composite heatpipes and a pass-thru heatsink, while the metal backplate helps spread heat across the 2-slot frame.

Which power supply and connector does the card require to run?

A 550 W PSU with an 8-pin PCIe power cable is the minimum specified for the 2527 MHz boost clock.
