Aqua duplex fiber patch cable with SC and ST connectors, 3.0 mm jacket

Enfain

Enfain OM3 SC-ST Duplex Multimode Fiber Patch Cable 3.0mm Aqua Blue

SKU CH-EVJ0-6S8R4

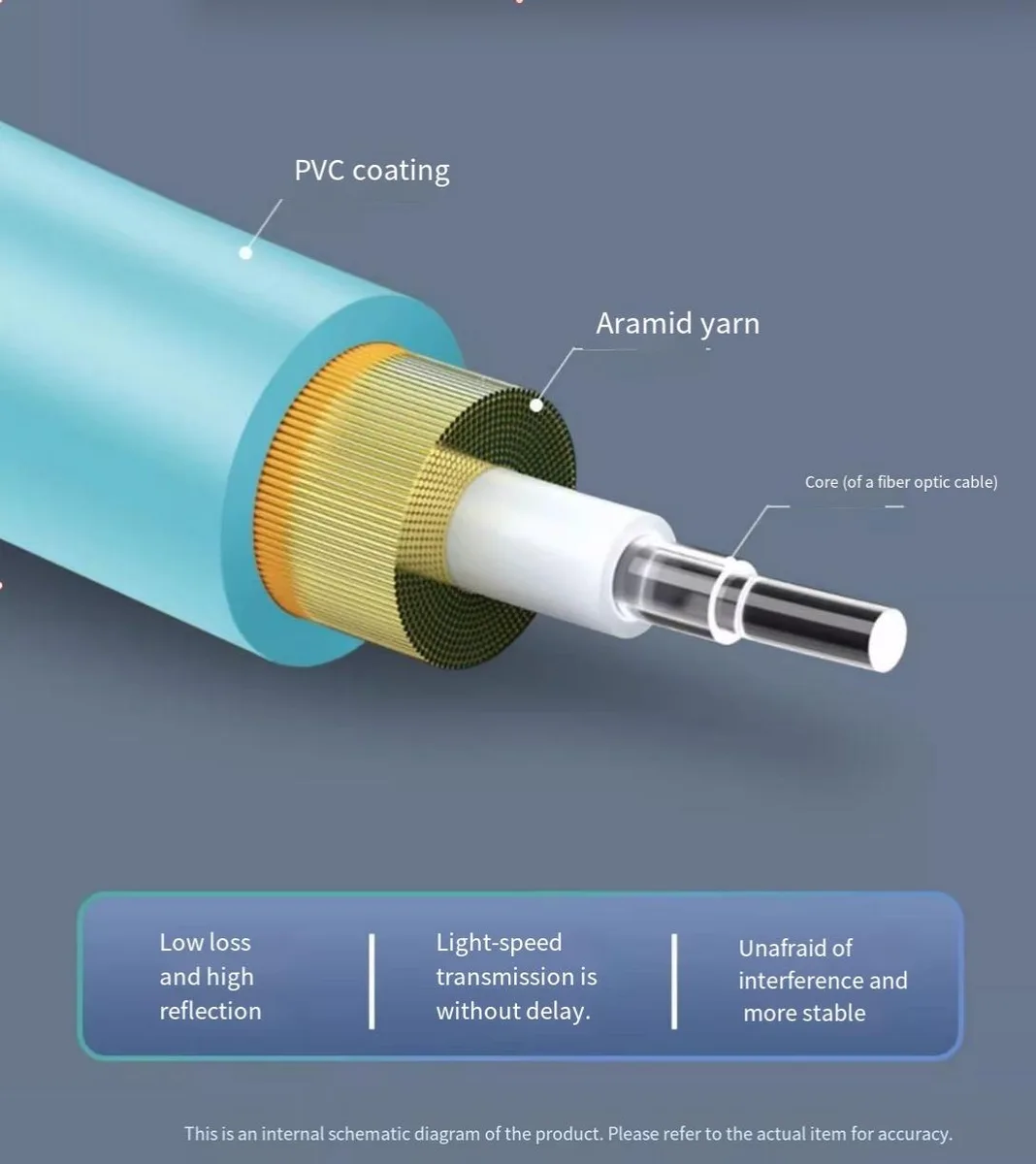

OM3 duplex multimode patch cord with SC and ST ceramic ferrules, 3.0 mm PVC jacket, 850 nm wavelength, 0.2 dB typical insertion loss and >38 dB return loss

Length 1m

  • OM3 core enables 10 gigabit multimode transmission at 850nm
  • Low insertion loss of .2dB typical and .3dB maximum preserves signal quality
  • High return loss exceeding 38dB minimises back reflection
  • Ceramic ferrules rated for 1000 mating cycles ensure durable connections
  • 0mm PVC jacket with 330mm bend radius suits data centre routing

OM3 SC-ST Duplex Patch Cable

The Enfain OM3 SC-ST duplex multimode fiber patch cable connects network switches, servers and data-centre equipment using 10-gigabit multimode fibre. It is built for installers and IT teams who need reliable 1G, 10G or 40G links over 850 nm wavelength with SC and ST ceramic ferrules.

Push-pull connectors simplify installation

The SC and ST ends use push-pull and bayonet locking so they seat with a firm click. Typical insertion loss is .2 dB and maximum is .3 dB while return loss exceeds 38 dB. The 3.0 mm PVC jacket resists kinking but the minimum bend radius is 330 mm; tighter bends raise loss. Connectors are rated for 1000 mating cycles.

Verify port types and distance budget

Confirm both ends of your link accept SC and ST multimode interfaces and that the 850 nm OM3 core matches your transceiver wavelength. Check the total channel length against your switch specifications because this cable alone does not guarantee a 10G or 40G reach. Operating temperature range is -20 °C to +60 °C.

Prednosti

  • OM3 core enables 10 gigabit multimode transmission at 850nm
  • Low insertion loss of .2dB typical and .3dB maximum preserves signal quality
  • High return loss exceeding 38dB minimises back reflection
  • Ceramic ferrules rated for 1000 mating cycles ensure durable connections
  • 0mm PVC jacket with 330mm bend radius suits data centre routing

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How can I verify the link is performing to spec after I connect the SC and ST ends?

Measure insertion loss with a light source and power meter at 850 nm; a reading at or below .2 dB typical and .3 dB maximum confirms the cable is within spec.

What connectors and jacket are included, and is any cleaning tool supplied?

The cable has a duplex SC connector on one end and a duplex ST connector on the other, a 3.0 mm aqua PVC jacket, and ceramic ferrules; no cleaning tools are included.

Which OM3 duplex patch cord should I choose for a 10 GbE run up to 330 m?

Select the OM3 10-gigabit core duplex SC-ST cable; it supports 10 GbE at 850 nm with a 330 m bend radius limit and 1000 mating cycles.
