Aqua blue duplex fibre patch cable with LC and ST connectors, 3.0 mm jacket

Enfain

Enfain OM3 LC-ST Duplex Multimode Fibre Optic Cable Aqua Blue

SKU CH-393B-S0F9Y

Aqua duplex patch cord with LC and ST connectors carries 10 Gbit multimode signals at 850 nm over a 3.0 mm jacket

Length 1m

  • OM3 core supports 10 gigabit multimode transmission
  • Duplex LC-ST connectors link switches and servers
  • 0 mm PVC jacket protects the fibre
  • Typical insertion loss 0.2 dB, maximum 0.3 dB
  • Return loss exceeds 38 dB for clean signals

LC-ST Duplex Multimode Patch Cable

The Enfain OM3 cable provides a 10-gigabit multimode link between equipment with LC and ST connectors. It suits data-centre, server-room or switch-to-server connections that require duplex fibre in a single assembly.

Thermals, Noise and Power Draw

Passive fibre carries no electrical current, so the cable adds no heat, no fan noise and no power draw to the rack. It operates reliably from -20 °C to +60 °C and tolerates a 330 mm bending radius during routing.

Build Integration

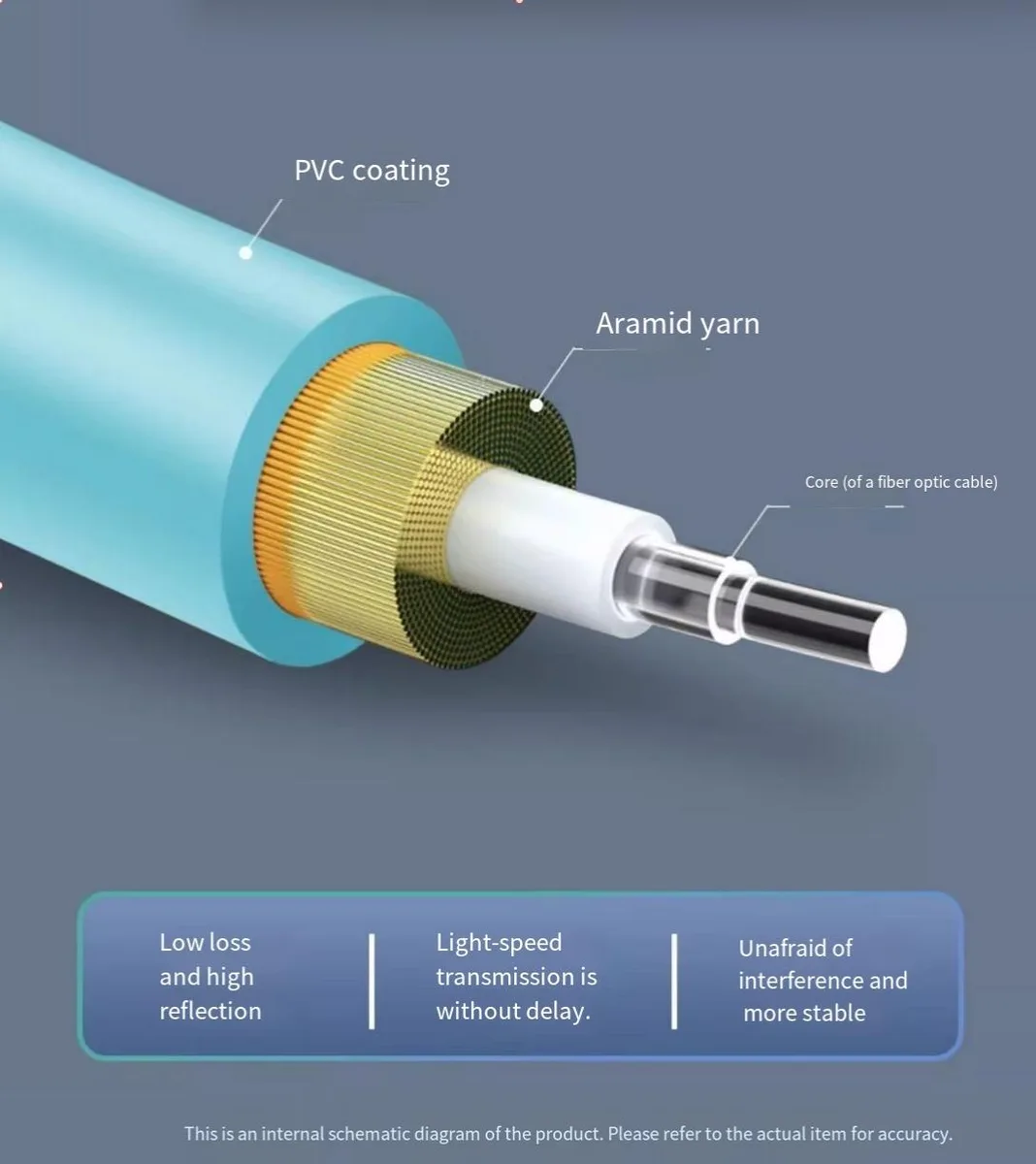

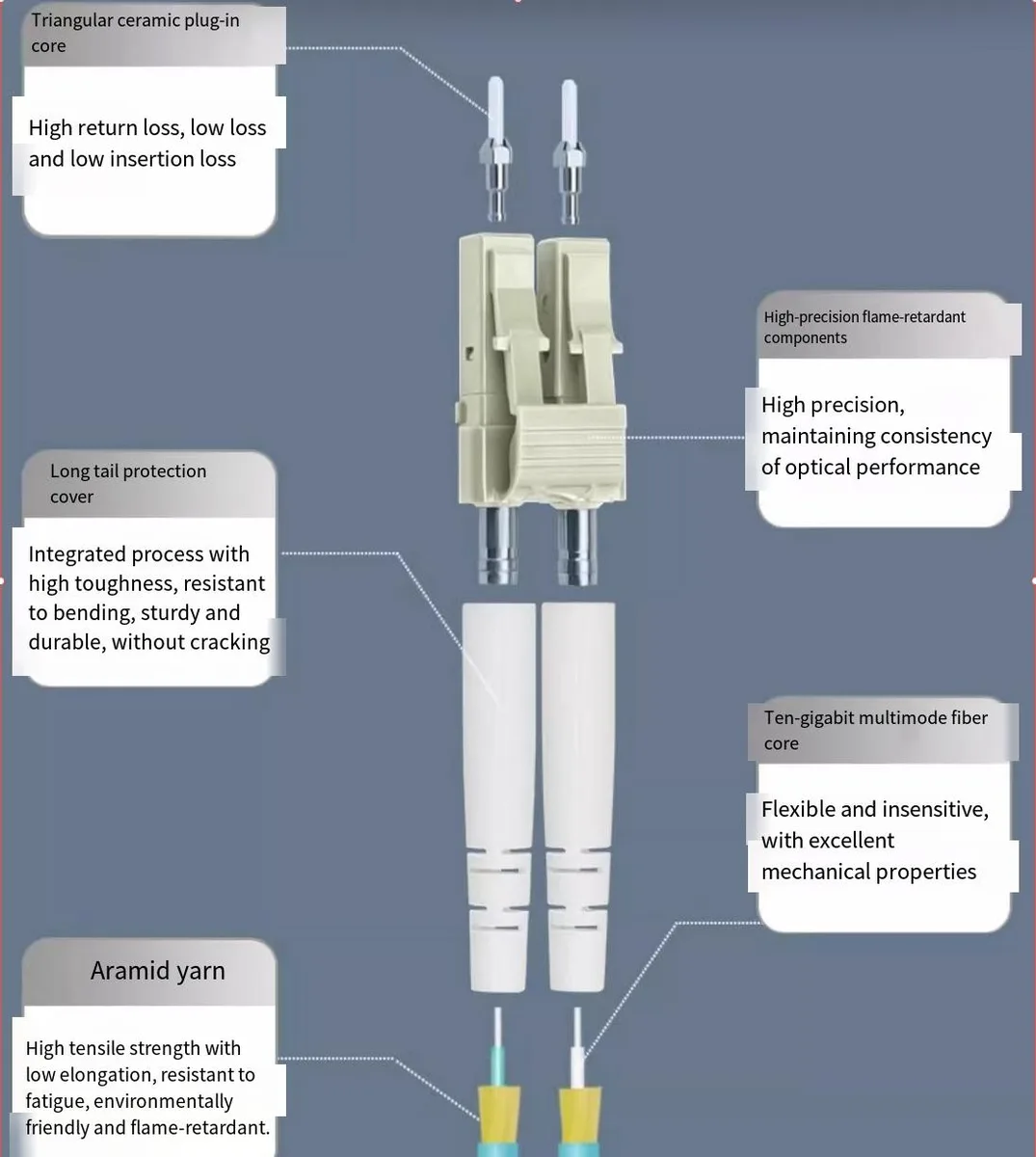

The 3.0 mm PVC jacket protects the duplex cores while remaining flexible enough for dense patch panels. Ceramic ferrules deliver 0.2 dB typical insertion loss and >38 dB return loss over 1000 mating cycles, freeing the installer from frequent re-termination. Not suited for single-mode runs or links beyond OM3 bandwidth limits.

Prednosti

  • OM3 core supports 10 gigabit multimode transmission
  • Duplex LC-ST connectors link switches and servers
  • 0 mm PVC jacket protects the fibre
  • Typical insertion loss 0.2 dB, maximum 0.3 dB
  • Return loss exceeds 38 dB for clean signals

Špecifikácie

Pre tento produkt zatiaľ nie sú zverejnené žiadne špecifikácie.

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How do I connect the LC and ST ends without exceeding the 330 mm bend radius?

Route the 3.0 mm jacket with gradual curves, securing the cable so no bend is tighter than 330 mm; the ceramic ferrules then seat cleanly in LC and ST ports.

When should I replace this patch cord after repeated mating cycles?

Plan replacement after roughly 1000 insertion and removal cycles, as performance may degrade beyond that point.

What is the maximum insertion loss I can expect on a 10 Gbps link at 850 nm?

The cable specifies a maximum insertion loss of 0.3 dB, with a typical value of 0.2 dB at 850 nm.
