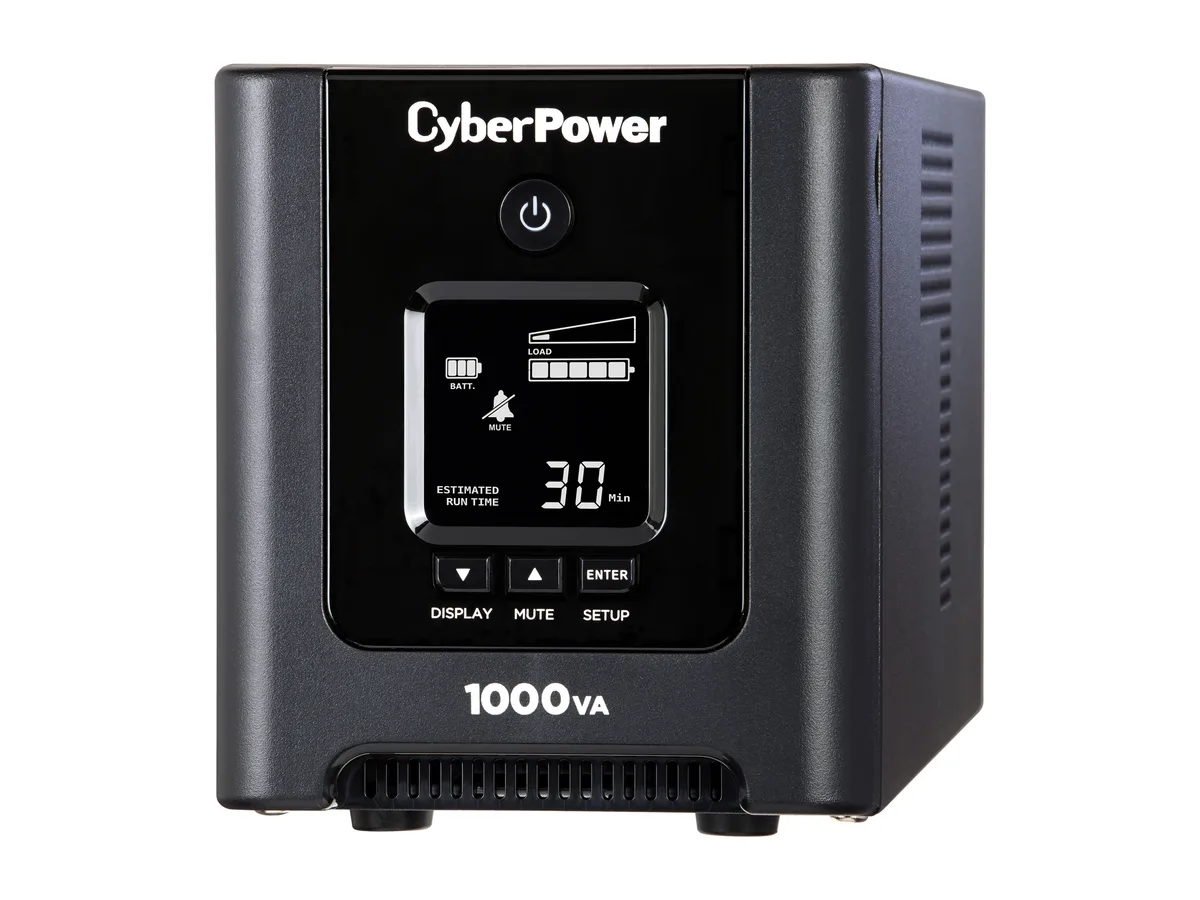

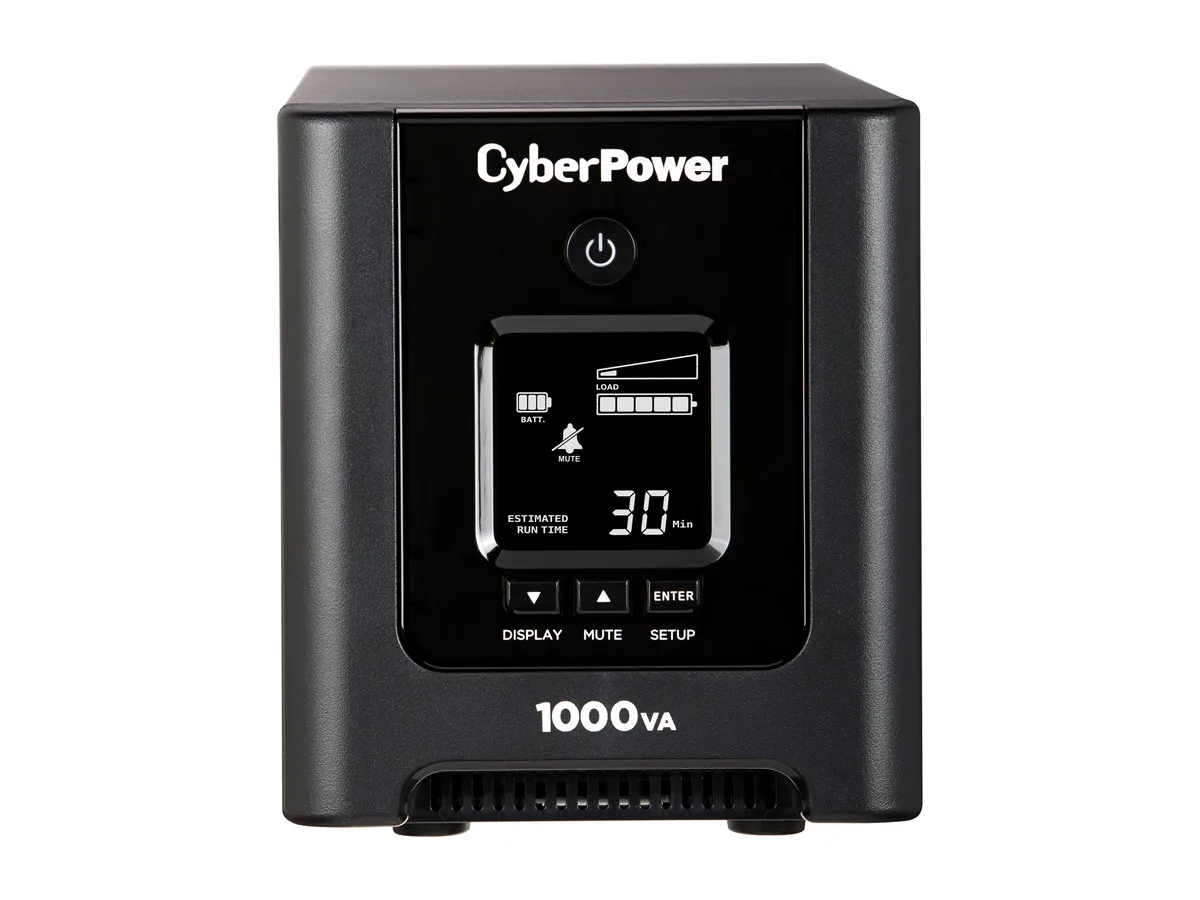

Black mini-tower UPS with LCD display and eight outlets

CyberPower

CyberPower OR1000PFCLCD 1000VA 700W UPS

SKU CH-5EZK-94H74 MPN OR1000PFCLCD

Line-interactive UPS with pure sine-wave output, 1000 VA / 700 W, eight NEMA 5-15R outlets, DB-9 and USB ports, and user-replaceable batteries

  • International Version120V
  • Input Voltage Range78 - 142 V
  • Input Frequency50/60 Hz +/- 3 Hz
  • Input ConnectionNEMA 5-15P
  • VA Rating1000 VA
  • Watts700 Watts

Options OR1000PFCLCD

  • 1000 VA / 700 W capacity protects critical loads
  • Pure sinewave output compatible with active-PFC power supplies
  • Automatic Voltage Regulation corrects brownouts and over-voltages without battery use

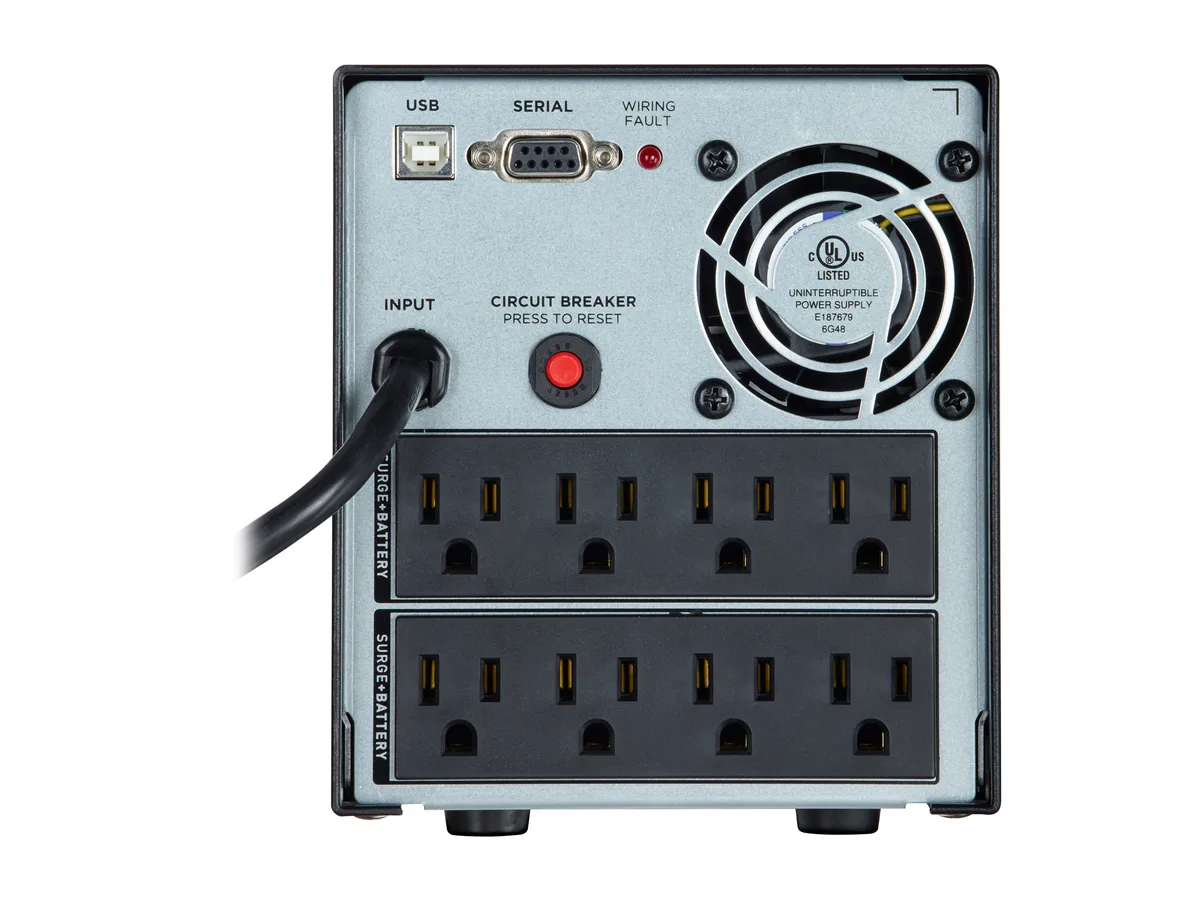

  • Eight NEMA 5-15R outlets keep servers, network gear and A/V equipment running
  • DB-9 and USB ports enable PowerPanel Business Edition monitoring and graceful shutdown

PFC Sinewave UPS for servers and AV gear

The CyberPower OR1000PFCLCD delivers 1000 VA and 700 W of pure sinewave output from a mini-tower chassis. It targets department servers, workgroup servers, network devices, telecom appliances and high-end audio/video equipment that require PFC-compatible power. Automatic Voltage Regulation corrects brownouts and over-voltages without draining the battery. Eight NEMA 5-15R outlets provide protected connections for multiple devices.

Line-interactive topology

The unit accepts an input range of 78 to 142 V at 50 or 60 Hz and maintains output at 120 V ±5% with frequency held to ±1%. AVR handles minor fluctuations on utility power so the sealed lead-acid battery stays charged for genuine outages. Surge diversion meets UL1778 and FCC Class B limits. The replaceable battery cartridge RB1290X2A recharges in eight hours after a discharge event.

Runtime at half load 17.5 minutes

At 50% load the battery sustains connected gear for 17.5 minutes; at 100% load it lasts 9.5 minutes. This window is the decisive figure for planning graceful shutdowns via the included PowerPanel Business Edition software over USB or DB-9. Buyers who need longer autonomy for the same load should consider a higher-capacity model. The 120 V input connection uses a standard NEMA 5-15P plug.

商品特色

  • 1000 VA / 700 W capacity protects critical loads
  • Pure sinewave output compatible with active-PFC power supplies
  • Automatic Voltage Regulation corrects brownouts and over-voltages without battery use
  • Eight NEMA 5-15R outlets keep servers, network gear and A/V equipment running
  • DB-9 and USB ports enable PowerPanel Business Edition monitoring and graceful shutdown

商品規格

BrandCyberPower
SeriesPFC Sinewave Series
ModelOR1000PFCLCD
International Version120V
Input Voltage Range78 - 142 V
Input Frequency50/60 Hz +/- 3 Hz
Input ConnectionNEMA 5-15P
VA Rating1000 VA
Watts700 Watts
Output Voltage120V +/- 5%
Output Frequency50/60 Hz +/- 1%
Outlets8
Outlet TypeNEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeAt Half Load (min): 17.5
At Full Load (min): 9.5
Battery Recharge Time8 Hour(s)
Battery ReplaceableRB1290X2A
Interface PortDB-9, USB
Management SoftwarePowerPanel Business Edition
ApprovalsUL1778 4th, cUL 107.3-05, FCC/DoC Class B
Surge Energy Rating1030 Joules
ProtectionInternal circuitry limiting / circuit breaker
Features1000VA / 700W Sine Wave UPS
Line-Interactive Topology
AVR & GreenPower UPS
Mini-Tower Form Factor
Multifunction LCD Panel
8 Outlets
USB and Serial Communication Ports
EMI/RFI Filters
PowerPanel Business Edition
Dimensions6.40" x 5.40" x 13.80" (H x W x D)
Weight24.7 lbs.
VANo
WattN/A
OptionsOR1000PFCLCD
出貨重量12.50 kg
包裝尺寸478 × 284 × 267 mm

其他版本

同系列還有 3 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How do I install the OR1000PFCLCD and what step is often missed?

Plug the NEMA 5-15P input into a 120 V wall outlet, connect equipment to the eight NEMA 5-15R outlets, then attach the USB or DB-9 cable and install PowerPanel Business Edition so the UPS can trigger graceful shutdowns.

What maintenance will this UPS need later?

The sealed lead-acid battery is user-replaceable with part RB1290X2A; after extended use it will need swapping and the unit requires an 8-hour recharge cycle after each deep discharge.

What limit appears first during a long outage?

At full 700 W load the battery lasts 9.5 minutes, so runtime is the first constraint; at half load it extends to 17.5 minutes before shutdown is forced.
