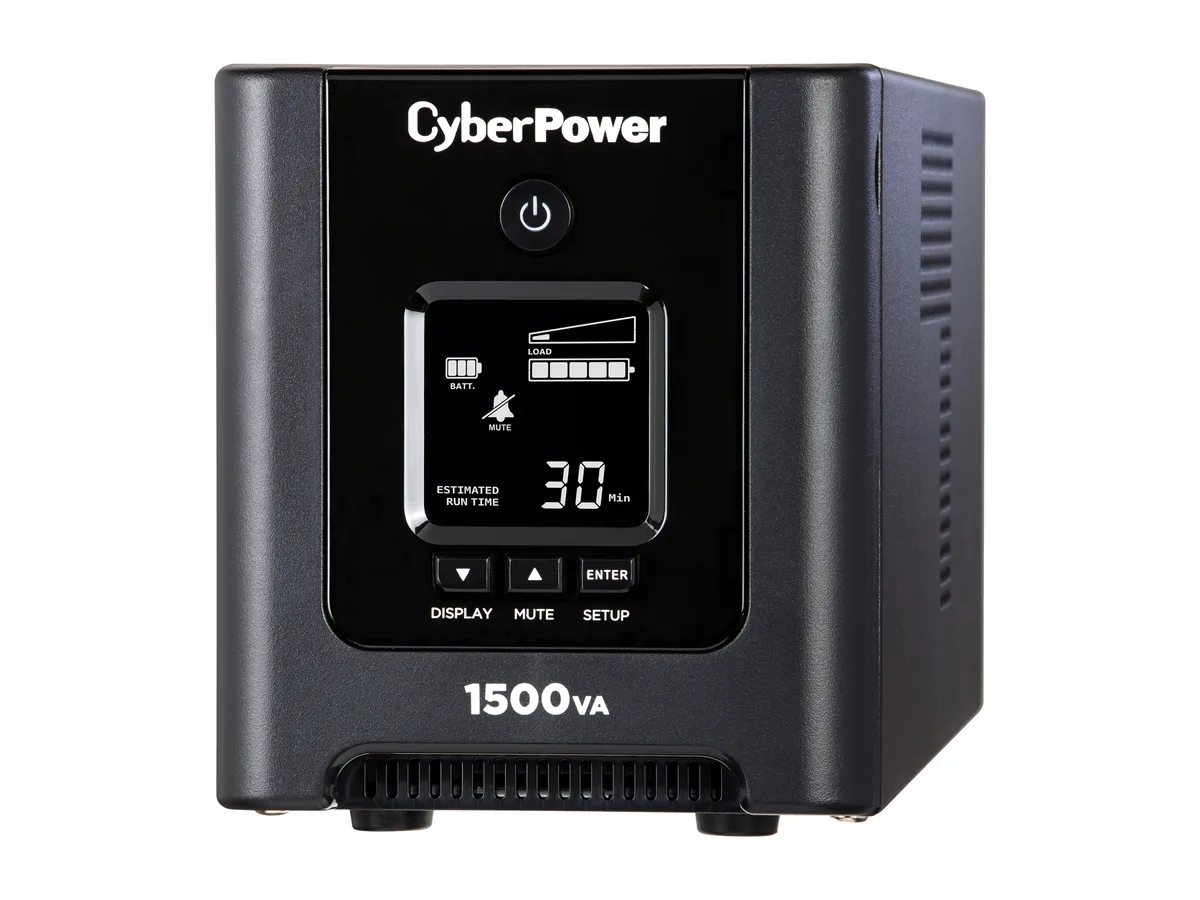

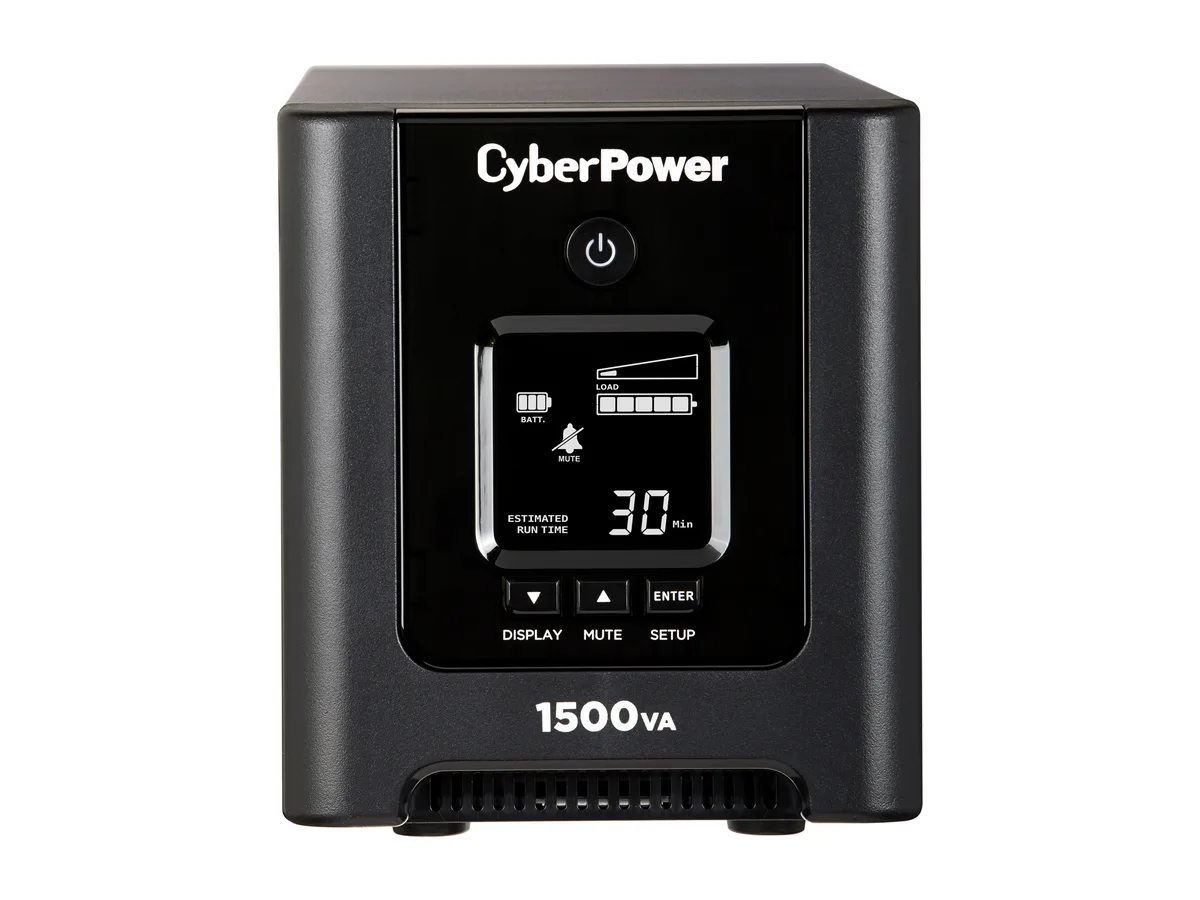

Black mini-tower UPS with LCD screen and eight outlets

CyberPower

CyberPower OR1500PFCLCD UPS 1500 VA 1050 W 8 Outlets

SKU CH-J8KN-H0VH1 MPN OR1500PFCLCD

Line-interactive UPS delivers 1500 VA / 1050 W pure sine-wave output with AVR, eight NEMA 5-15R outlets, DB-9 and USB monitoring, and 12 min half-load runtime

  • International Version120V
  • Input Voltage Range78 - 142 V
  • Input Frequency50/60 Hz +/- 3 Hz
  • Input ConnectionNEMA 5-15P
  • VA Rating1500 VA
  • Watts1050 Watts

Options OR1500PFCLCD

  • Pure sine wave output protects Active PFC equipment
  • 1500 VA 1050 Watt capacity runs department servers
  • Automatic Voltage Regulation corrects fluctuations without battery drain
  • 12 minutes runtime at half load enables safe shutdown
  • DB-9 and USB ports support PowerPanel management software

Mini-tower UPS for servers and network gear

The CyberPower PFC Sinewave OR1500PFCLCD is a line-interactive uninterruptible power supply rated at 1500 VA and 1050 W. It provides pure sine wave output compatible with Active PFC power supplies in department servers, workgroup servers, network devices, telecom systems and high-end audio/video equipment. Automatic Voltage Regulation corrects minor fluctuations without using the battery.

12 minutes at half load and 4 minutes at full load

A half load yields 12 minutes of battery run time, while a full load provides 4 minutes before shutdown is required. The internal battery recharges in 8 hours and is user-replaceable using the RB1290X2B pack. Surge protection diverts excess voltage during spikes, and audible alarms signal on-battery, low-battery, overload and fault conditions.

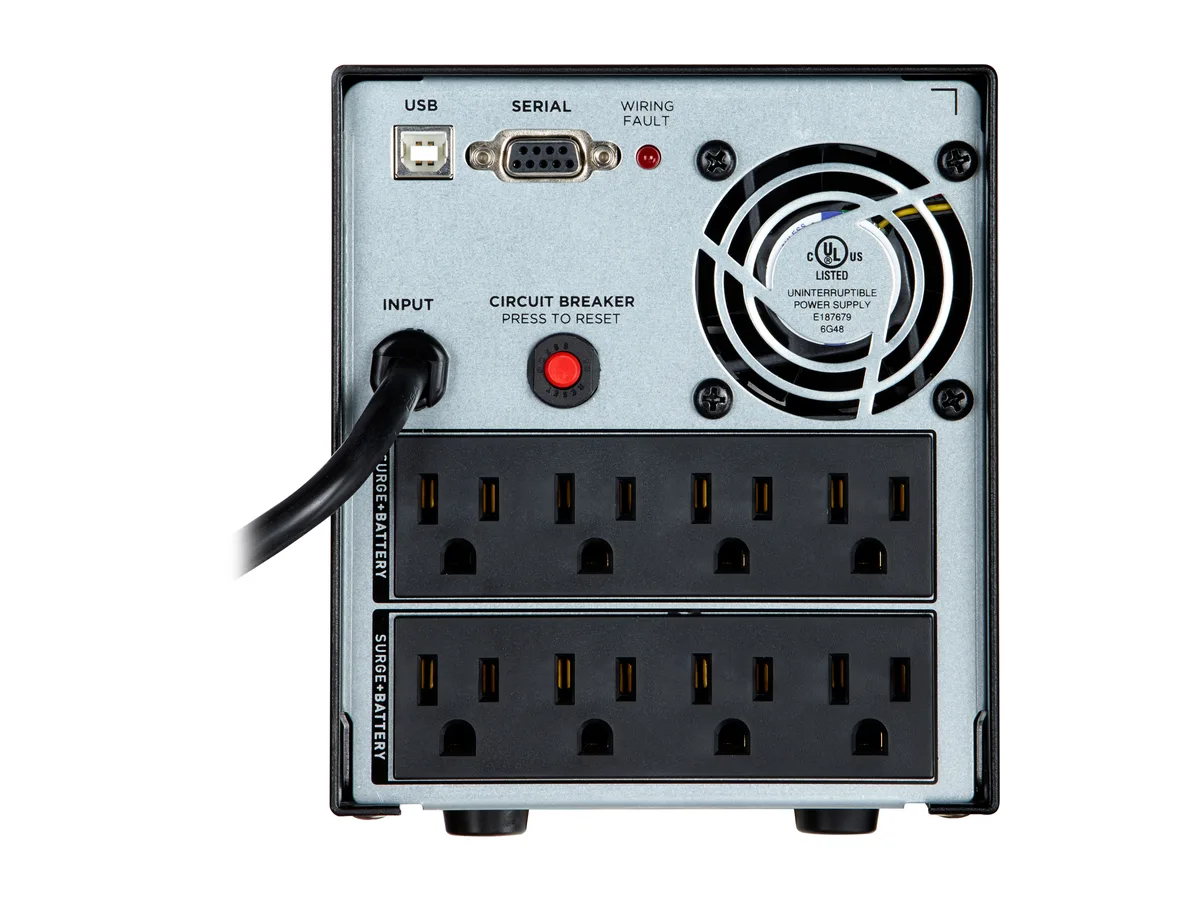

Eight NEMA 5-15R outlets

Eight NEMA 5-15R outlets distribute 120 V power at 50/60 Hz with a tolerance of ±1 %. A DB-9 serial port and a USB port connect to the included PowerPanel Business Edition software for monitoring and controlled shutdowns. The unit accepts an input range of 78–142 V via a NEMA 5-15P plug.

商品特色

  • Pure sine wave output protects Active PFC equipment
  • 1500 VA 1050 Watt capacity runs department servers
  • Automatic Voltage Regulation corrects fluctuations without battery drain
  • 12 minutes runtime at half load enables safe shutdown
  • DB-9 and USB ports support PowerPanel management software

商品規格

BrandCyberPower
SeriesPFC Sinewave Series
ModelOR1500PFCLCD
International Version120V
Input Voltage Range78 - 142 V
Input Frequency50/60 Hz +/- 3 Hz
Input ConnectionNEMA 5-15P
VA Rating1500 VA
Watts1050 Watts
Output Voltage120V +/- 5%
Output Frequency50/60 Hz +/- 1%
Outlets8
Outlet TypeNEMA 5-15R
Battery Run TimeAt Half Load (min): 12
At Full Load (min): 4
Battery Recharge Time8 Hour(s)
Battery ReplaceableRB1290X2B
AlarmsOn Battery, Low Battery, Overload, Fault
Interface PortDB-9, USB
Management SoftwarePowerPanel Business Edition
ApprovalsUL1778 4th, cUL 107.3-05, FCC/DoC Class B
Surge Energy Rating1030 Joules
ProtectionInternal circuitry limiting / circuit breaker
Features1500VA / 1050W Sine Wave UPS
Line-Interactive Topology
AVR & GreenPower UPS
Mini-Tower Form Factor
Multifunction LCD Panel
8 Outlets
USB and Serial Communication Ports
EMI/RFI Filters
PowerPanel Business Edition
Dimensions6.40" x 5.40" x 13.80"
Weight25.00 lbs.
VANo
WattN/A
OptionsOR1500PFCLCD
出貨重量12.27 kg
包裝尺寸475 × 284 × 264 mm

其他版本

同系列還有 3 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Will the OR1500PFCLCD protect my older Active PFC power supply during voltage sags?

The line-interactive topology with pure sine wave output and Automatic Voltage Regulation corrects minor fluctuations between 78 and 142 volts without using battery power, preserving runtime for actual outages.

How can I verify the UPS is delivering clean power to my equipment after installation?

Connect via the USB or DB-9 port to run PowerPanel Business Edition software, which reports output voltage, frequency, load percentage and battery condition in real time.

Which cables and accessories ship with the OR1500PFCLCD and what must I source separately?

The unit includes a NEMA 5-15P input cord, USB and DB-9 communication cables, and software media; replacement battery cartridges (RB1290X2B) and additional output cords are sold separately.
