Aqua blue duplex fibre cable with SC connectors on both ends, 50m length

Enfain

Enfain OM3 SC-SC Duplex Multimode Fibre Optic Cable 50m

SKU CH-V5JN-ZTAVF

50 m OM3 duplex multimode cable with SC connectors, 3.0 mm jacket, 850 nm wavelength, 0.2 dB typical insertion loss and >38 dB return loss

Length 50m

  • Supports 10G multimode links with OM3 10-gigabit core
  • Low insertion loss of .2 dB typical and .3 dB maximum
  • High return loss exceeding 38 dB for clean signals
  • Durable 3.0 mm PVC jacket rated for 1000 mating cycles
  • Operates reliably from -20°C to +60°C

Enfain OM3 SC-SC Duplex Cable 50m

The Enfain OM3 SC-SC duplex multimode fibre optic cable spans 50 metres and uses an OM3 10-gigabit core optimised for 850 nm transmission. It is built for switches, servers and data-centre links that require duplex SC connectors.

Low-Loss Ceramic Ferrules and PVC Jacket

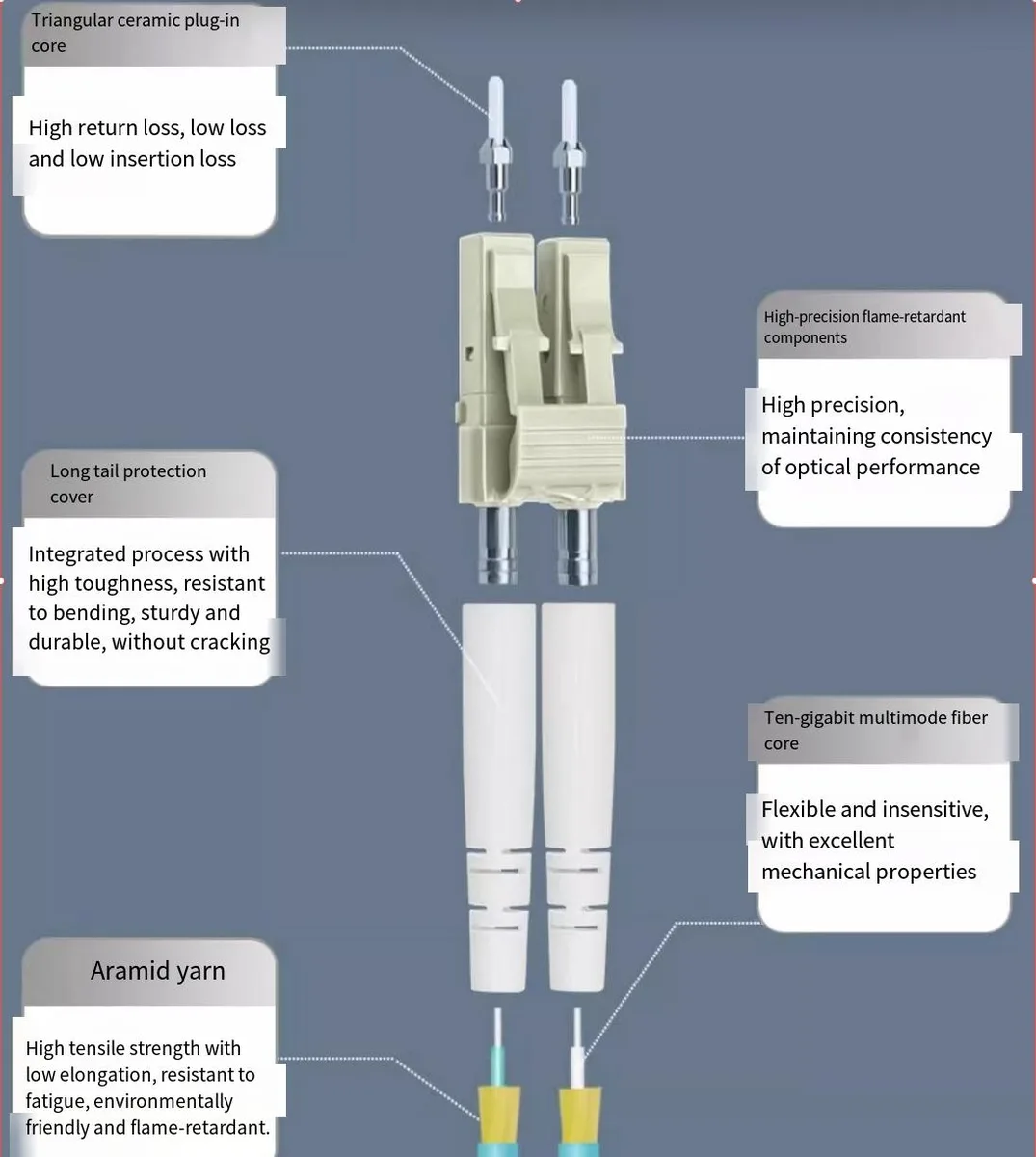

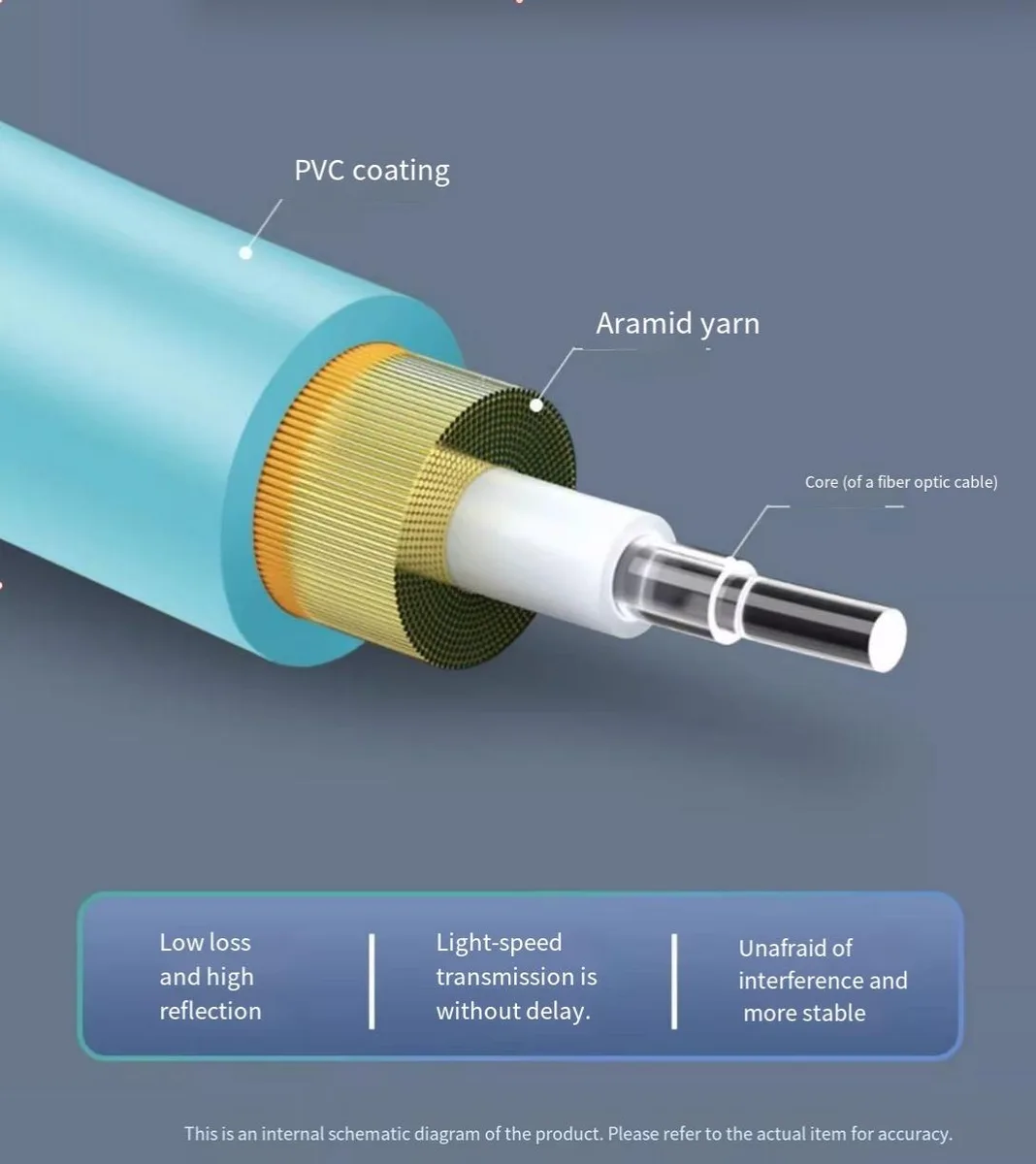

Ceramic ferrules keep insertion loss at .2 dB typical and .3 dB maximum while return loss exceeds 38 dB. The 3.0 mm PVC jacket protects the fibres and the assembly withstands 1000 insertion and removal cycles.

Verify Connector Type and Bend Radius

Confirm that both ends of your link accept SC duplex connectors before ordering. Ensure the routing path can accommodate a 330 mm minimum bending radius and that the operating environment stays within -20 °C to +60 °C.

商品特色

  • Supports 10G multimode links with OM3 10-gigabit core
  • Low insertion loss of .2 dB typical and .3 dB maximum
  • High return loss exceeding 38 dB for clean signals
  • Durable 3.0 mm PVC jacket rated for 1000 mating cycles
  • Operates reliably from -20°C to +60°C

商品規格

本商品目前尚未公佈規格。

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How many insertion and removal cycles can the SC connectors withstand before replacement?

The ceramic-ferrule SC connectors are rated for 1000 insertion and removal cycles before performance may degrade.

What is the maximum insertion loss budget for a 10 Gbit/s link over this 50 m OM3 duplex cable?

Maximum insertion loss is 0.3 dB per connector pair, so the link loss budget depends on the number of mated pairs in the channel.

What is the cable's operating temperature range for continuous all-day use?

The cable is rated for continuous operation from -20 °C to +60 °C.
