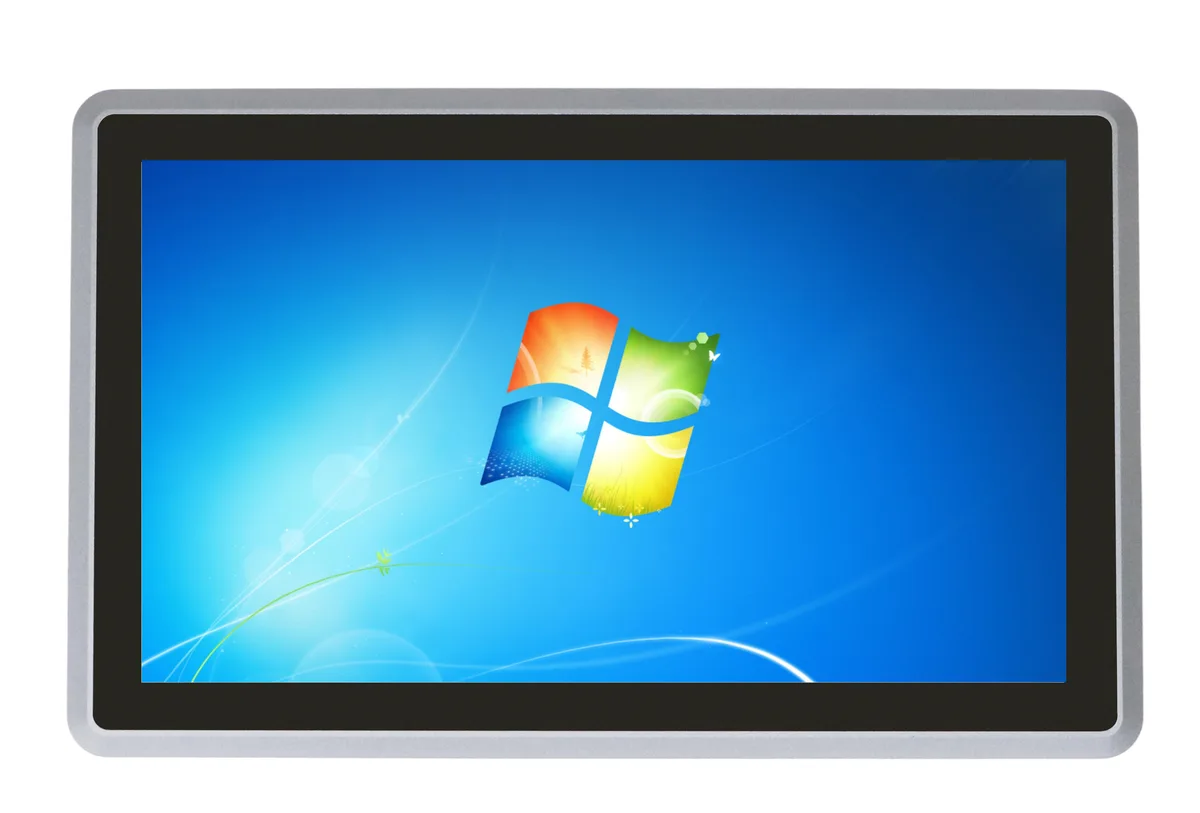

Gray 15.6 inch industrial all-in-one panel PC with resistive touchscreen and aluminum chassis

partaker

Partaker A28 15.6" AI edge system i5-4200U 8GB 512GB DDR3

SKU CH-5TP2-Q3BKD

15.6-inch IP65 resistive touch panel PC with i5-4200U, 8GB DDR3, 512GB storage and fanless aluminium chassis for -20 to 60°C operation

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U

A28 15.6" Resistive I5 4200U 8GB RAM / 512GB SSD

  • Full HD 1920x1080 15.6" display for clear visuals
  • Fanless aluminium chassis enables silent dust-proof operation
  • IP65 front panel resists water and dust ingress
  • Dual Gigabit LAN plus four USB and two COM ports
  • Intel Core i5-4200U up to 2.60 GHz with 8GB DDR3 and 512GB storage

Industrial Panel PC

The Partaker A28 is a 15.6 inch fanless all-in-one system built for embedded industrial use. An Intel Core i5-4200U dual-core processor and Windows 10 Pro drive the IP65-rated resistive touchscreen in harsh environments. Gray aluminum alloy chassis supports panel-mount installation with a standard cutout. Dual Gigabit LAN and legacy serial ports suit automation and edge workloads.

8 GB DDR3 and 512 GB mSATA

Two DDR3 slots accept up to 16 GB total for headroom beyond the fitted 8 GB. The single mSATA slot holds the supplied 512 GB SSD; storage expansion requires the mini PCIe interfaces. Dual-core processing at up to 2.60 GHz handles typical HMI and gateway tasks but will saturate under heavy multi-threaded loads.

Resistive Touch and Legacy I/O

Resistive panel delivers 50 million touch cycles and works with gloves, unlike capacitive alternatives. Video output is limited to HDMI and internal LVDS for synchronous or asynchronous dual display. Expansion relies on two mini PCIe slots for wireless or cellular modules; GPIO and extra COM or USB ports are optional and not shipped standard.

商品特色

  • Full HD 1920x1080 15.6" display for clear visuals
  • Fanless aluminium chassis enables silent dust-proof operation
  • IP65 front panel resists water and dust ingress
  • Dual Gigabit LAN plus four USB and two COM ports
  • Intel Core i5-4200U up to 2.60 GHz with 8GB DDR3 and 512GB storage

商品規格

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
Screen Size15.6"
Screen TypeMulti-Touch Screen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Will the A28's 12V DC input work with my existing 12V industrial power supplies?

Yes, the unit accepts standard 12V DC input and also supports a customizable wide-range 9~36V option for flexible integration with existing industrial power infrastructure.

How can I confirm the resistive touchscreen and dual-core i5-4200U are performing correctly after installation?

Verify the resistive touchscreen responds accurately across the 15.6-inch 1920x1080 display and check Task Manager shows the Intel Core i5-4200U dual-core processor running at up to 2.60 GHz with 8GB DDR3 memory detected.

Does the box include Wi-Fi or 4G modules for the mini PCIe slots, or must I buy them separately?

The standard shipment includes the A28 panel PC with 8GB DDR3 RAM and 512GB mSATA SSD installed; Wi-Fi, Bluetooth or 3G/4G modules for the two mini PCIe slots are not included and must be purchased separately.
