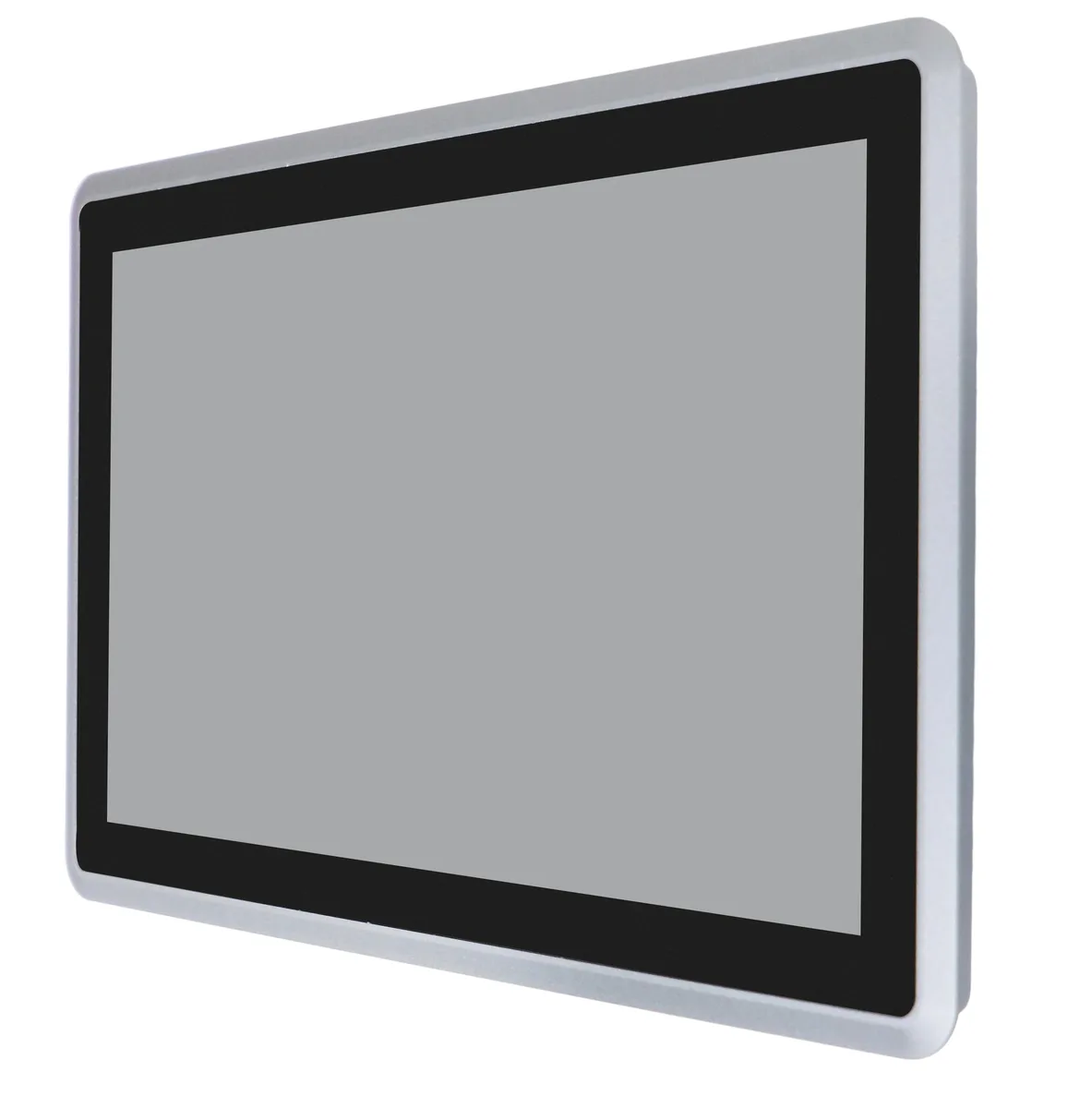

Gray 15.6 inch resistive touch all-in-one panel PC with aluminum alloy chassis

partaker

partaker A28 15.6" resistive touch AI edge system i5-6200U 8GB 128GB

SKU CH-6TDQ-V8JBS

A 15.6-inch industrial panel PC with a resistive touchscreen, Intel Core i5-6200U processor, 8GB DDR4 memory and 128GB storage in a fanless aluminium chassis rated IP65 at the front

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

A28 15.6" Resistive I5 6200U 8GB RAM / 128GB SSD

被劃上刪除線的選項確實存在，但本站並無供貨。

  • Resistive touch rated for 50 million touches
  • Fanless aluminium chassis runs silently from -20 to 60 °C
  • IP65 front panel resists dust and water ingress
  • Dual Gigabit LAN plus four USB and two COM ports
  • Intel Core i5-6200U with 8 GB DDR4 and 128 GB mSATA

Industrial panel PC for edge AI

The Partaker A28 is a 15.6-inch all-in-one system built around an Intel Core i5-6200U processor with 8GB of DDR4 memory and a 128GB mSATA drive. It runs Windows 10 Pro on a fanless aluminium chassis rated for -20 to +60°C operation. The IP65 front panel and resistive touchscreen suit factory automation, kiosk and machine-vision deployments where dust, moisture and wide temperature swings are normal.

Embedded mount with standard cutout

Installation uses a 385x234.3mm panel cutout for flush embedded mounting; the flat IP65 bezel seals against the enclosure gasket. Dual mini PCIe slots accept Wi-Fi, Bluetooth or 3G/4G modules with a SIM holder, while two configurable RS232/485 COM ports can be expanded to six. Fanless cooling removes filter maintenance, but the 12V DC input (optionally 9-36V wide range) requires a stable external supply and correct polarity wiring to avoid start-up faults.

Verify power, I/O and expansion needs

Confirm the site can deliver 12V DC or the optional 9-36V wide-range input with sufficient current for the i5-6200U and peripherals. Check that two Gigabit LAN ports, one HDMI, four USB and two COM ports match the PLC, camera or sensor count; extra GPIO, COM or USB require a custom order. The two DDR4 slots support up to 32GB total if more than the shipped 8GB is needed, and the single mSATA slot limits storage upgrades to that form factor.

商品特色

  • Resistive touch rated for 50 million touches
  • Fanless aluminium chassis runs silently from -20 to 60 °C
  • IP65 front panel resists dust and water ingress
  • Dual Gigabit LAN plus four USB and two COM ports
  • Intel Core i5-6200U with 8 GB DDR4 and 128 GB mSATA

商品規格

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size15.6"
Screen TypeMulti-Touch Screen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How can I verify the resistive touchscreen and fanless cooling are operating correctly after installation?

The 15.6 inch Full HD panel should register touch input across the entire 1920x1080 surface, and the aluminum alloy chassis will remain silent with no audible fan noise during operation.

Which accessories are included in the standard shipment and which expansion modules must be purchased separately?

The unit ships with the panel PC, Windows 10 Pro, 8GB DDR4 memory, 128GB mSATA SSD, and resistive touchscreen; Wi-Fi, Bluetooth, 3G/4G modules, GPIO, extra COM or USB ports are not included.

Should I select the 8GB RAM and 128GB SSD configuration or upgrade toward the 32GB DDR4 maximum?

The system supports up to 32GB DDR4 across two slots; choose 8GB for basic edge tasks or add a second module later if workloads demand more memory.
