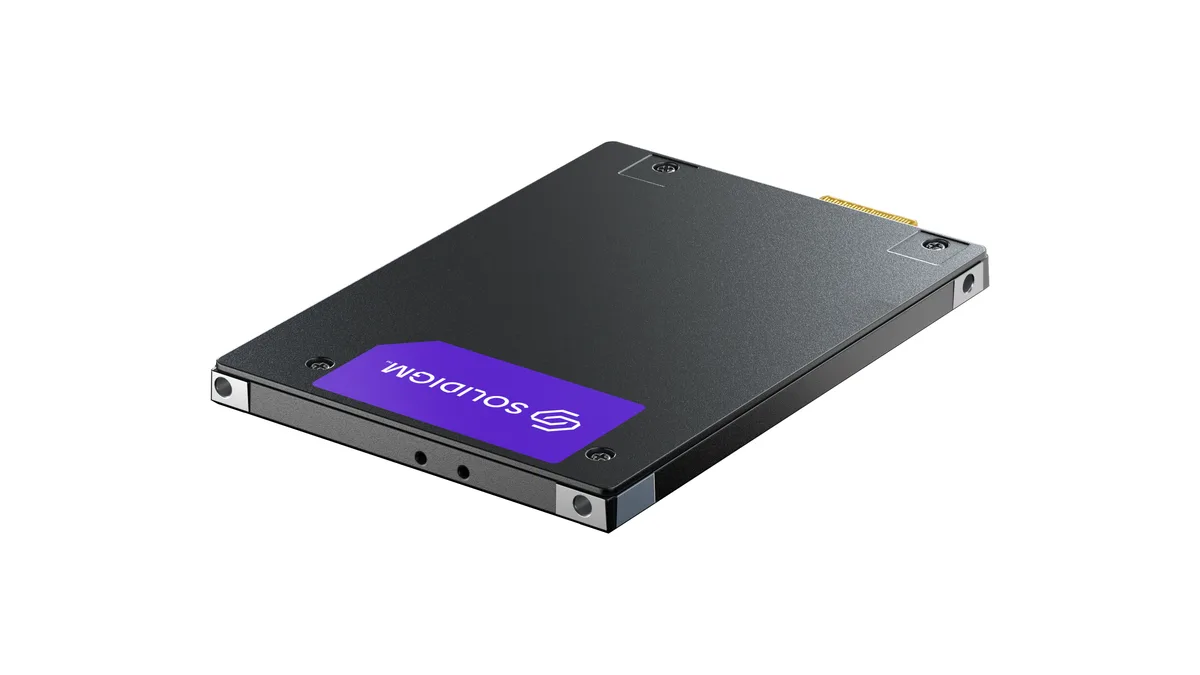

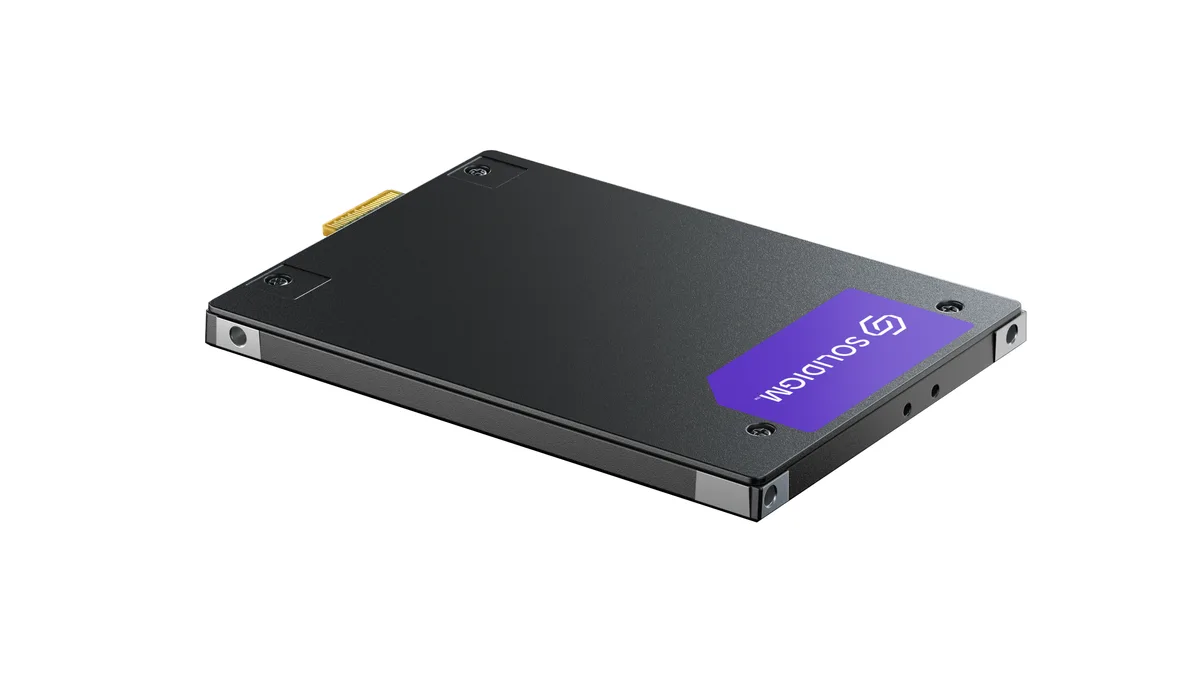

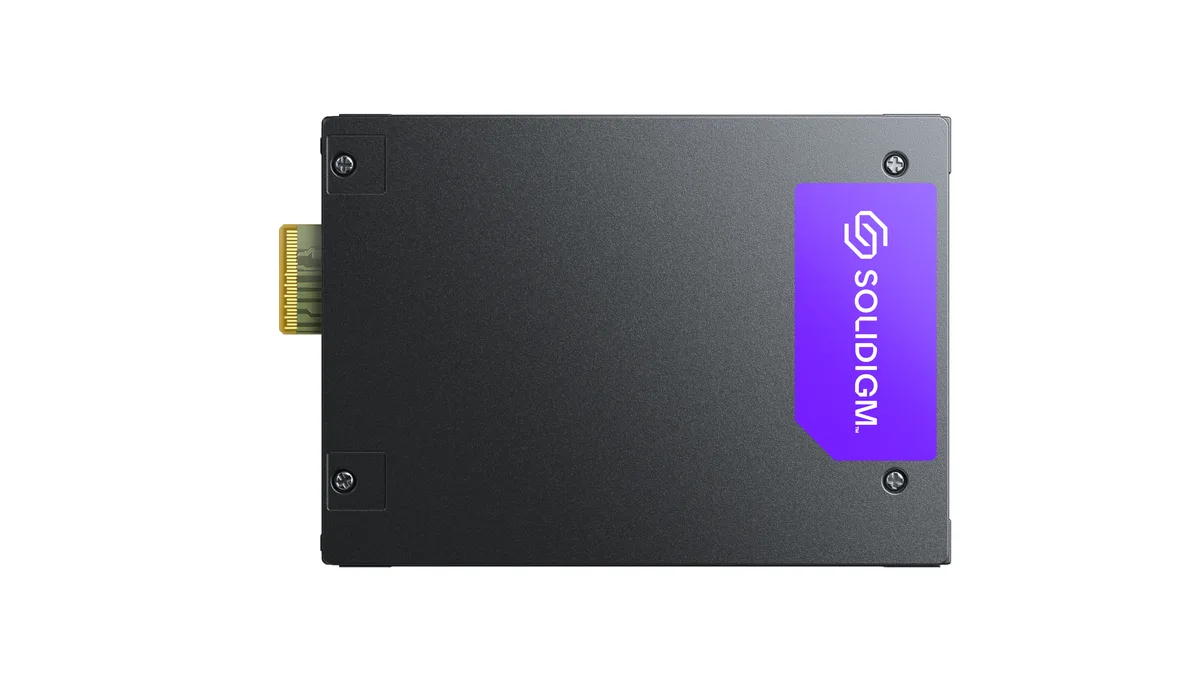

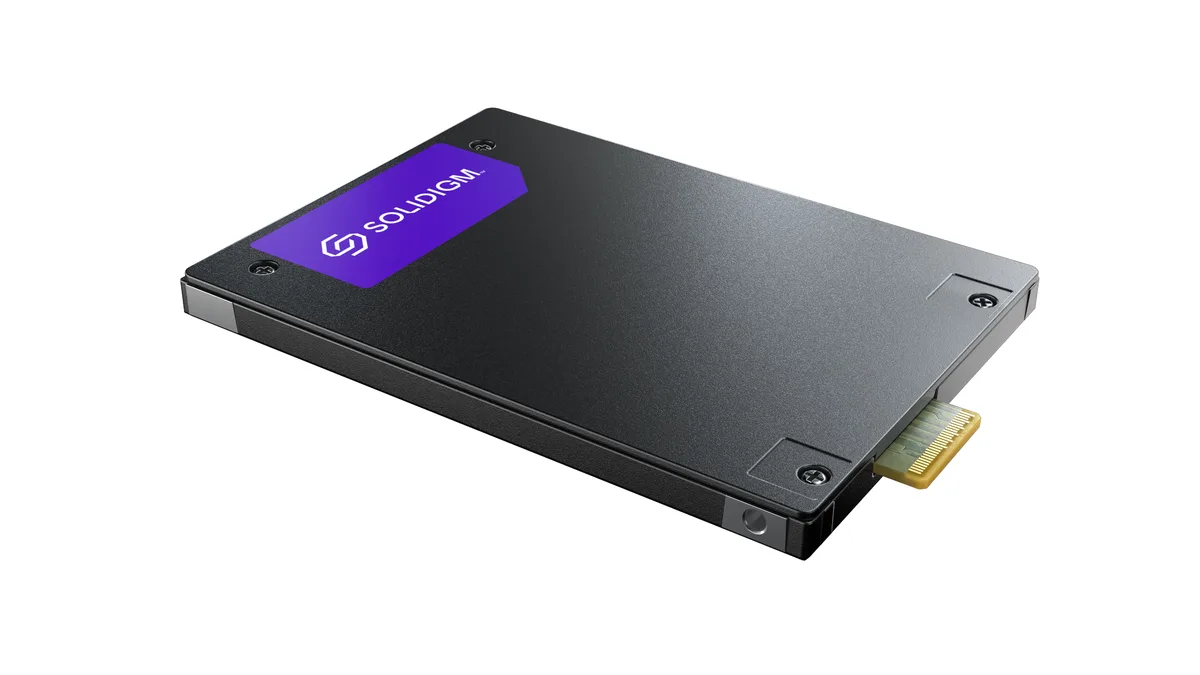

Rectangular silver E3.S 7.5mm SSD with gold edge connector and label

Solidigm

Solidigm D7-PS1010 15.36TB E3.S 7.5mm PCIe 5.0 enterprise SSD SB5PHA7X153TOF1

SKU CH-PKQR-1H3ZY MPN SB5PHA7X153TOF1

E3.S 7.5mm drive stores 15.36TB on 176L TLC NAND with PCIe 5.0 speeds up to 14500 MBps read and 9300 MBps write

  • Form FactorE3.S 7.5mm
  • Capacity15.36TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 9300 MBps

Option 15.36TB E3.S FIPS

Voir les 20 autres configurations
  • Massive 15.36TB capacity consolidates data onto fewer drives
  • PCIe 5.0 x4 interface delivers up to 14500 MB/s sequential read speed
  • 176L TLC 3D NAND enables 2750000 random read IOPS for transactional workloads
  • FIPS-certified security protects sensitive data at rest
  • 1 DWPD endurance with 28 PBW supports sustained write-intensive applications

High-capacity enterprise SSD

The Solidigm D7-PS1010 delivers 15.36TB of storage in an E3.S 7.5mm form factor built for PCIe 5.0 servers. It uses 176L TLC 3D NAND rated for 1 DWPD endurance and 28 PBW total bytes written. FIPS security compliance suits regulated data-centre workloads.

E3.S 7.5mm server mounting

The 7.5mm E3.S design fits hot-plug drive bays in 1U and 2U chassis without adapters. A 120g weight keeps tray loading light while the x4 edge connector provides full PCIe 5.0 bandwidth. No cabling is required beyond the backplane slot.

23W active power ceiling

Typical active draw reaches 23W while idle power sits at 5W. The controller operates from 0°C to 77°C with an MTBF of 2,500,000 hours. Shock tolerance is rated at 1,000 G and vibration at 2.17 GRMS operating.

Points forts

  • Massive 15.36TB capacity consolidates data onto fewer drives
  • PCIe 5.0 x4 interface delivers up to 14500 MB/s sequential read speed
  • 176L TLC 3D NAND enables 2750000 random read IOPS for transactional workloads
  • FIPS-certified security protects sensitive data at rest
  • 1 DWPD endurance with 28 PBW supports sustained write-intensive applications

Caractéristiques

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PHA7X153TOF1
Form FactorE3.S 7.5mm
Capacity15.36TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 9300 MBps
4KB Random Read2750000 IOPS (4K Blocks)
4KB Random Write380000 IOPS (4K Blocks)
Endurance1 DWPD / 28 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight120g +/- 10g
Poids d’expédition0.17 kg
Dimensions du colis140 × 110 × 17 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What throughput ceiling does the PCIe 5.0 x4 interface impose on this D7-PS1010 in practice?

The PCIe 5.0 x4 link caps sequential throughput at the drive's rated 14500 MBps read and 9300 MBps write, with 2750000 IOPS random read and 380000 IOPS random write.

Which server bay and tooling does the E3.S 7.5mm form factor require for this 15.36TB unit?

It fits a standard E3.S 7.5mm hot-plug bay; the drive weighs 120g +/- 10g and uses the bay's native latch, so no separate brackets or screws are needed.

What is the correct insertion sequence to avoid damaging the PCIe 5.0 edge connector on this drive?

Align the drive with the bay guide rails, push straight in until the connector seats fully, then engage the built-in latch; forcing it at an angle can bend the high-speed contacts.
