Silver aluminium barebone mini PC, compact square chassis

ASUS

ASUS NUC 15 PRO+ RNUC15CRSU50000U barebone mini PC Core Ultra 5 225H DDR5 96GB dual M.2 Wi-Fi 7 Bluetooth 5.4

SKU CH-YYEY-XR8GJ MPN RNUC15CRSU50000U

Barebone mini PC with Intel Core Ultra 5 225H, dual DDR5 SO-DIMM slots supporting 96 GB, two M.2 NVMe slots, Wi-Fi 7, Bluetooth 5.4, 2.5 Gbps LAN and Thunderbolt 4

  • ColorSilver
  • CPU TypeIntel Core Ultra 5 225H
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
  • Max Memory Supported96GB

CPU Type Intel Core Ultra 5 225H

  • Supports up to 96GB DDR5 for demanding workloads
  • Intel Core Ultra 5 225H 14-core processor at 1.7GHz
  • Dual M.2 slots for flexible NVMe storage expansion
  • Wi-Fi 7 and Bluetooth 5.4 for fast wireless connectivity
  • Compact 5.67 x 4.41 x 1.65 inch aluminium chassis weighs 1.52 lbs

Compact Intel Core Ultra barebone

The ASUS NUC 15 PRO+ RNUC15CRSU50000U is a new barebone mini PC built around a 1.7 GHz Intel Core Ultra 5 225H processor with 14 cores. It targets system builders who want a small silver chassis that supports up to 96 GB of DDR5 memory and dual M.2 NVMe storage. Memory and storage are sold separately so the buyer chooses capacity and speed.

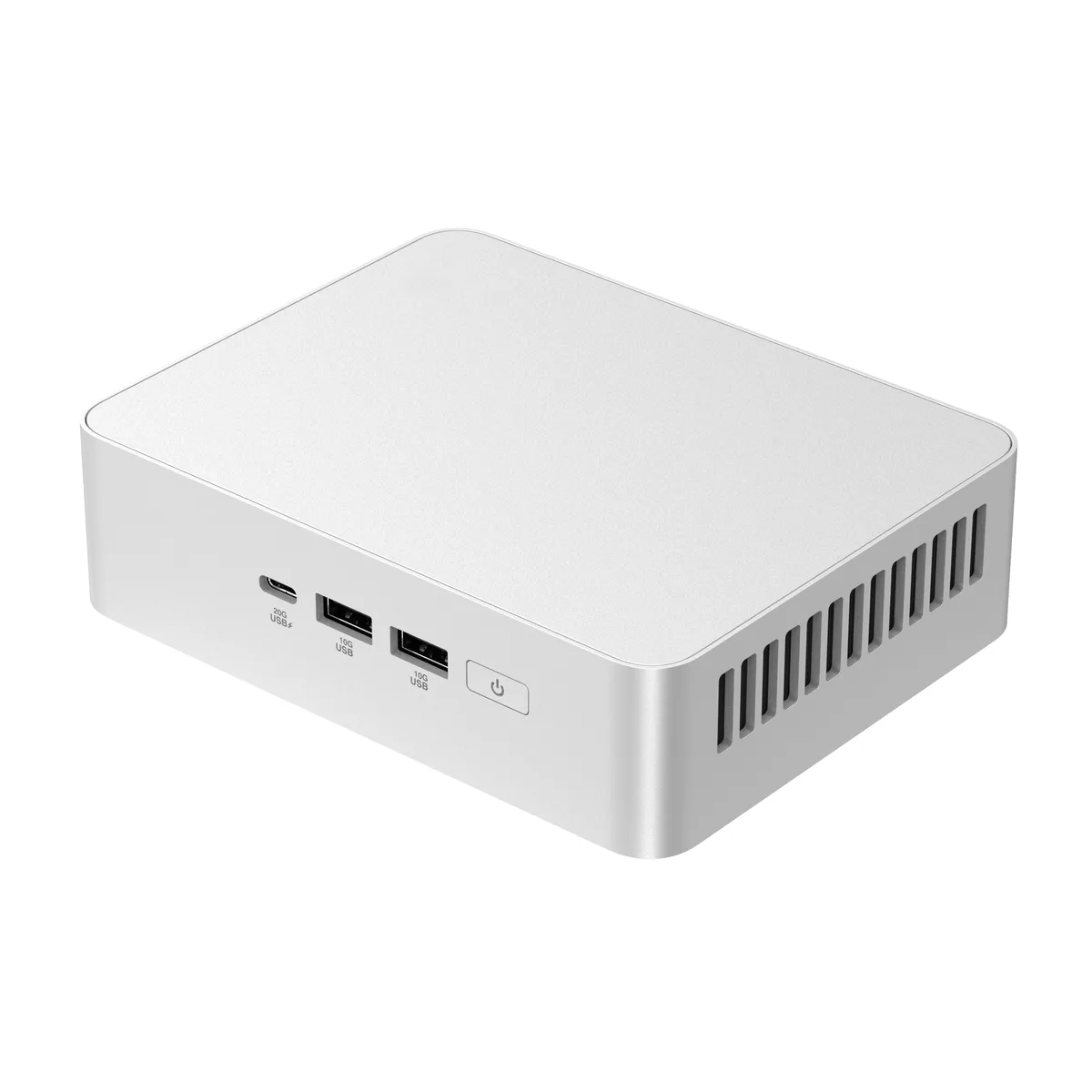

Aluminium chassis with front USB 3.2 Gen2x2

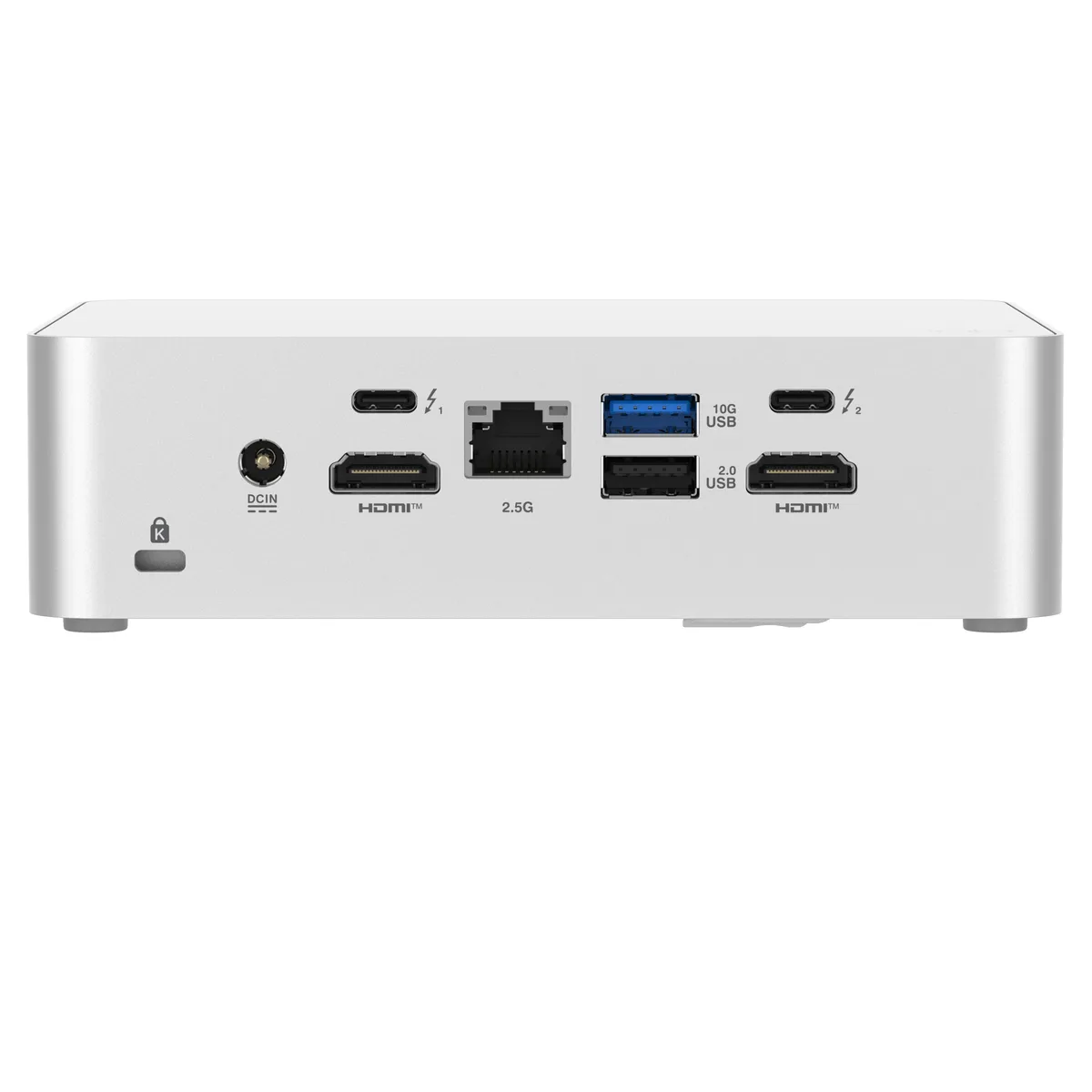

The 1.52 lb aluminium enclosure measures 5.67 by 4.41 by 1.65 inches and includes a VESA mount kit for behind-display installation. Front I/O provides one USB 3.2 Gen2x2 Type-C port and two USB 3.2 Gen2 Type-A ports for fast peripheral access. Rear connectivity adds two Thunderbolt 4 ports with DisplayPort 2.1, one USB 3.2 Gen2 Type-A, one USB 2.0 Type-A, 2.5 Gbps Ethernet, Wi-Fi 7 and Bluetooth 5.4.

Upgrade from older NUC or desk tower

This unit replaces larger legacy mini PCs or full-size towers when a builder needs modern DDR5 memory, PCIe 4.0 NVMe slots and 4K 60 Hz dual-display output over HDMI 2.1. The jump is worth it for workflows that benefit from Arc 130T integrated graphics, 2.5 Gbps wired networking and the latest wireless standards. Buyers who require pre-installed memory or storage should look elsewhere.

Highlights

  • Supports up to 96GB DDR5 for demanding workloads
  • Intel Core Ultra 5 225H 14-core processor at 1.7GHz
  • Dual M.2 slots for flexible NVMe storage expansion
  • Wi-Fi 7 and Bluetooth 5.4 for fast wireless connectivity
  • Compact 5.67 x 4.41 x 1.65 inch aluminium chassis weighs 1.52 lbs

Specifications

BrandASUS
SeriesNUC 15 PRO+
ModelRNUC15CRSU50000U
Part Number90AR00P3-M00190
ColorSilver
CPU TypeIntel Core Ultra 5 225H
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
Max Memory Supported96GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD slot
1 x M.2 2242 PCIe Gen4x4 NVMe SSD slot
Integrated GraphicsIntel Arc 130T Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DisplayPort 2.1)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451
Power Supply120W
Dimensions5.67" x 4.41" x 1.65"
Weight1.52 lbs.
PackagingVESA Mount & Screws / AC Power Adapter/ Power Cord
Shipping weight1.68 kg
Package size172 × 160 × 121 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe generation does the M.2 2280 slot use, and what speed does that cap the NVMe drive at?

The M.2 2280 slot is PCIe Gen4x4, so an NVMe SSD is limited to Gen 4 transfer rates.

What are the exact dimensions and VESA mounting provision for this chassis?

The unit measures 5.67 x 4.41 x 1.65 inches and includes a VESA mount with screws in the box.

How do I install memory and storage, and which step is commonly missed?

Open the case, insert DDR5 SO-DIMMs into the two 262-pin slots and NVMe drives into the 2280 and 2242 slots, then remember to secure each M.2 drive with its retention screw.
