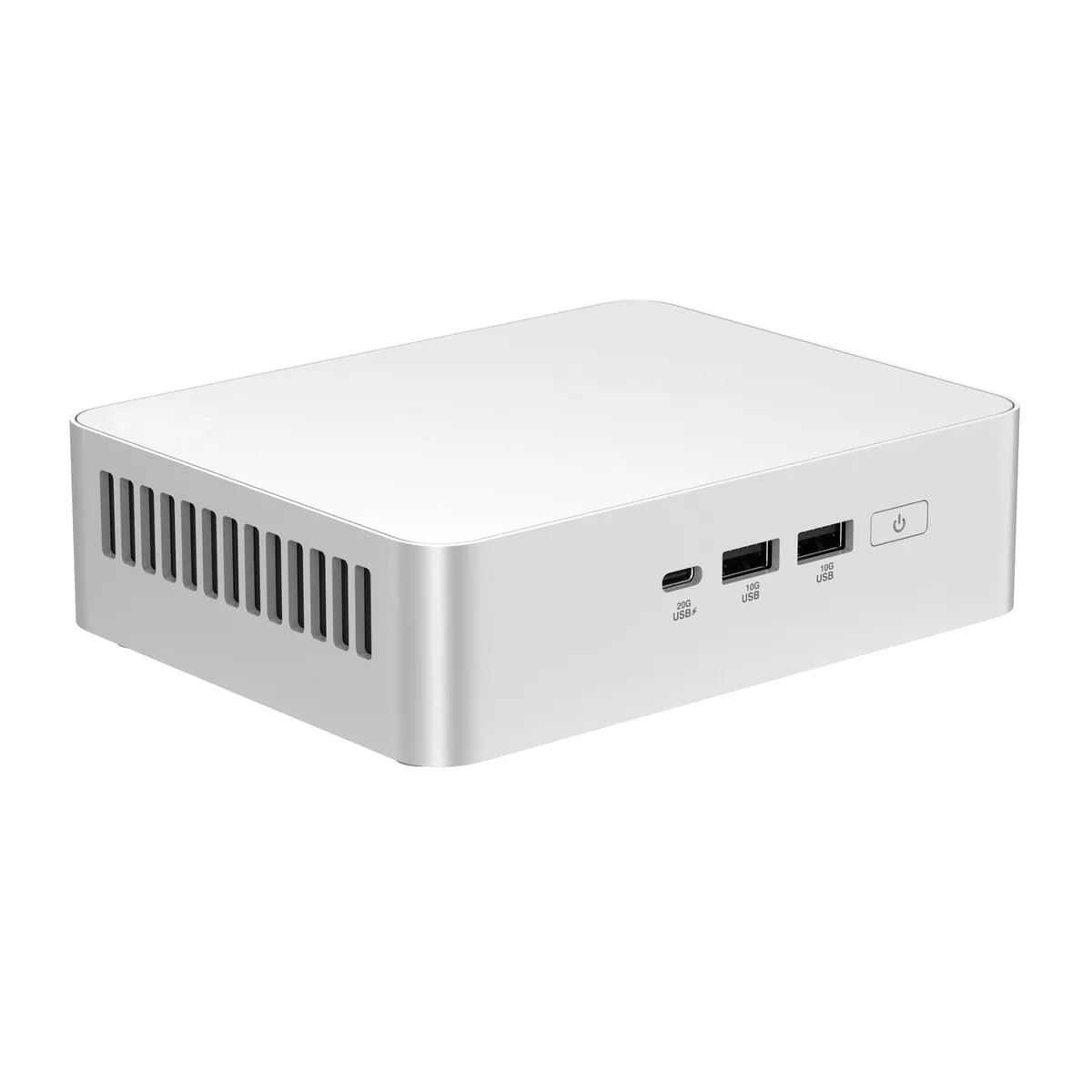

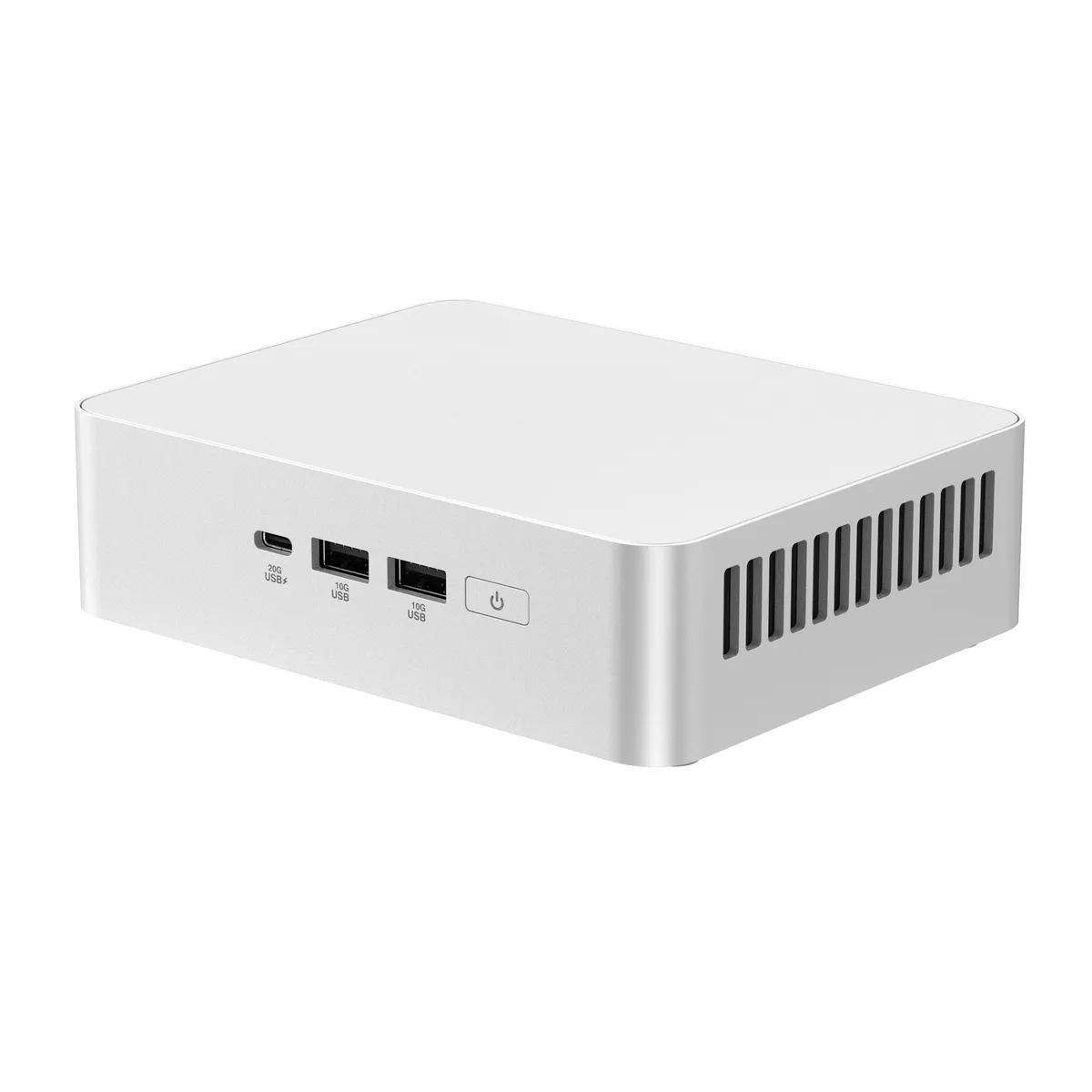

Silver aluminium barebone mini PC, compact square chassis

ASUS

ASUS RNUC15CRSU70000U barebone mini PC Core Ultra 7 255H 16-core DDR5

SKU CH-D3DS-9Z5WM MPN RNUC15CRSU70000U

Barebone mini PC with a 16-core Core Ultra 7 255H, dual DDR5 SO-DIMM slots up to 48 GB each, two M.2 NVMe bays, 2.5 Gb LAN and Wi-Fi 7

  • ColorSilver
  • AI FeaturesProcessor Essentials *Processor Number 255H *Overall Peak TO
  • CPU TypeIntel Core Ultra 7 255H
  • CPU SocketFCBGA2049
  • CPU CoresTotal Cores 16 # of Performance-cores 6 # of Efficient-cores
  • Memory installedNo Memory

CPU Type Intel Core Ultra 7 255H

  • 16-core Intel Core Ultra 7 255H reaches 5.1 GHz for fast multi-threaded work
  • Intel Arc 140T graphics with 74 TOPS handles AI and 4K media
  • Dual DDR5 SO-DIMM slots accept up to 96 GB at 6400 MHz
  • Two M.2 NVMe slots (2280 Gen5 and 2242 Gen4) give flexible high-speed storage
  • Wi-Fi 7 and 2.5 Gb LAN plus Thunderbolt 4 keep data moving fast

ASUS NUC 15 Pro+ barebone for Core Ultra 7 255H

This barebone mini PC is built around the Intel Core Ultra 7 255H processor with 16 cores and 16 threads reaching a 5.1 GHz maximum turbo frequency. The aluminium chassis measures 5.67 x 4.41 x 1.65 inches and weighs 1.52 lbs. It ships without memory or storage, so the builder supplies both.

Suited for compact AI and graphics workloads

The integrated Intel Arc 140T GPU delivers 74 TOPS peak Int8 performance and the NPU adds 13 TOPS, giving 96 TOPS combined for local AI inference. Builders who need discrete graphics, more than two M.2 slots, or a larger power budget should consider a different platform.

DDR5 SO-DIMM or CSO-DIMM up to 96 GB

Two 262-pin slots accept DDR5-5600 SO-DIMM or DDR5-6400 CSO-DIMM modules with a 48 GB per-slot maximum. Populating both slots with 48 GB modules reaches the 96 GB ceiling; any other memory type will not fit.

Highlights

  • 16-core Intel Core Ultra 7 255H reaches 5.1 GHz for fast multi-threaded work
  • Intel Arc 140T graphics with 74 TOPS handles AI and 4K media
  • Dual DDR5 SO-DIMM slots accept up to 96 GB at 6400 MHz
  • Two M.2 NVMe slots (2280 Gen5 and 2242 Gen4) give flexible high-speed storage
  • Wi-Fi 7 and 2.5 Gb LAN plus Thunderbolt 4 keep data moving fast

Specifications

BrandASUS
SeriesNUC 15 PRO+
ModelRNUC15CRSU70000U
Part Number90AR00P3-M001B0
ColorSilver
AI FeaturesProcessor Essentials
*Processor Number 255H
*Overall Peak TOPS (Int8) 96
CPU Specifications
Total Cores 16
# of Performance-cores 6
# of Efficient-cores 8
# of Low Power Efficient-cores 2
Total Threads 16
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
*AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
GPU Sepcifications:
*Name : Intel® Arc™ 140T GPU
*Graphics Max Dynamic Frequency : 2.25GHz
*GPU Peak TOPS (Int8) 74
*Ray Tracing Yes
*AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
NPU Specifications:
CPU TypeIntel Core Ultra 7 255H
CPU SocketFCBGA2049
CPU CoresTotal Cores 16
# of Performance-cores 6
# of Efficient-cores 8
# of Low Power Efficient-cores 2
Total Threads 16
Max Turbo Frequency 5.1 GHz
Performance-core Max Turbo Frequency 5.1 GHz
Efficient-core Max Turbo Frequency 4.4 GHz
Low Power Efficient-core Max Turbo Frequency 2.5 GHz
Performance-core Base Frequency 2 GHz
Efficient-core Base Frequency 1.5 GHz
Low Power Efficient-core Base Frequency 700 MHz
Cache 24 MB
Processor Base Power 28 W
Maximum Turbo Power 115 W
Minimum Assured Power20 W
CPU Lithography TSMC N3B
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
Max Memory Supported48GB DDR5-5600 SO-DIMM x 2
or
48GB DDR5-6400 CSO-DIMM x 2
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD slot support up to 128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD
1 x M.2 2242 PCIe Gen4x4 NVMe SSD slot support up to 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD
Integrated GraphicsGPU Name Intel® Arc™ 140T GPU
Graphics Max Dynamic Frequency 2.25 GHz
Xe-cores 8
Ray Tracing Yes
DirectX* Support 12.2
OpenGL* Support 4.6
OpenCL* Support 3.0
Multi-Format Codec Engines 2
H.264 Hardware Encode/Decode Yes
H.265 (HEVC) Hardware Encode/Decode Yes
AV1 Encode/Decode Yes
VP9 Bitstream & Decoding Yes
Intel® Quick Sync Video Yes
# of Displays Supported 4
LAN2.5G
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
*Bluetooth® version may change with different OS version.

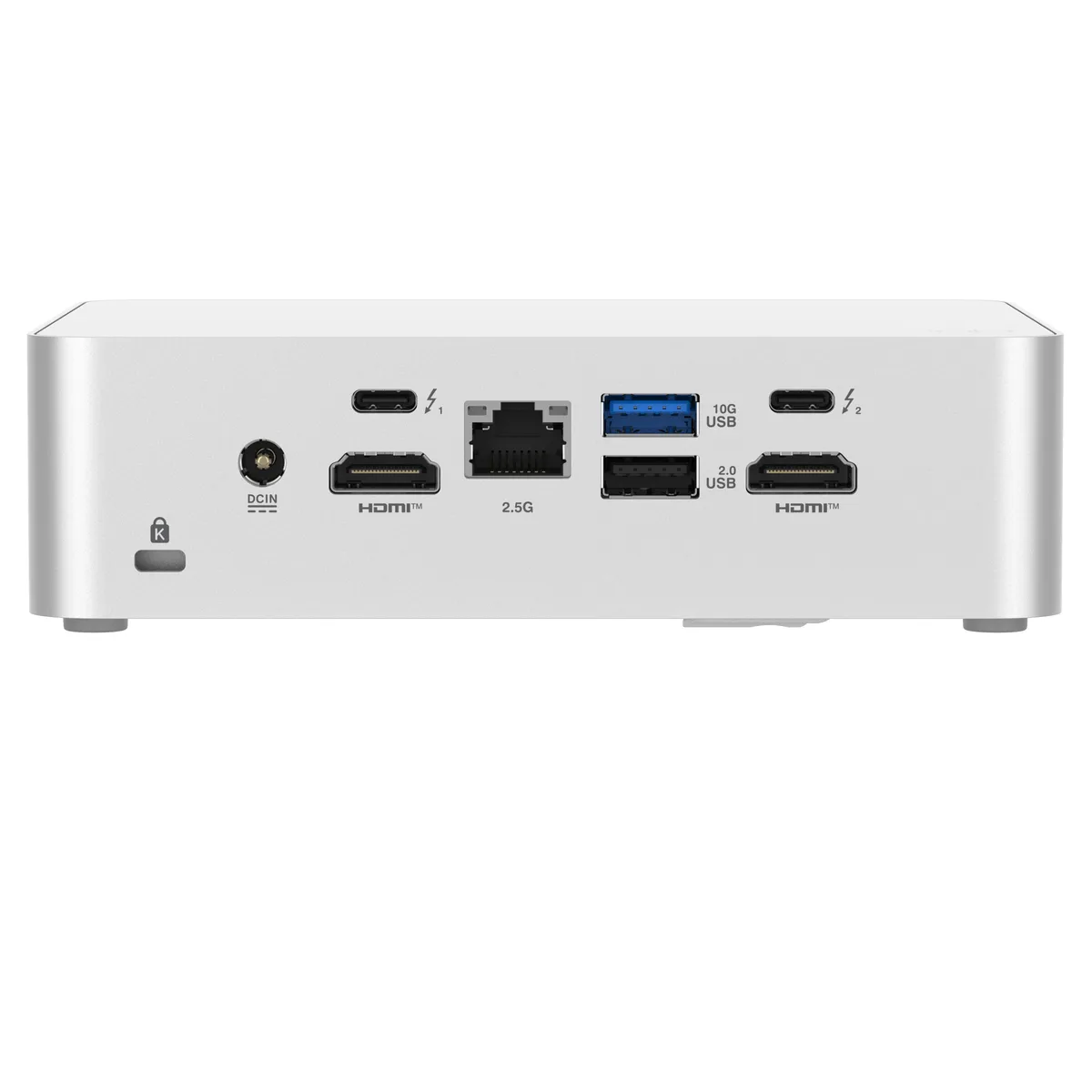

Front USB1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt2 x Thunderbolt™ 4 ports (include DP 2.1 and USB4)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x DC-in
1 x Kensington Lock
Power Supply19VDC, 6.32A, 120W Power Adapter
Dimensions5.67" x 4.41" x 1.65"
144mm x 112mm x 42mm
Weight1.52 lbs.
FeaturesNo preinstalled OS
OS Support:
Windows 11
RedHat Enterprise Linux
Ubuntu 24.04 LTS
Onboard Processor Features
Intel® Core™ Ultra 7 Processor 255H (24M Cache, up to 5.10 GHz)
Overall Peak TOPS (Int8): 96
CPU Specifications
Total Cores 16
# of Performance-cores 6
# of Efficient-cores 8
# of Low Power Efficient-cores 2
Total Threads 16
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
*AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
*CPU Lithography TSMC N3B
GPU Sepcifications:
*Name : Intel® Arc™ 140T GPU
*Graphics Max Dynamic Frequency : 2.
PackagingVESA Mount & Screws / AC Power Adapter/ Power Cord
Safety/Caution/Regulatory Insert
Warranty Card
Shipping weight1.59 kg
Package size171 × 152 × 121 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing DDR5-5600 SO-DIMMs work in the two 262-pin slots of this NUC 15 Pro+?

Yes, the board accepts two SO-DIMM DDR5-5600 modules up to 48 GB each for a total of 96 GB.

How can I confirm the Intel Arc 140T GPU is running at its 2.25 GHz maximum dynamic frequency?

Open the Intel Graphics Command Center or Task Manager performance tab and verify the GPU frequency reaches 2.25 GHz under load.

Does the barebone include any memory, storage or Wi-Fi antennas, or must I buy them separately?

The unit ships with no RAM and no SSD; you must supply two DDR5 SO-DIMMs and up to two NVMe drives. Wi-Fi 7 antennas are included.
