Silver aluminium mini PC barebone, compact square chassis

ASUS

ASUS RNUC15CRSU90000U NUC 15 Pro+ barebone mini PC Core Ultra 9 285H

SKU CH-2GW4-QB0YV MPN RNUC15CRSU90000U

Barebone mini PC with 16-core Core Ultra 9 285H, 99 TOPS AI, dual DDR5 SO-DIMM slots to 96 GB, M.2 2280 Gen 5.0 and 2242 Gen 4.0, 2.5 GbE, Wi-Fi 7, aluminium chassis

  • ColorSilver
  • AI FeaturesOnboard Processor Features Intel® Core™ Ultra 9 Processor 28
  • CPU TypeIntel Core Ultra 9 285H 16-Core CPU (2.9 GHz) with Integrate
  • CPU SocketBGA 2049
  • CPU Cores16 Cores, 16 Threads Processor Base Power 45 W Maximum Turbo
  • Memory installedNo Memory

CPU Type Intel Core Ultra 9 285H

  • 99 peak AI TOPS for demanding workloads
  • 16-core Core Ultra 9 285H at 2.9 GHz base
  • Dual DDR5 SO-DIMM slots supporting 96 GB max
  • Two M.2 slots: one PCIe 5.0 x4, one PCIe 4.0 x4
  • 5 GbE LAN plus Wi-Fi 7 wireless connectivity

ASUS NUC 15 Pro+ Barebone with Core Ultra 9 285H

This barebone mini PC delivers a 16-core Intel Core Ultra 9 285H processor and integrated Intel Arc 140T graphics in a compact aluminium chassis. It targets developers and creators who need on-device AI acceleration up to 99 TOPS and prefer to choose their own DDR5 memory and NVMe storage.

Thermals noise and power draw

The processor runs at a 45 W base power with a 115 W maximum turbo and a 35 W minimum assured power level. The aluminium case acts as the primary heatsink for the CPU, GPU and NPU, so fan behaviour scales directly with sustained workload intensity. A 2.5 GbE controller and Wi-Fi 7 add minimal thermal load during typical network traffic.

Upgrade path and value

The system replaces larger desktops that lack integrated NPU acceleration or Thunderbolt 4 connectivity while fitting two SO-DIMM slots and dual M.2 slots (one Gen 5.0 x4, one Gen 4.0 x4). It is not suited for buyers who require discrete graphics headroom, more than 96 GB of memory, or additional PCIe expansion beyond the provided M.2 interfaces.

Highlights

  • 99 peak AI TOPS for demanding workloads
  • 16-core Core Ultra 9 285H at 2.9 GHz base
  • Dual DDR5 SO-DIMM slots supporting 96 GB max
  • Two M.2 slots: one PCIe 5.0 x4, one PCIe 4.0 x4
  • 5 GbE LAN plus Wi-Fi 7 wireless connectivity

Specifications

BrandASUS
SeriesNUC 15 PRO+
ModelRNUC15CRSU90000U
Part Number90AR00P3-M001D0
ColorSilver
AI FeaturesOnboard Processor Features
Intel® Core™ Ultra 9 Processor 285H
*Overall Peak TOPS (Int8): 99
CPU Specifications
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
*AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
GPU Sepcifications:
*Name : Intel® Arc™ 140T GPU
*Graphics Max Dynamic Frequency : 2.35GHz
*GPU Peak TOPS (Int8) 77
*AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
NPU Specifications:
*NPU Name: Intel® AI Boost
*NPU Peak TOPS (Int8) 13
*Sparsity Support Yes
*AI Software Frameworks Supported b
CPU TypeIntel Core Ultra 9 285H 16-Core CPU (2.9 GHz) with Integrated Intel Arc Graphics
CPU SocketBGA 2049
CPU Cores16 Cores, 16 Threads
Processor Base Power 45 W
Maximum Turbo Power 115 W
Minimum Assured Power 35 W
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
Max Memory SupportedMax Capacity:
via 48GB DDR5-5600 SO-DIMM x 2 (total 96GB)
or
via 48GB DDR5-6400 CSO-DIMM x 2 (total 96GB)
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe NVMe SSD slot support 128GB~8TB M.2 2280 NVMe™ PCIe® Gen 5.0 x 4 SSD
1 x M.2 2242 PCIe NVMe SSD slot support 128GB~8TB M.2 2242 NVMe™ PCIe® Gen 4.0 x 4 SSD
Integrated GraphicsIntel® Arc™ GPU (Core Ultra)
*Intel® Arc™ GPU requires using 2 x SO-DIMM
LANIntel® Ethernet Controller I226-V, 2.5G
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
Bluetooth*Bluetooth® version may change with different OS version.

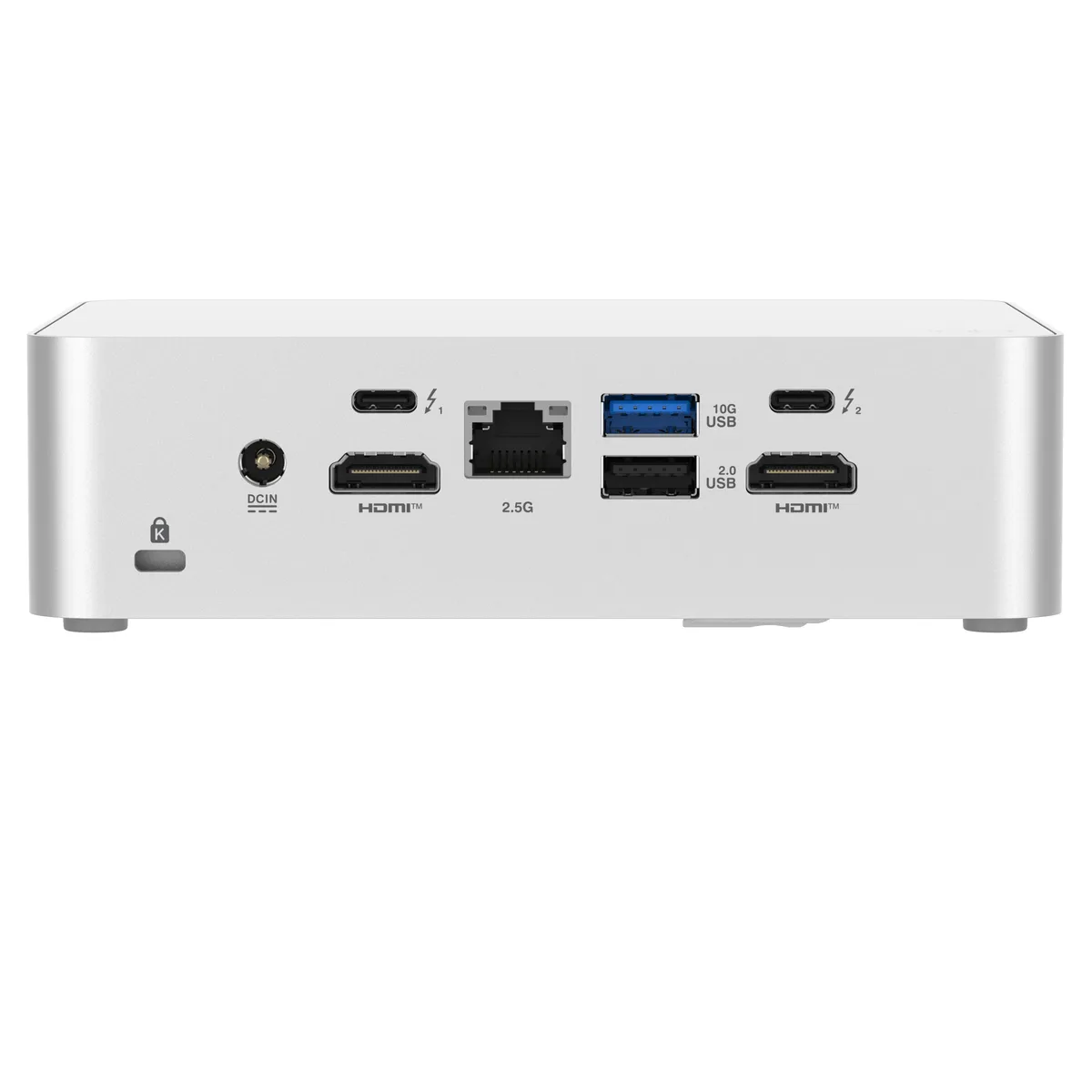

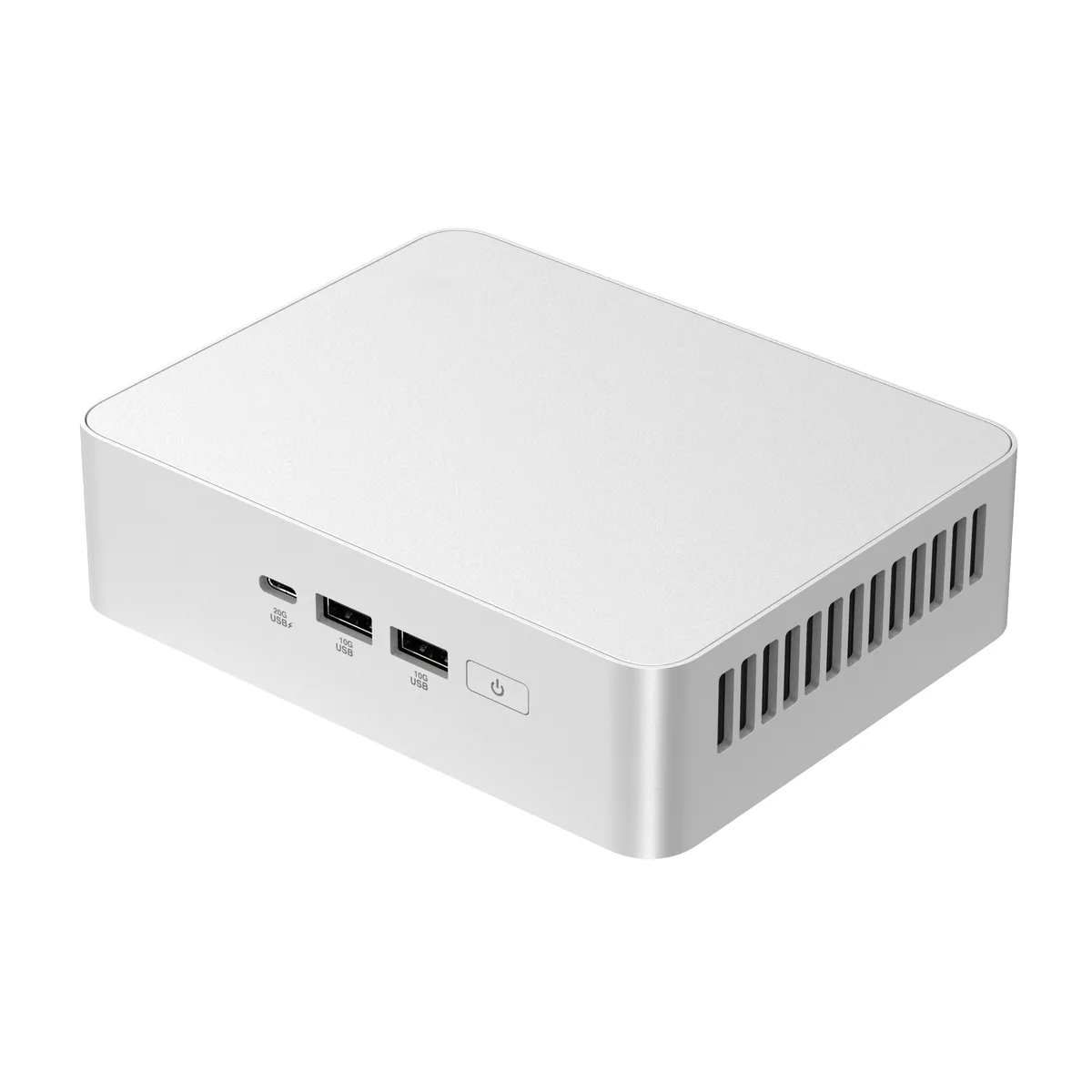

Front USB1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (include DisplayPort 2.1 and USB4)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451x RJ45 (2.5Gb Ethernet)
Input19.5VDC, 7.69A,
Power Supply150W Power Adapter (Core Ultra 9)
Dimensions5.67" x 4.41" x 1.65" (Net product)
Weight1.52 lbs.
MaterialToolless Silver Aluminum Chassis
FeaturesNo preinstalled OS
OS Support:
*Windows 11
*RedHat Enterprise Linux
*Ubuntu 24.04 LTS
Onboard Processor Features
Intel® Core™ Ultra 9 Processor 285H essentials :
Overall Peak TOPS (Int8): 99
CPU Specifications
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
*AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
*CPU Lithography TSMC N3B
GPU Sepcifications:
*Name : Intel® Arc™ 140T GPU
*Graphics Max Dynamic Frequency : 2.35GHz
*GPU Peak TOPS (Int8) 77
*Ray Tracing Yes
*AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX
PackagingVESA Mount & Screws / AC Power Adapter/ Power CordAC Adapter+Power Cord/ Safety/Caution/Regulatory Insert
Warranty Card
Shipping weight1.63 kg
Package size178 × 152 × 127 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install memory in the two 262-pin SO-DIMM slots, and what step is often missed?

Insert both DDR5-5600 SO-DIMM or DDR5-6400 CSO-DIMM modules up to 48 GB each for 96 GB total; the Intel Arc 140T GPU only activates with both slots populated.

Which replaceable components will need attention over time?

The two DDR5 SO-DIMM modules and the two NVMe SSDs (one PCIe 5.0 x4 2280, one PCIe 4.0 x4 2242) are user-replaceable; the Core Ultra 9 285H processor is soldered in the BGA 2049 socket.

What thermal limit appears first when the 45 W base / 115 W turbo processor runs sustained loads?

The 115 W maximum turbo power ceiling is reached before the 35 W minimum assured power floor, so the 1.52 lb aluminum chassis must dissipate up to 115 W continuously.
