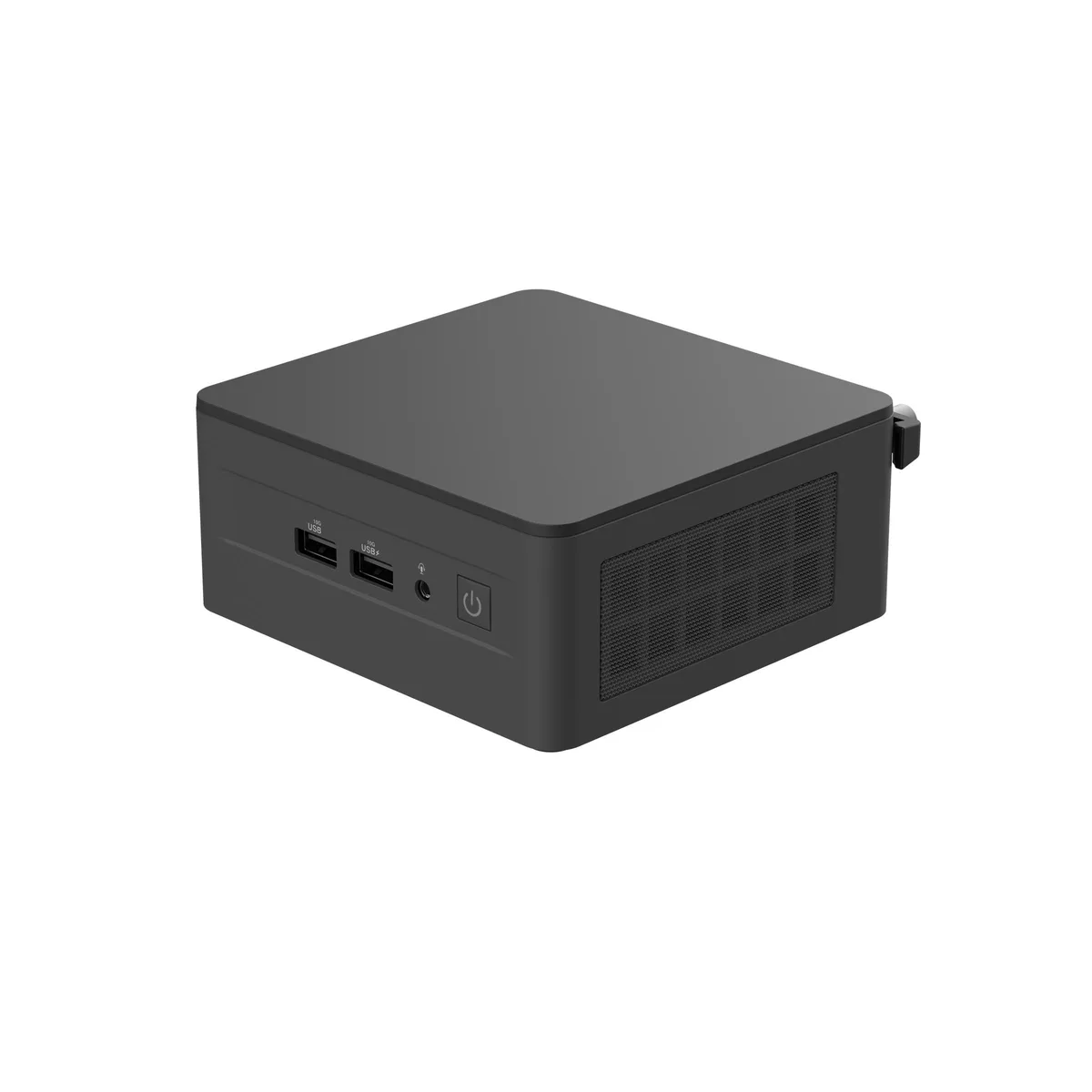

Small black square mini PC with rounded corners and matte finish

ASUS

ASUS NUC13ANHH5 barebone mini PC Core i5-13420H 16GB 512GB

SKU CH-ARX0-ZBP7H MPN NUC13ANHH5

A compact 4x4 mini PC with a 13th Gen Intel Core i5, 16GB DDR4, 512GB NVMe, 2.5Gbps LAN, Wi-Fi 6E and Thunderbolt 4 for multi-display setups

  • Form FactorTall
  • CPU TypeIntel Core i5-13420H
  • CPU Cores8-Core (4P+4E)
  • Memory installed16GB
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

Option 16GB RAM/512GB SSD

  • 13th Gen Core i5-13420H with 8 cores drives demanding workloads
  • 16GB DDR4 3200 dual-channel memory handles multitasking smoothly
  • 512GB NVMe SSD plus second M.2 slot expands storage easily
  • 5Gbps Ethernet and Wi-Fi 6E AX211 deliver fast wired and wireless links
  • VESA mount and 24/7 qualification suit space-saving always-on deployments

Ready-to-run mini PC

The ASUS NUC13ANHH5 arrives with a 13th Gen Intel Core i5-13420H, 16GB DDR4 3200 memory and a 512GB NVMe SSD already installed. Windows or Linux can be loaded immediately without sourcing extra parts. The tall 4x4 chassis includes a VESA mount for behind-screen or wall placement.

Suited for fixed workloads

This unit fits offices, digital signage and edge deployments that need 24/7 operation, dual 2.5GbE and Wi-Fi 6E connectivity, and up to four 4K60 outputs via HDMI and Thunderbolt 4. Buyers who require discrete graphics performance, additional M.2 slots beyond the two provided, or user-replaceable wireless cards should consider other form factors.

Dual M.2 storage ceiling

One M.2 2280 PCIe Gen4 slot and one M.2 2242 PCIe Gen3 slot define the total internal NVMe capacity. The installed 512GB drive occupies the 2280 slot, leaving the 2242 slot as the only internal expansion path for extra storage.

Highlights

  • 13th Gen Core i5-13420H with 8 cores drives demanding workloads
  • 16GB DDR4 3200 dual-channel memory handles multitasking smoothly
  • 512GB NVMe SSD plus second M.2 slot expands storage easily
  • 5Gbps Ethernet and Wi-Fi 6E AX211 deliver fast wired and wireless links
  • VESA mount and 24/7 qualification suit space-saving always-on deployments

Specifications

BrandASUS
SeriesNUC 13 Pro
ModelNUC13ANHH5
Form FactorTall
CPU TypeIntel Core i5-13420H
CPU Cores8-Core (4P+4E)
Memory installed16GB
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage Installed512GB SSD
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (key M)
1 x M.2 2242 PCIe Gen3 NVMe SSD Slot (key B)
Integrated GraphicsIntel UHD Graphics
Onboard AudioRealtek ALC269
Channel2 Channel
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1 x 2.5-inch SATA 6Gb/s support for HDD (supports up to 4TB)
Front USB1 x USB 3.2 Gen2 Type-A (with BC1.2 5V/0.9A, 10Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x 3.5mm Audio Jack (Line out/Mic in/Headphone out)
HDMI2 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington Lock Slot
1 x Cable Locking Arm
1 x DC-in
Power Supply120W Power Adapter
Dimensions4.61" x 4.41" x 2.13"
Weight1.3 lbs
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord, US Cord for USA

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the i5-13420H and its Intel UHD Graphics run smoothly alongside my older DDR4 3200 SO-DIMMs if I populate the second slot?

The board has two 260-pin SO-DIMM slots supporting DDR4 3200 in dual-channel mode up to 64 GB total, so your existing DDR4 3200 modules will work alongside the 16 GB already installed.

How can I verify the 2.5 Gbps Ethernet and Wi-Fi 6E AX211 are delivering their rated throughput after I finish setup?

Run a local network transfer or iperf3 test against another 2.5 Gbps device and check the Wi-Fi link speed in the OS network status; both should show near 2.5 Gbps wired and multi-gigabit wireless when conditions allow.

Does the box include the VESA mount and a US power cord, or do I need to buy them separately?

The package ships with a US power cord and a VESA mounting bracket; no extra purchase is required for wall or monitor-back installation.
