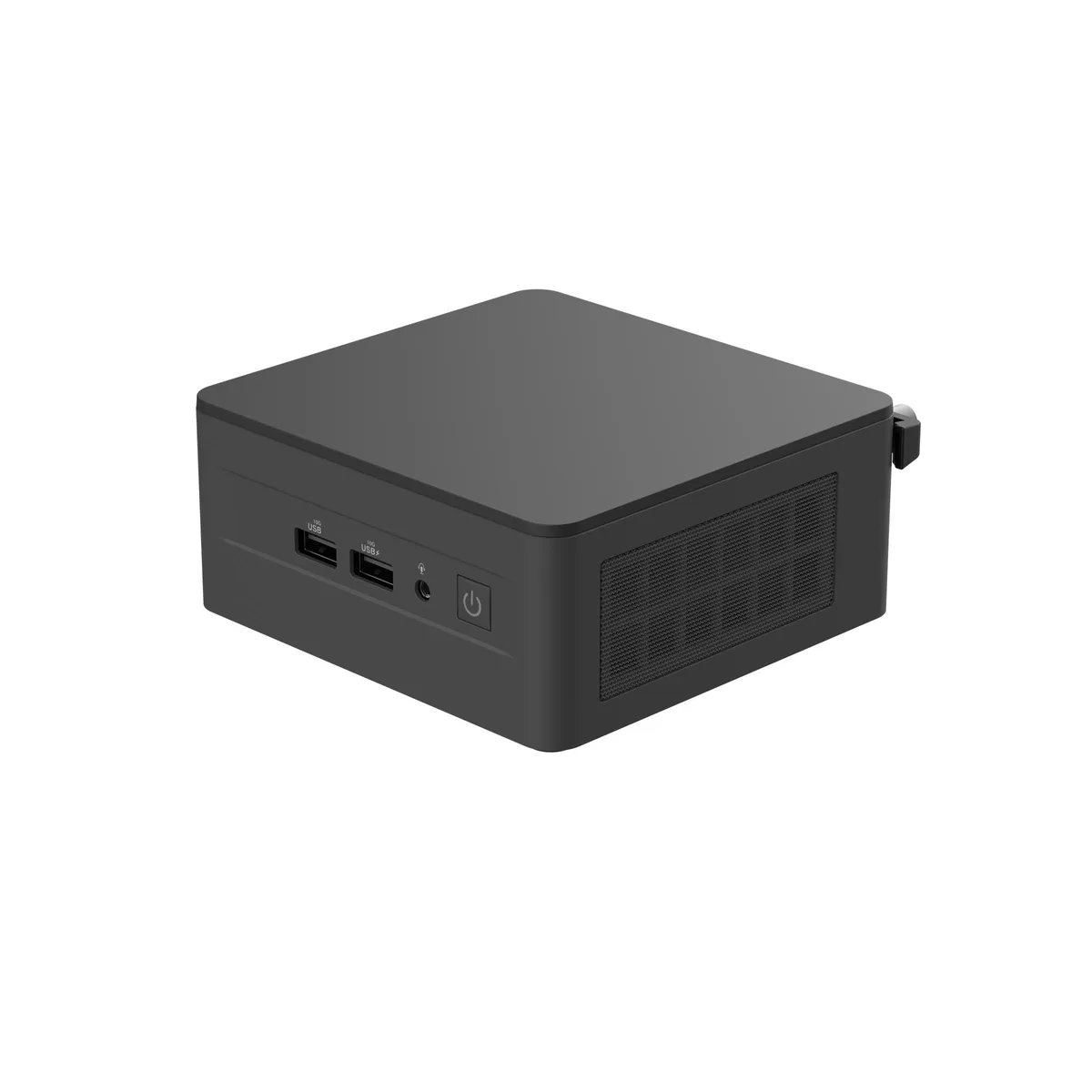

Small black square mini PC tall chassis VESA mount visible

ASUS

ASUS NUC13ANHH5 Core i5-13420H barebone mini PC

SKU CH-P3HE-G6WZS MPN NUC13ANHH5

A barebone mini PC with a 13th Gen Intel Core i5-13420H processor, dual SO-DIMM slots supporting 64GB DDR4, two M.2 NVMe slots, 2.5Gbps LAN, Wi-Fi 6E and Thunderbolt 4 for quad 4K display output

  • Form FactorTall
  • CPU TypeIntel Core i5-13420H
  • CPU Cores8-Core (4P+4E)
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

Option 32G RAM / 1T SSD

  • 13th Gen Core i5-13420H drives responsive performance
  • 8-core hybrid architecture handles multitasking with 4 performance and 4 efficient cores
  • Dual SO-DIMM slots support up to 64 GB DDR4 3200 memory
  • Two M.2 slots accept 2280 Gen4 and 2242 Gen3 NVMe storage
  • 5 Gbps Ethernet plus Wi-Fi 6E AX211 and Thunderbolt 4 enable fast wired and wireless connectivity

Ready-to-deploy mini PC for commercial workloads

The ASUS NUC 13 Pro barebone arrives with a 13th Gen Intel Core i5-13420H processor and integrated Intel UHD Graphics installed. Two SO-DIMM slots accept DDR4 3200 memory up to 64 GB in dual-channel mode. One M.2 2280 PCIe Gen4x4 slot and one M.2 2242 PCIe Gen3 slot provide NVMe storage expansion. Intel Wi-Fi 6E AX211 and 2.5 Gbps Ethernet handle wired and wireless connectivity.

Quiet operation with efficient 24/7 thermal design

The tall 4x4 chassis uses an internal fan and heatsink arrangement qualified for continuous operation. Realtek ALC269 stereo audio and a Kensington lock slot add office-friendly features. Power draw stays modest thanks to the 8-core hybrid CPU architecture. The included VESA mount allows tidy placement behind a display without adding audible noise in typical productivity tasks.

Sustained load stability for digital signage

Under prolonged multi-monitor workloads the cooling system maintains consistent frequencies without thermal throttling. Dual HDMI and dual DisplayPort via Thunderbolt 4 Type-C ports drive up to one 8K or four 4K 60 Hz panels simultaneously. The internal expansion bay accepts additional storage or an I/O module for specialised deployments. This configuration suits fixed-function installations that run uninterrupted for long periods.

Highlights

  • 13th Gen Core i5-13420H drives responsive performance
  • 8-core hybrid architecture handles multitasking with 4 performance and 4 efficient cores
  • Dual SO-DIMM slots support up to 64 GB DDR4 3200 memory
  • Two M.2 slots accept 2280 Gen4 and 2242 Gen3 NVMe storage
  • 5 Gbps Ethernet plus Wi-Fi 6E AX211 and Thunderbolt 4 enable fast wired and wireless connectivity

Specifications

BrandASUS
SeriesNUC 13 Pro
ModelNUC13ANHH5
Form FactorTall
CPU TypeIntel Core i5-13420H
CPU Cores8-Core (4P+4E)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (key M)
1 x M.2 2242 PCIe Gen3 NVMe SSD Slot (key B)
Integrated GraphicsIntel UHD Graphics
Onboard AudioRealtek ALC269
Channel2 Channel
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1 x 2.5-inch SATA 6Gb/s support for HDD (supports up to 4TB)
Front USB1 x USB 3.2 Gen2 Type-A (with BC1.2 5V/0.9A, 10Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x 3.5mm Audio Jack (Line out/Mic in/Headphone out)
HDMI2 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington Lock Slot
1 x Cable Locking Arm
1 x DC-in
Power Supply120W Power Adapter
Dimensions4.61" x 4.41" x 2.13"
Weight1.3 lbs
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord, US Cord for USA

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install memory in the two 260-pin SO-DIMM slots, and what step do people often miss?

Insert DDR4 3200 modules at an angle until the clips click; the common error is not seating both sticks fully, which prevents dual-channel operation.

What maintenance or replacement will the NUC13ANHH5 need over time?

The CMOS battery on the motherboard will eventually need replacement to keep BIOS settings and the system clock accurate.

What limit appears first during sustained heavy workloads on this unit?

The 28 W processor power envelope causes thermal throttling before the 64 GB memory ceiling or 2.5 Gbps LAN become bottlenecks.
