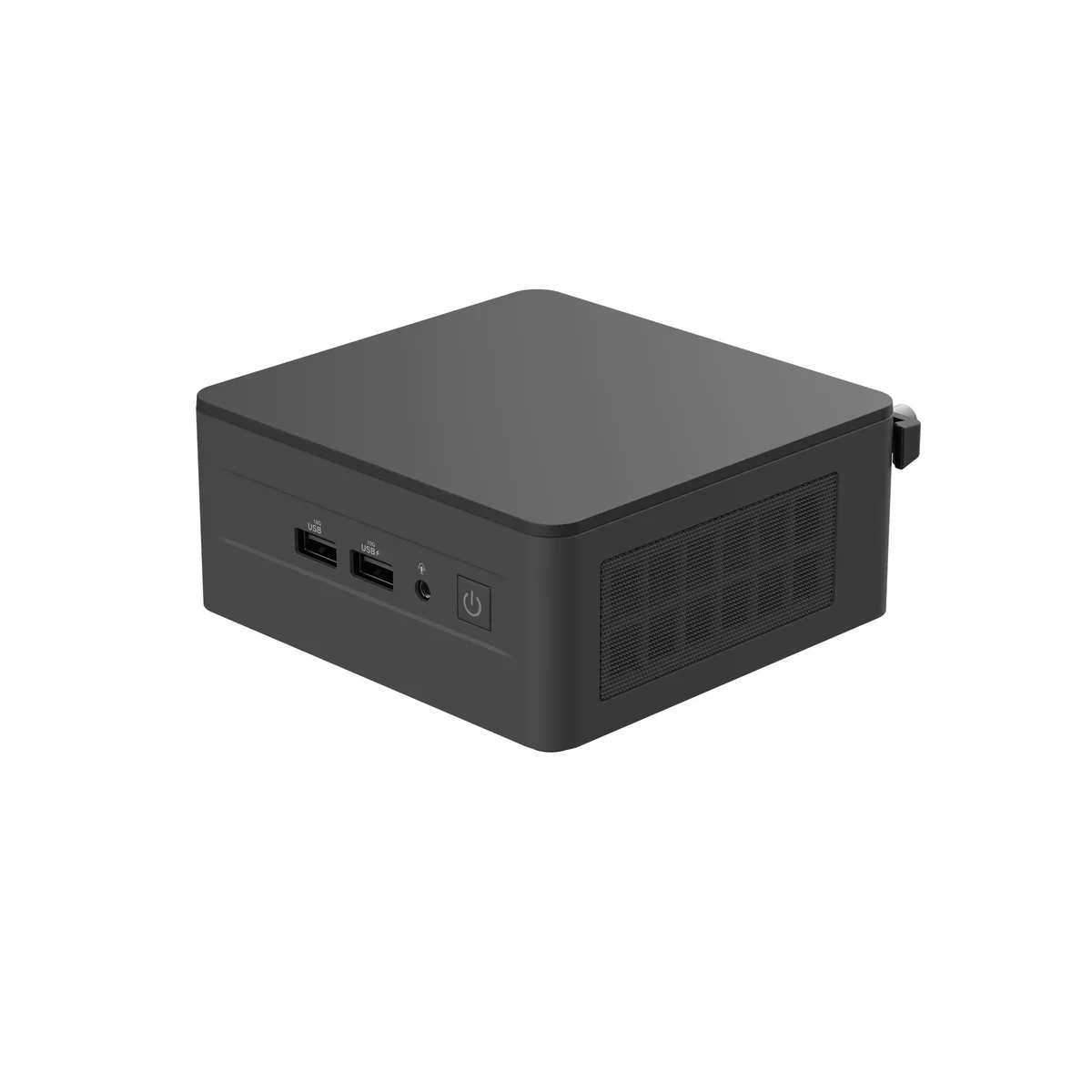

Compact square mini PC in dark finish with front ports visible

ASUS

ASUS NUC13ANHH5 barebone mini PC Core i5-13420H 64GB DDR4

SKU CH-30TG-0H7R0 MPN NUC13ANHH5

A compact 4x4 barebone mini PC supporting up to 64GB DDR4, 2.5GbE, Wi-Fi 6E and quad 4K displays via Thunderbolt 4

  • Form FactorTall
  • CPU TypeIntel Core i5-13420H
  • CPU Cores8-Core (4P+4E)
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

Option 64G RAM /2T SSD

  • 13th Gen Intel Core i5-13420H drives responsive performance
  • 5Gbps Intel Ethernet plus Wi-Fi 6E for fast wired and wireless links
  • Dual Thunderbolt 4 ports support one 8K or four 4K displays at 60Hz
  • VESA mount lets you hide the 4x4 chassis behind a monitor
  • Qualified for 24/7 operation with Kensington lock slot for physical security

ASUS NUC 13 Pro i5-13420H Barebone

The ASUS NUC 13 Pro NUC13ANHH5 is a tall barebone mini PC built around a 13th Gen Intel Core i5-13420H processor with eight cores. It targets users who need a compact Windows platform for digital signage, kiosk deployments or office productivity where a full tower is impractical. The system ships without memory or storage so integrators can populate it to exact requirements.

4x4 Chassis with VESA Mount and Dual Thunderbolt 4

The 4x4 form factor includes a VESA bracket for mounting behind monitors or on walls, suiting space-constrained installations. Dual Thunderbolt 4 Type-C ports provide DisplayPort video output and high-speed data, while two HDMI ports add further display flexibility. A Kensington lock slot and cable locking arm secure the unit in public or shared environments.

DDR4 3200 Limit and Gen4 NVMe Primary Slot

Memory tops out at 64 GB of DDR4 3200 across two 260-pin SO-DIMM slots running in dual channel; faster or newer memory generations are not supported. The primary M.2 2280 slot operates at PCIe Gen4x4 while the secondary 2242 slot runs at Gen3, so storage throughput differs between bays. The 2.5 Gbps Ethernet and Wi-Fi 6E AX211 wireless cap wired and wireless network performance.

Highlights

  • 13th Gen Intel Core i5-13420H drives responsive performance
  • 5Gbps Intel Ethernet plus Wi-Fi 6E for fast wired and wireless links
  • Dual Thunderbolt 4 ports support one 8K or four 4K displays at 60Hz
  • VESA mount lets you hide the 4x4 chassis behind a monitor
  • Qualified for 24/7 operation with Kensington lock slot for physical security

Specifications

BrandASUS
SeriesNUC 13 Pro
ModelNUC13ANHH5
Form FactorTall
CPU TypeIntel Core i5-13420H
CPU Cores8-Core (4P+4E)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (key M)
1 x M.2 2242 PCIe Gen3 NVMe SSD Slot (key B)
Integrated GraphicsIntel UHD Graphics
Onboard AudioRealtek ALC269
Channel2 Channel
LANIntel i226V
Max LAN Speed10/100/1000/2500Mbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB1 x USB 3.2 Gen2 Type-A (with BC1.2 5V/0.9A, 10Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x 3.5mm Audio Jack (Line out/Mic in/Headphone out)
HDMI2 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington Lock Slot
1 x Cable Locking Arm
1 x DC-in
Power Supply120W Power Adapter
Dimensions4.61" x 4.41" x 2.13"
Weight1.3 lbs
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord, US Cord for USA

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How fast is the 2.5 Gbps Ethernet port in real use?

The Intel i226V controller negotiates up to 2500 Mbps; actual throughput depends on cabling, switch capability and network load.

What physical mounting hardware comes with the 4×4 chassis?

A VESA mount bracket is included for wall or monitor-back installation; the Kensington lock slot and cable locking arm are built into the case.

How do I add memory and storage to the barebone, and what step is often missed?

Install up to 64 GB of DDR4 3200 in the two 260-pin SO-DIMM slots and add NVMe drives in the M.2 2280 Gen4 and M.2 2242 Gen3 slots; enable dual-channel mode by populating both memory slots.
