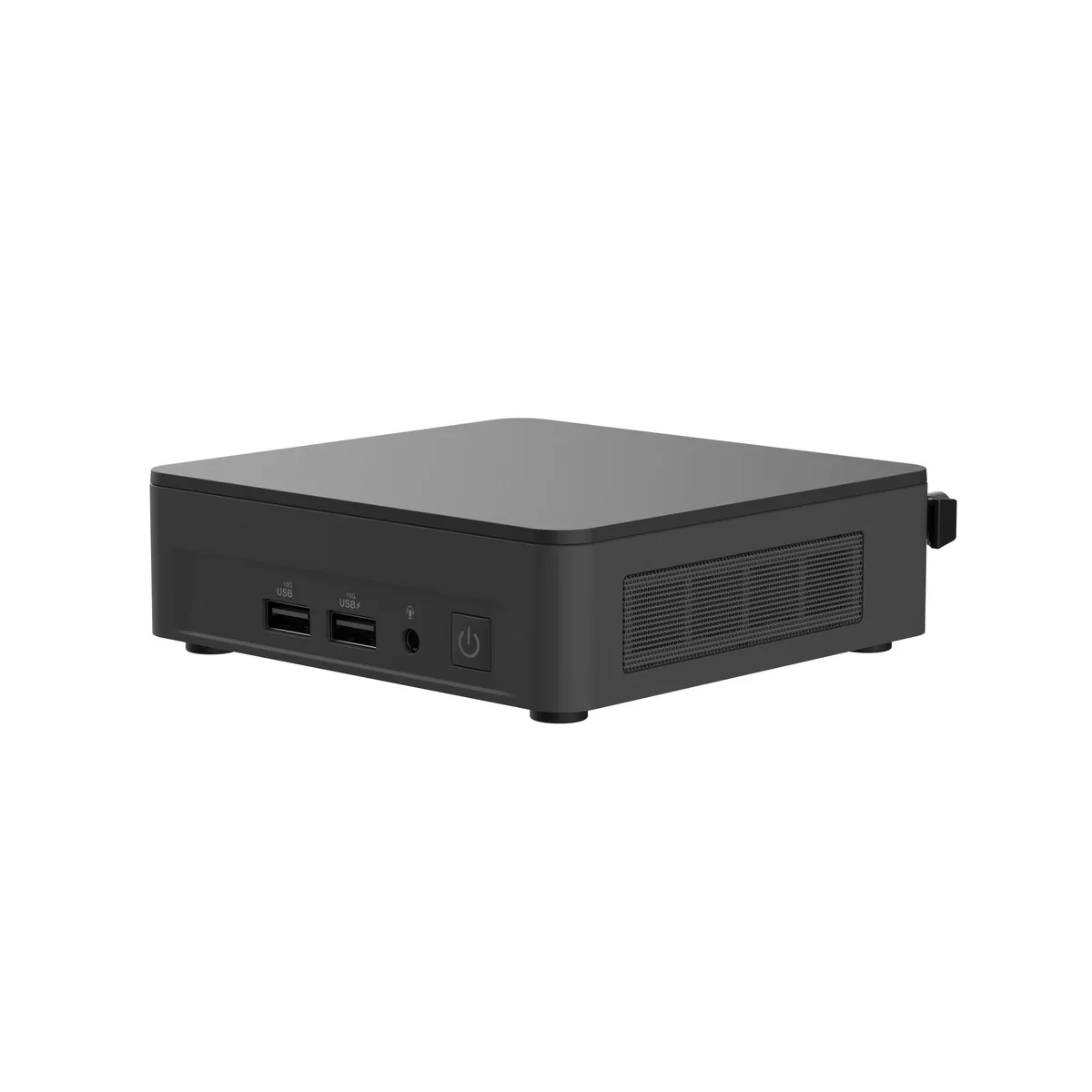

Compact square mini PC, matte black finish, front USB ports and power button visible

ASUS

ASUS NUC13ANKH5 Core i5-13420H barebone mini PC

SKU CH-XHYX-45RY7 MPN NUC13ANKH5

A barebone mini PC with a 13th Gen Core i5-13420H, dual DDR4 SO-DIMM slots up to 64GB, two M.2 NVMe slots, Intel UHD Graphics, 2.5Gbps LAN, Wi-Fi 6E and Thunderbolt 4 for quad 4K or single 8K output

  • Form FactorSlim
  • CPU TypeIntel Core i5-13420H
  • CPU Cores8-Core (4P+4E)
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

Option 32G RAM / 1T SSD

  • 13th Gen Intel Core i5-13420H with 8 cores for responsive multitasking
  • Ultrasmall 4x4 form factor includes VESA mount for flexible placement
  • 5Gbps Intel Ethernet plus Wi-Fi 6E AX211 for fast wired and wireless links
  • Dual HDMI and dual Thunderbolt 4 ports drive up to quad 4K 60 Hz displays
  • Qualified for 24/7 operation with Kensington lock and cable locking arm for security

Compact 13th Gen i5 barebone for embedded workloads

The ASUS NUC13ANKH5 is a slim 4x4 mini PC built around an 8-core Intel Core i5-13420H with Intel UHD Graphics. It ships without memory or storage and includes a VESA mount for wall or behind-monitor installation. Qualified for continuous operation, it adds a Kensington lock slot and cable locking arm for physical security.

Suited for signage and kiosk builders needing

This barebone drives one 8K or four 4K60 screens through dual HDMI and dual DisplayPort over Thunderbolt 4 Type-C ports. Buyers who want a system with RAM and an SSD pre-installed should look at a configured unit instead.

Dual-channel DDR4-3200 SO-DIMM support up to 64 GB

Two 260-pin slots accept DDR4 3200 modules in dual-channel mode, defining the memory ceiling for any workload. Storage uses one M.2 2280 PCIe Gen4x4 slot and one M.2 2242 PCIe Gen3 slot, both keyed for NVMe drives.

Highlights

  • 13th Gen Intel Core i5-13420H with 8 cores for responsive multitasking
  • Ultrasmall 4x4 form factor includes VESA mount for flexible placement
  • 5Gbps Intel Ethernet plus Wi-Fi 6E AX211 for fast wired and wireless links
  • Dual HDMI and dual Thunderbolt 4 ports drive up to quad 4K 60 Hz displays
  • Qualified for 24/7 operation with Kensington lock and cable locking arm for security

Specifications

BrandASUS
SeriesNUC 13 Pro
ModelNUC13ANKH5
Form FactorSlim
CPU TypeIntel Core i5-13420H
CPU Cores8-Core (4P+4E)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (key M)
1 x M.2 2242 PCIe Gen3 NVMe SSD Slot (key B)
Integrated GraphicsIntel UHD Graphics
Onboard AudioRealtek ALC269
Channel2 Channel
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1 x 2.5-inch SATA 6Gb/s support for HDD (supports up to 4TB)
Front USB1 x USB 3.2 Gen2 Type-A (with BC1.2 5V/0.9A, 10Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x 3.5mm Audio Jack (Line out/Mic in/Headphone out)

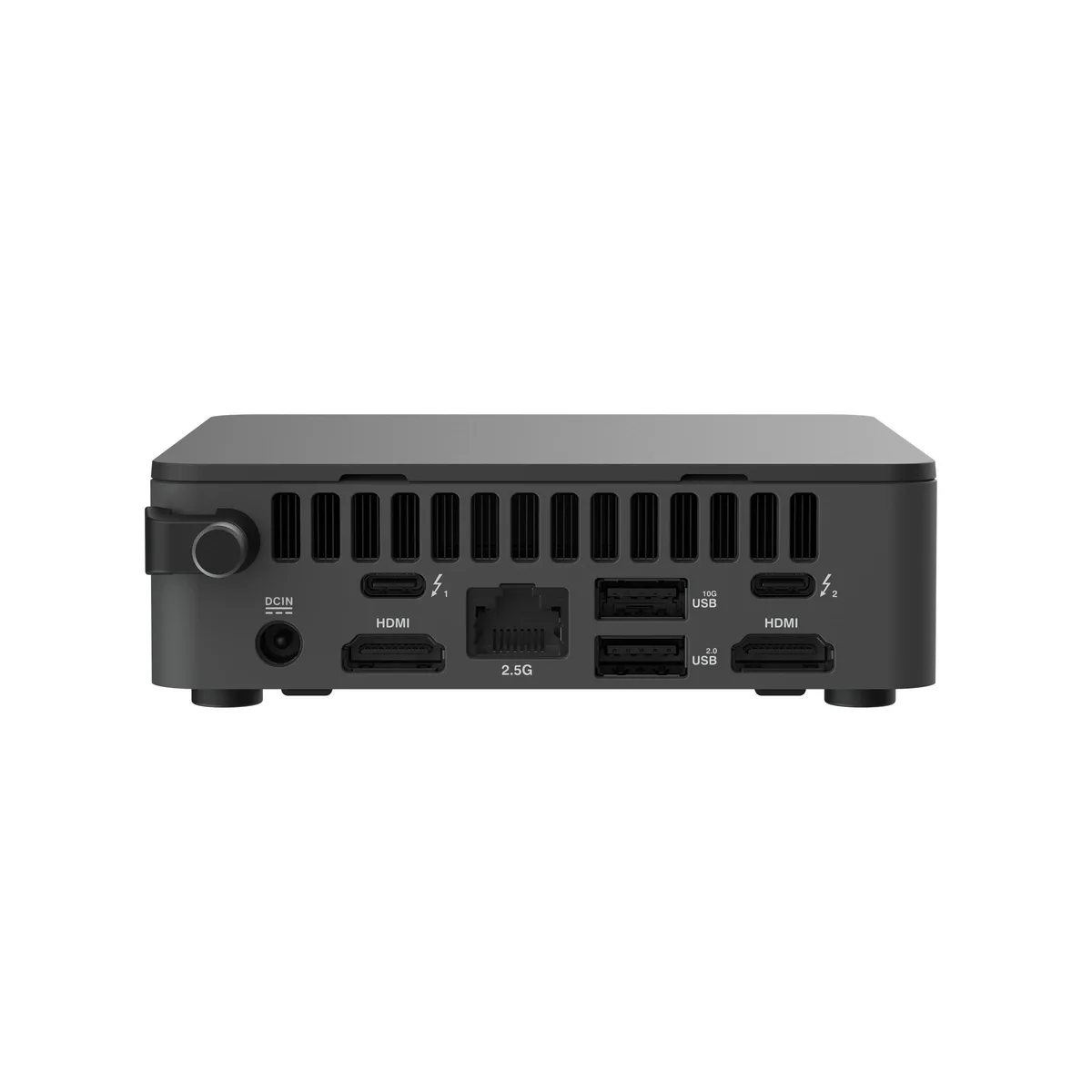

HDMI2 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington Lock Slot
1 x Cable Locking Arm
1 x DC-in
Power Supply120W Power Adapter
Dimensions4.61" x 4.41" x 2.13"
Weight1.3 lbs
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord, US Cord for USA

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much DDR4-3200 memory can I install in the two SO-DIMM slots?

The board accepts two 260-pin SO-DIMMs up to 64 GB total, running in dual-channel mode at 3200 MT/s.

What does the 8-core Core i5-13420H deliver for everyday workloads?

Eight cores (four performance plus four efficient) handle office apps, light content creation and 4K playback smoothly within the compact 4x4 chassis.

What display outputs do the Thunderbolt 4 ports add beyond the two HDMI ports?

Each Thunderbolt 4 Type-C port carries DisplayPort 1.4, so you can drive up to one 8K or four 4K 60 Hz screens in total.
